Pioneer GEX-INN01 Replacement Battery 3.7V 2000mAh 990216

Pioneer GEX-INN01 / XM2go / inno Series — 3.7V Li-ion Replacement Battery (990216)

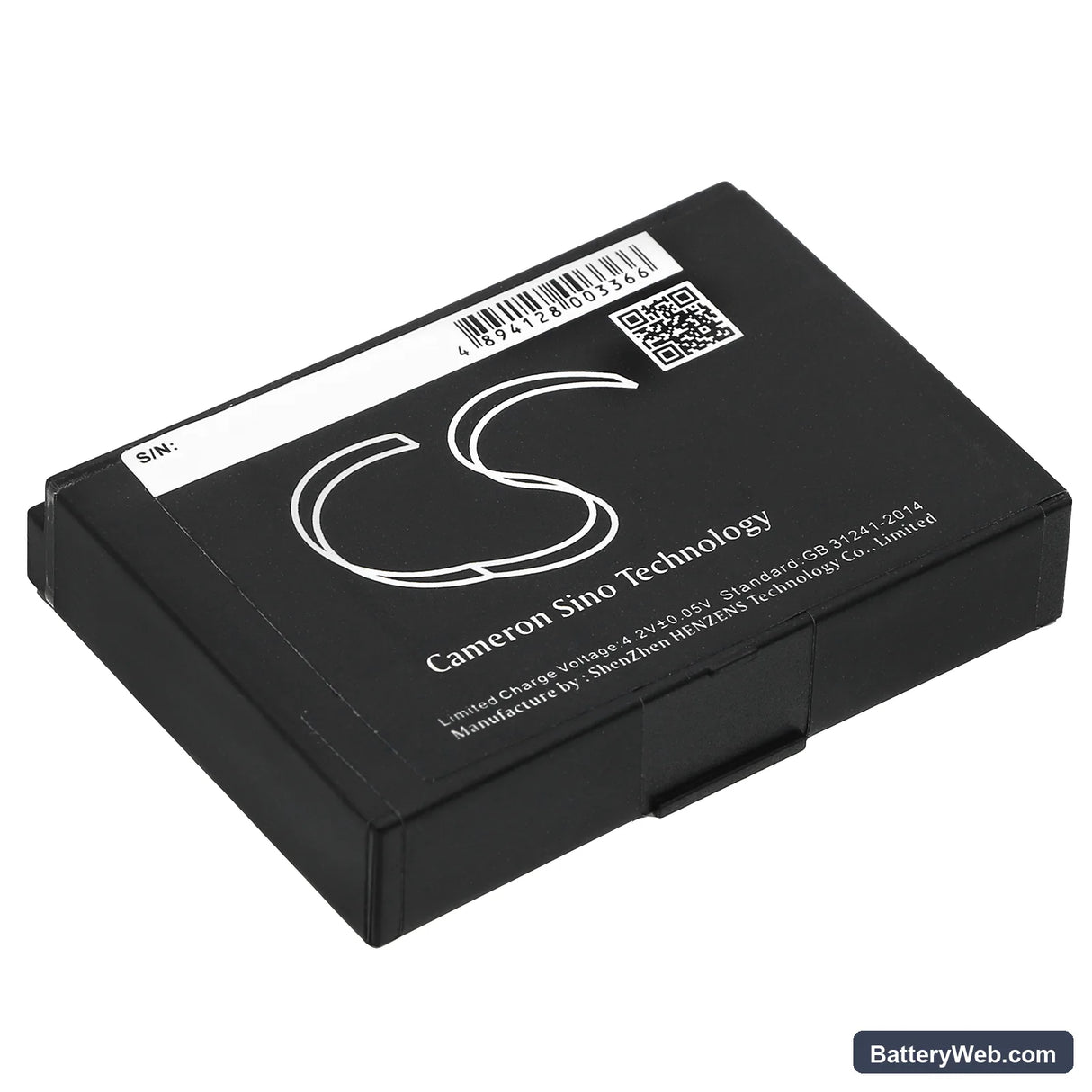

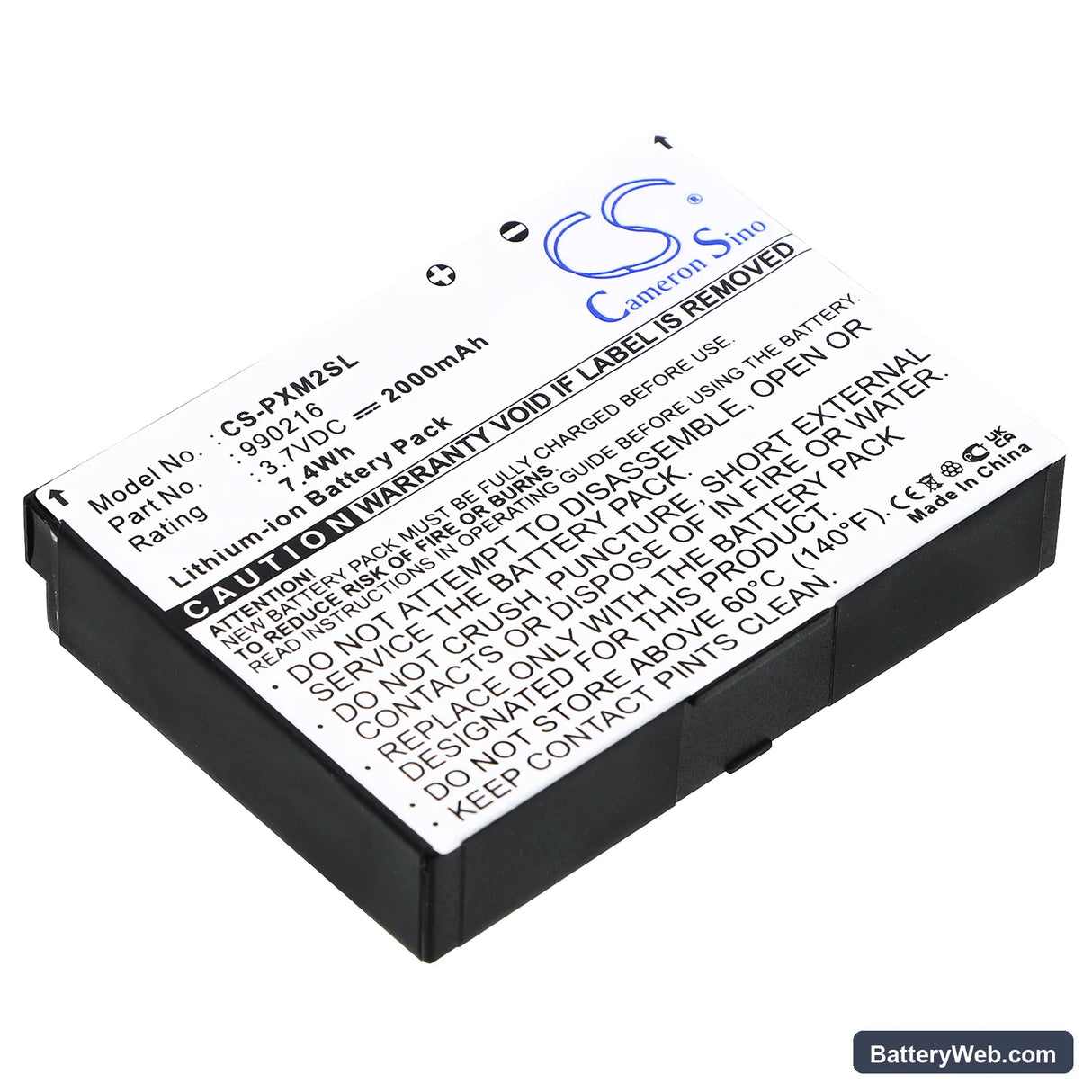

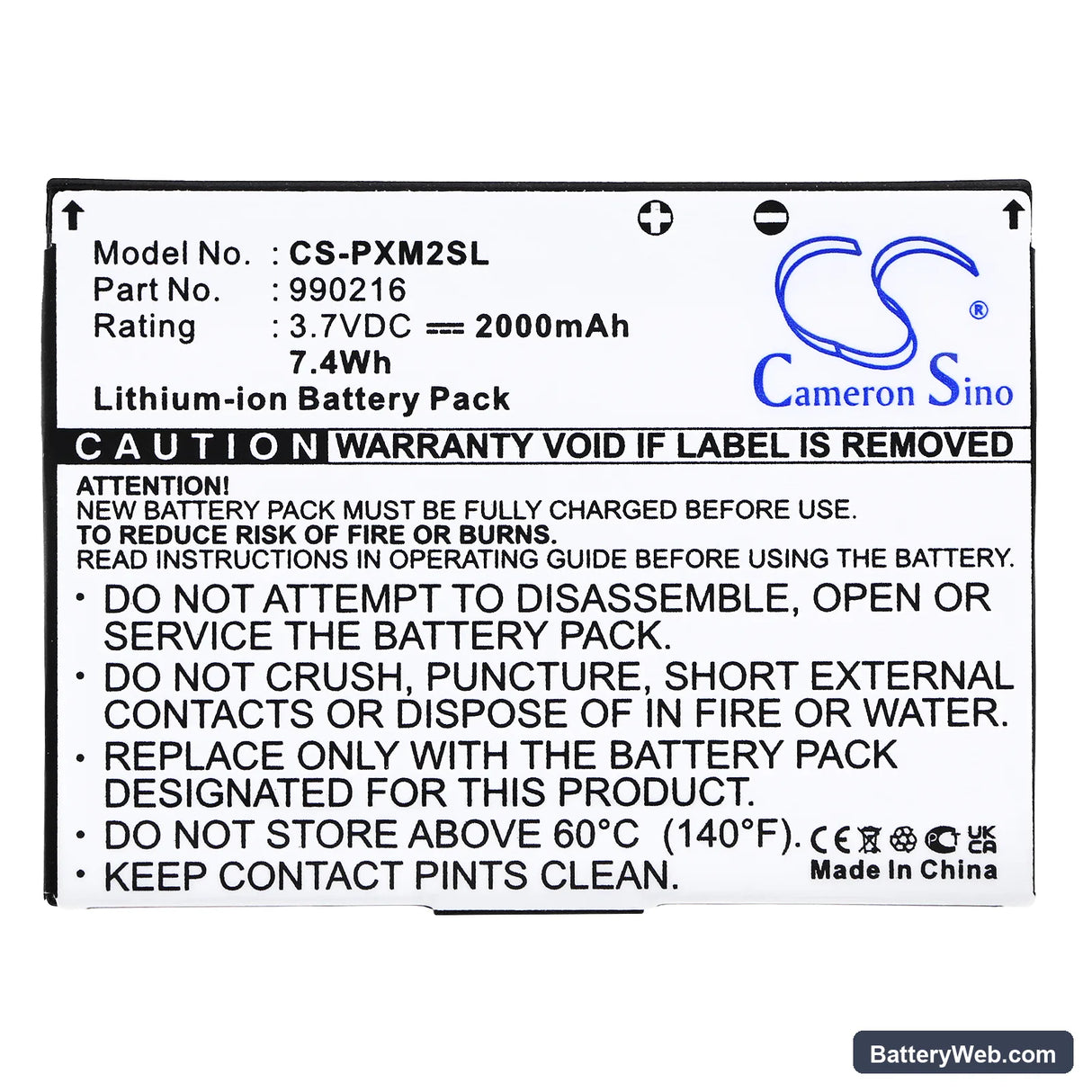

This is a 3.7V 2000mAh Li-ion replacement battery for the Pioneer GEX-INN01 portable media player and the XM2go, inno, and inno2BK family. Part number 990216 matches the OEM specification. It slots directly into the battery bay and connects to the same BMS handshake the device expects at startup.

• GEX-INN01 / XM2go / inno platform fit: These models share the same 3.7V cell format, connector pinout, and BMS communication protocol — which is why one part number covers the full lineup. The device firmware reads cell voltage through the same sense line across all variants.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the GEX-INN01 platform and confirmed the BMS accepted the cell without fault flags. Charge termination triggered correctly at full voltage with no thermal events.
• Post-install charge cycle on the inno platform: After fitting a new cell, run a full charge before first playback. The GEX-INN01 and its siblings use a voltage-threshold indicator that recalibrates on the first complete charge cycle — skipping this step causes the percentage gauge to read inaccurately from day one.

Playback cutting out before the battery indicator shows empty

The audio amplifier circuit in the GEX-INN01 draws a spike of current each time it drives the output stage. Near the end of a discharge cycle, cell voltage sags under that load even when the gauge still reads partial charge. The BMS interprets the voltage sag as a low-cell event and cuts power to protect the cell — before the display registers empty. This is a normal protection response, not a fault. A fresh 2000mAh cell has lower internal resistance, which reduces the sag and pushes that cutoff point closer to actual empty.

Battery percentage jumping erratically after cell replacement

The GEX-INN01 estimates charge state by tracking voltage thresholds set during the previous cell's life. Swapping in a new cell resets those reference points, so the gauge can jump — showing 80%, then 60%, then 90% — during the first few cycles. This is not a faulty battery; it is the voltage-threshold indicator recalibrating. Run two or three full charge-to-discharge cycles and the gauge will stabilise. If it still jumps after three cycles, check that the cell connector is fully seated and the sense pin is making clean contact.
