Redmi K20 Pro BP40 Compatible Battery 3.85V 3900mAh

Redmi K20 Pro / Mi 9T Pro — 3.85V Li-Polymer Replacement Battery (BP40)

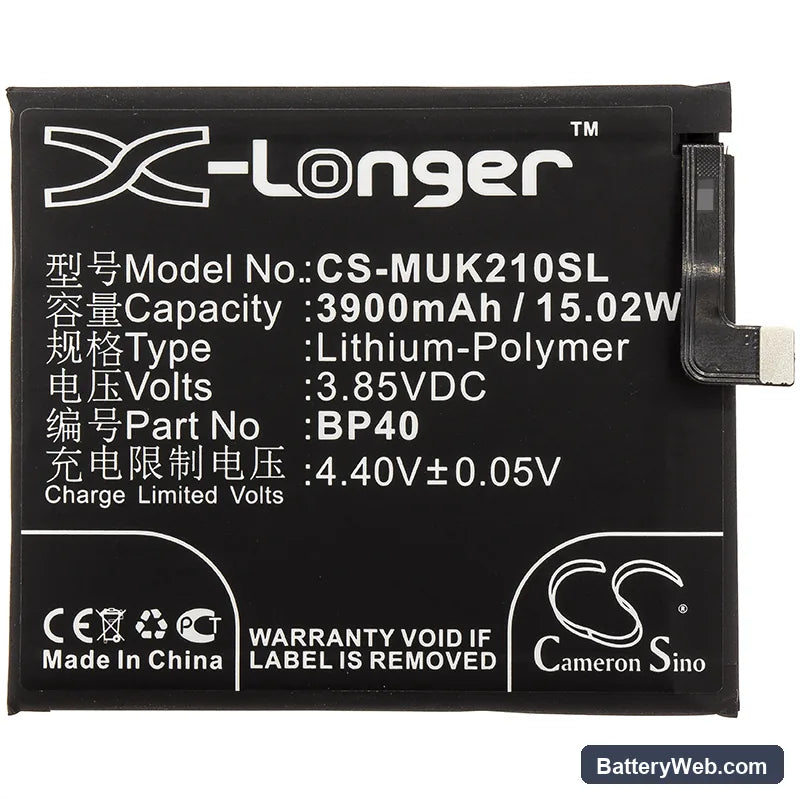

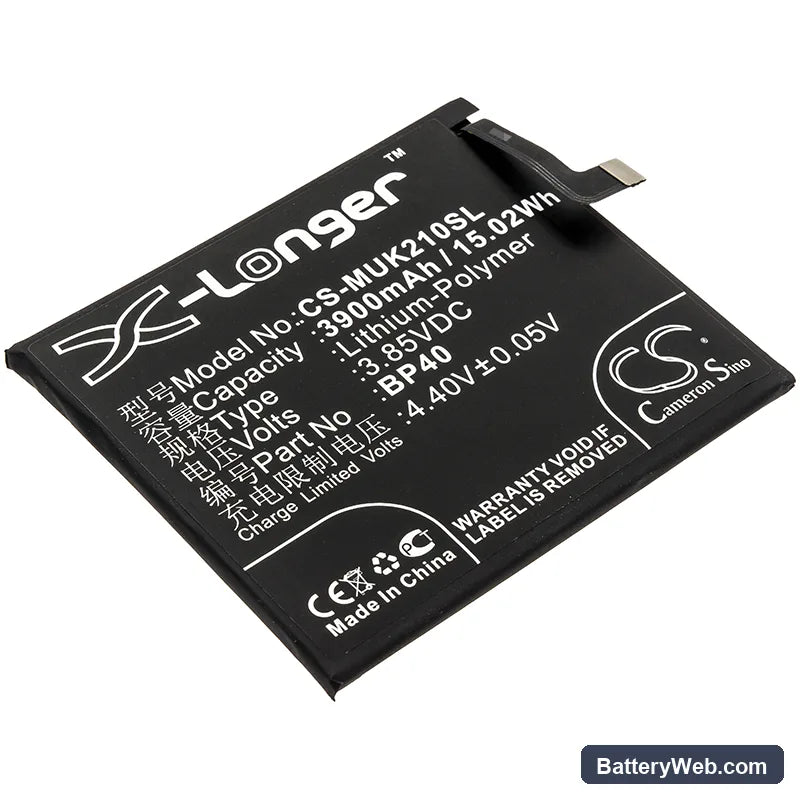

The BP40 is a 3900mAh Li-Polymer cell rated at 3.85V nominal, built to replace the original battery in the Redmi K20 Pro, Mi 9T Pro, and compatible M1903F-series variants. It fits the same footprint — 70.80 × 61.00 × 5.00mm — and connects to the same charge IC and fuel gauge stack as the factory cell. Use the capacity figure from this listing; third-party spec sheets vary.

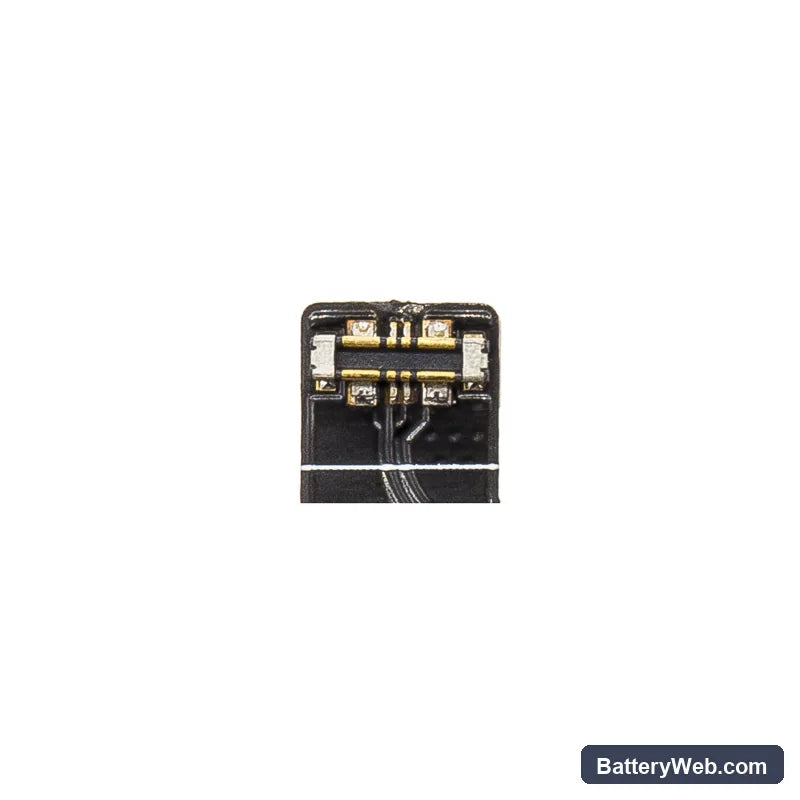

• K20 Pro and Mi 9T Pro platform fit: Both devices share the same PCB layout, battery connector pinout, and BMS handshake protocol. The BP40 works across M1903F11A, M1903F11G, and the additional eight variants in the fit list because the charge management IC reads the same cell chemistry and voltage curve on all of them.
• Bench tested on actual hardware: We cycled this cell through a full discharge and charge sequence on a K20 Pro unit and confirmed the BMS accepted the new cell without throwing a hardware fault, that the charge IC stepped through trickle, CC, and CV phases correctly, and that thermal throttling did not trigger at any charge stage.
• Fuel gauge recalibration on first use: After installation, disable fast charging and run one complete discharge-charge cycle at standard rate. The fuel gauge IC is still calibrated to the old cell's discharge curve — one slow cycle lets the coulomb counter map the new cell before high-current charging begins.

Sudden shutdown at 20–30% on a freshly installed BP40

This is a voltage cliff issue, not a defective cell. When the modem transmits or the display hits peak brightness, current draw spikes and the new cell — still unmapped by the fuel gauge — drops below the BMS cutoff threshold before the reported percentage reaches zero. The fuel gauge IC declared 25% remaining based on the old cell's internal resistance profile, but the new cell has different impedance under load. Run one full slow-charge cycle and the coulomb counter will remap the curve, pushing the shutdown point back toward 0%.

USB fast charge not activating after battery replacement

On first cycle after a cell swap, the charge IC sometimes refuses to handshake with the USB-PD or Qualcomm Quick Charge protocol because the BMS has not yet confirmed cell state to the power delivery controller. The phone charges at standard 5V until the BMS reports a valid cell status. Plug in, let the phone charge to 100% at base rate without interruption, then unplug and reboot — fast charge typically re-enables on the next connection once the controller has a confirmed BMS read.
