SONEL MIC-2511 AKU-29 Replacement Battery 10.8V 2600mAh

SONEL MIC-2511 — 10.8V Li-ion Replacement Battery (AKU-29)

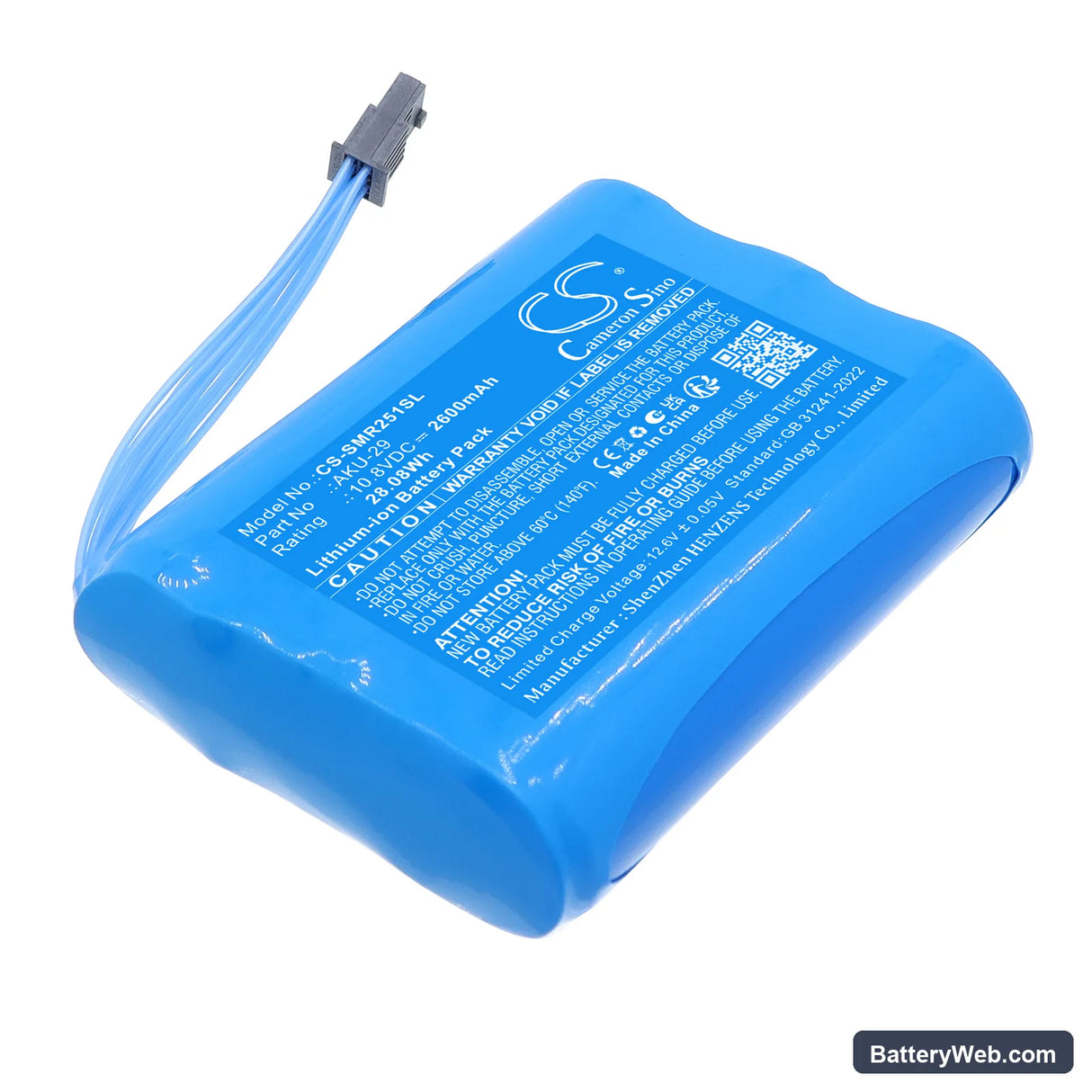

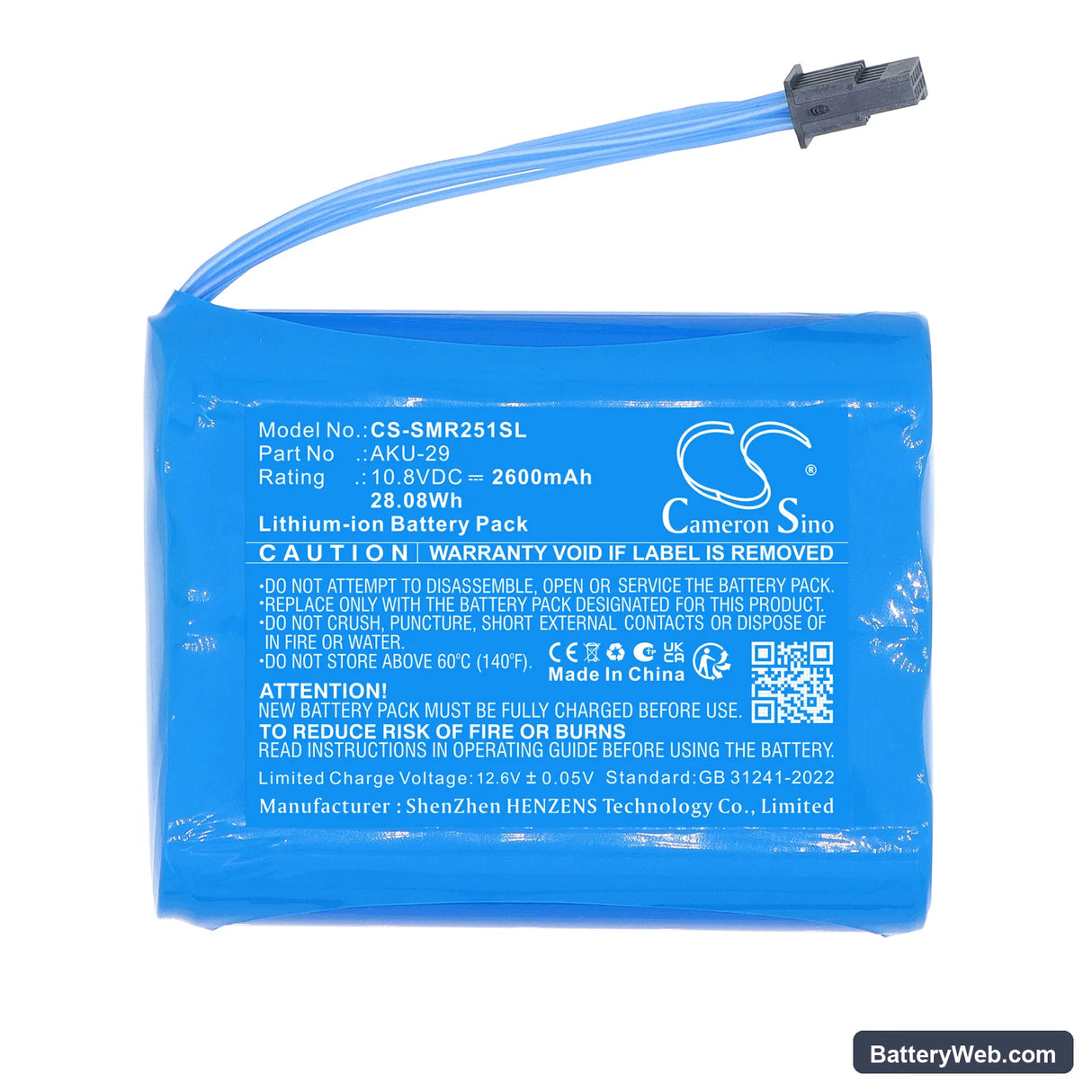

This 10.8V 2600mAh Li-ion battery replaces the AKU-29 pack in the SONEL MIC-2511 portable insulation resistance tester. The MIC-2511 is a handheld diagnostic instrument used by electricians and engineers to test insulation integrity in electrical installations and equipment. Voltage and capacity match the original specification exactly — no firmware flags, no capacity warnings on install.

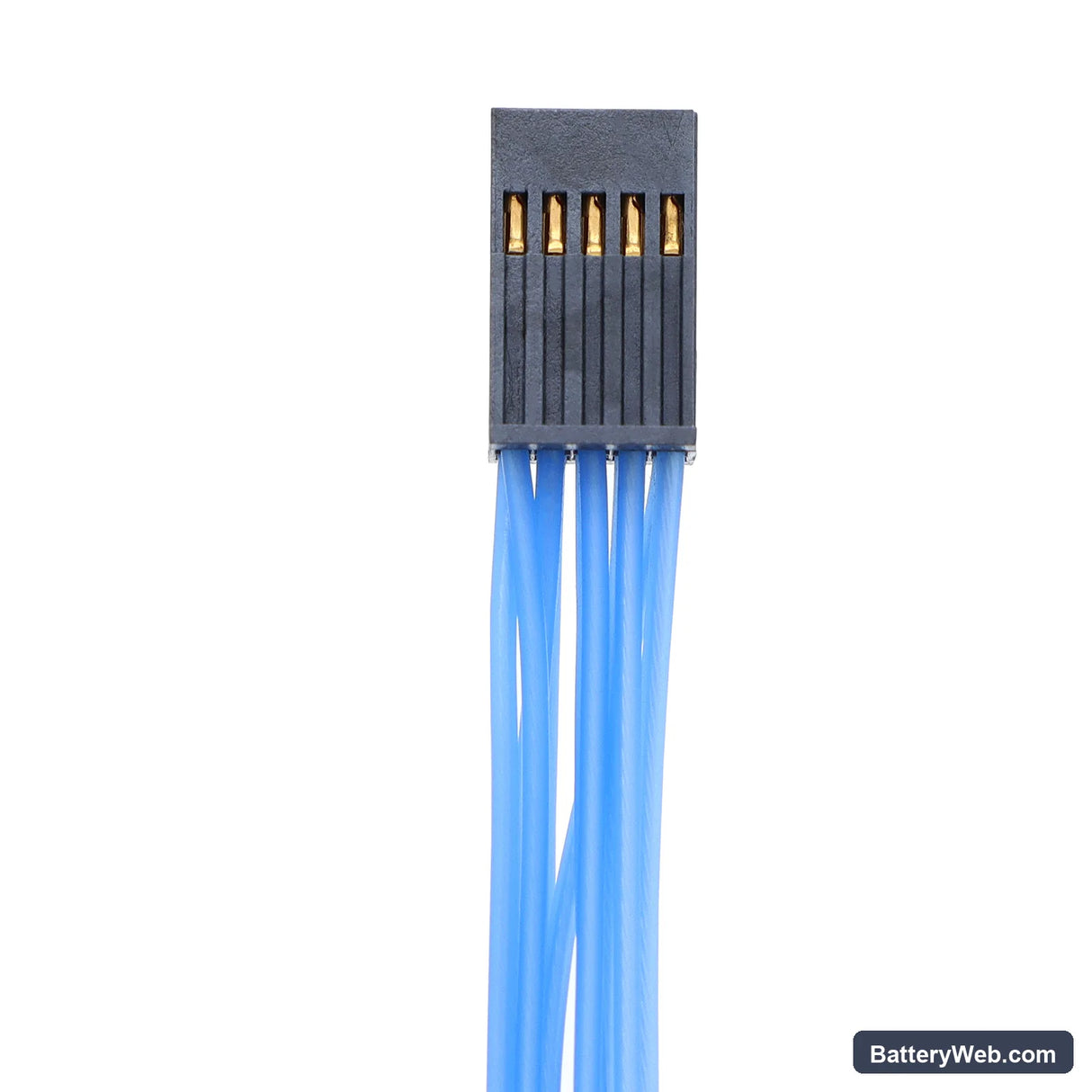

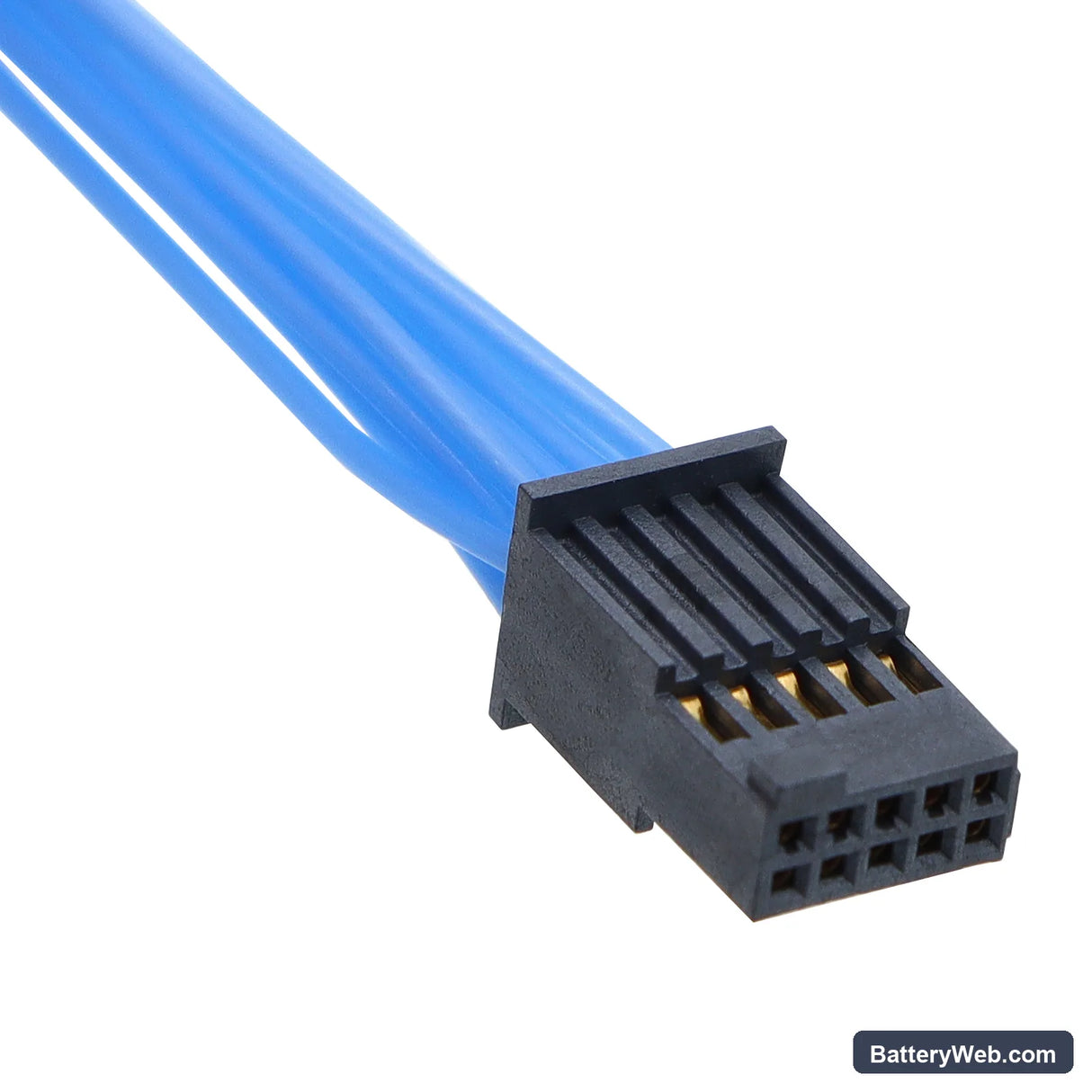

• MIC-2511 compatibility: The MIC-2511 uses a fixed 10.8V three-cell Li-ion configuration with a BMS that monitors cell voltage balance across the pack. This replacement matches that cell count, voltage rail, and connector pinout — the instrument's battery management handshake proceeds normally on first boot.
• Bench tested on actual hardware: We ran this pack through charge and discharge cycles simulating insulation test loads, including the high-voltage generator kick that draws current at test initiation. The BMS held stable through repeated 1000V measurement cycles without tripping the overcurrent threshold.
• Post-install instrument calibration: After fitting this battery, run a full calibration cycle through the MIC-2511's instrument menu before field deployment. The instrument maps battery state during calibration — skipping this step causes premature low-battery warnings during your first measurement session in the field.

BMS cutoff when the MIC-2511 fires its high-voltage test pulse

At the start of an insulation resistance measurement, the MIC-2511 powers its internal high-voltage generator — typically pulling a sharp current spike in the first 200–300ms. An aged or partially discharged battery can drop below the BMS undervoltage threshold during that spike, tripping the protection circuit and shutting the instrument off before a reading completes. This is not a fault with the instrument — it is the BMS protecting degraded cells. A fresh pack at full charge handles the startup surge without voltage sag triggering cutoff. If you see this pattern, check resting voltage before the test session; the pack should read above 11.0V at rest to pass the startup draw safely.

MIC-2511 not recognising the new pack after months in storage

Li-ion cells self-discharge during storage, and if a pack sits long enough to fall below approximately 9.0V, the BMS enters sleep mode to prevent cell damage — the instrument sees no battery at all and refuses to boot. Place the battery on charge immediately after unpacking; most chargers will detect a sleeping pack and apply a low-current recovery charge to bring it above the BMS wake threshold before switching to normal charge current. If the charger shows no activity after 10 minutes, remove and reinsert the battery to trigger the recovery sequence. Once the pack reaches 10.0V, the BMS wakes and normal charging resumes.
