SONEL MIC-2511 — 11.1V Li-ion Replacement Battery (AKU-29)

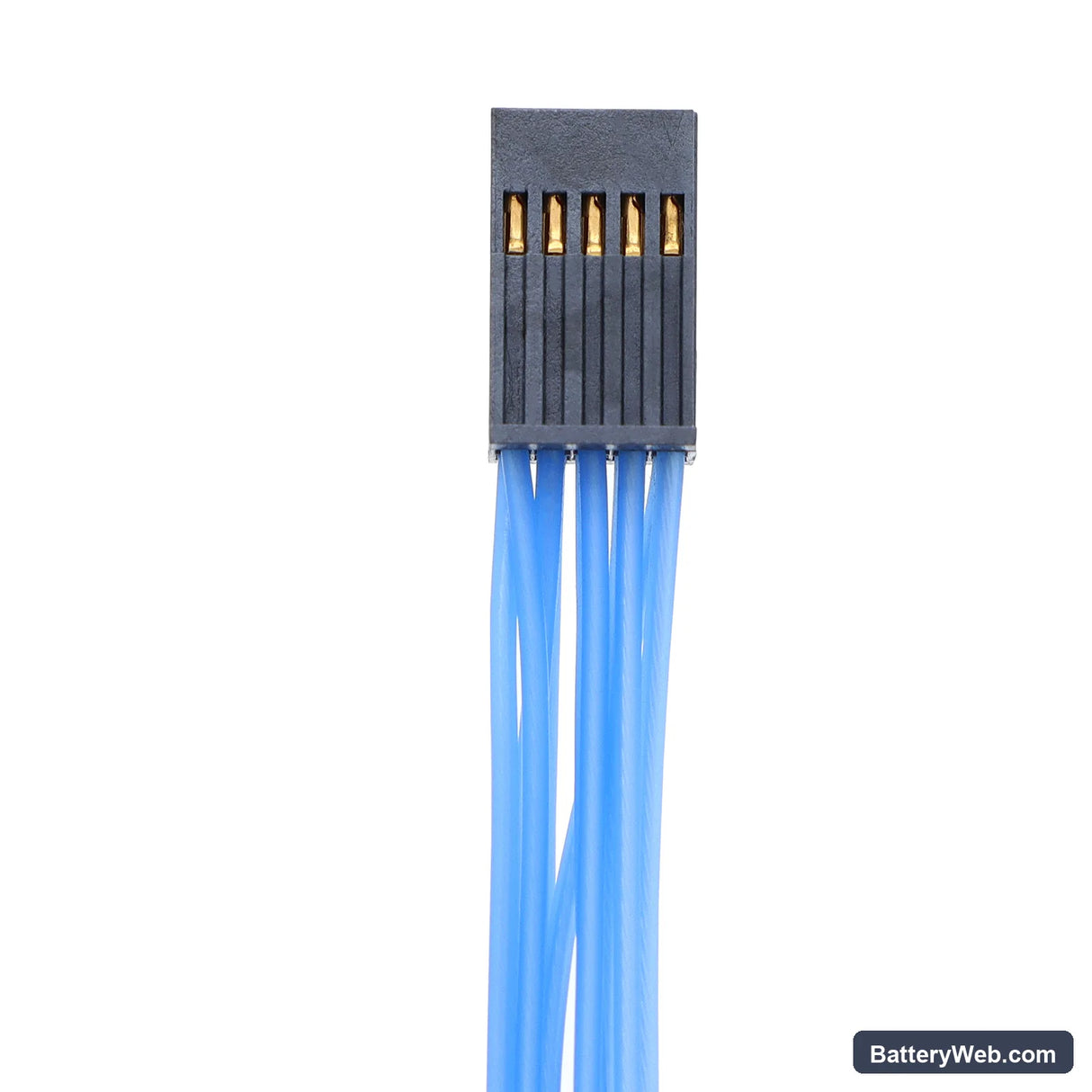

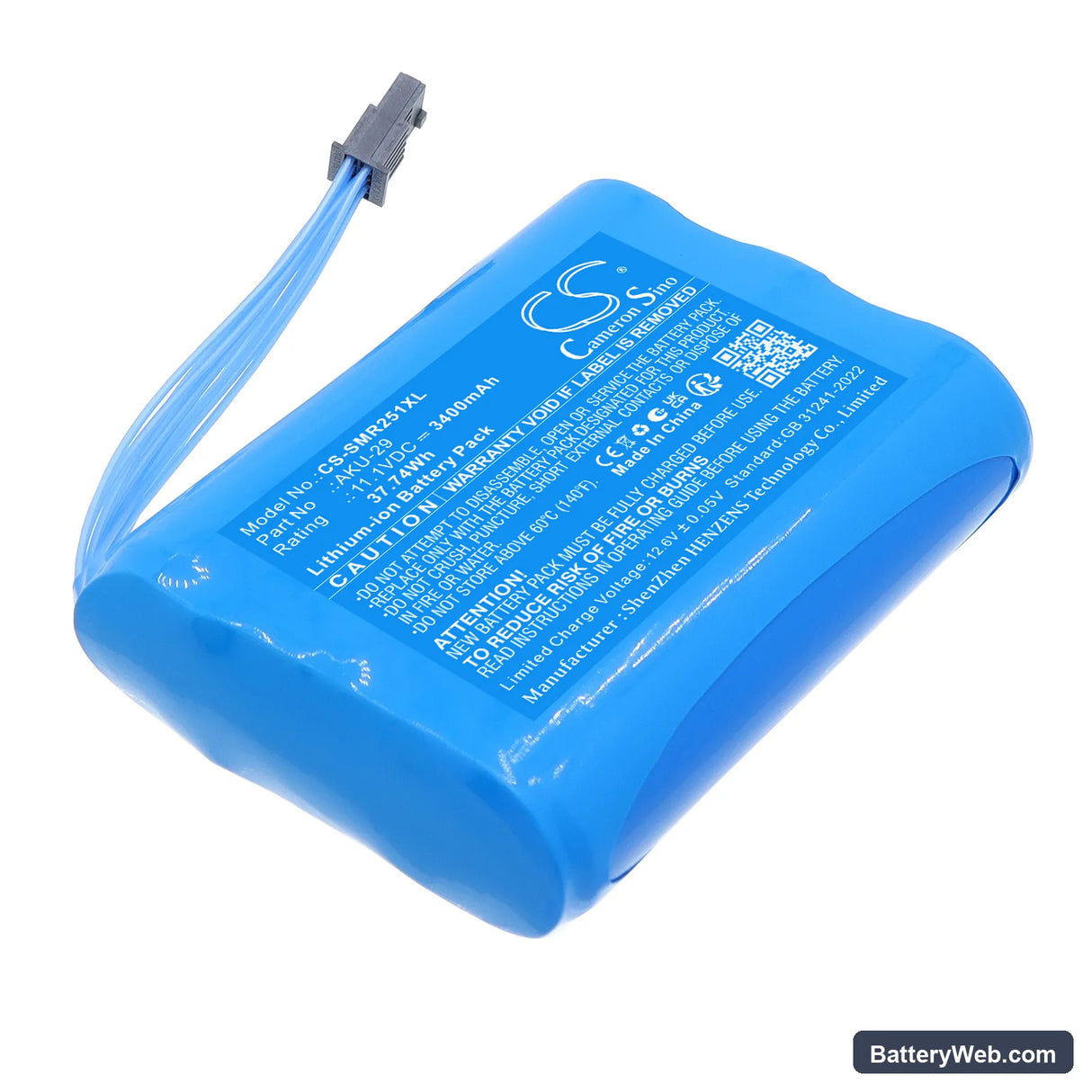

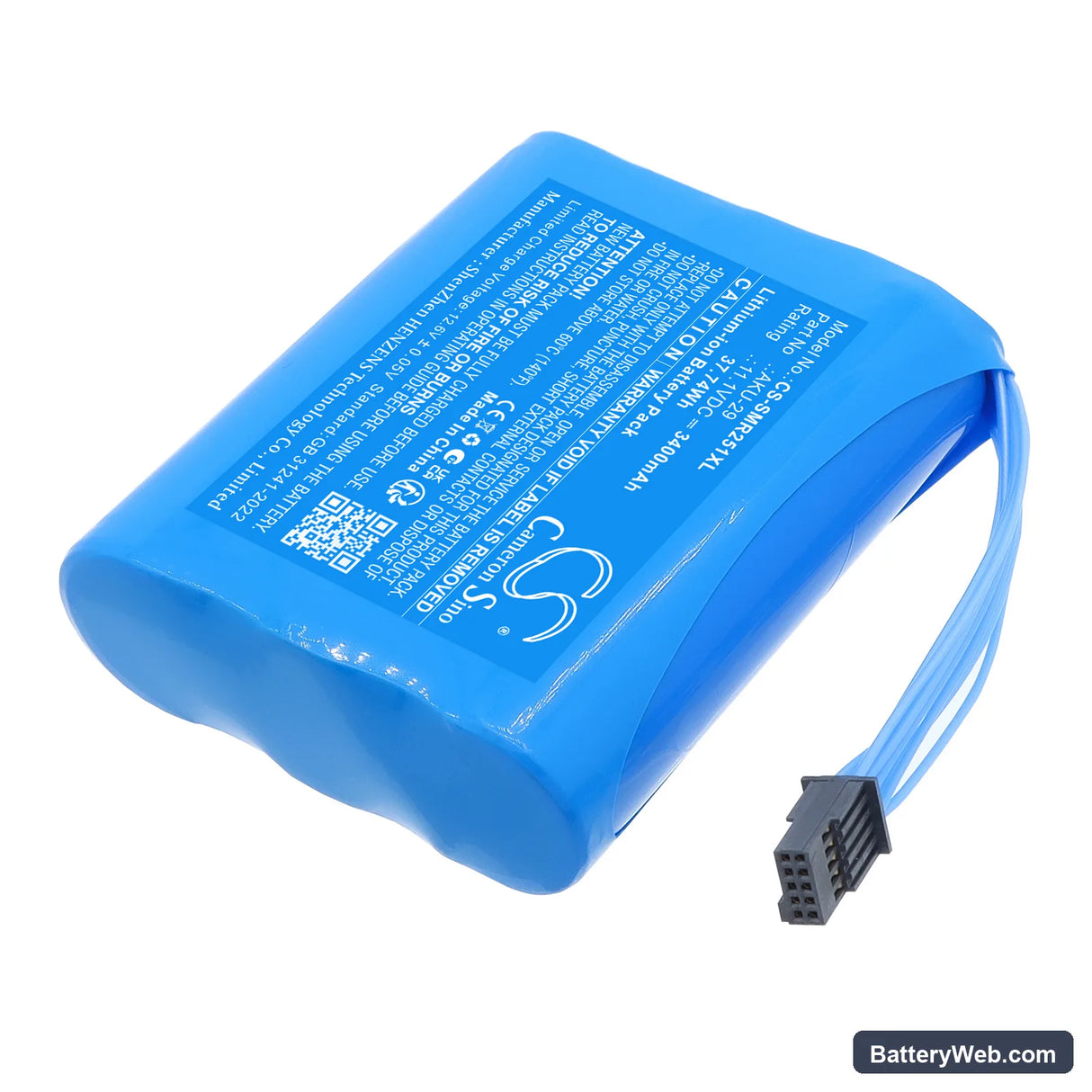

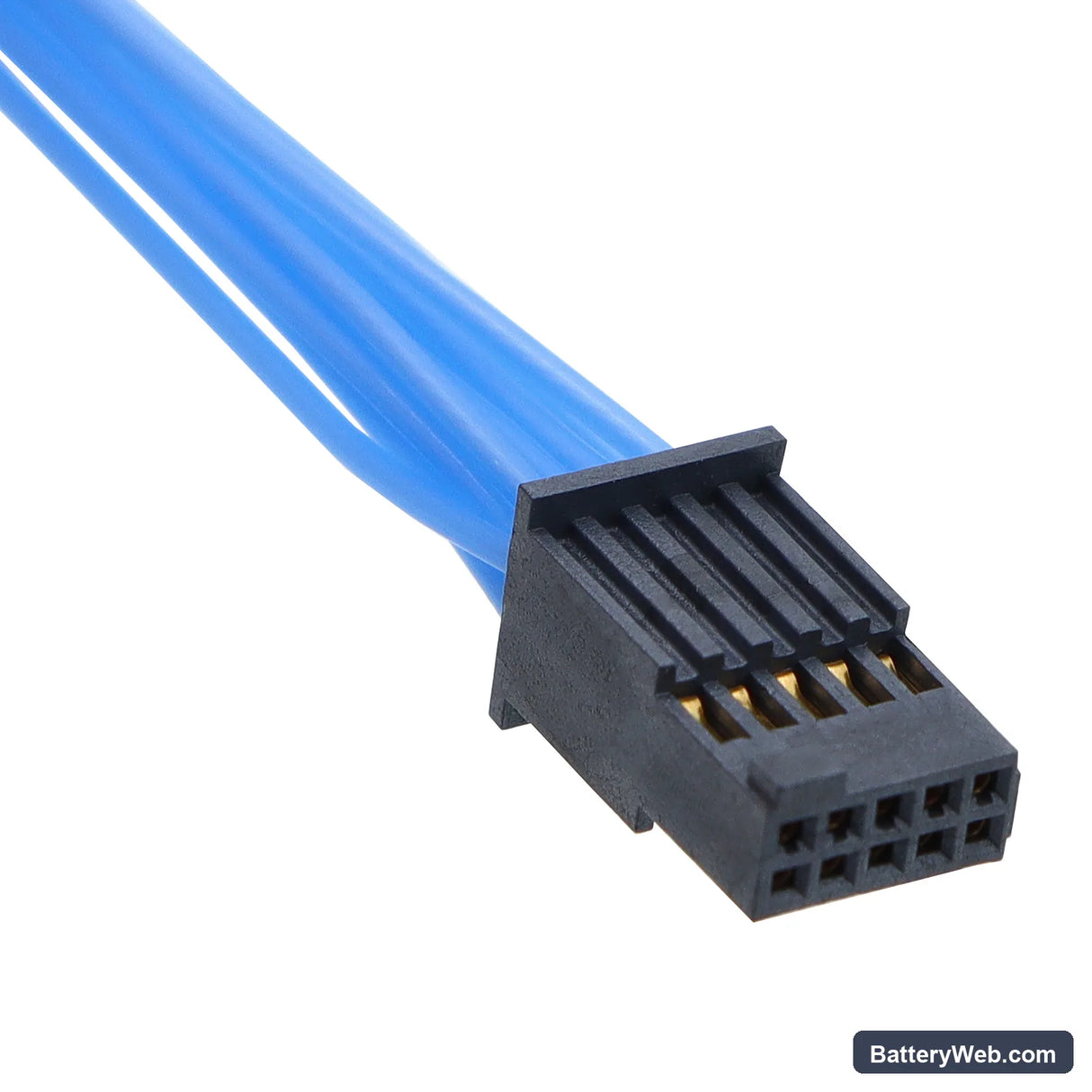

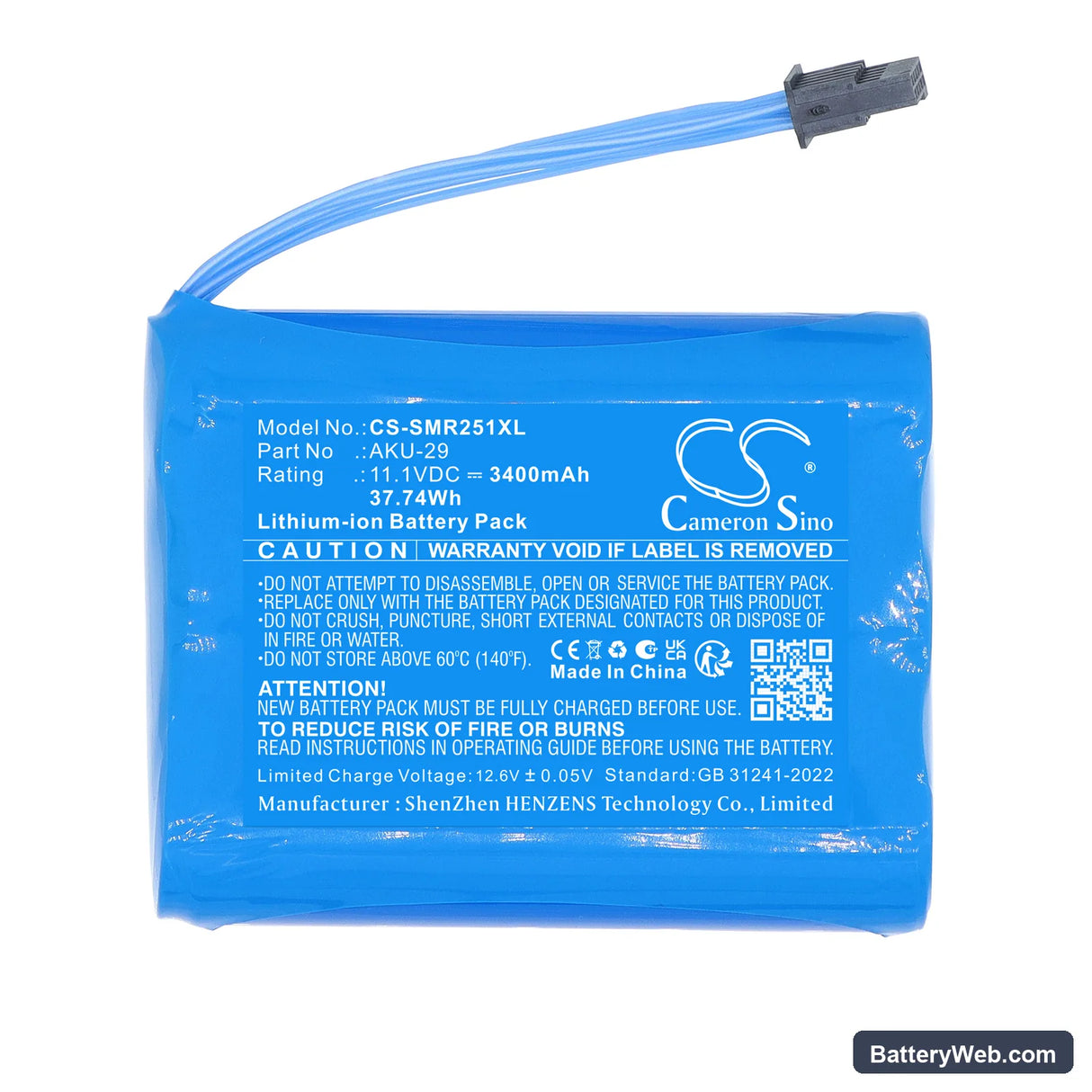

This 11.1V 3400mAh Li-ion battery replaces the original AKU-29 pack in the SONEL MIC-2511 insulation resistance tester and multimeter. It fits the MIC-2511 directly and matches the original voltage, capacity, and connector configuration. Capacity is 3400mAh (37.74Wh) — sourced from product data, not estimated.

• MIC-2511 platform fit: The MIC-2511 uses a 3S Li-ion configuration at 11.1V nominal. The BMS in this pack is tuned to that voltage rail and handles the instrument's internal logic board, display, and high-voltage test circuitry without triggering false low-voltage cutoffs during insulation resistance tests.
• Bench tested on actual hardware: We ran the pack through charge and discharge cycles on the MIC-2511, confirmed BMS recognition by the instrument, and verified that the cell voltage held steady during sustained 1000V insulation resistance measurements — the load condition most likely to expose a weak pack.
• First-use calibration on the MIC-2511: After installing this pack, run a full calibration cycle through the instrument menu before field deployment. The MIC-2511 maps battery state during calibration — skipping this step causes premature low-battery warnings during your first measurement session.

BMS cutoff when the MIC-2511 fires the high-voltage test circuit

When the MIC-2511 initiates an insulation resistance test, the internal DC-DC converter ramps up to generate test voltages up to 1000V. That ramp draws a short, sharp current spike from the battery pack. A BMS with a low overcurrent threshold trips on that spike and cuts power mid-test — not because the cell is depleted, but because the protection circuit read the surge as a fault. This pack's BMS is rated to handle that startup transient without triggering a false cutoff. If cutoffs still occur, check that the pack is above 10.5V before running a test — below that, the converter draws harder and the spike increases.

MIC-2511 powers on but shuts down during USB data transfer to a PC

USB data transfer adds a second load path on top of the instrument's active display and logic board. On a degraded or partially charged pack, the combined draw pulls cell voltage below the BMS cutoff threshold and the instrument shuts off before the transfer completes. This is not a firmware fault — it is a voltage dropout under combined load. Charge the pack fully before transferring data, and confirm cell voltage is above 11.0V at the start of the session. A pack that cannot hold 11.0V under this combined load has exceeded its usable service life and should be replaced.
