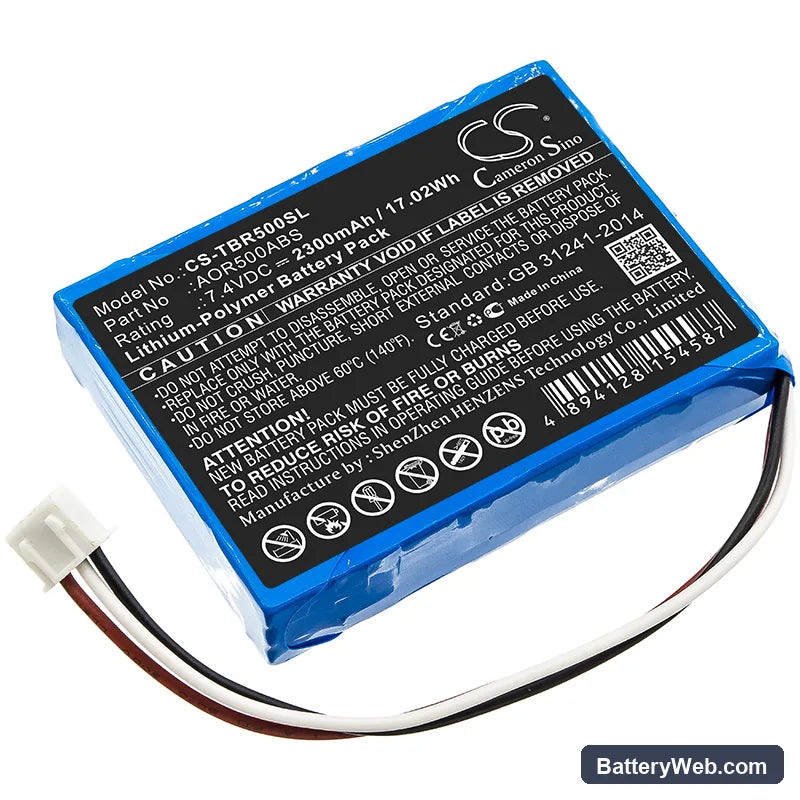

Tribrer AOR500 Replacement Battery 7.4V 2300mAh

Tribrer AOR500 Series — 7.4V Li-Polymer Replacement Battery (AOR500ABS)

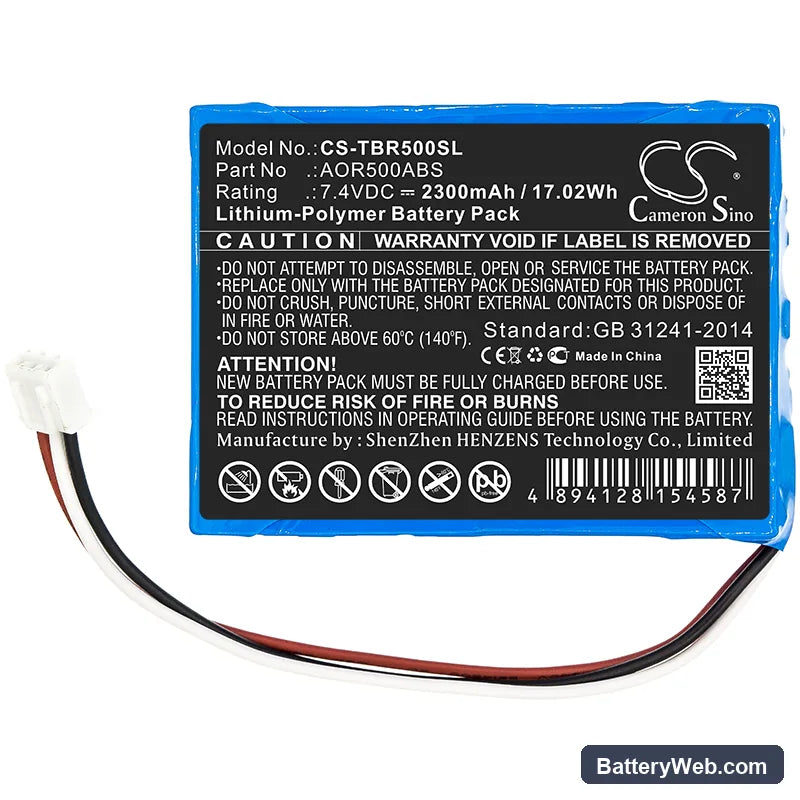

This 7.4V, 2300mAh Li-Polymer battery replaces the OEM AOR500ABS pack in the Tribrer AOR500, AOR500-s, AOR500-A, AOR500-B, and over a dozen additional AOR500-series instruments. It is a direct cell replacement for field-deployed surveying and measurement equipment where a dead pack stops a job. Capacity is 17.02Wh — matching the original specification.

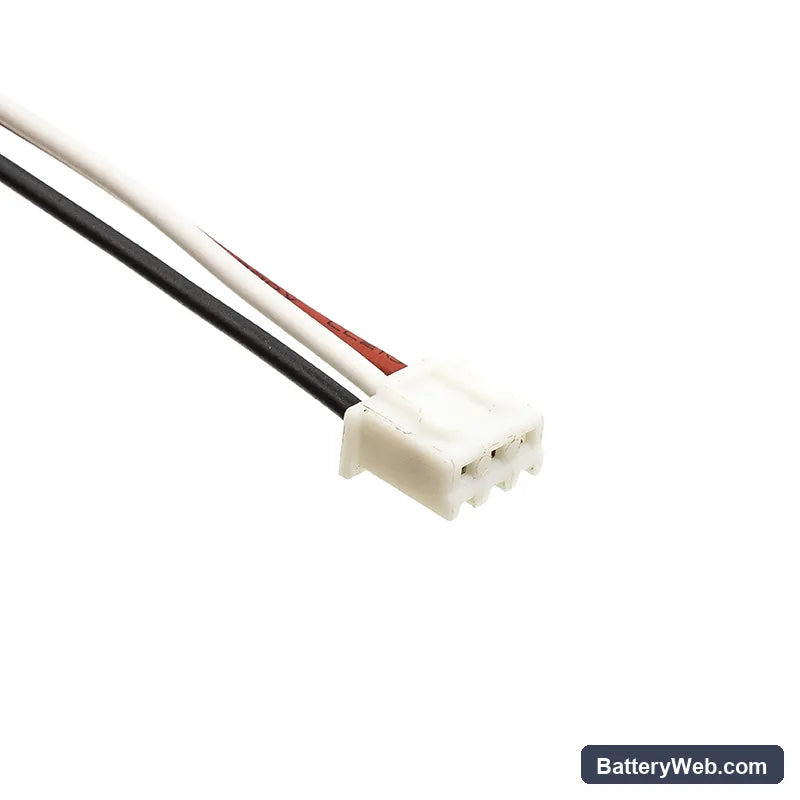

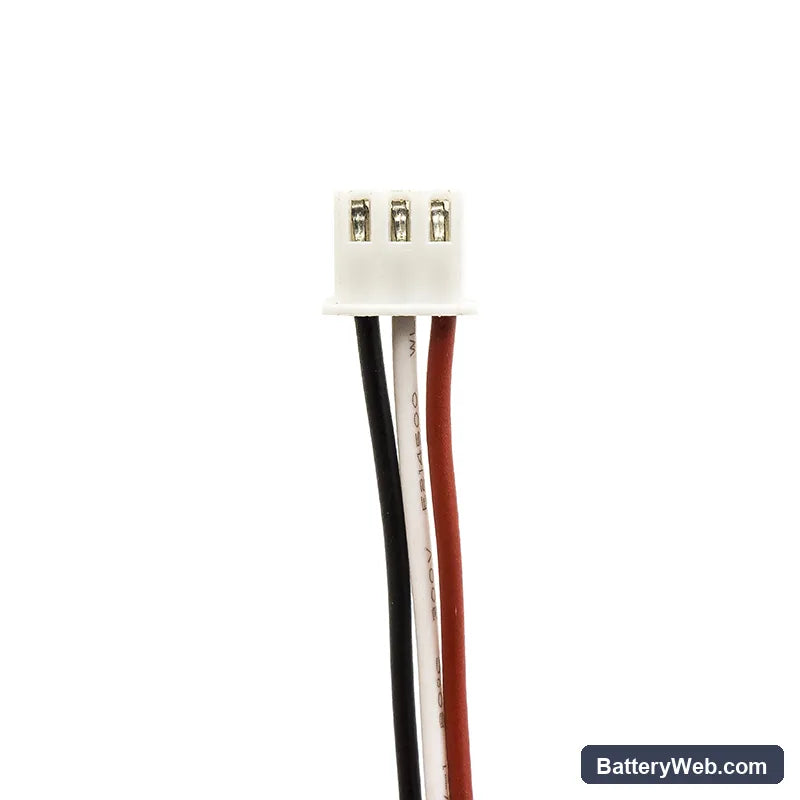

• AOR500-series platform fit: All AOR500 variants share the same 7.4V power rail, connector pinout, and BMS handshake protocol. One pack covers the full model range without modification or adapter.
• Bench tested on actual hardware: We cycled this pack through probe initialisation and sustained sensor logging on the AOR500 platform. The BMS handled the current spike at probe power-up without tripping, and voltage held steady under continuous measurement load across multiple test sessions.
• First-use calibration on the AOR500: After installing, run a full calibration cycle through the instrument menu before field deployment. The AOR500 maps battery state during calibration — skipping this causes premature low-battery warnings during the first measurement session, even with a fully charged pack.

BMS lockout after the AOR500 sat unused in a carry case for months

Li-Polymer cells self-discharge slowly during storage. If the AOR500 sat unused long enough, the pack voltage can drop below 6.0V — the threshold at which the BMS enters a protective sleep state. At that point the instrument shows no response at all, not a low-battery warning. Standard chargers will not initiate a charge cycle because the pack appears dead to the charge controller. A capable charger with a recovery or pre-charge mode can push the cells back above 6.4V, which wakes the BMS and allows normal charging to resume. Do not force a fast charge before recovery voltage is reached.

Readings resetting or drifting mid-session during active data logging

Sustained sensor load — particularly when logging multiple parameters simultaneously — draws more current than any single measurement. An aged or partially discharged cell cannot maintain voltage under that continuous draw, and the resulting sag can cause the AOR500's processor to brown out and reset the active session. This is not a firmware fault. Check resting voltage before a logging session: anything below 7.2V under no load indicates insufficient charge for sustained field work. Charge to full (8.4V) before starting extended data capture.
