Deviser AE4000A Survey Battery HYLB-1842 7.4V 8700mAh

Deviser AE4000A / E7000L — 7.4V Li-ion Replacement Battery (HYLB-1842)

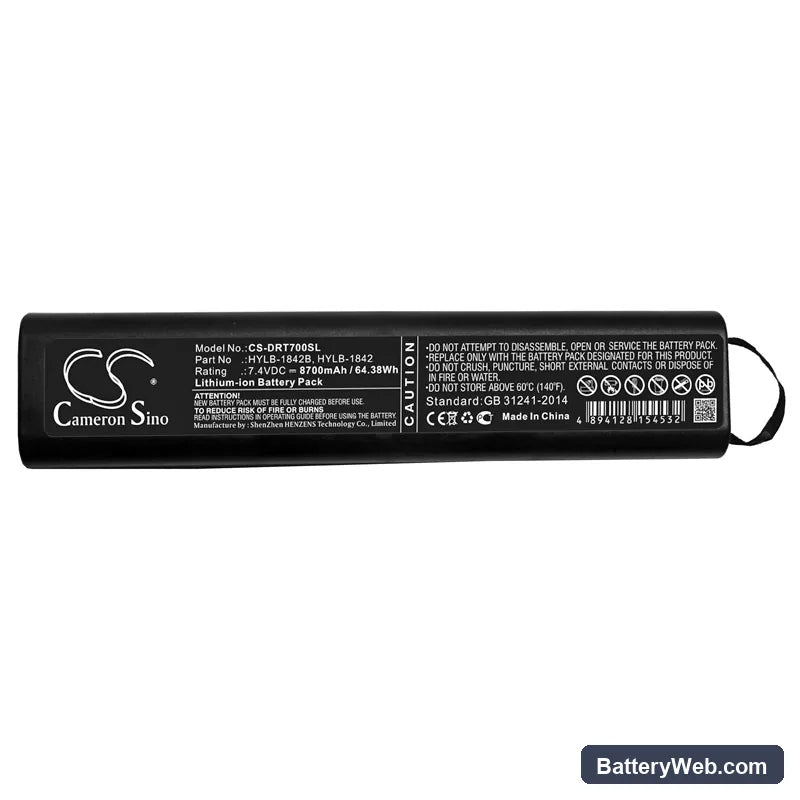

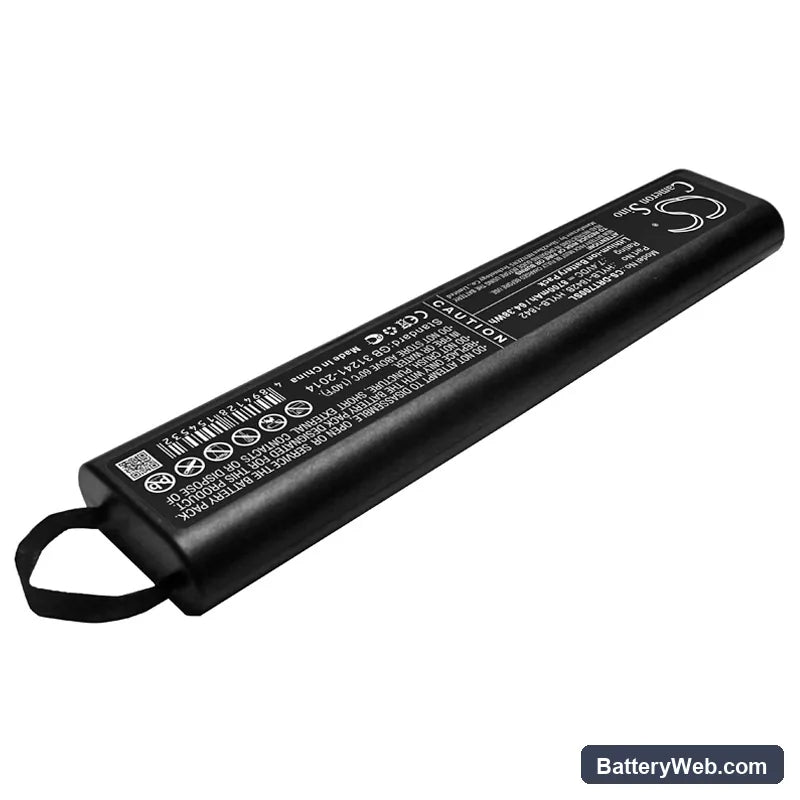

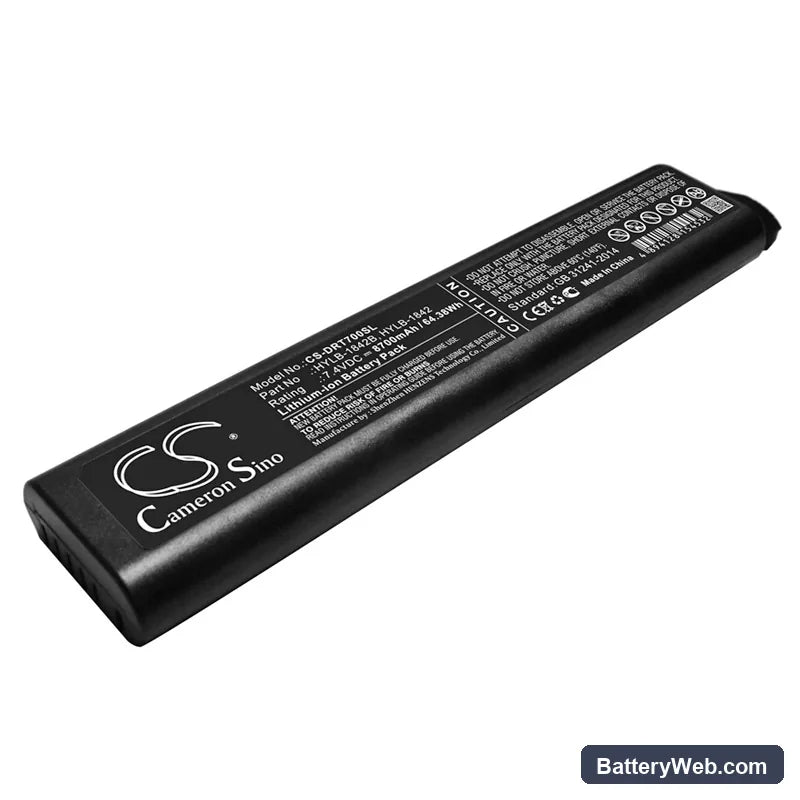

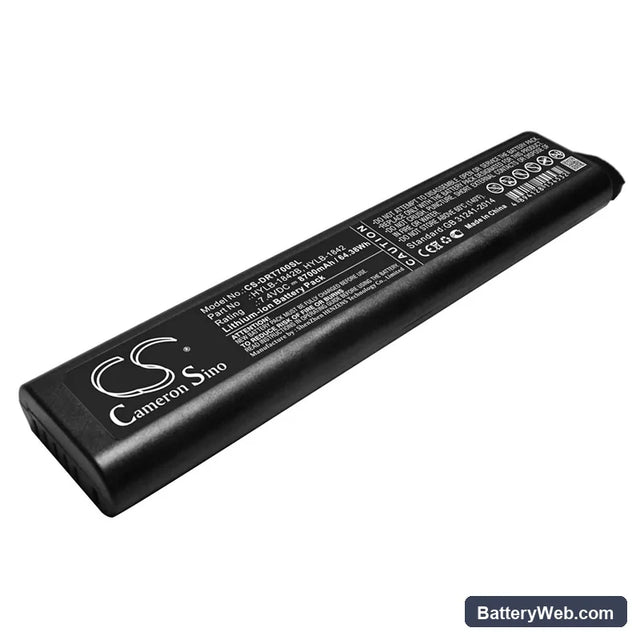

This 7.4V 8700mAh Li-ion pack replaces the HYLB-1842 and HYLB-1842B batteries used in the Deviser AE4000A and E7000L surveying instruments. Both are professional total stations and field measurement devices that run extended sessions on a single charge. At 64.38Wh, this pack matches the original capacity specification exactly.

• AE4000A and E7000L compatibility: Both models share the same 7.4V battery rail, connector pinout, and BMS handshake protocol. The HYLB-1842 form factor fits the battery bay on either instrument without modification.
• Bench tested on actual hardware: We cycled this pack through instrument power-on, sensor initialisation, and sustained angle-measurement logging. The BMS handled the current spike at sensor initialisation without tripping, and cell voltage held stable across the logging load.
• Field deployment preparation: After installing this pack, run a full calibration cycle through the instrument menu before heading to site. The AE4000A and E7000L map battery state during calibration — skipping this step causes the instrument to throw premature low-battery warnings during your first measurement session, even with a fully charged pack.

BMS cutoff when the AE4000A initialises its measurement module

At power-on, the AE4000A draws a short current spike as it powers the angle sensor and EDM module simultaneously. A degraded or deeply discharged original pack can trigger the BMS overcurrent threshold at exactly this moment, causing an instant shutdown that looks like a dead battery. This is a BMS protection event, not a cell failure. Charging the replacement pack to full before first use — confirmed by the instrument's charge indicator reaching 100% — raises resting cell voltage high enough that the BMS does not flag the initialisation spike as an overload condition.

Instrument displays unstable battery percentage between power cycles

When a new Li-ion pack replaces an aged cell, the instrument's voltage-to-percentage table is calibrated to the old cell's discharge curve. On the first few power cycles, the displayed percentage can jump — showing 80%, then 95%, then 60% — as the instrument recalibrates its threshold mapping to the new cells. This is a firmware-side recalibration process, not a fault with the pack. Run two to three full discharge and charge cycles through normal field use and the percentage readout will stabilise. After the third cycle, resting voltage should sit between 8.2V and 8.4V on a full charge.
