TSC TDM-20 — 7.4V Li-ion Replacement Battery (TDM-BAT20)

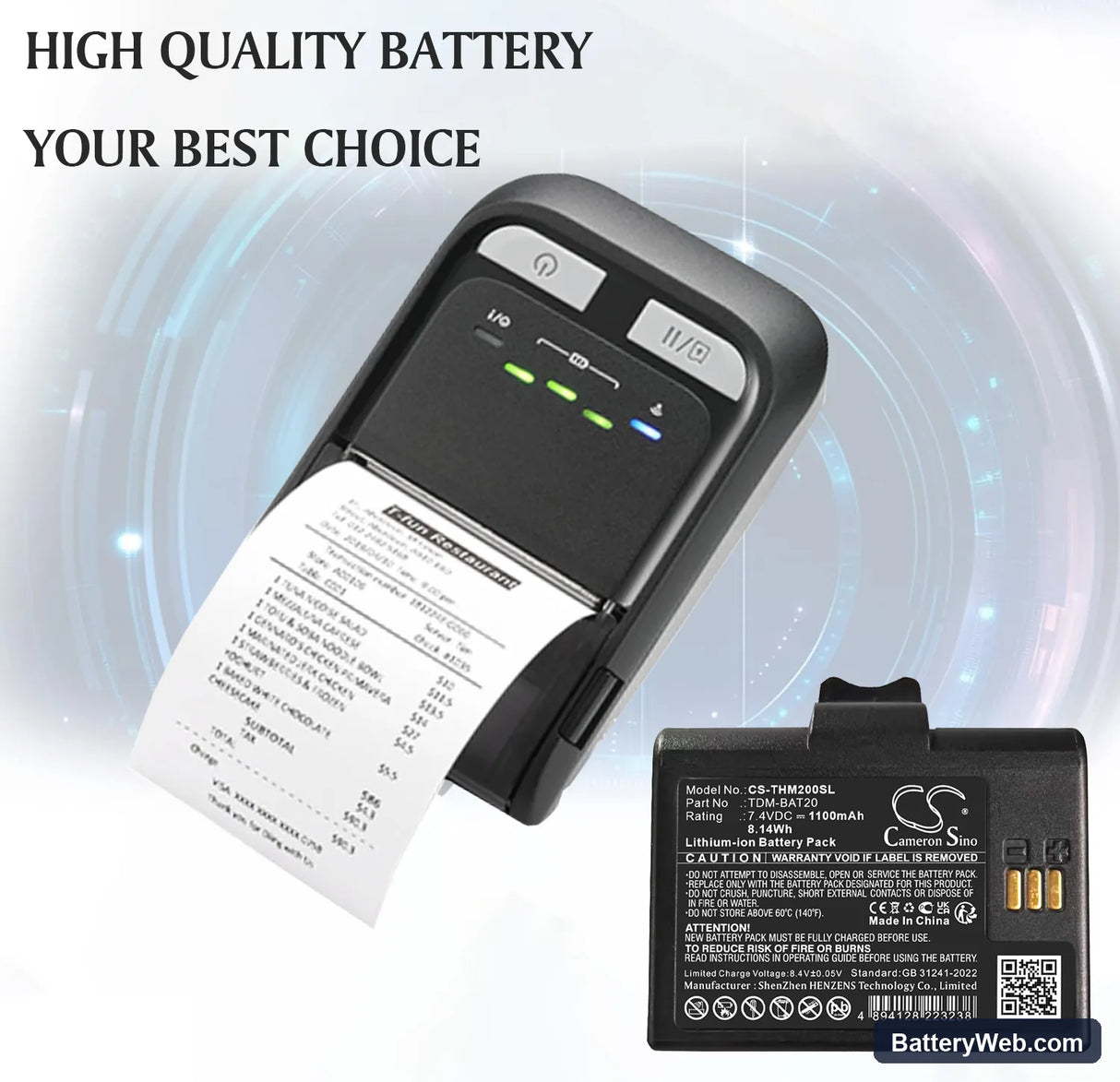

This 7.4V, 1100mAh Li-ion battery replaces the OEM TDM-BAT20 in the TSC TDM-20 mobile thermal printer. It powers the thermal print head, paper feed motor, and wireless radio on a single cell pack. Retail, logistics, and field teams use the TDM-20 for on-the-go label and receipt printing where mains power is not available.

• TDM-20 platform fit: The TDM-20 uses a 7.4V nominal rail to drive both the thermal head and the feed motor from the same pack. The BMS on this replacement matches the OEM discharge curve and communicates cutoff thresholds the printer firmware expects — the unit will not print if those handshake parameters fall outside tolerance.
• Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on a TDM-20 unit. The BMS held steady voltage to the thermal head across the draw cycle, and the paper feed motor received consistent torque without mid-job cutoff.
• First-install print sequence: After fitting the battery, charge it fully, then print five test labels before deploying. The TDM-20 feed motor calibrates torque draw against the BMS current profile on initial cycles — skipping this step can cause the printer to misread paper position on the first job.

Why the TDM-20 thermal head produces faded output at partial charge

The thermal print head in the TDM-20 requires stable voltage to reach consistent platen temperature across the full print width. When battery voltage sags — typically below 6.8V under load — the head temperature drops mid-line, producing faded or streaky output rather than a full cutoff. This is not a head fault. It is a voltage delivery issue. Fitting a fresh cell and charging to 8.2V before printing resolves it.

TDM-20 disconnecting from Bluetooth mid-job

The TDM-20 wireless radio draws a short current spike each time it transmits a data packet. At low battery charge, that spike causes a momentary voltage sag the BMS reads as an overload event and briefly throttles output. The printer drops the connection and the host app loses the device. This is not a pairing fault or an app bug. Charge the battery above 7.8V before starting a wireless print job to keep the radio stable through the transmission cycle.
