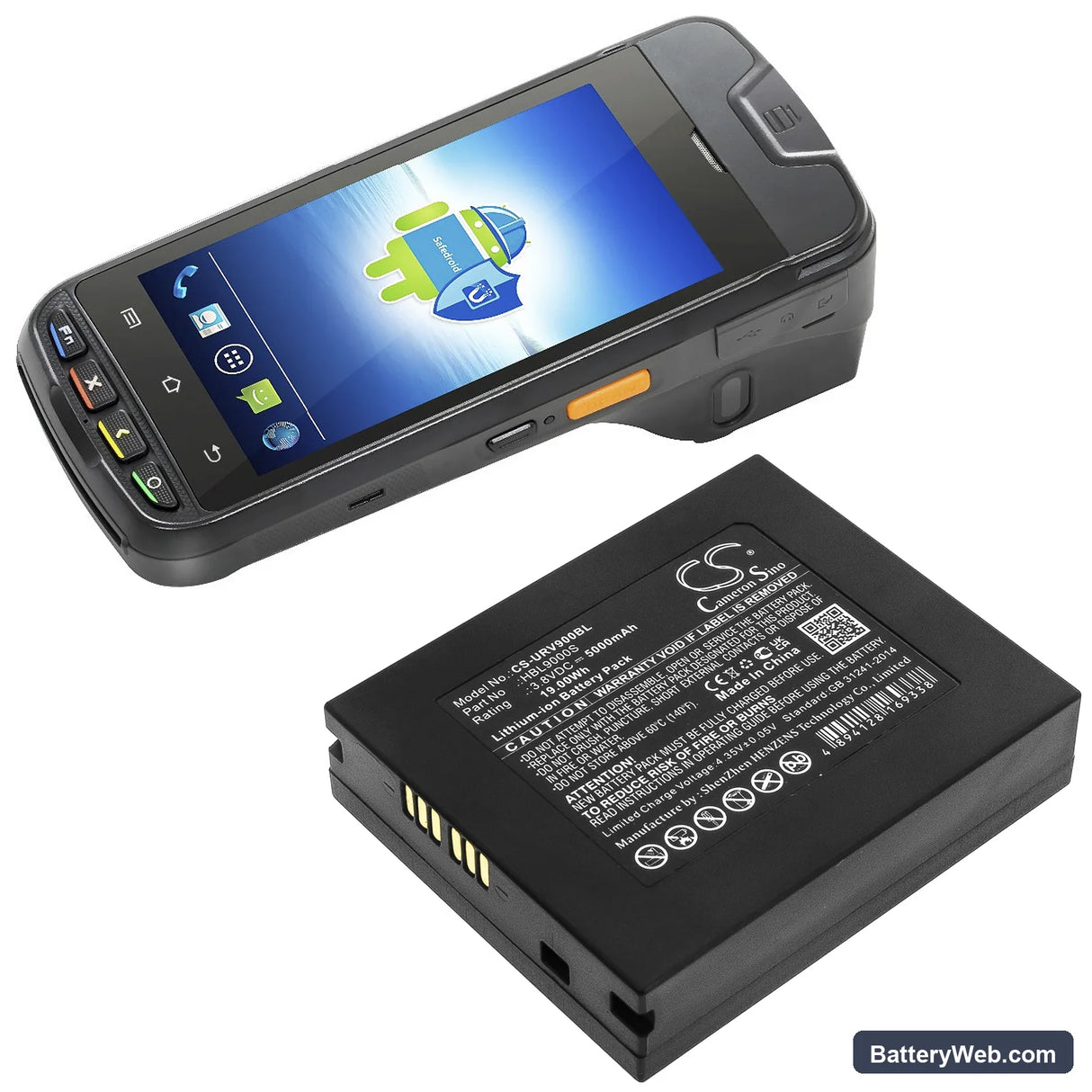

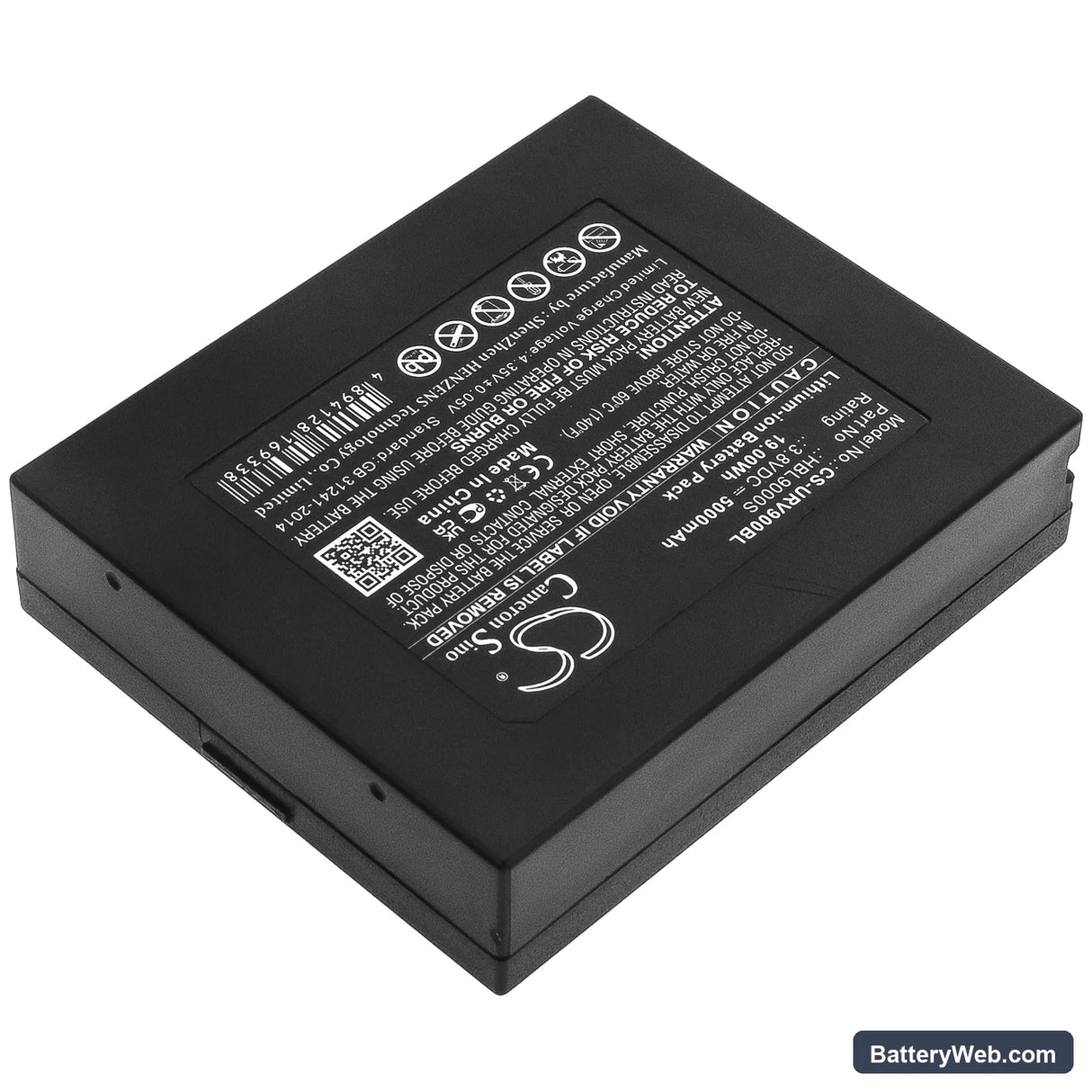

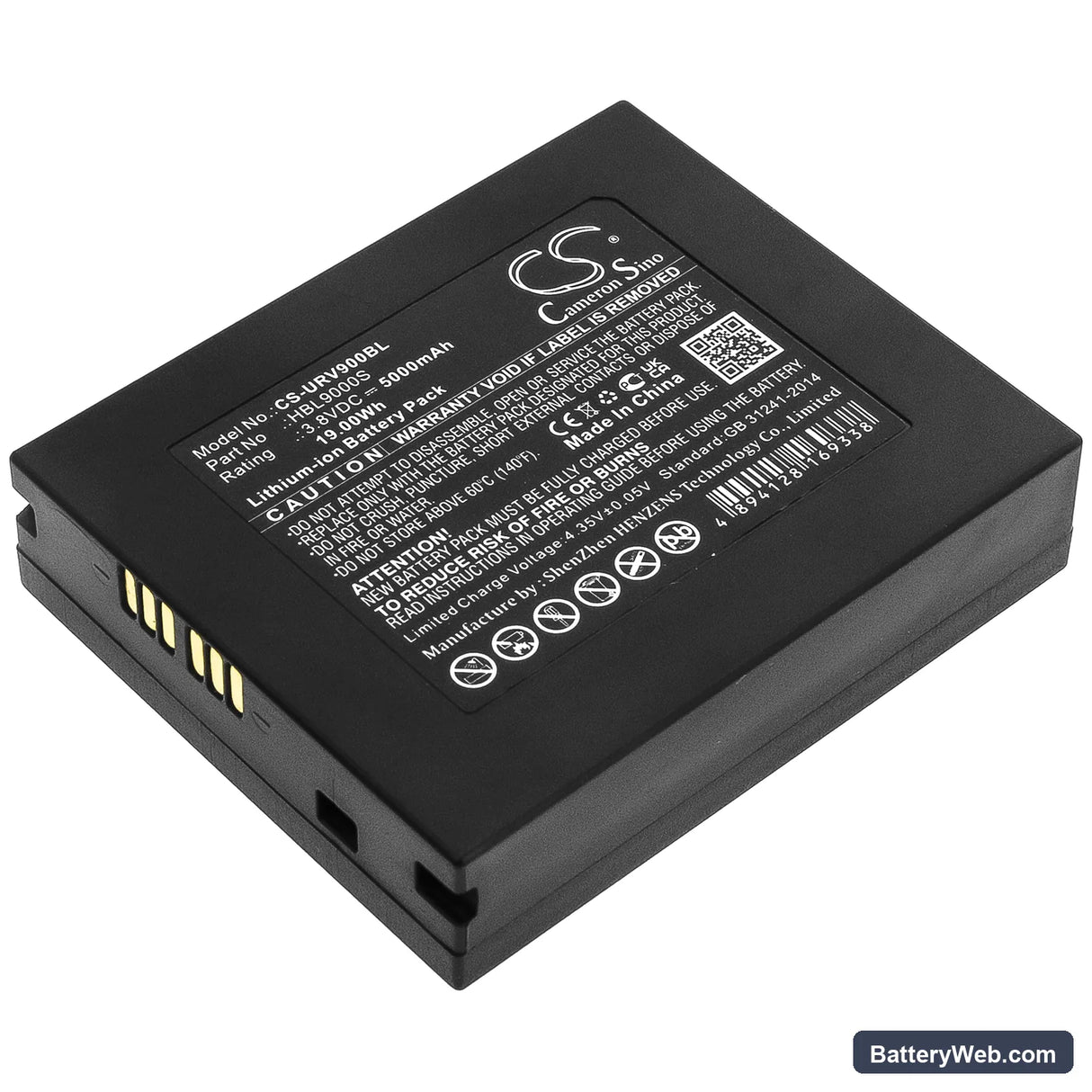

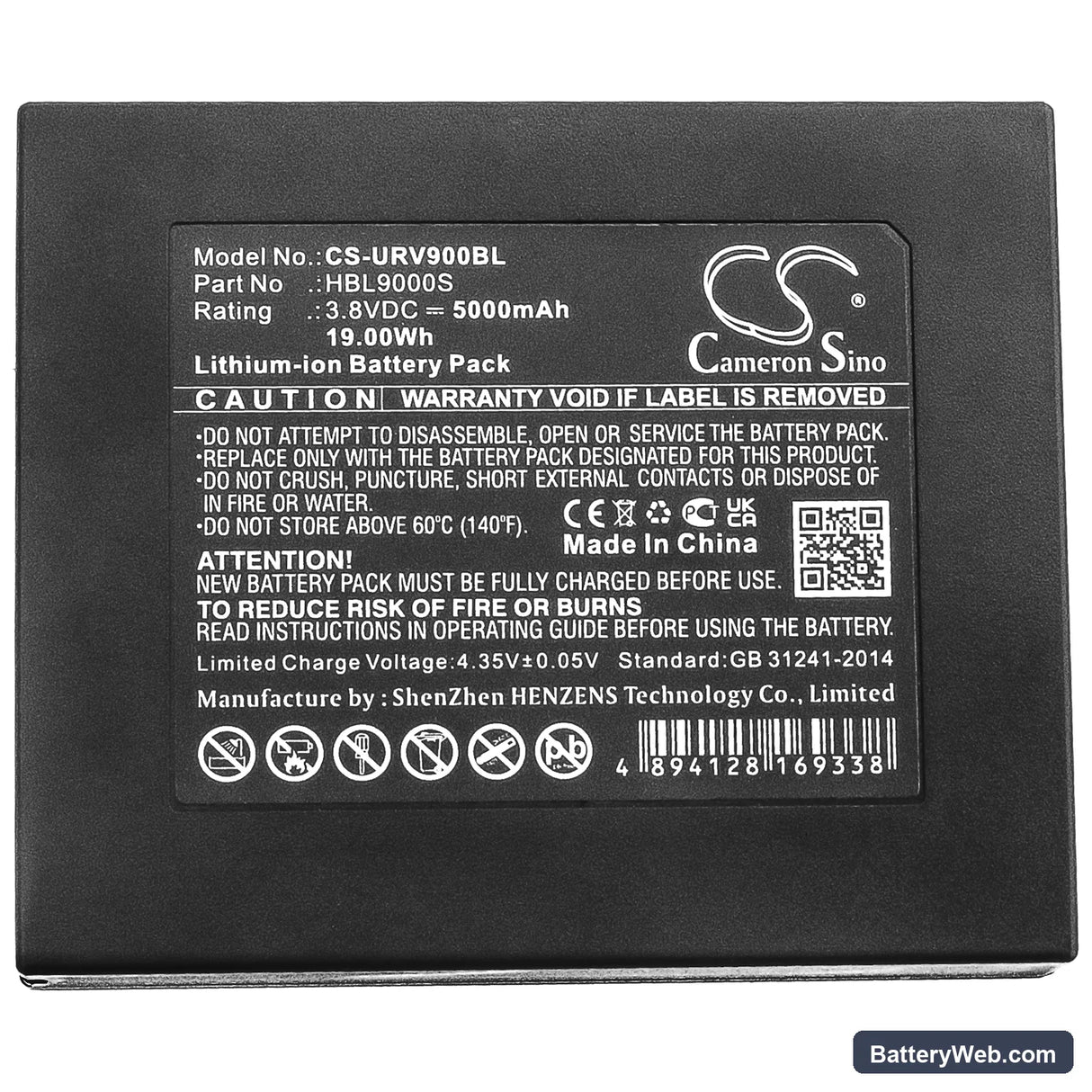

Urovo i9000s Replacement Battery HBL9000S 3.8V 5000mAh

Urovo i9000s — 3.8V Li-ion Replacement Battery (HBL9000S)

This is a 3.8V, 5000mAh Li-ion battery for the Urovo i9000s rugged handheld mobile computer. It replaces OEM part HBL9000S and fits the i9000s used in retail, logistics, and warehouse pick-and-pack operations. Capacity figure is sourced from the product specification — 19Wh total energy.

• i9000s platform fit: The i9000s uses a single-cell 3.8V architecture with a dedicated BMS that monitors cell temperature and current draw from both the imager and wireless radio simultaneously. This pack matches that voltage rail and connector pinout exactly.
• Bench tested on actual hardware: We cycled this pack through repeated scan-burst sequences on the i9000s bench unit. The BMS held stable across combined imager trigger and 802.11 radio polling events without tripping an overcurrent fault.
• First-shift cradle protocol: After installing, place the scanner in its cradle for a full charge cycle before putting it into a pick-and-pack rotation. Scan trigger inrush current peaks when the cell is near minimum charge — a pre-charged pack prevents false BMS trips on the first shift.

Cradle showing a charging error on a new pack

Charging errors on a freshly installed pack are almost always a contact resistance issue, not a battery fault. Dock contacts and the battery's gold pads both oxidise over time, and even a new pack can fail to handshake if the contacts aren't clean. Wipe the battery contacts and the cradle dock with a dry lint-free cloth, then reseat the pack firmly. If the error clears, the cell is fine — if it persists after reseating, check cradle voltage at the contacts; it should read 4.2–5V before the pack is connected.

Scanner losing wireless connection during rapid scan bursts

On the i9000s, rapid scan bursts pull current from both the imager and the 802.11 radio at the same time. If the cell voltage sags below the BMS cutoff threshold during that combined draw, the radio drops its connection before the imager shuts off — so the scanner appears to be reading but data stops transmitting. This is more common when the pack is below 30% charge. Charge the pack above 50% before a high-frequency scan session and the voltage sag stays within the radio's operating floor.
