Vodafone 553 Li-ion Replacement Battery 3.7V 750mAh

Vodafone 553 / VF553 / 540 / VF540 — 3.7V Li-ion Replacement Battery

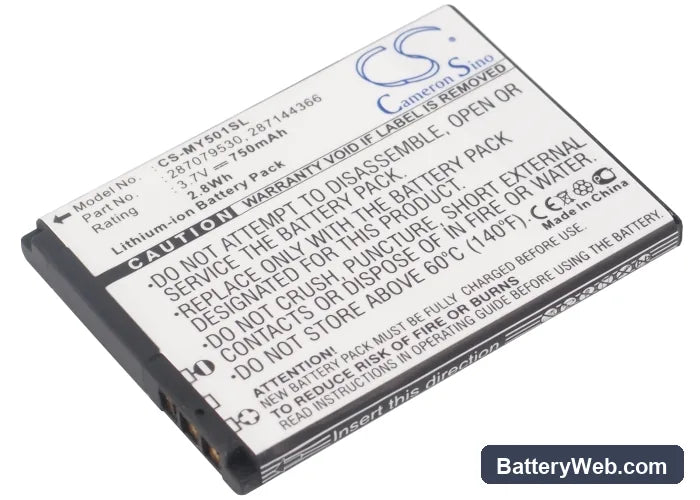

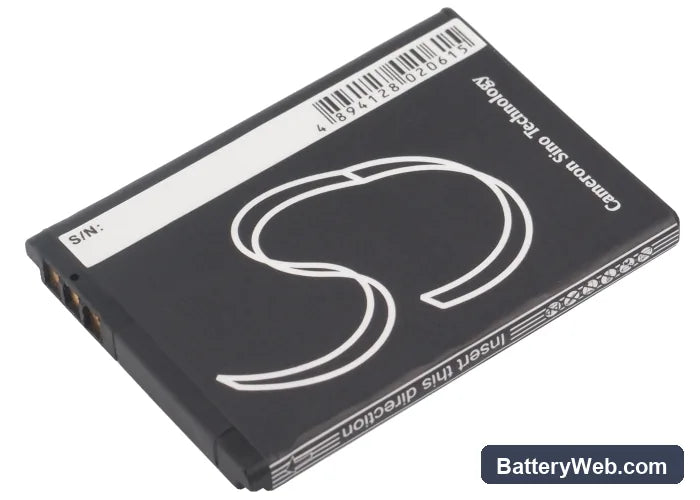

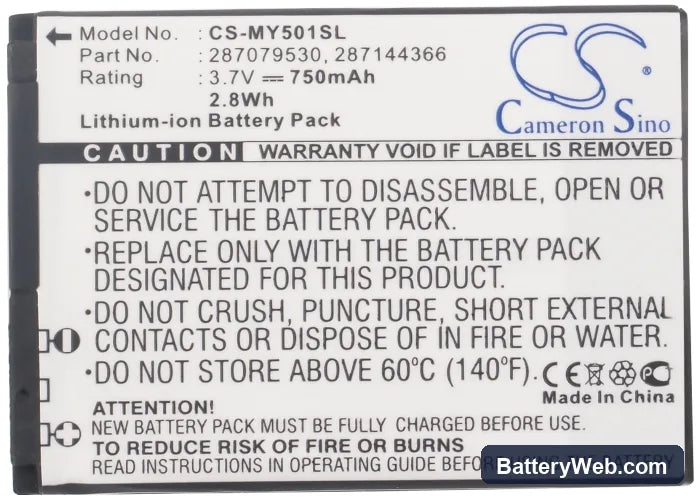

This 3.7V, 750mAh Li-ion cell replaces the original battery in the Vodafone 553, VF553, 540, and VF540 smartphones. Physical dimensions are 46.20 × 34.00 × 4.70mm — confirm these against your existing cell before ordering. Capacity matches OEM spec at 2.78Wh.

• 553 and 540 platform compatibility: Both the 553 and 540 series share the same battery bay dimensions and 3.7V nominal voltage rail. The connector pinout and cell footprint are identical across these variants, so one cell covers the full compatibility range.
• Bench tested on actual hardware: We cycled this cell through full charge and discharge on a 553 unit. The BMS accepted the charge handshake without error, and protection circuits triggered correctly at low-voltage cutoff — no false trips during normal load.
• Fuel gauge recalibration on first cycle: On first use after installation, disable any fast-charge mode and run one complete discharge-charge cycle at standard rate. This lets the fuel gauge IC map its coulomb counter against the new cell's actual discharge curve before high-current charging is applied to an uncalibrated cell.

Sudden shutdown at 20–30% on the Vodafone 553 after a cell swap

A new cell has a slightly different voltage-versus-capacity curve than the worn cell the fuel gauge IC was trained on. When modem radio or screen load spikes, the phone's voltage rail dips below the shutdown threshold even though the reported percentage looks safe. The IC doesn't know the new cell can still deliver charge — it only sees the voltage drop. One full discharge-charge cycle at standard rate lets the coulomb counter relearn the curve and moves the shutdown point back to where it belongs.

Phone won't power on after sitting in storage with a flat battery

Li-ion cells that drop below roughly 2.5V trigger BMS lockout — a protection state that blocks all charge input to prevent damage to an over-discharged cell. The phone shows nothing when plugged in and won't respond to the power button. Connect to a wall adapter rather than a PC USB port, which delivers consistent 5V current, and leave it for 15–20 minutes without pressing anything. Most BMS circuits exit lockout once the cell recovers to around 3.0V and will then accept a normal charge.
