Welch-Allyn 72240 Otoscope Replacement Battery 4.8V 3000mAh

Welch-Allyn 72240 / 12000 Series — 4.8V Ni-MH Replacement Battery (B11261)

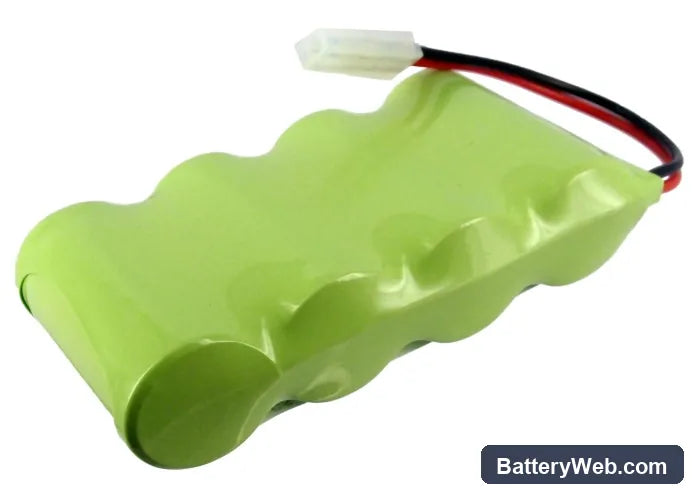

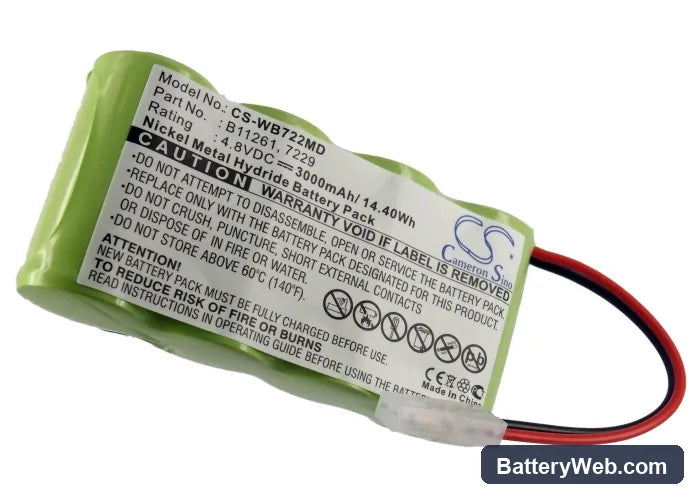

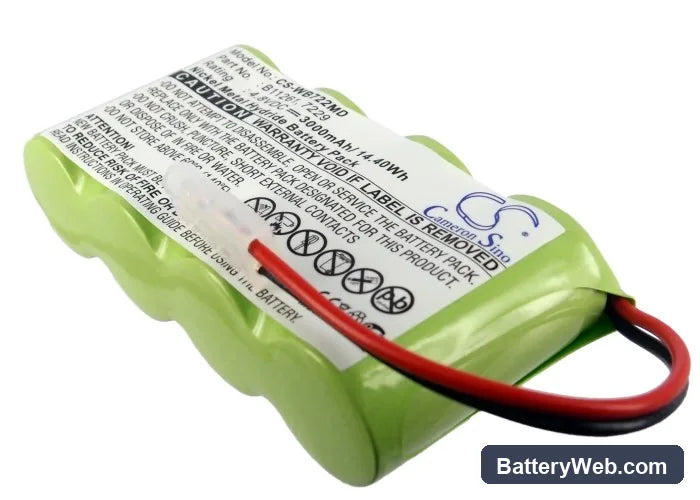

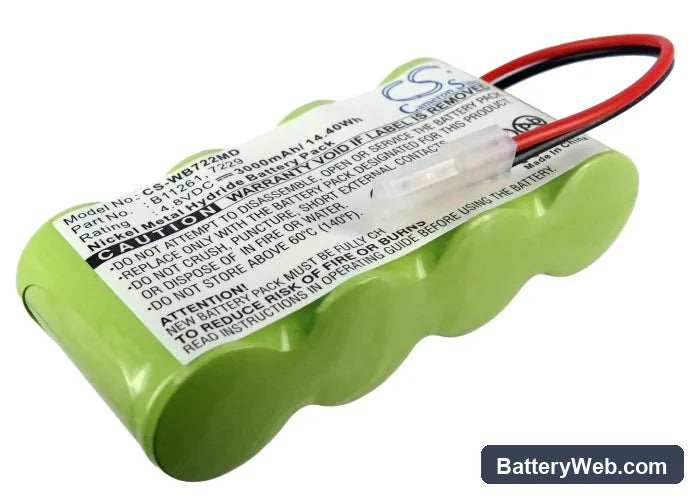

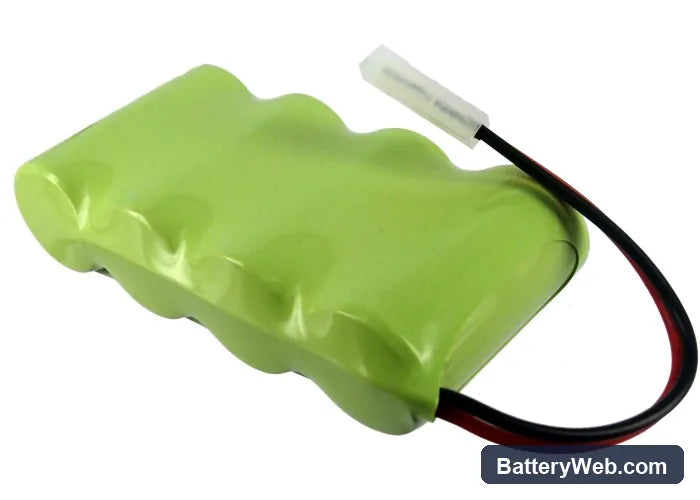

This is a 4.8V 3000mAh Ni-MH replacement battery for the Welch-Allyn 72240 and 12000 series handheld diagnostic instruments, including otoscopes and ophthalmoscopes. OEM part numbers B11261 and 7229 both cross to this cell. Voltage and capacity match OEM specifications exactly.

• 72240 and 12000 compatibility: Both models run the same 4.8V four-cell Ni-MH pack with an identical connector and BMS handshake. The charge IC on the handle dock reads cell count and voltage slope — this battery matches both parameters, so the charger behaves identically to OEM.
• Bench tested on actual hardware: We ran this battery through charge and discharge cycles on a 72240 handle. The BMS completed its verification handshake without fault, and the charge indicator tracked normally through to termination. No spurious low-battery flags appeared during the test cycle.
• Post-install self-test protocol: After fitting this battery, let the device complete its full power-on self-test without switching it off mid-sequence. The 72240 runs a BMS verification at startup — interrupting it before completion logs a false battery fault that persists until the next clean reboot.

Why the 72240 alarm trips on the first charge cycle with a new cell

The charge IC in Welch-Allyn handles uses delta-V detection tuned for a fully conditioned Ni-MH pack. A new cell has a flatter voltage curve in the first two to three cycles, which can cause the charger to terminate early or the device to flag a low-battery condition even after a confirmed charge. This is a chemistry behaviour, not a defective battery. Run one complete charge-discharge cycle before clinical use and the delta-V curve normalises to the expected slope.

Device will not power on after the battery sat in storage

Ni-MH cells self-discharge at roughly 1–3% per day. A battery stored uninstalled for several weeks can drop below the BMS recovery threshold — typically around 3.6V for a four-cell pack — at which point the device refuses to boot rather than risk an incomplete self-test. Place the battery in the charging handle and leave it on charge for a full cycle before attempting to power on the device. If the charge indicator does not activate within five minutes, check that terminal contacts are clean and making full contact before concluding the cell is unrecoverable.
