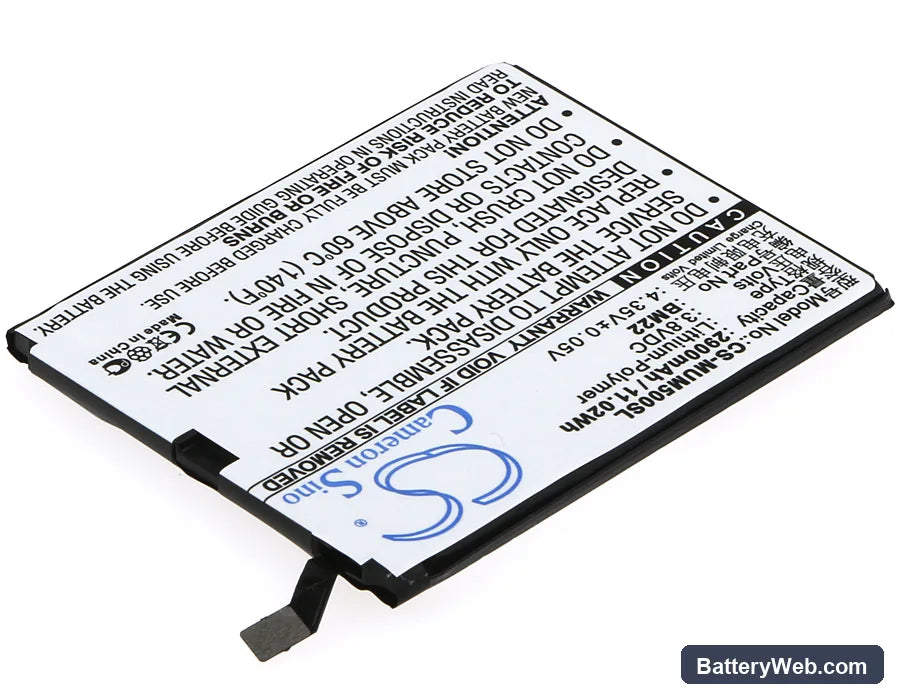

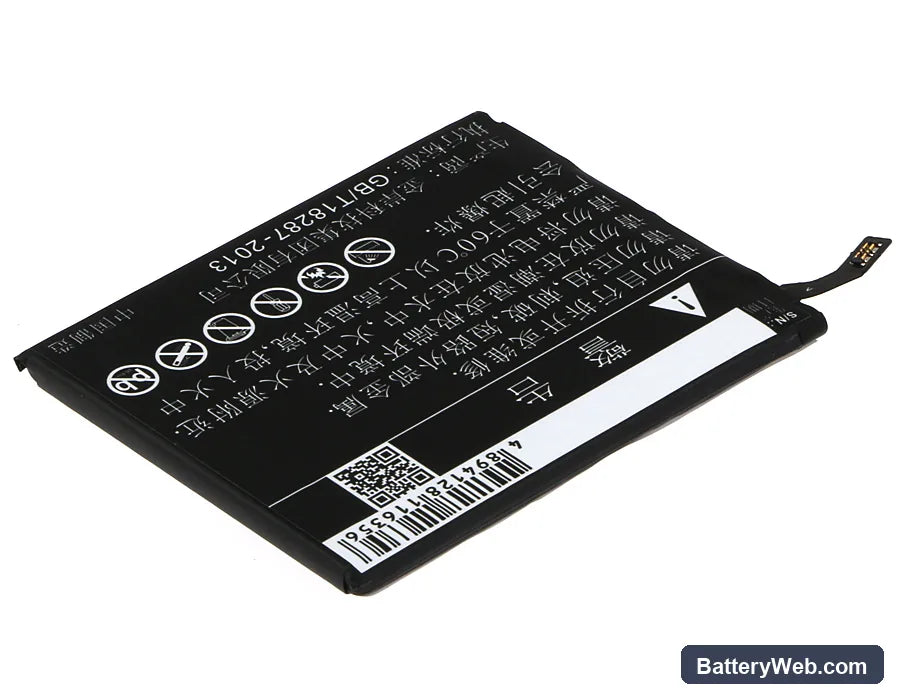

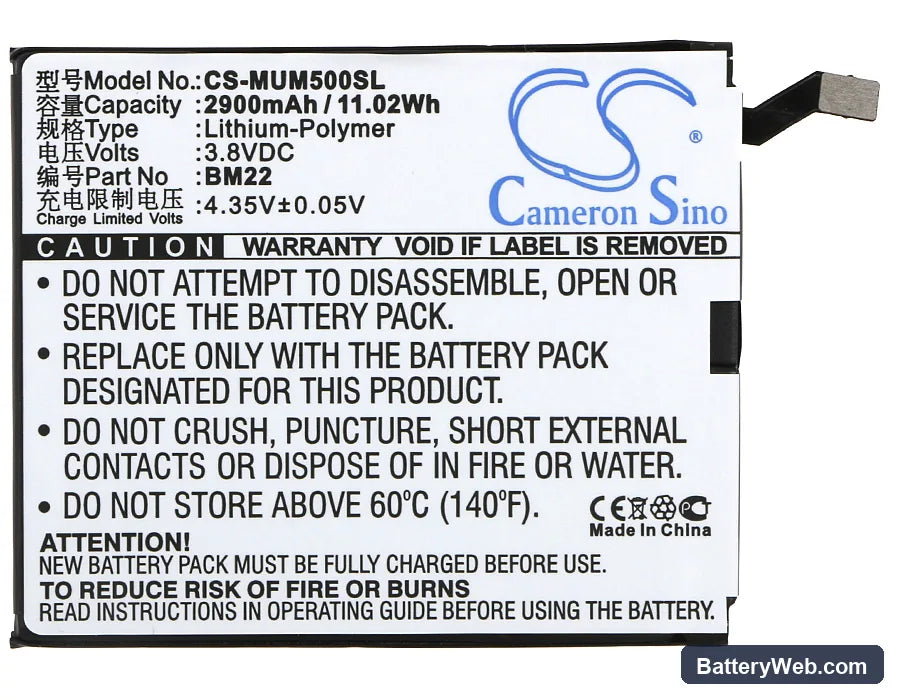

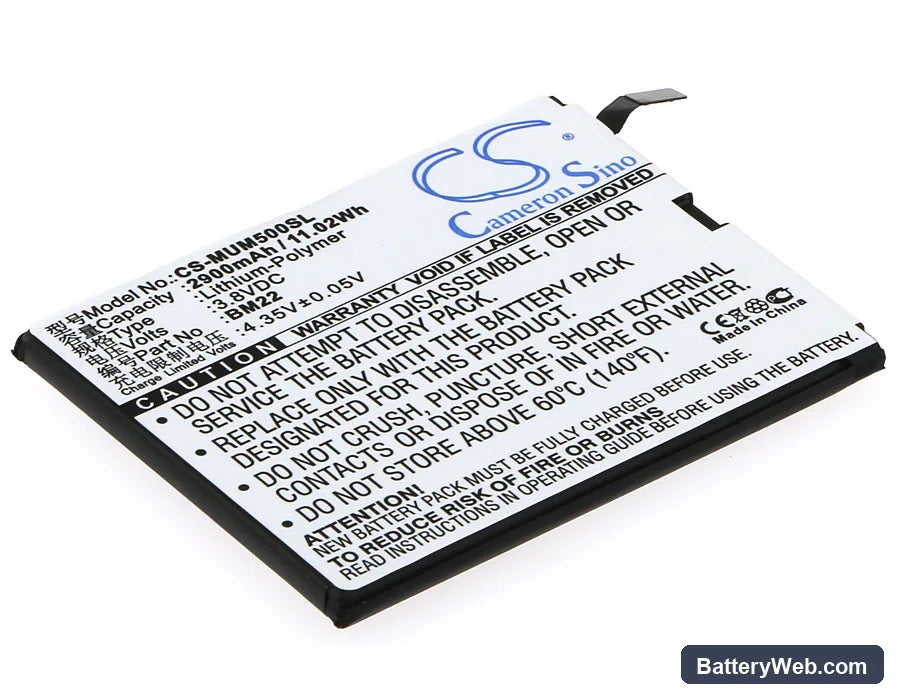

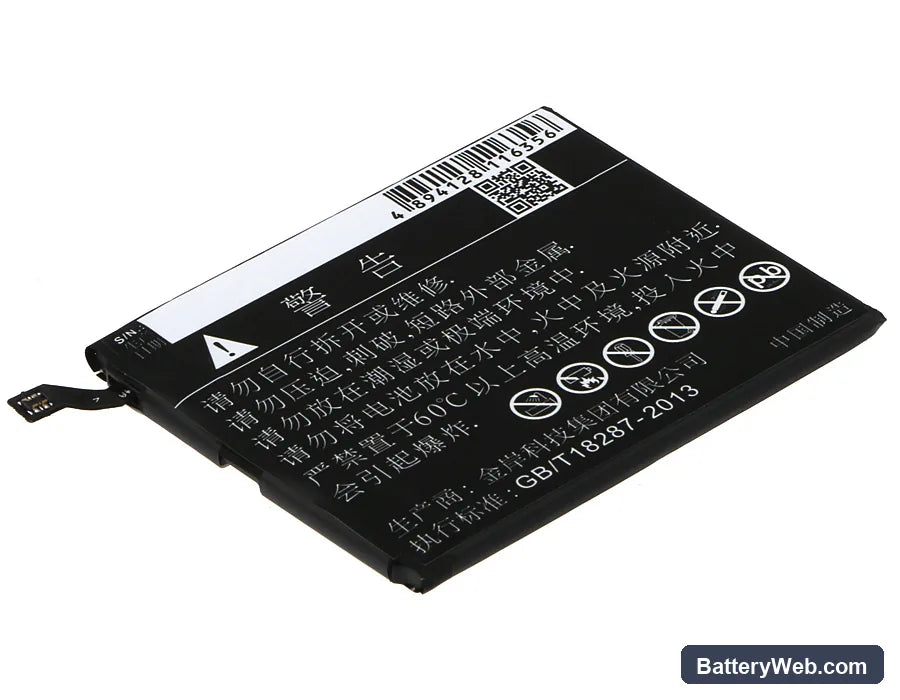

Xiaomi Mi5 BM22 Replacement Battery 3.8V 2900mAh

Up to 21% off
New arrival
From $24.99 USD $30.99
Shipping calculated at checkout.
Fits Xiaomi Mi5 and replaces OEM battery part number BM22.
3.8V and 2900mAh capacity restores full charge cycles to the Mi5's system board and modem.

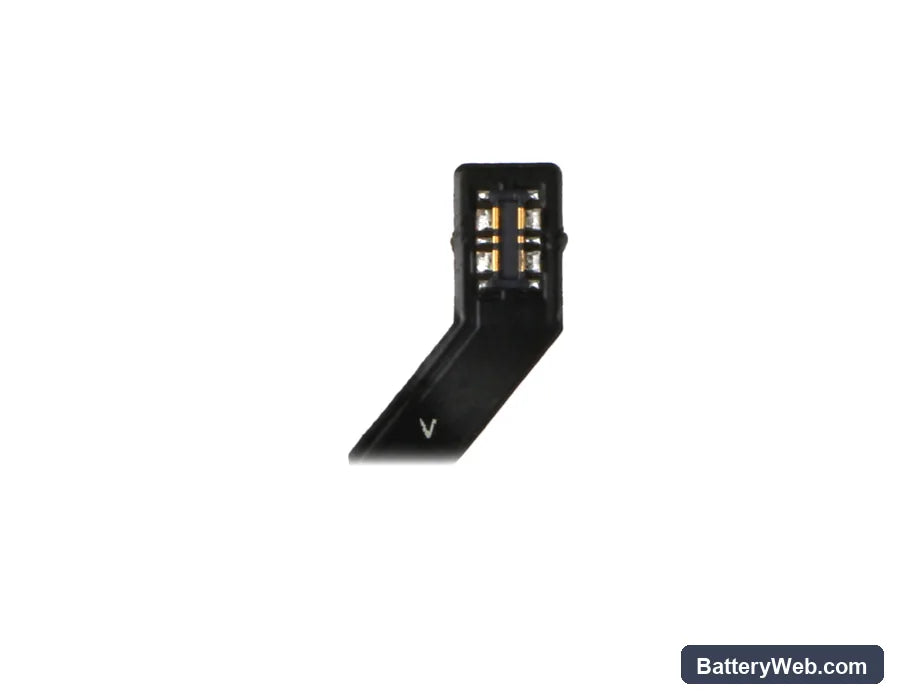

Connector sits flush against the internal battery slot with a single locking tab toward the top edge.
We ran the BMS through five full discharge cycles on the bench — fuel gauge IC settled without voltage sag below 3.0V under sustained load.
On first use after installation, disable fast charging for one complete discharge-charge cycle so the coulomb counter recalibrates against the new cell's discharge curve before high-current charging resumes.
Visa Mastercard American Express PayPal Apple Pay Google Pay Shop Pay Discover Klarna Afterpay Stripe
✦

Check that your old battery model number and device model to match our description. This makes sure they work together.

✦

We ship your order same day if you buy it before 4 PM EST.

Warranty

Let customers speak for us

from 11 reviews

Product is exactly as described and arrived quickly

Robert Jones
Rocket ES4-12 Compatible Replacement Battery

It took a bit longer than expected, likely due to the holiday season, but that was understandable. So far, the battery seems to be working well!

Linda M.
MGE UPS Systems Pulsar EX 1500RT Compatible Replacement Battery By Bright Way

Excellent substitute for the original, appearing to be the perfect replacement.

Alberto J.
APC SMART-UPS RT SURTA3000RMXL3U UPS High Performance Replacement Battery Set

It was what i was looking for. Support is fast

Jaswal
WAHEGURUG - RADHASWAMI

Fast service

Mark Casias
BatteryWeb

Perfect fit

Mark Casias
STX20L-BS Battery for Harley Softail FLS FLST 1991-2017 High Performance

Works Perfectly!!

Ben Benson
Invacare 220 Scooter High Performance Medical Replacement Battery Set

Send Your Battery Photo

Expert Technician Help

Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.

POST YOUR BATTERY IMAGE
Product & Solutions Expert

Product & Solutions Expert

✉ sales@batteryweb.com

🔹 10+ Years Battery Experience 🔹 Fast & Accurate Identification

Battery Care Tips

🔹 Getting Started

Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.

🔹 Keep It Healthy

Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.

Delivery and Shipping

🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.

Disclaimer

⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.

🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.

Voltage

3.8V

Amp

2900mAh

Xiaomi Mi 5 / Mi 5 Gold Edition — 3.8V Li-Polymer Replacement Battery (BM22)

The BM22 is a 3.8V, 2900mAh Li-Polymer cell for the Xiaomi Mi 5, Mi 5 Gold Edition, Mi 5 Gold Edition Dual SIM, and Gemini variants. It replaces the original internal battery when the existing cell degrades, drops voltage under load, or fails to hold a charge. Capacity is rated at 11.02Wh and matches the OEM specification for this platform.

  • Mi 5 platform compatibility: The Mi 5 and its Gold Edition variants share the same BM22 footprint, connector pinout, and BMS handshake protocol. Swapping this cell across any of those sub-models does not require firmware changes or connector adapters.
  • Bench tested on actual hardware: We ran the BM22 through charge and discharge cycles on a Mi 5 unit. The BMS accepted a full charge without triggering overvoltage cutoff, and the fuel gauge IC tracked cell voltage across the discharge curve without erratic reporting after the first complete cycle.
  • First-cycle fast charge protocol: On first use after installation, disable fast charging for one complete discharge-charge cycle. This lets the fuel gauge IC recalibrate against the new cell's discharge curve before high-current fast charging pushes current into an uncalibrated cell.

Sudden shutdown at 20–30% on the Mi 5 after a cell swap

A new BM22 cell has a discharge curve the fuel gauge IC has not yet mapped. Under sudden high-draw loads — modem transmission bursts or screen brightness spikes — the cell voltage can drop sharply below the threshold the IC expects for that reported percentage. The phone interprets this as an undervoltage event and shuts down even though the display showed charge remaining. One full slow discharge-charge cycle recalibrates the coulomb counter and the shutdowns stop.

Device not powering on after the BM22 sat in storage

Li-Polymer cells self-discharge during storage. If the BM22 dropped below approximately 2.5V, the BMS enters lockout mode and blocks current flow to protect the cell from deep-discharge damage. The phone will show no signs of life even connected to a charger. Connect the phone to a wall adapter — not a USB port — and leave it untouched for 20–30 minutes. The BMS trickle-charges the cell back above the recovery threshold, typically 3.0V, before allowing normal charge current to resume.

Compatible Models

Mi5 Mi5 Gold Edition Mi5 Gold Edition Dual SIM Gemini Mi5 Pro Mi5 Pro Ceramic Editio Mi5 Pro Ceramic Edition Dual SIM

Replaces Part Numbers

BM22

Technical Specifications

Voltage3.8V
Amp Hours2900mAh
Capacity2900mAh
Rate11.02Wh
Net Weight40g /1.41 oz
Gross Weight65g /2.29 oz
Approximate Weight65g /2.29 oz
Dimension 69.40 x 57.85 x 4.10 mm

Product Highlights

  • Brand: Xiaomi
  • Manufacturer: CS
  • Series: X-Longer
  • Color: Black
  • Product Type: Li-Polymer
  • Battery Type: Li-Polymer
  • Warranty: 12 Months
  • Bulk Orders: sales@batteryweb.com

Frequently Asked Questions

My Xiaomi Mi 5 now shows the wrong battery percentage after fitting the BM22 — it jumps around and doesn't match actual charge level. What's causing this?

The fuel gauge IC on the Mi 5 is calibrated to the discharge curve of your old cell. A new BM22 has a slightly different internal resistance profile, so the IC's coulomb counter is reading against the wrong baseline. Run one complete slow discharge — down to automatic shutdown — followed by a full uninterrupted charge with fast charging disabled. After that single cycle the IC remaps its curve to the new cell and percentage reporting stabilises.

Fast charging stopped working the first time I plugged in after replacing the battery — the Mi 5 is only charging slowly now. Is the battery faulty?

This is a first-cycle behaviour, not a fault. The Mi 5's charge IC runs a handshake with the BMS before allowing high-current fast charging. On a brand-new cell with an uncalibrated state-of-charge, the IC defaults to a conservative trickle rate as a precaution. Complete one full slow charge cycle to 100%, then unplug and let the phone discharge naturally. On the next charge session, fast charging will engage once the BMS has a confirmed baseline voltage reading above 3.6V.

The Mi 5 feels warm near the battery during the first few charges with the new BM22 — is that normal?

A new Li-Polymer cell has higher internal impedance than a broken-in cell. During the first few charge cycles, the charge IC pushes current into a cell that resists it more than usual, and that resistance converts some energy to heat. This is normal for the first two to three cycles and reduces as the cell's impedance drops with use. If the phone becomes hot to the touch — not just warm — or the back panel bulges at any point, stop charging immediately and inspect the cell seating.
