ZTE Axon 20 5G Li3941T44P4H836249 Compatible Battery 3.85V 4100mAh

ZTE Axon 20 5G — 3.85V Li-Polymer Replacement Battery (Li3941T44P4H836249)

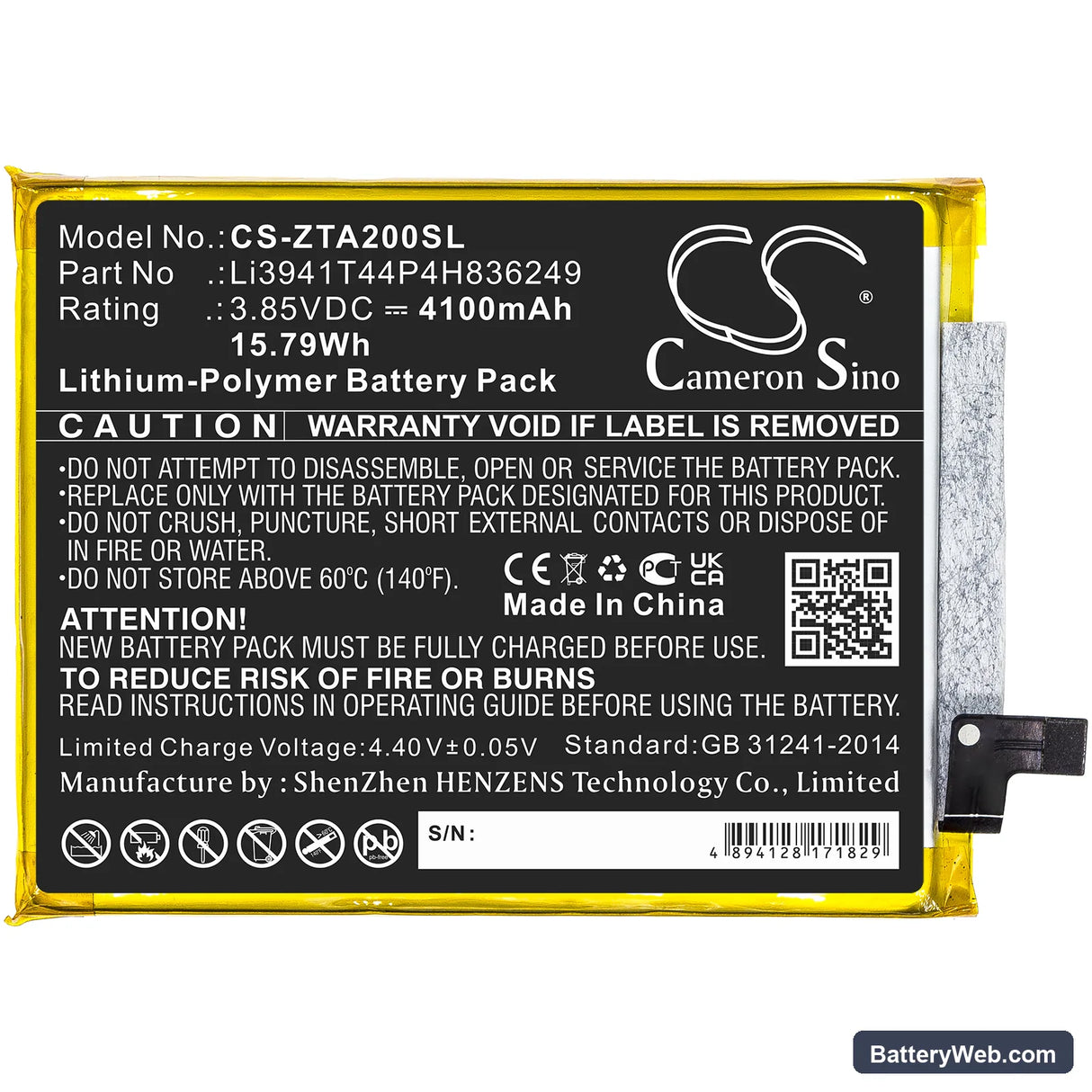

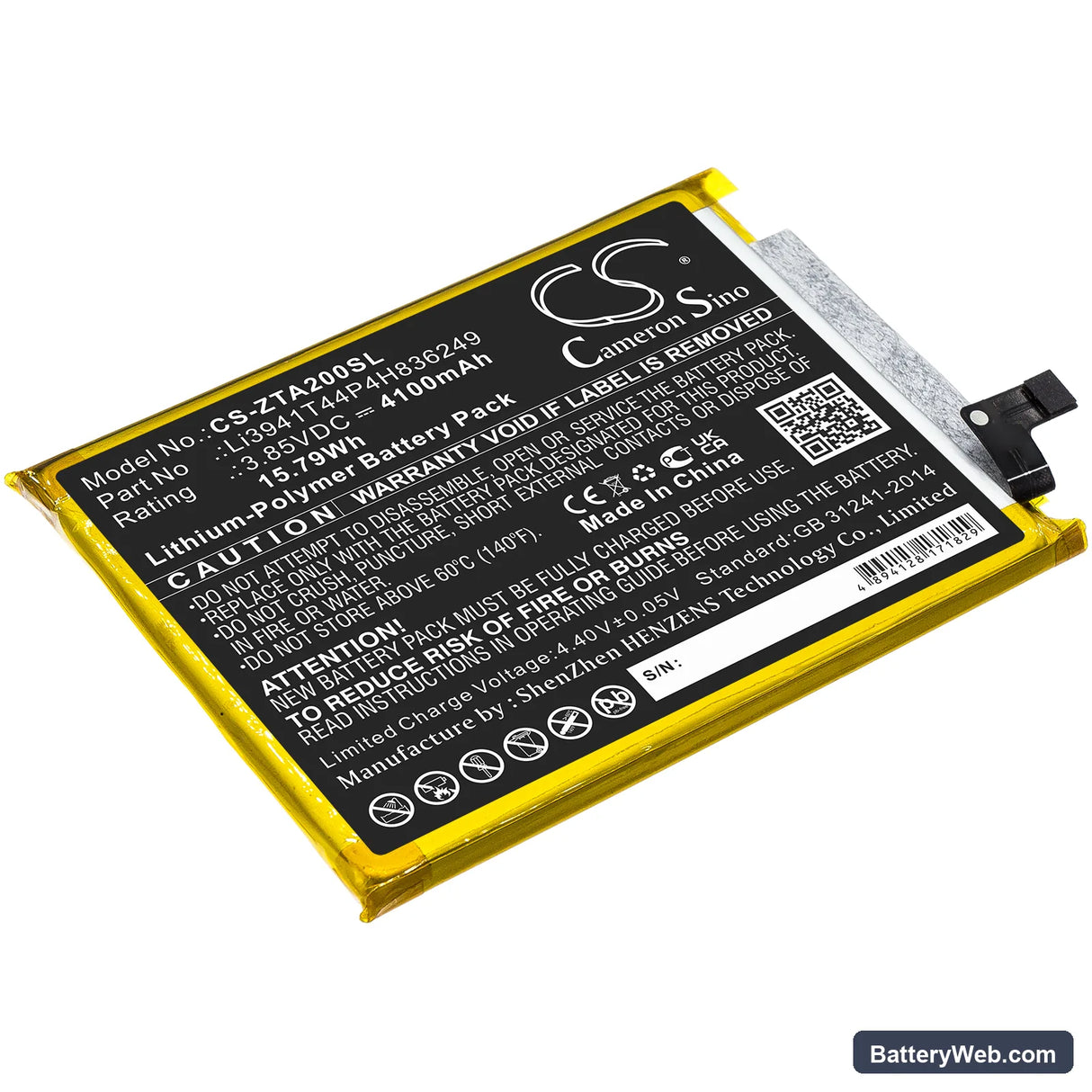

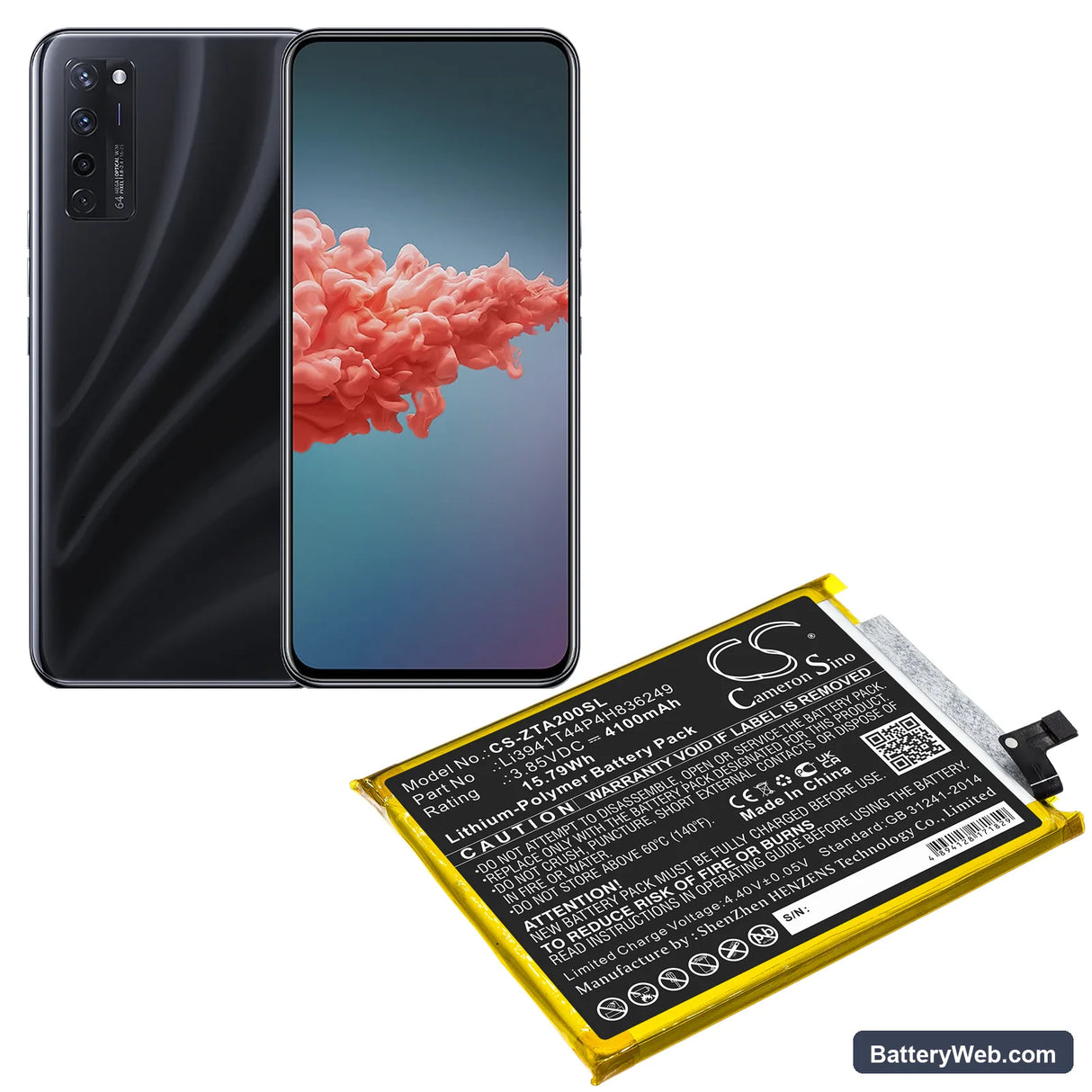

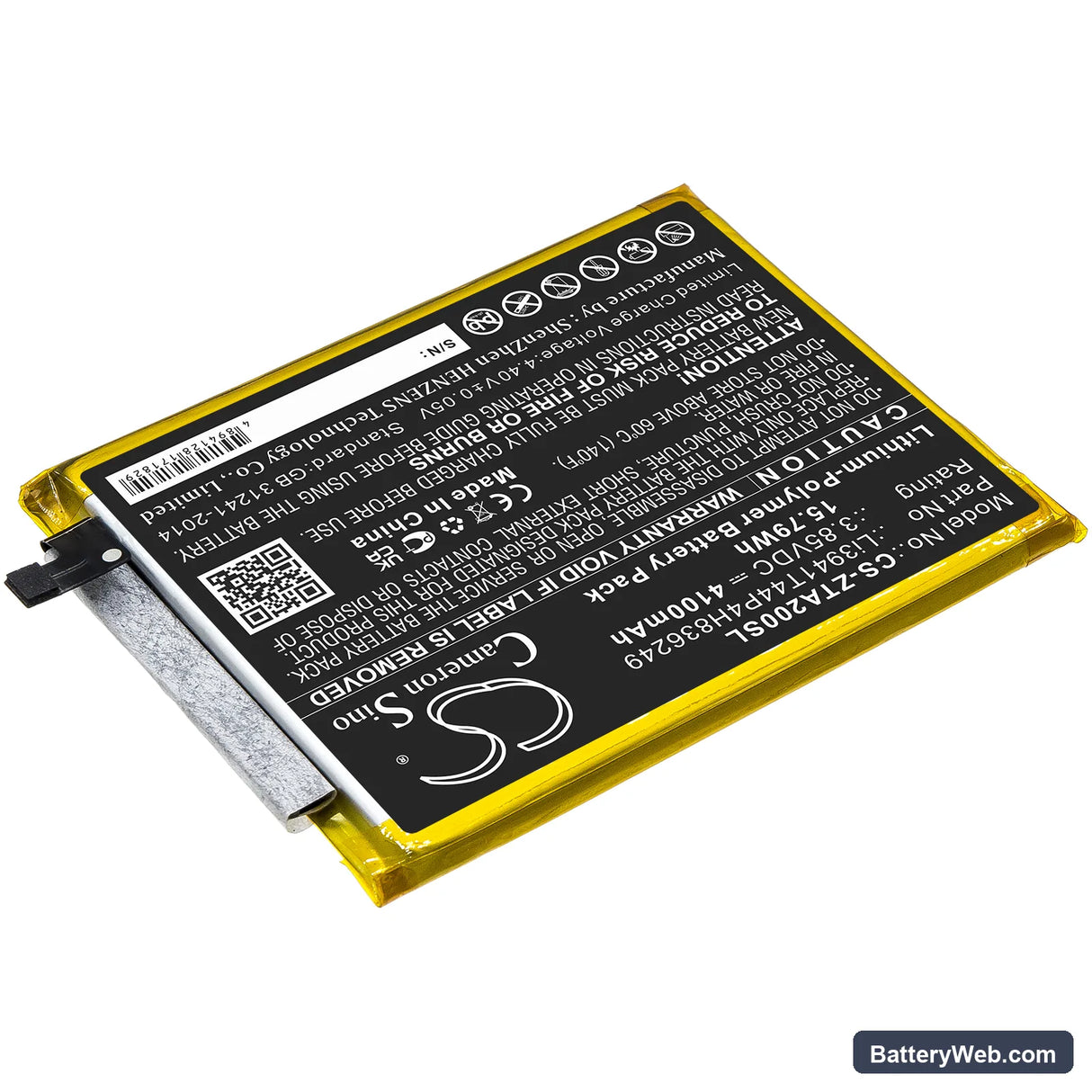

This 3.85V, 4100mAh Li-Polymer cell replaces the original battery in the ZTE Axon 20 5G, A2121G, A2121, and Rakuten BIG 5G. It matches the OEM part number Li3941T44P4H836249 and drops into the same physical envelope at 81.80 × 61.60 × 4.60mm. Capacity is rated at 15.79Wh — identical to the factory specification.

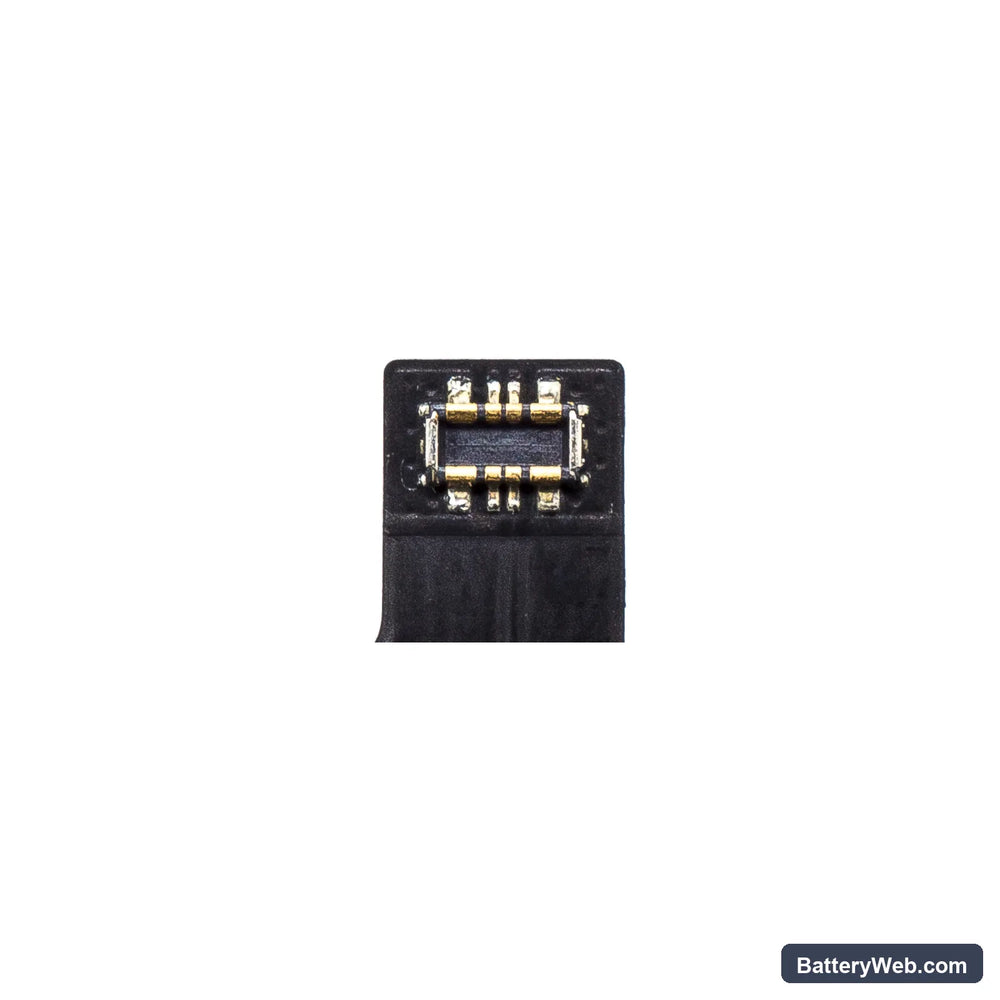

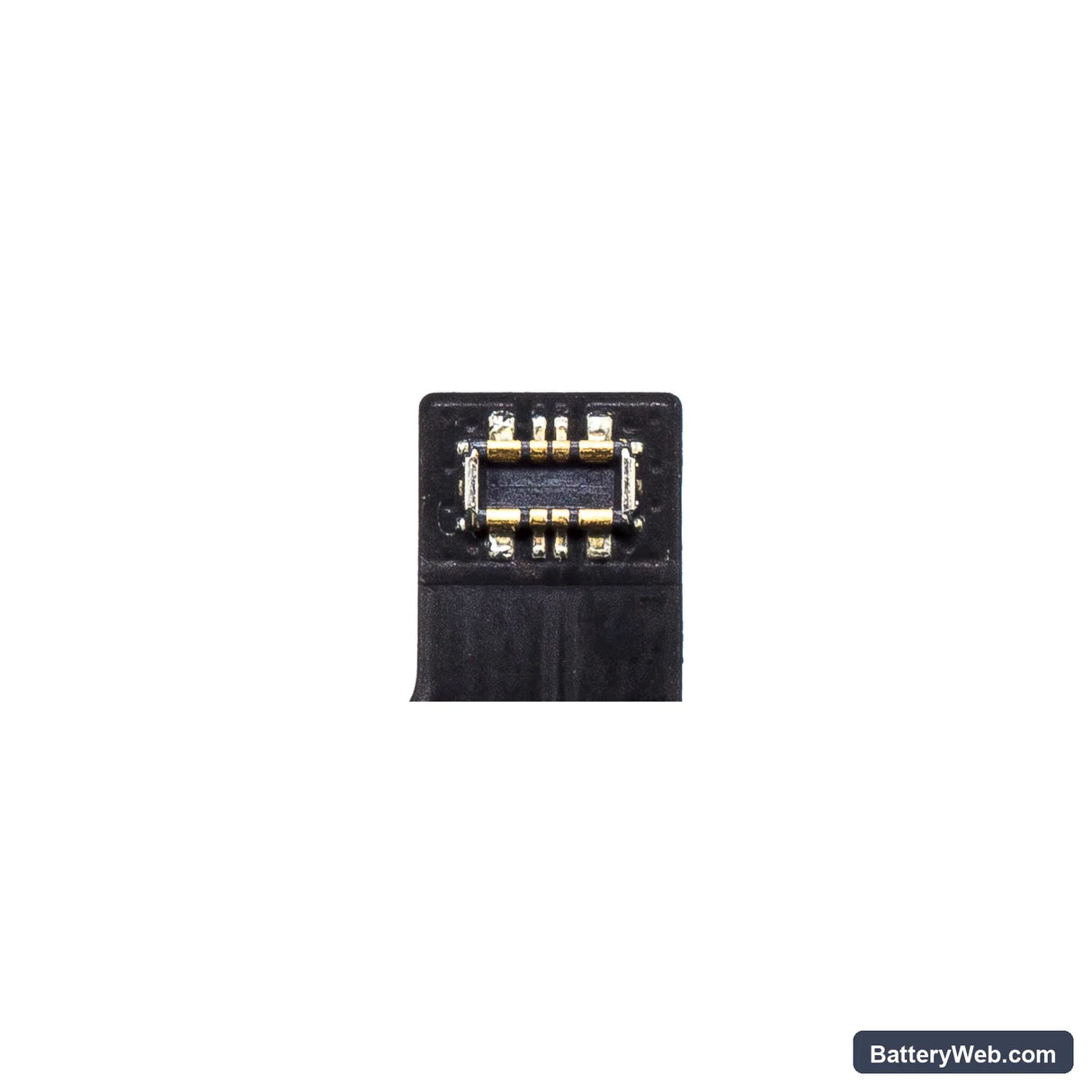

• Axon 20 5G platform fit: The A2121G, A2121, and Rakuten BIG 5G all share the same battery bay dimensions, connector pinout, and BMS handshake protocol — one cell covers the entire family without modification.
• Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on an A2121 unit. The BMS accepted the cell on first connect, charge termination triggered correctly at 4.4V, and the protection circuit tripped cleanly at low-voltage cutoff without requiring a manual reset.
• Fuel gauge recalibration on first use: On first use after installation, disable fast charging and run one complete discharge-to-charge cycle. This gives the fuel gauge IC time to map the new cell's discharge curve before high-current charging pushes amperage into an uncalibrated coulomb counter.

Why the Axon 20 5G reports wrong battery percentage after a cell swap

The Axon 20 5G uses a coulomb-counting fuel gauge IC that builds its capacity model from historical charge and discharge data stored for the original cell. When a new cell goes in, that learned curve no longer matches the actual cell chemistry, so the percentage readout drifts — sometimes by 10–15 points. One full discharge to automatic shutdown followed by an uninterrupted charge to 100% forces the IC to reset its reference points against the new cell. Until that cycle completes, percentage readings will not track accurately. Do not charge in short bursts during this first cycle.

Sudden shutdown at 20–30% on the replacement cell

This happens when the 5G modem or display pulls a current spike that drops cell voltage below the BMS protection threshold before the fuel gauge registers the drop. A fresh Li-Polymer cell with an uncalibrated fuel gauge is especially vulnerable in the first few cycles because the IC doesn't yet know where the real voltage cliff sits. The fix is to complete two full discharge-charge cycles without interruption — this lets the BMS and fuel gauge agree on the lower voltage boundary. If shutdowns continue past the second full cycle, check that cell voltage at rest sits above 3.7V before reassembling the device.
