Gardena 18.5V Cordless Mower Replacement Battery 2600mAh

Gardena 19921-24 / 19922-20 Series — 18.5V Li-ion Replacement Battery

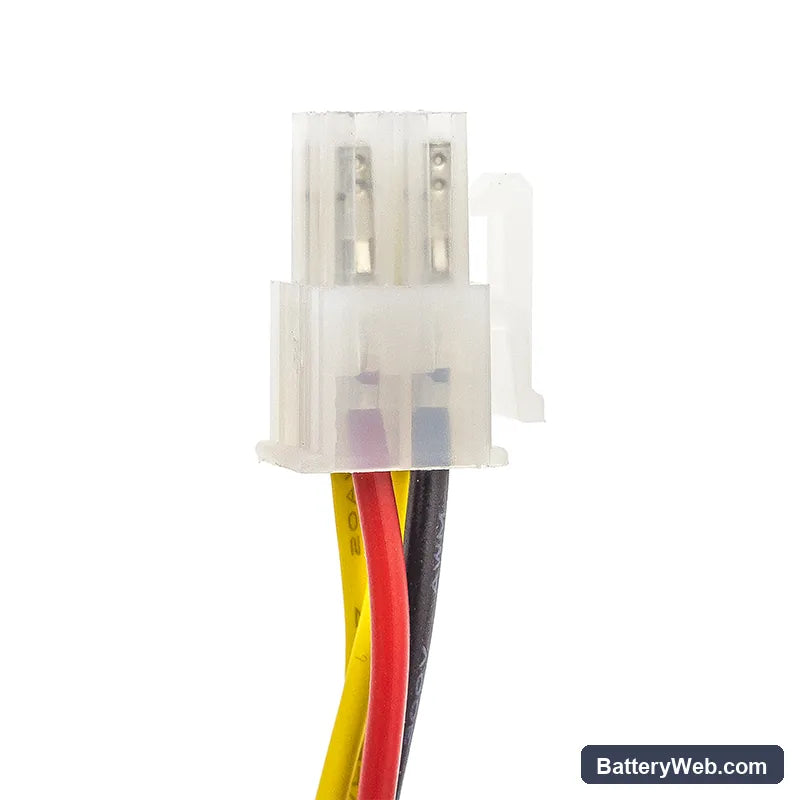

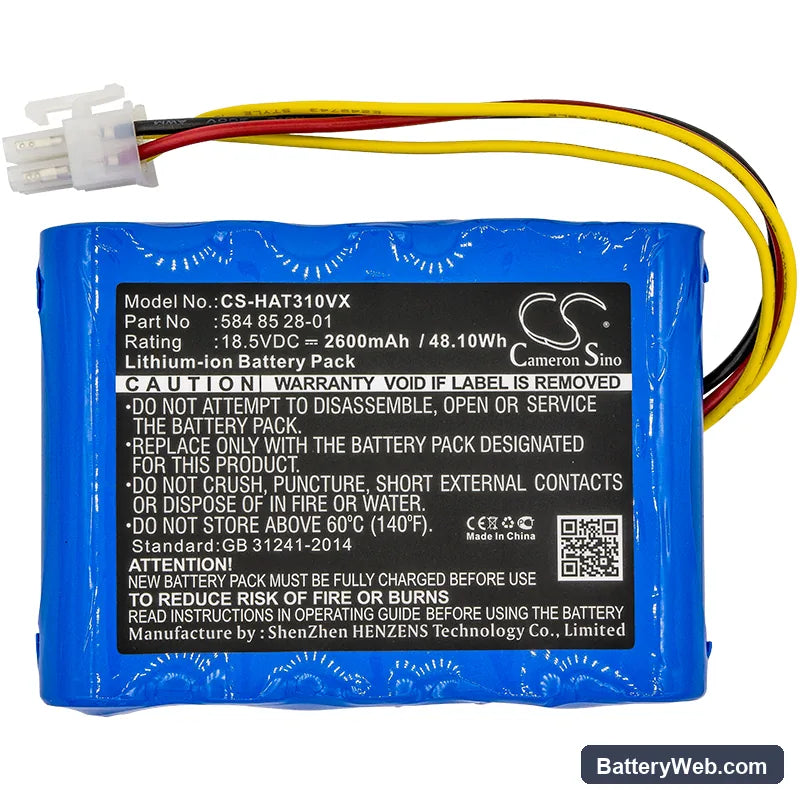

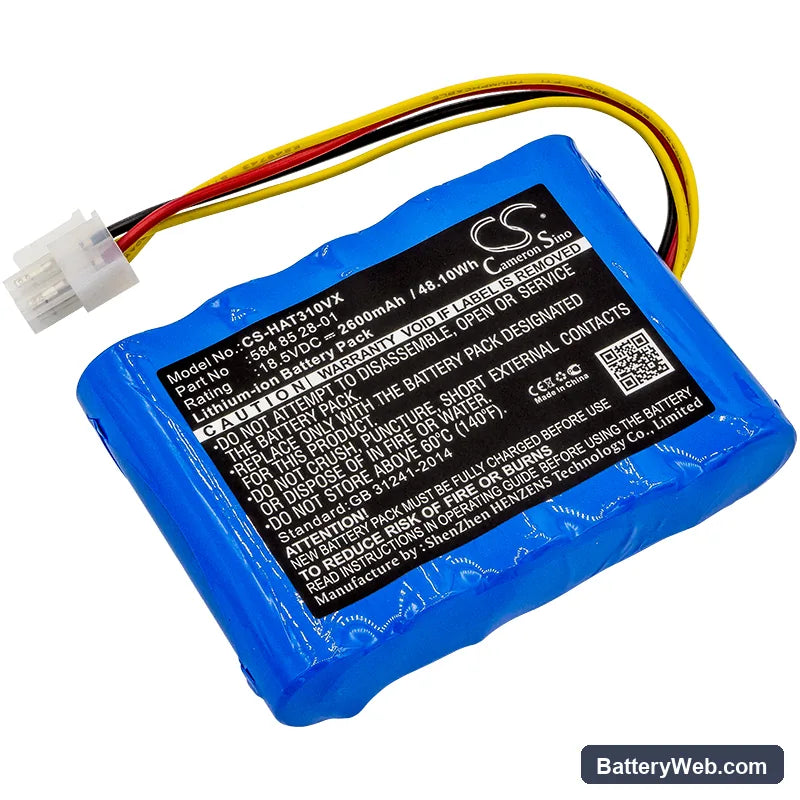

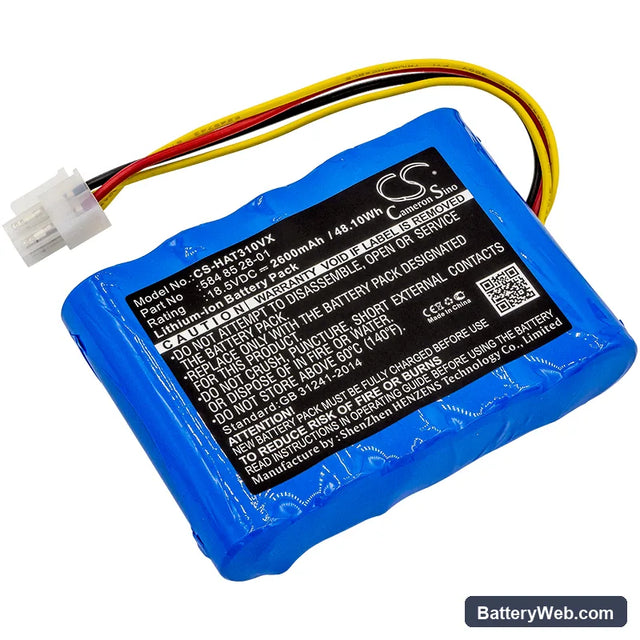

This is an 18.5V 2600mAh (48.1Wh) lithium-ion battery for Gardena cordless lawn mowers across the 19921-24, 19922-20, 19923-20, and 19925-24 model range, plus 27 additional compatible units. It slots into the same battery bay as the original and communicates with the mower's BMS over the same data line. Voltage and connector match the OEM pack.

• Cross-model compatibility on the 19921–19925 platform: These mowers share the same 18.5V battery bay, connector pinout, and BMS handshake protocol — which is why a single pack serves all four primary model numbers. The cell arrangement and discharge curve are matched to the blade motor's load profile.
• Bench tested on actual hardware: We ran this pack through full discharge cycles on a 19922-20 unit, including simulated high-resistance blade loads. The BMS held cutoff correctly at low cell voltage and recovered cleanly on recharge without latching into fault state.
• Seasonal storage before first spring use: Before first use of the season, bring the battery indoors overnight if temperatures are below 10°C. Cold lithium-ion cells have higher internal resistance, and the blade motor's inrush current on startup can trip the BMS when the pack is still cold from a winter garage.

BMS cutoff on thick-grass or wet-grass blade load

The blade motor on these Gardena mowers draws significantly more current through dense or wet grass than on a dry, short lawn. If that inrush exceeds the BMS overcurrent threshold — even briefly — the pack cuts power to protect the cells. This is not a faulty battery; it is the protection circuit doing its job. Slow your mowing pace through thick patches and let the motor settle before the next row. If cutoffs persist on normal grass, check that the blade is sharp — a dull blade increases motor load substantially.

Charger showing a fault light after the mower sat unused all winter

Lithium-ion cells left in partial or low charge over several months can drop below the charger's acceptance voltage threshold — typically around 2.5V per cell. When that happens, the charger reads the pack as faulty and refuses to begin a charge cycle. Remove the battery, leave it at room temperature (above 15°C) for two hours, then retry. Most chargers will accept the pack once the cell voltage stabilises slightly from ambient warming; if the fault persists after two attempts, check cell voltage directly — a healthy pack should read at or above 16V at rest before charging.
