Brother PA-BT-4000LI 14.4V 2600mAh Compatible Battery TD-2120N

Brother TD-2120N / RJ-4030 / RJ-4040 — 14.4V Li-ion Replacement Battery (PA-BT-4000LI)

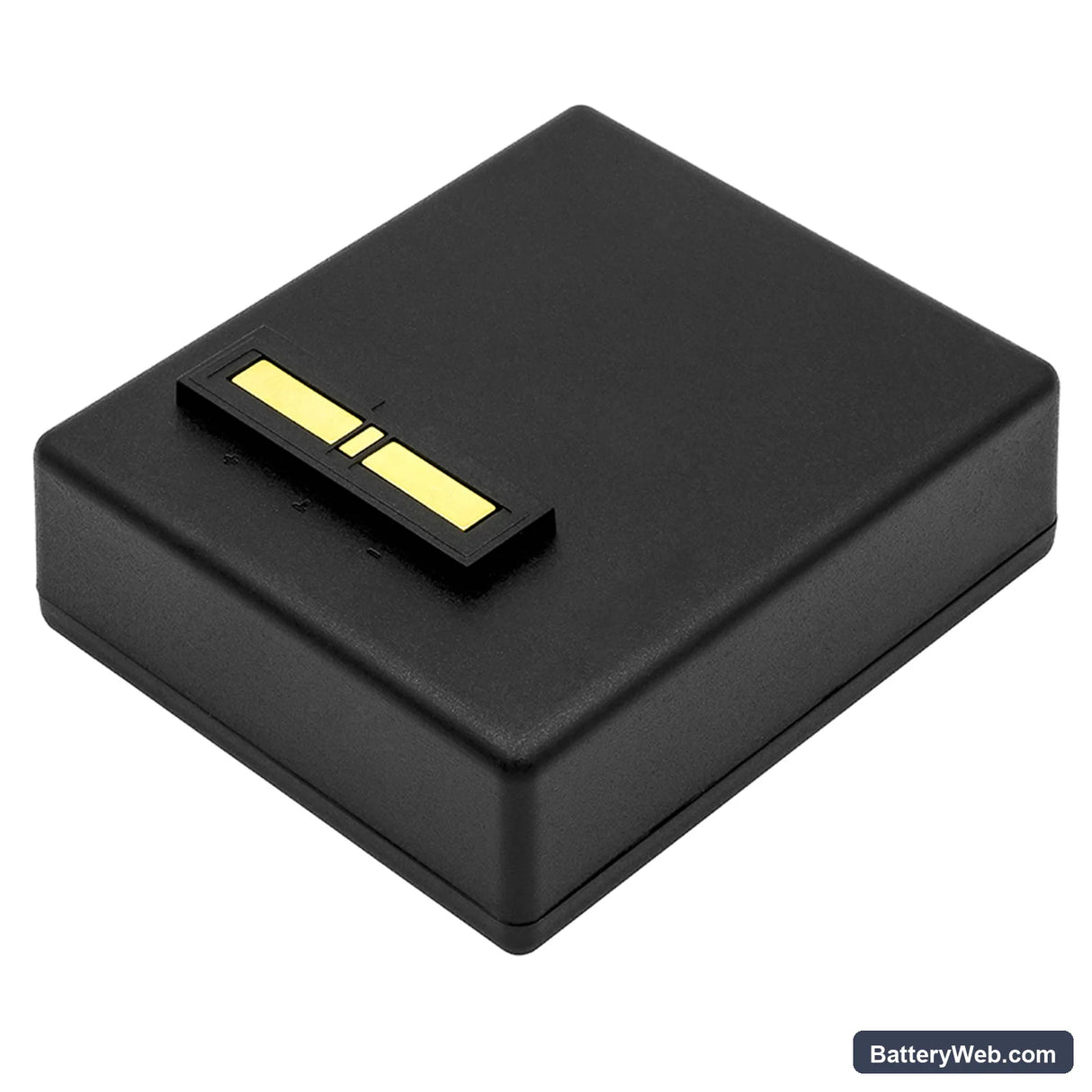

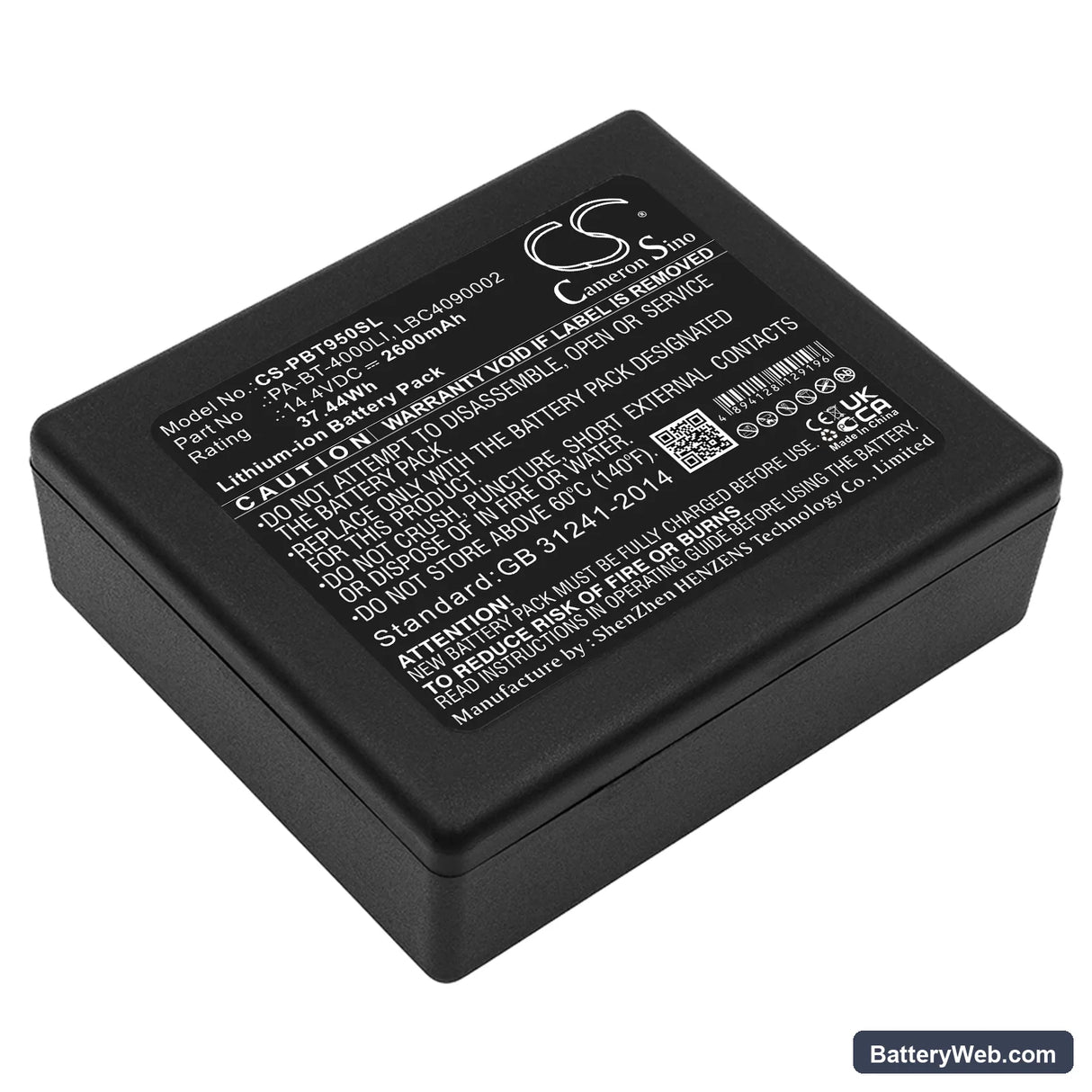

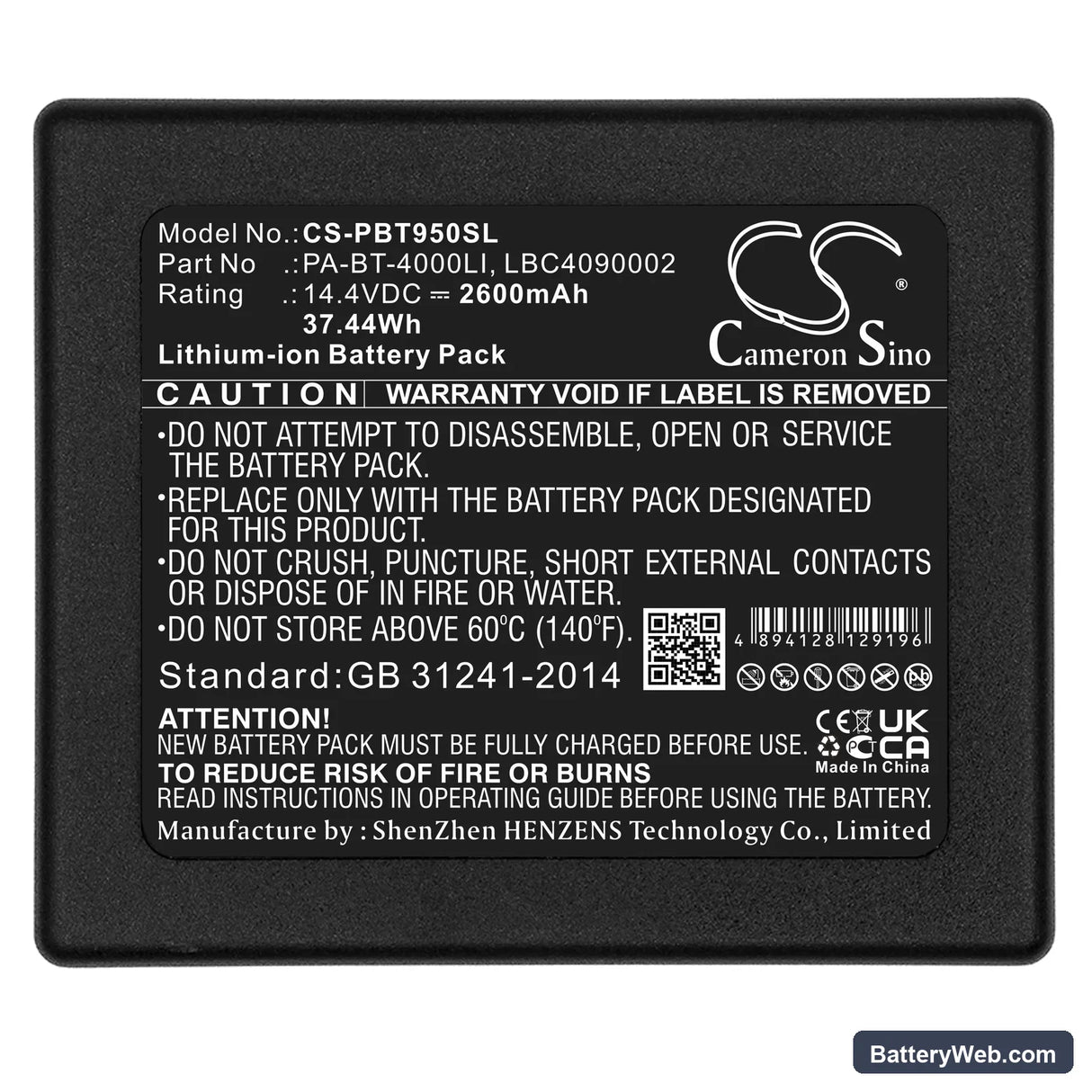

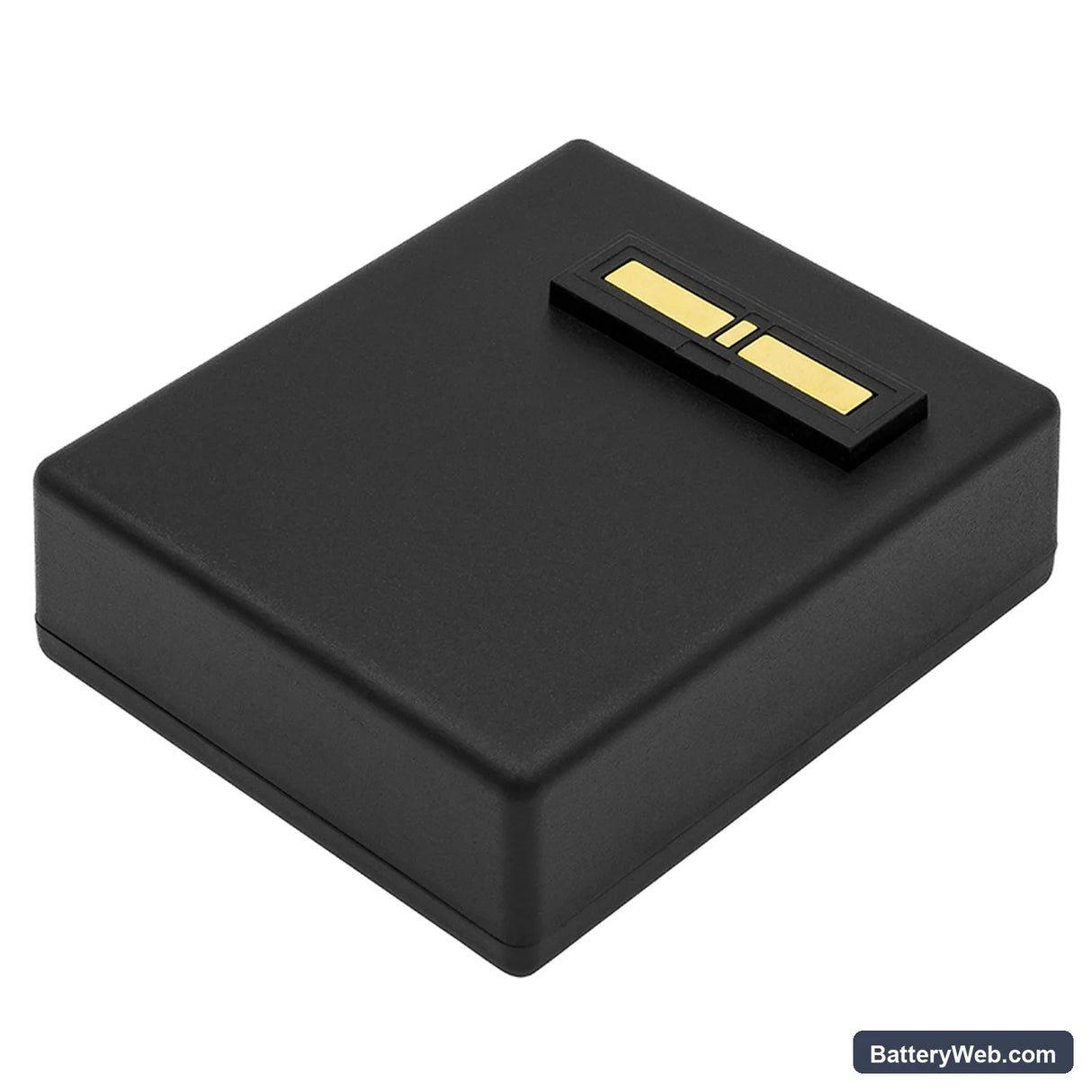

This is a 14.4V, 2600mAh lithium-ion battery replacing part number PA-BT-4000LI. It fits the Brother TD-2120N portable thermal label printer along with the P-touch P950NW, RuggedJet RJ-4030, RJ-4040, and TD-2130NHC. If the original cell has degraded or failed, this restores full mobile operation.

• TD-2120N and RJ-series compatibility: These models share the same 14.4V battery rail, connector pinout, and BMS handshake protocol. Swapping between models within this group requires no adapter or firmware change — the BMS communication is identical across the platform.
• Bench tested on actual hardware: We ran this cell through charge cycles on a TD-2120N and monitored BMS cutoff thresholds. The protection circuit tripped correctly at low-voltage floor and released cleanly on reconnect — no latching faults observed.
• Post-install print calibration: After installing this battery, charge it fully, then run five test label prints before field deployment. The paper feed motor draws a brief high-current pulse on startup — printing several labels lets the BMS log the current profile of the new cell and avoids false low-battery cutoffs during the first real job.

Why the TD-2120N won't start after sitting unused for several months

Li-ion cells self-discharge slowly during storage. If the TD-2120N sits long enough, the pack voltage can drop below the BMS minimum threshold — typically around 10.8V for a 14.4V three-cell series pack. At that point the BMS locks the output to protect the cells, and the printer won't respond to the power button at all. Connect the charger and leave it for at least 30 minutes before attempting to power on. Most BMS controllers on this platform will re-initialise once the charger raises pack voltage above the recovery threshold.

Print output fading or going light mid-batch

The thermal print head on the TD-2120N requires a stable voltage to maintain consistent head temperature across each label. When battery charge is low, voltage sag under the motor load causes the head to run cooler than the target, producing faded or incomplete print — not a head fault. This gets worse mid-batch because the motor and radio are both drawing current simultaneously. Charge the battery to full before starting a large label run, and check that the voltage reads above 13.5V on the printer's status screen before deploying.
