Divoom DitooMic Compatible Battery 7.4V 2600mAh

Divoom DitooMic — 7.4V Li-ion Replacement Battery (HYY090468)

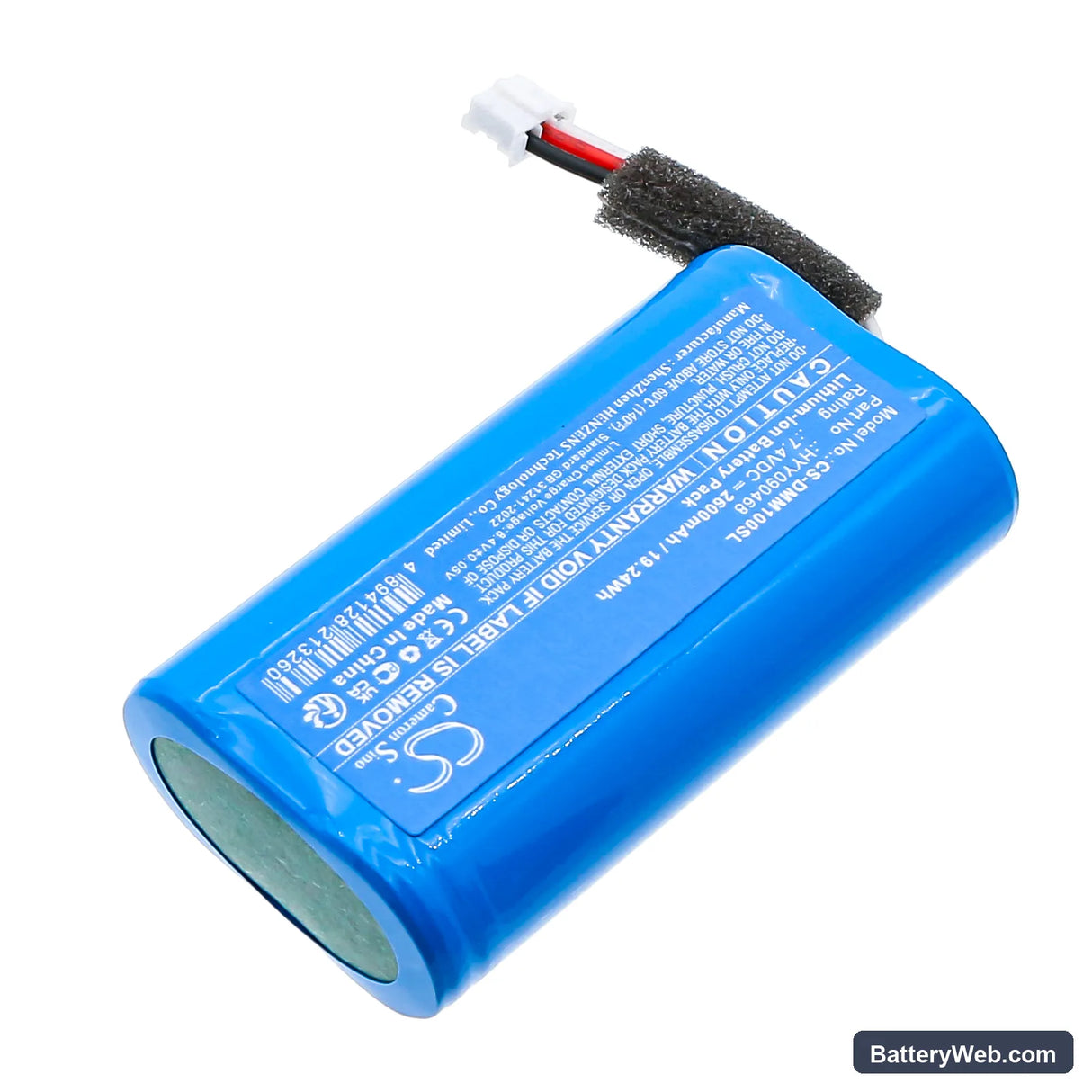

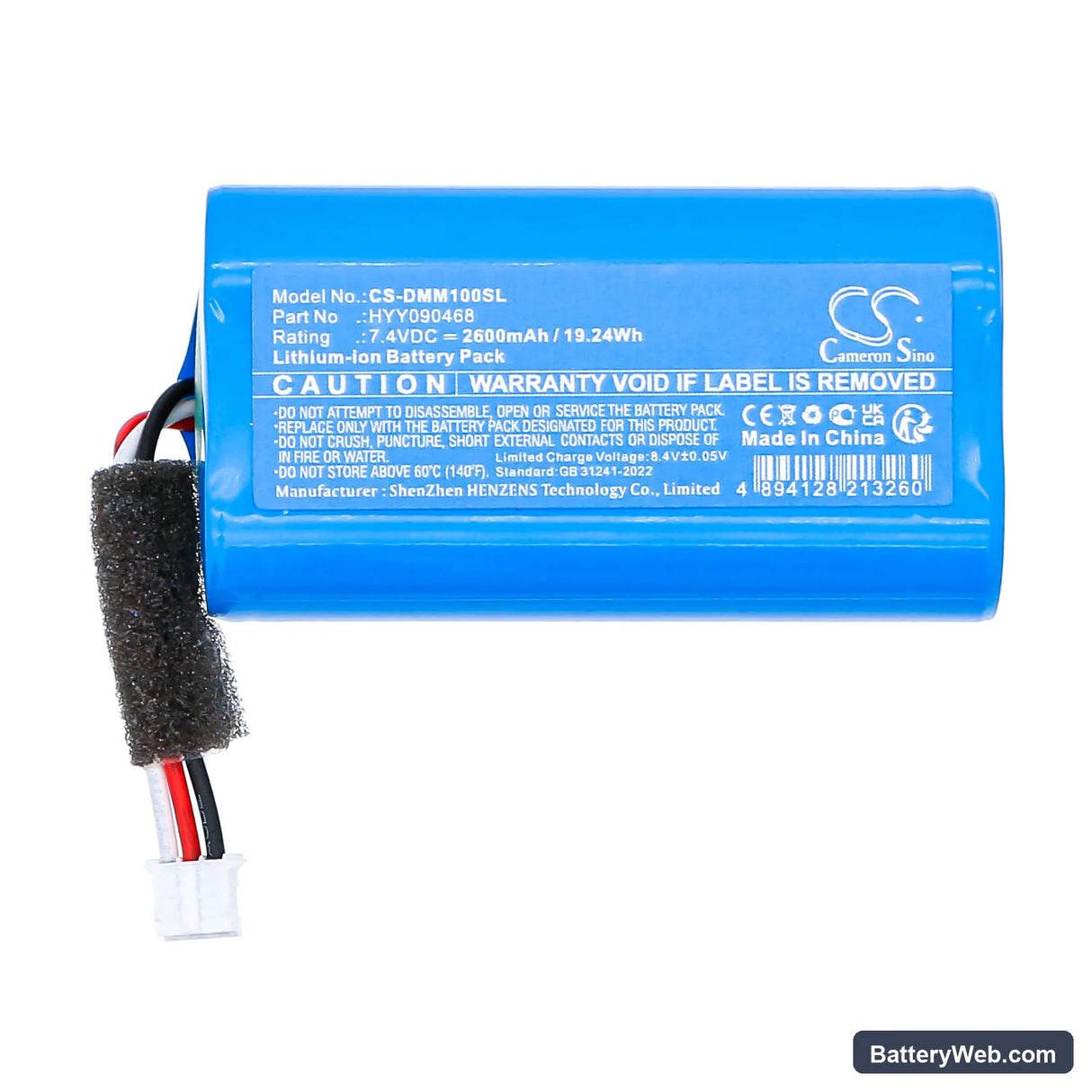

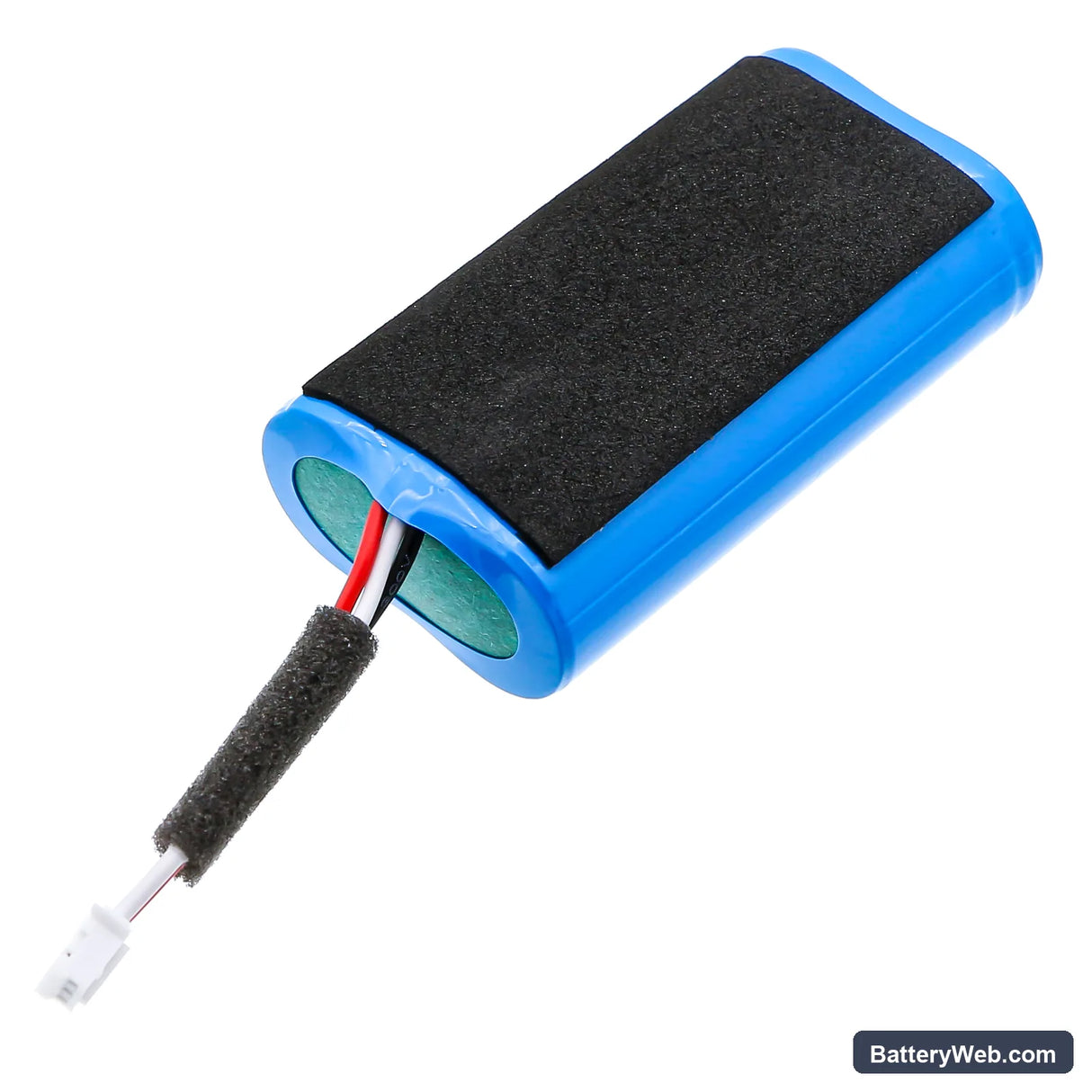

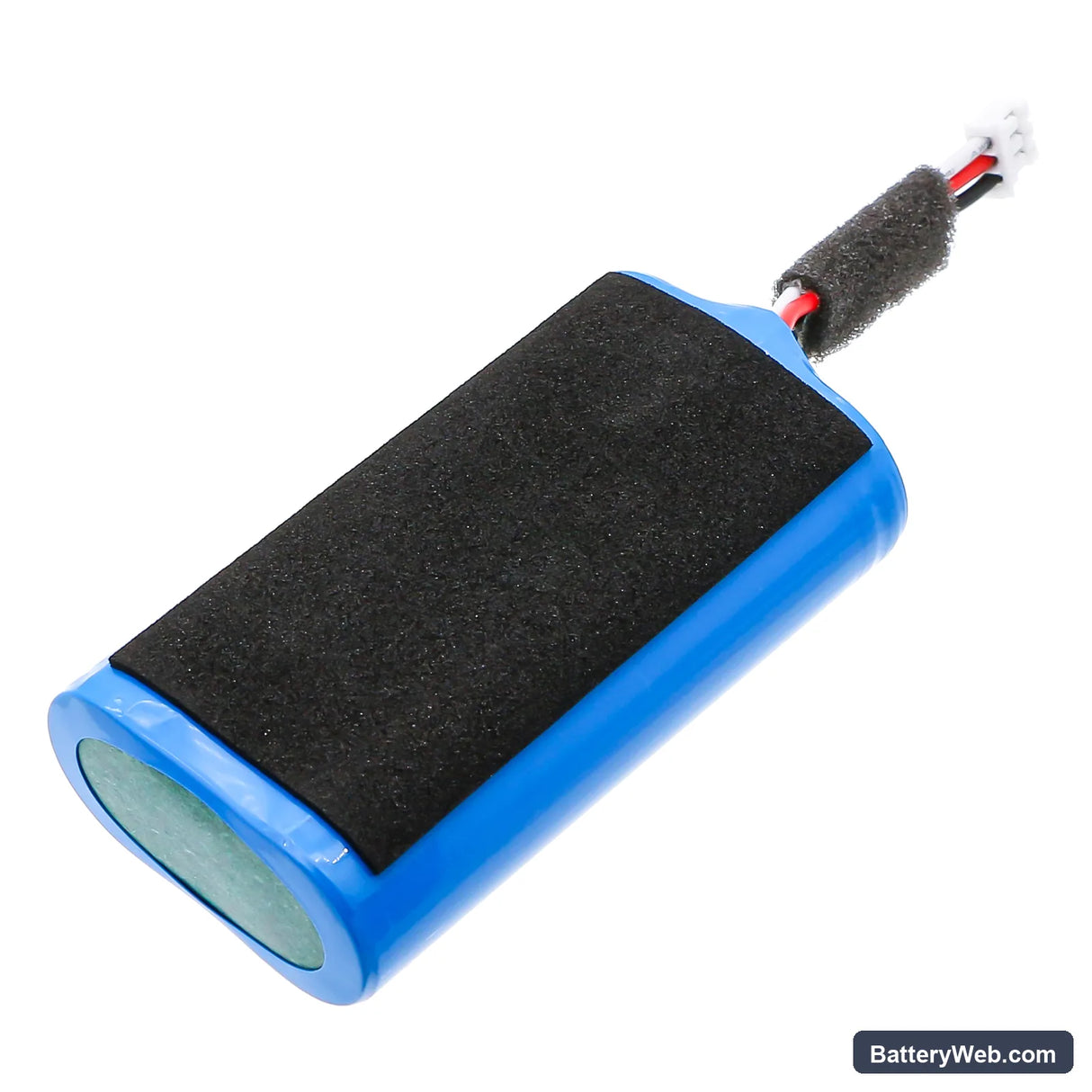

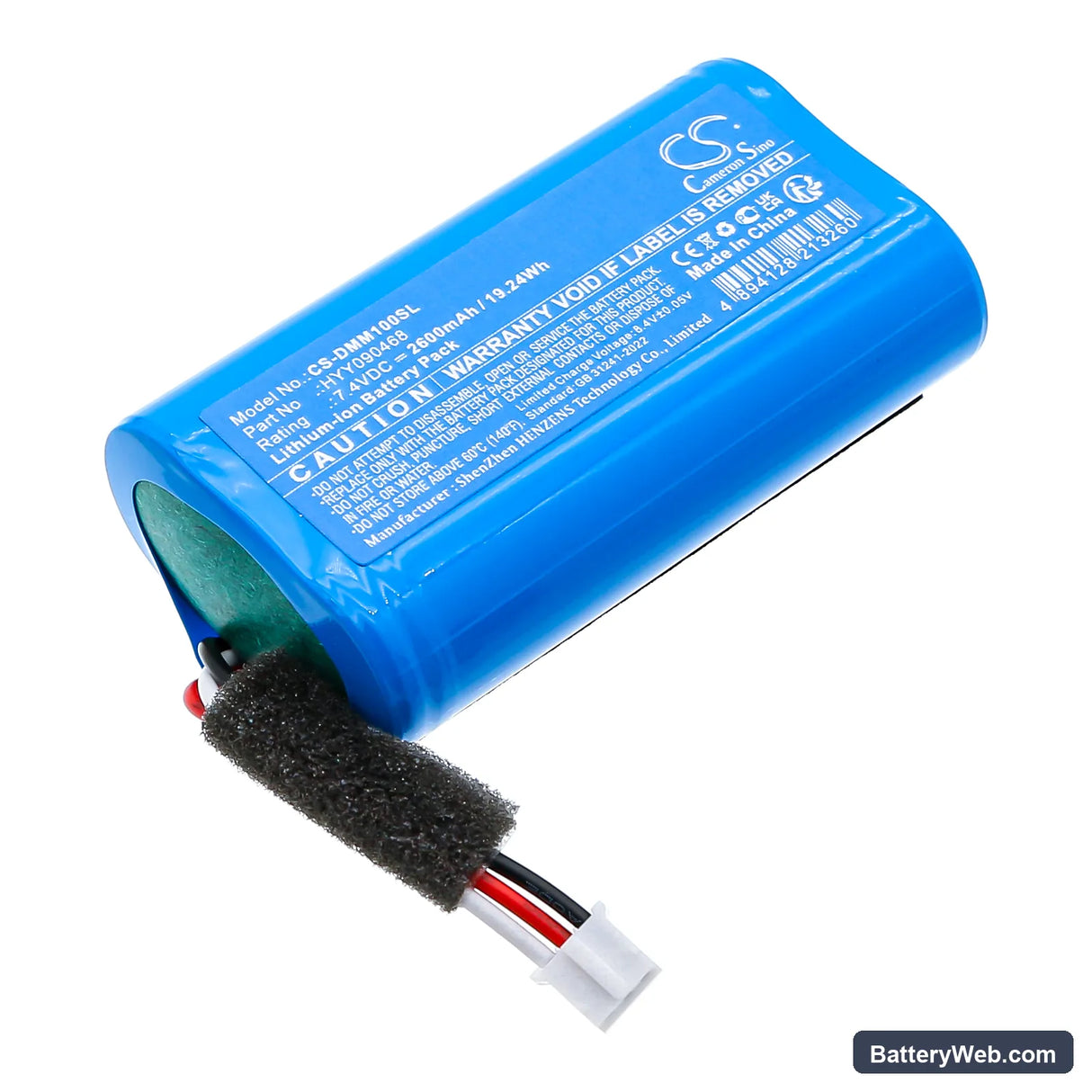

This 7.4V 2600mAh (19.24Wh) Li-ion cell replaces the original HYY090468 battery in the Divoom DitooMic portable smart speaker. The DitooMic combines Bluetooth audio with a pixel art LED display, and both functions draw from this single cell. When the original pack degrades, the speaker loses wireless portability — this replacement restores it.

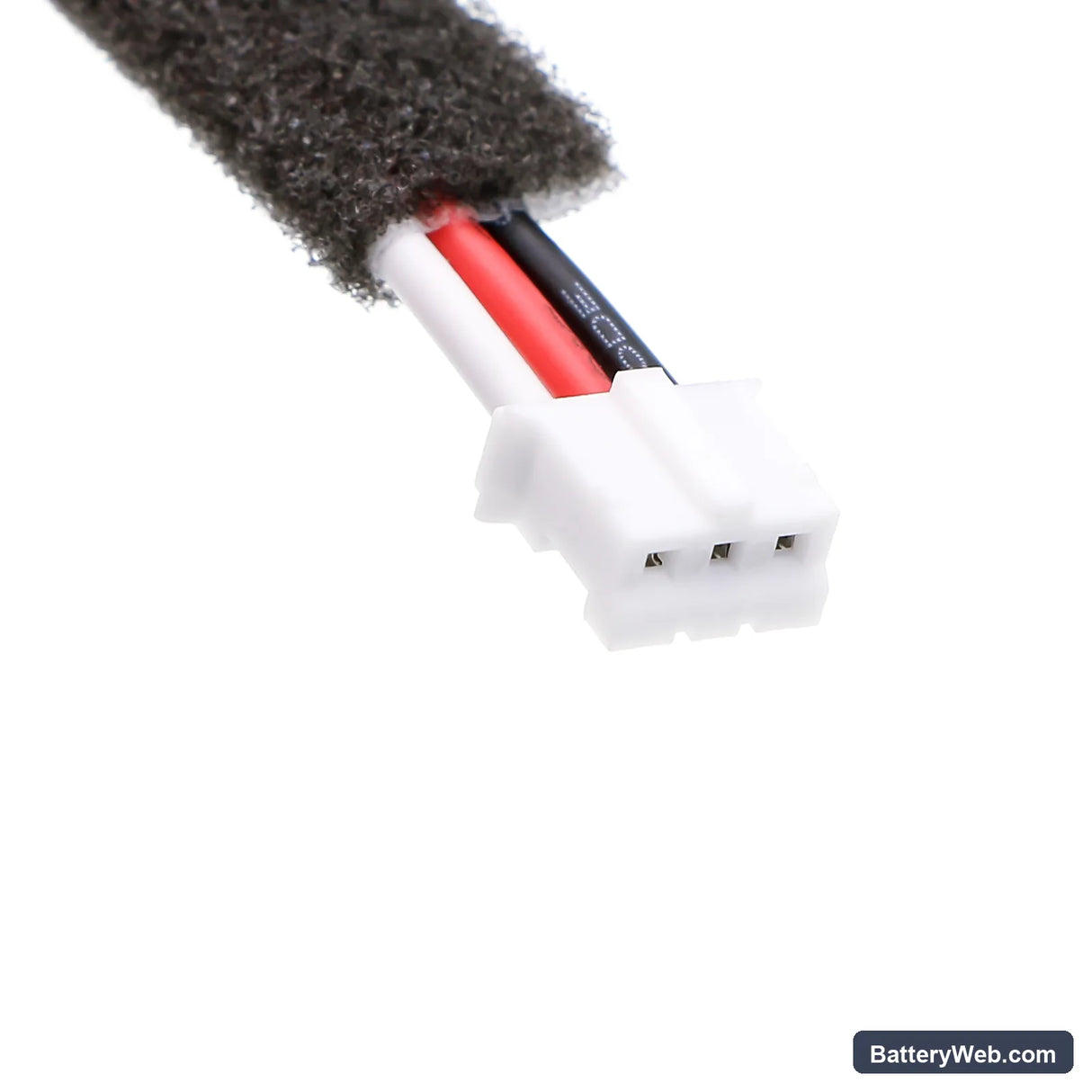

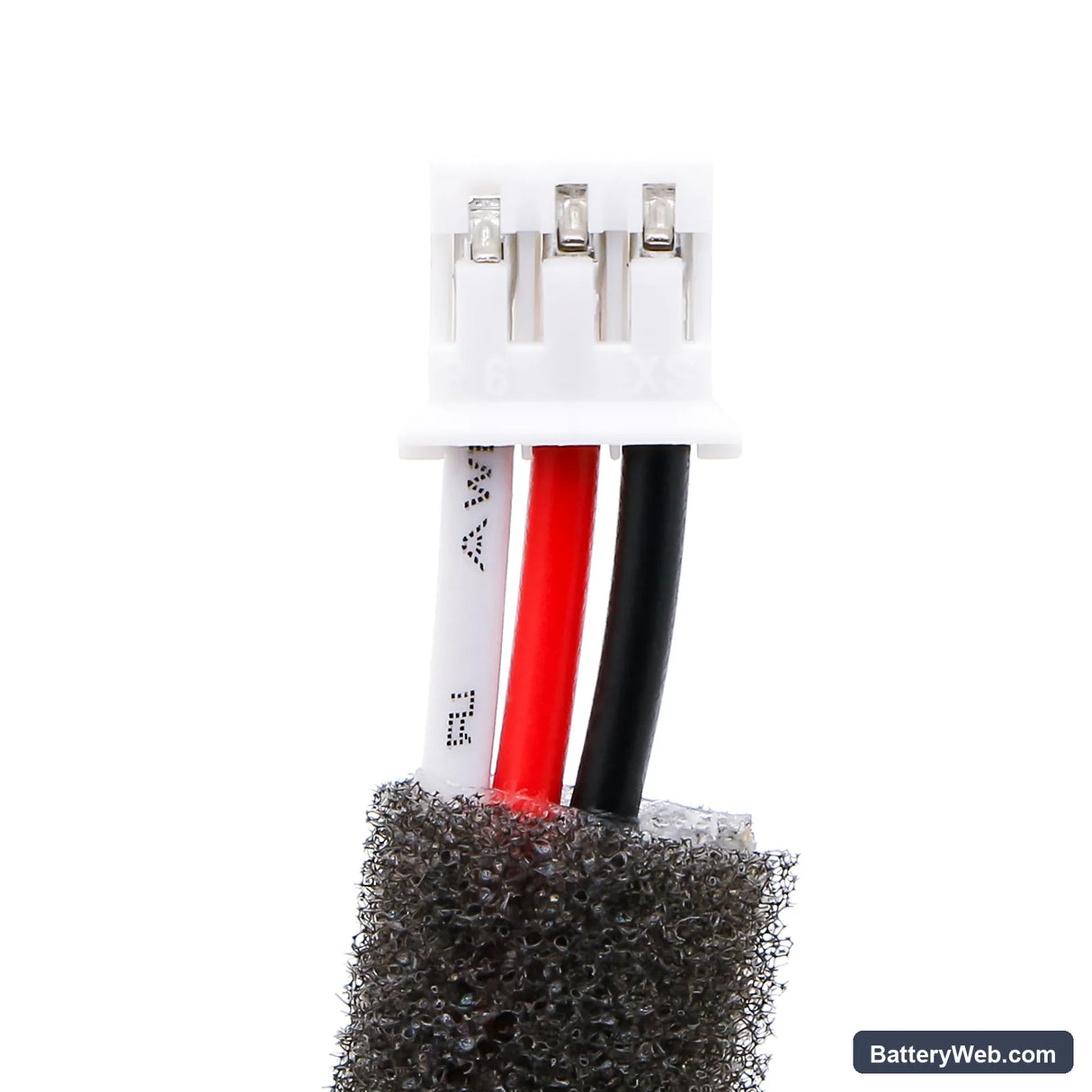

• DitooMic cell fit: The DitooMic runs its amplifier, pixel display, and Bluetooth radio from one 7.4V pack. The HYY090468 cell matches the original connector pin-out and BMS handshake so the speaker's charge indicator and low-battery cutoff behave as they did from factory.
• Bench tested on actual hardware: We cycled this cell through combined audio and display load. The BMS held voltage above the amplifier's minimum threshold across the discharge curve and tripped the low-cell cutoff cleanly without audio pop or display freeze.
• DitooMic fuel gauge calibration: The DitooMic's fuel gauge drifts if the pack is never allowed to discharge below 20%. Run the speaker to its automatic low-battery shutdown at least once a month, then charge to full in a single session — this resets the gauge's state-of-charge reference and keeps the indicator accurate.

Why the DitooMic audio cuts out before the battery indicator reaches empty

The DitooMic amplifier has a minimum operating voltage slightly above the BMS low-cell cutoff. As a degraded cell's internal resistance rises, voltage sags under the combined amplifier and display draw — enough to drop below the amp's threshold before the battery gauge registers critical. The result is audio cutoff or distortion while the display still shows one or two bars remaining. A fresh cell with lower internal resistance holds voltage flat across the same load, so the amplifier stays above its operating floor until the BMS actually cuts the cell at the true low-voltage limit, typically around 6.0V on a 7.4V nominal pack.

DitooMic won't wake from USB-C after sitting unused for weeks

If the DitooMic sits discharged for an extended period, the cell voltage can drop below the USB-C PD minimum acceptance threshold — usually under 2.5V per cell on a 2S pack. At that voltage the BMS blocks the charge FET as a protection measure, and the charger sees no load, so it never negotiates power delivery. To recover, apply a 5V charge source directly and hold it connected for 10–15 minutes; most BMS chips on this chemistry will re-enable the charge path once the cell climbs above approximately 2.8V per cell and resumes normal charging. If voltage does not recover past 5.5V total after 20 minutes, the cell has sulfated and needs replacement.
