Tronsmart Element T6 Max Replacement Battery 11.1V 5200mAh

Tronsmart Element T6 Max — 11.1V Li-ion Replacement Battery (INR18650-3S2P)

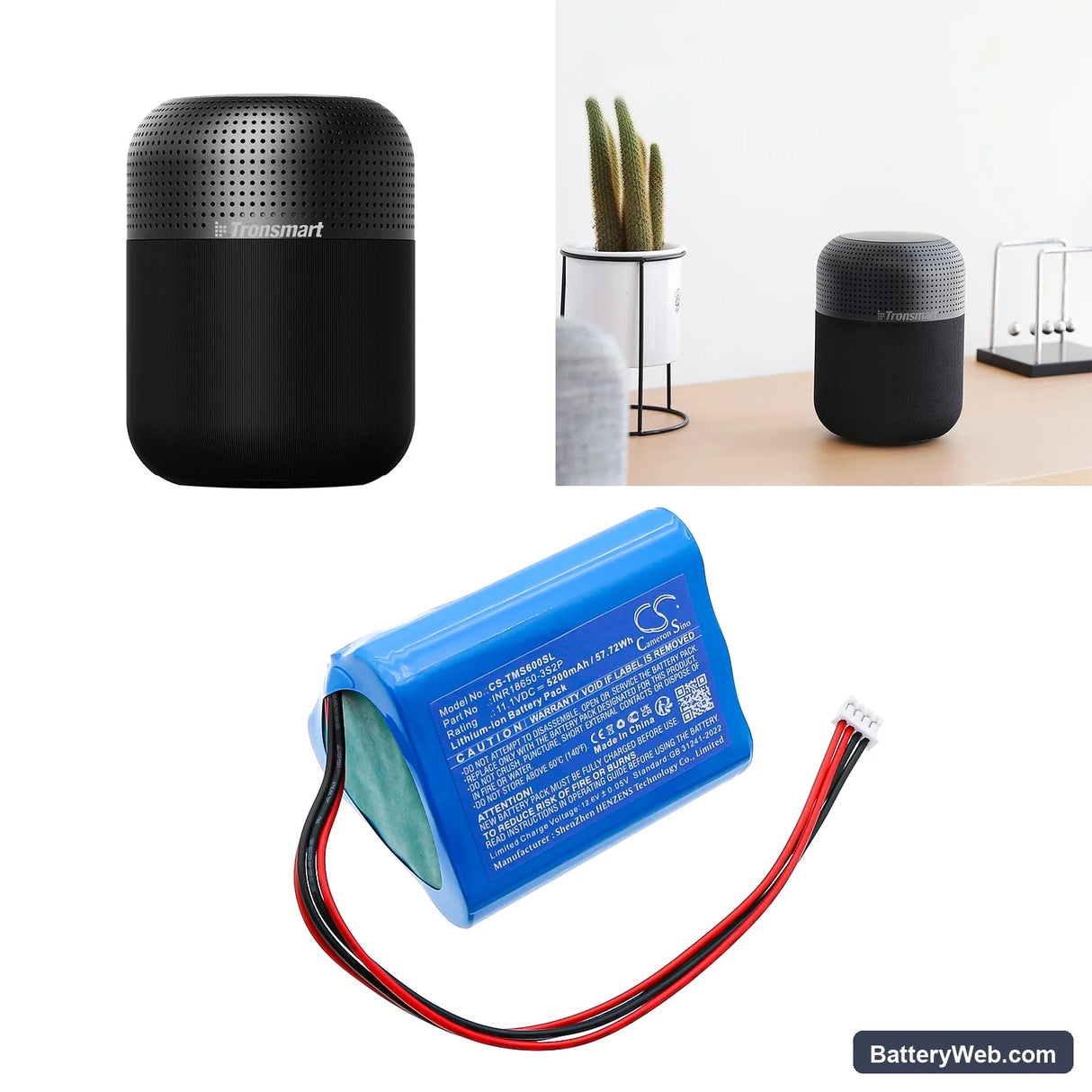

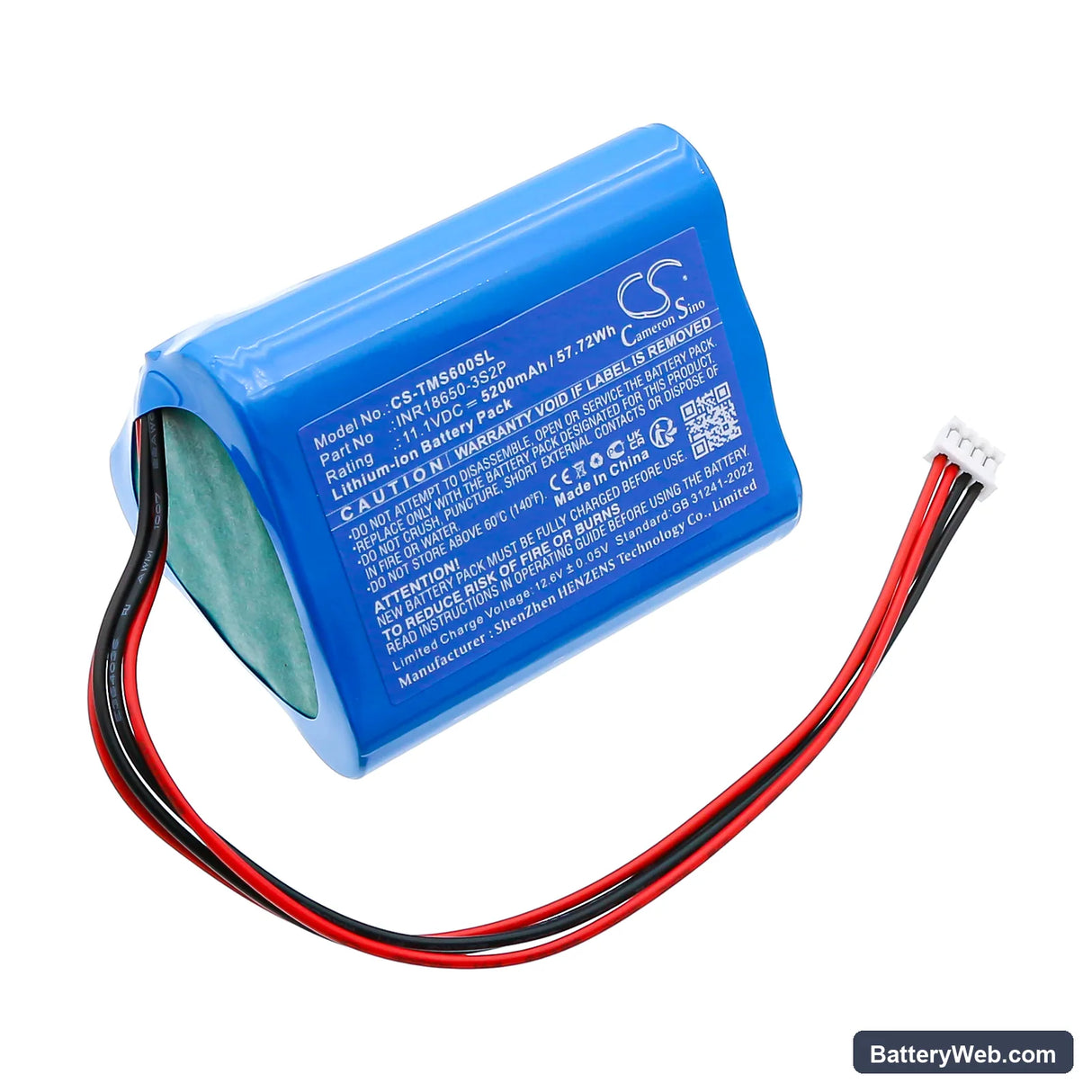

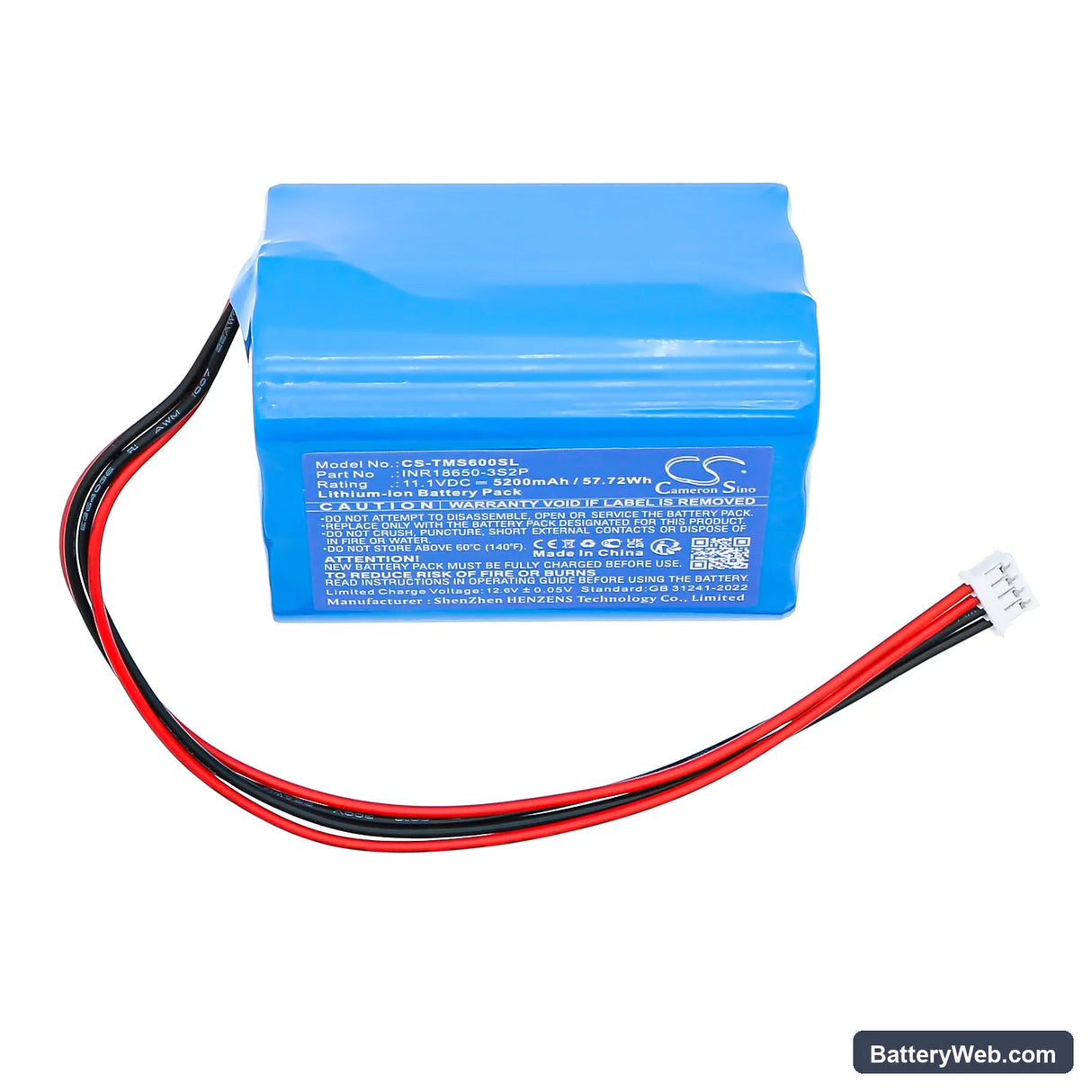

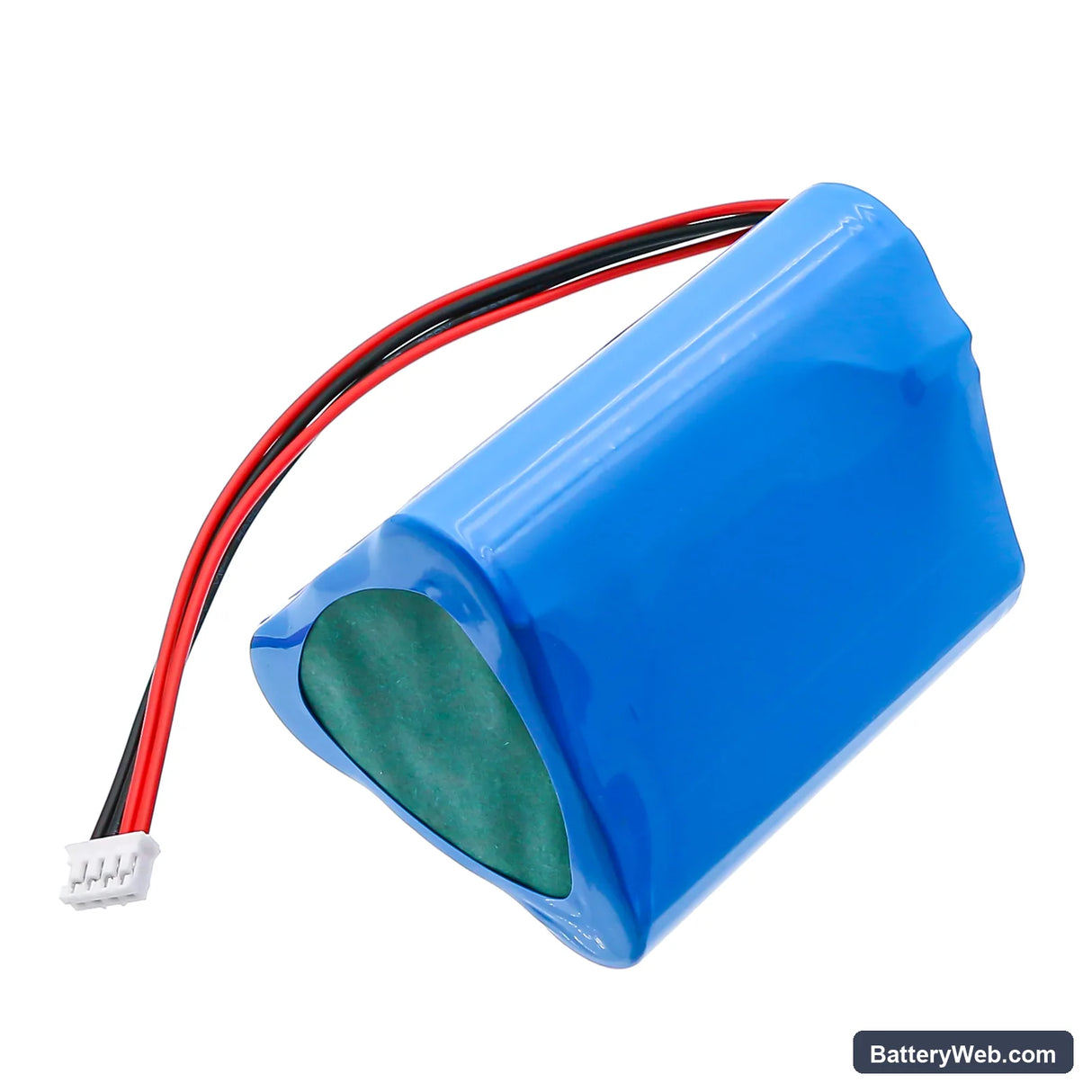

This 11.1V, 5200mAh (57.72Wh) Li-ion pack replaces the original battery in the Tronsmart Element T6 Max portable Bluetooth speaker. It uses an INR18650-3S2P cell configuration — three cells in series, two in parallel — matching the voltage rail and discharge curve the speaker's amplifier board expects. When the original pack can no longer hold a charge or the speaker dies mid-session, this is the direct cell replacement.

• Element T6 Max platform fit: The T6 Max amplifier circuit runs on an 11.1V nominal rail. The 3S2P arrangement delivers that rail while the parallel pair doubles the capacity over a single-string pack. Any pack deviating from this configuration will either under-drive the amp or trigger the protection circuit on the output stage.
• Bench tested on actual hardware: We cycled this pack through the T6 Max at sustained mid-to-high volume output. The BMS held the discharge curve flat through the usable range and tripped the low-voltage cutoff cleanly at the expected cell-floor threshold — no premature shutdowns, no erratic fuel gauge behaviour.
• Monthly full-discharge cycle for the T6 Max: If this speaker lives on a desk or shelf and gets topped up constantly, let it discharge below 20% at least once a month before recharging. The T6 Max fuel gauge drifts noticeably when cells never see a full swing — you'll start getting false "full" readings within a few months of shallow cycling only.

Why the T6 Max amplifier clips before the battery indicator hits empty

The T6 Max amplifier pulls a current spike during loud transients — bass hits especially. As the pack ages and internal resistance rises, that spike causes a momentary voltage sag on the 11.1V rail. The amplifier sees the sag as an undervoltage condition and clips the output to protect itself, even though the fuel gauge still reads 20–30%. A fresh pack with low internal resistance eliminates the sag. If you're hearing distortion well before the indicator empties, check cell resistance first — anything above 150mΩ per cell on a 3S pack will produce this symptom under load.

T6 Max won't wake from USB charging after sitting unused for weeks

Li-ion cells left discharged self-discharge further in storage. If the pack drops below roughly 2.5V per cell, most USB-C PD controllers reject the charge request entirely — the negotiation handshake won't complete at that voltage floor. The T6 Max will appear dead with no charging indicator. To recover the pack, apply a low-current pre-charge using a lab supply or a charger with a recovery mode to bring each cell above 3.0V before resuming normal USB charging. Do not leave the pack in this state for more than a few weeks or cell damage becomes permanent.
