Philips Fidelio B5 7.4V Replacement Battery 104050-2S

Philips Fidelio B5 Series — 7.4V Li-Polymer Replacement Battery (104050-2S)

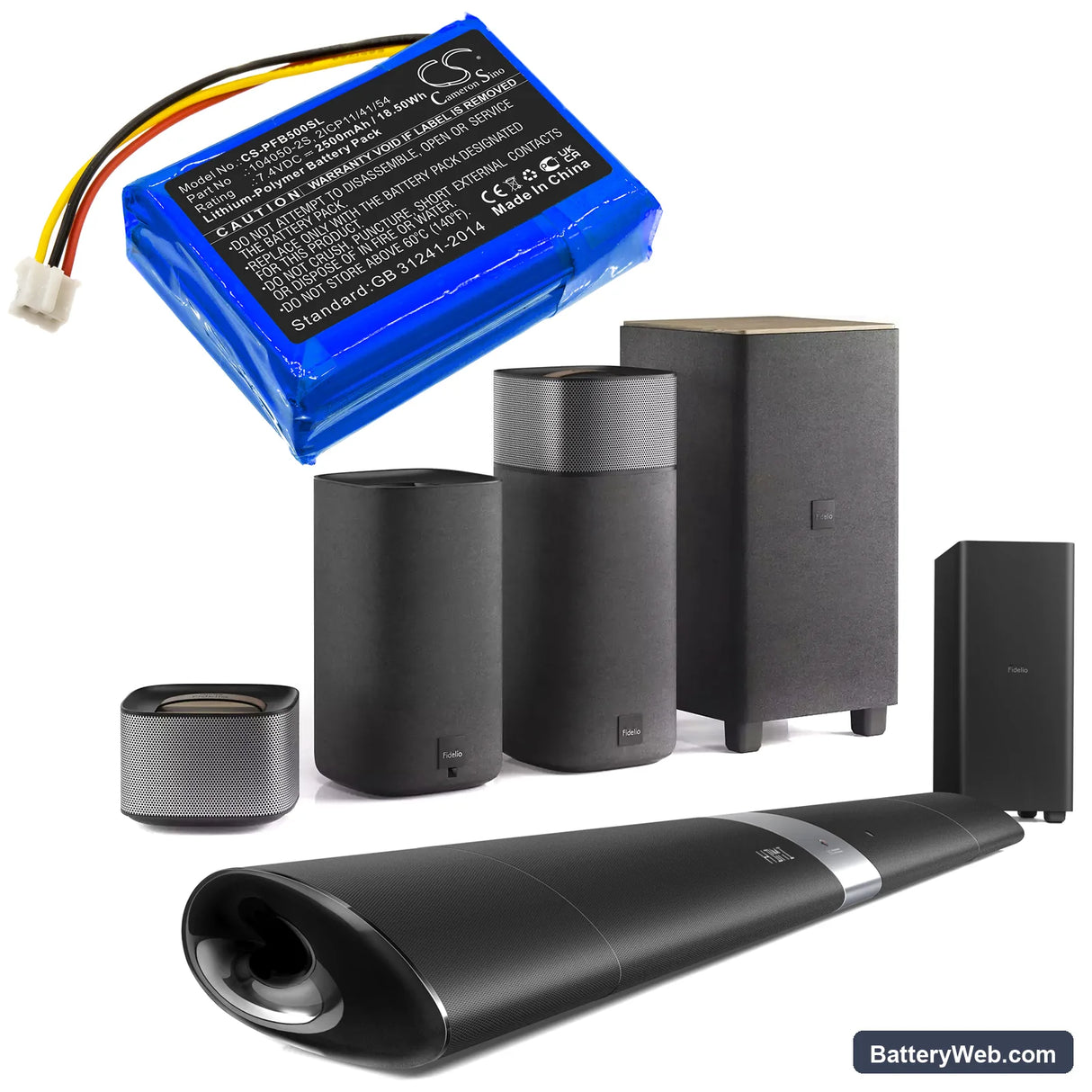

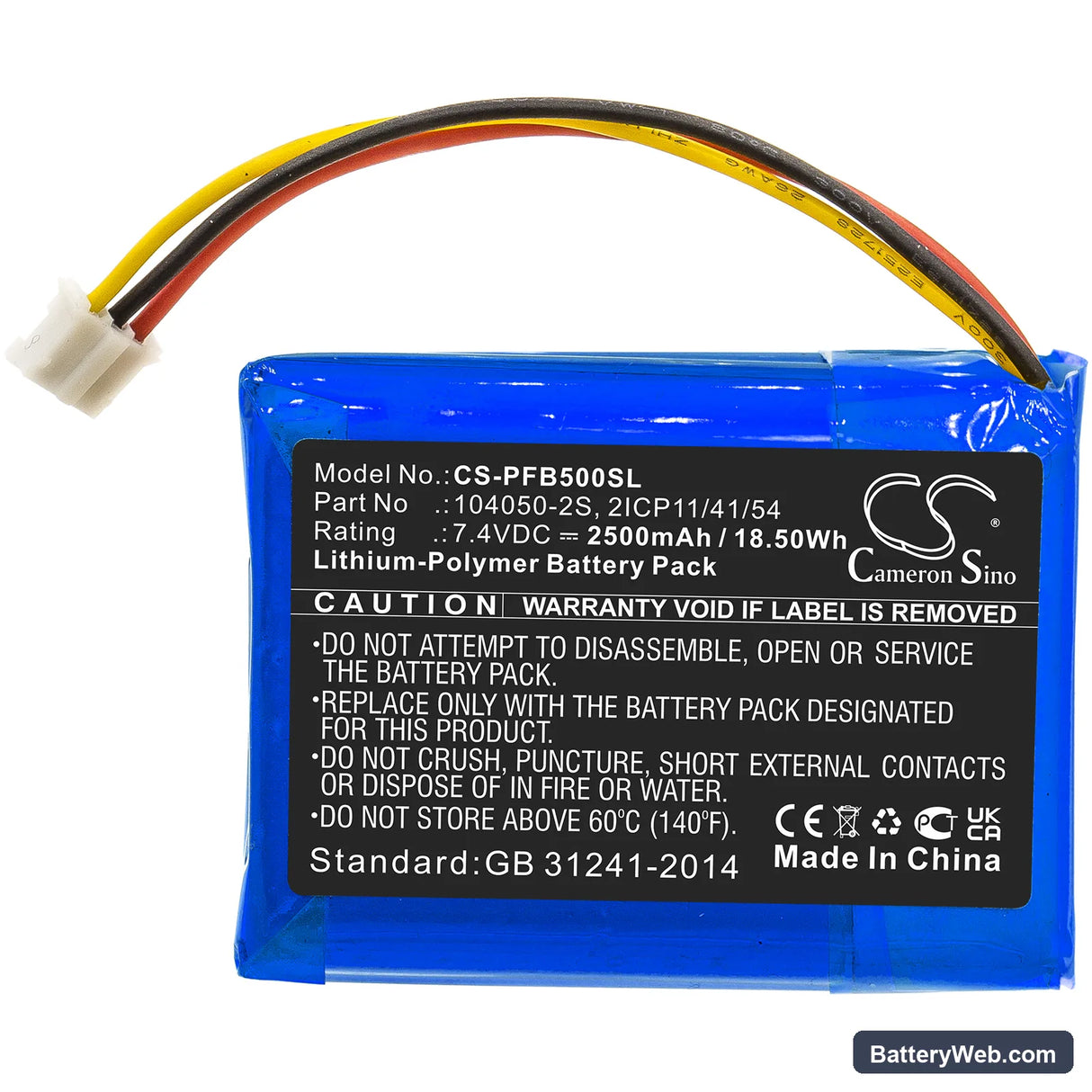

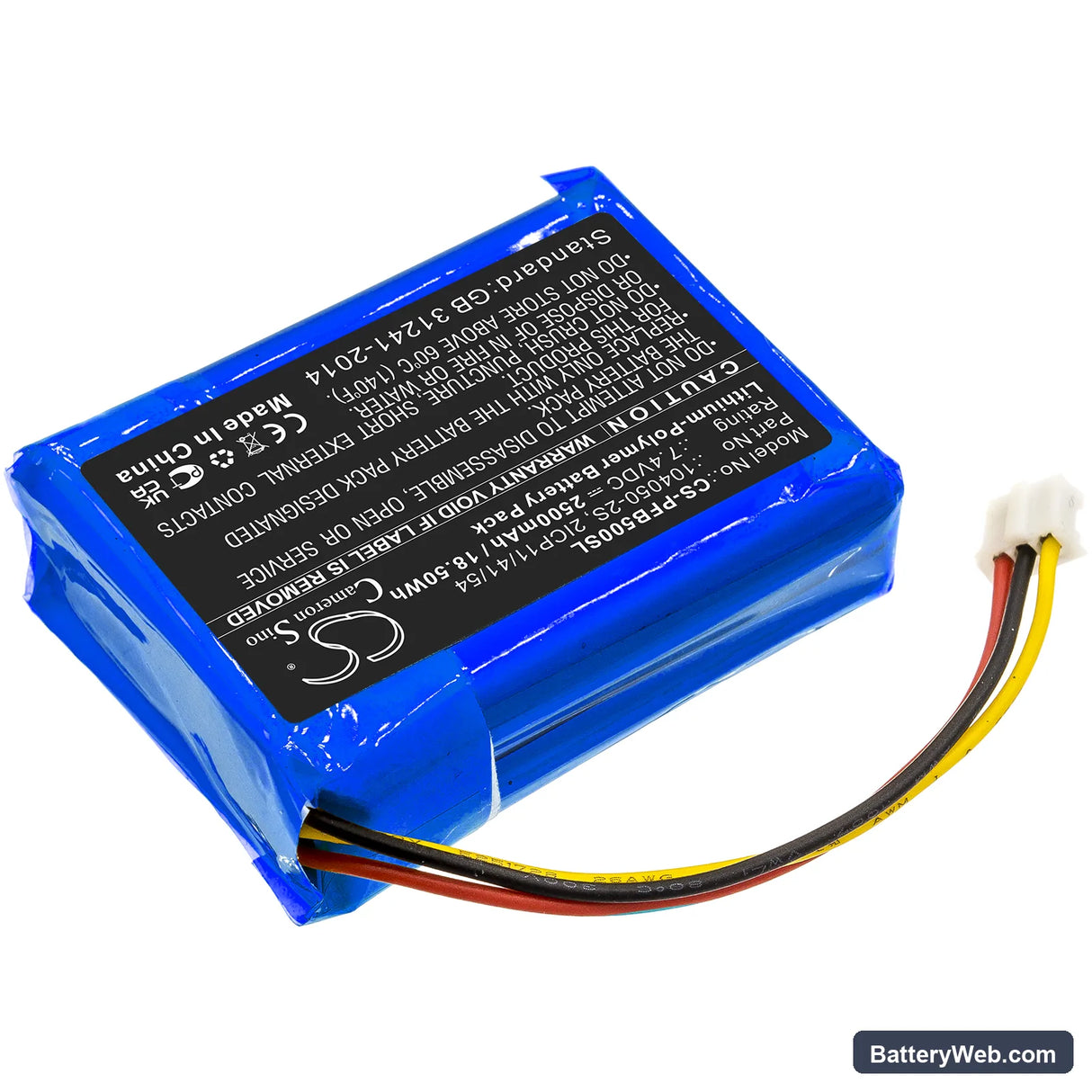

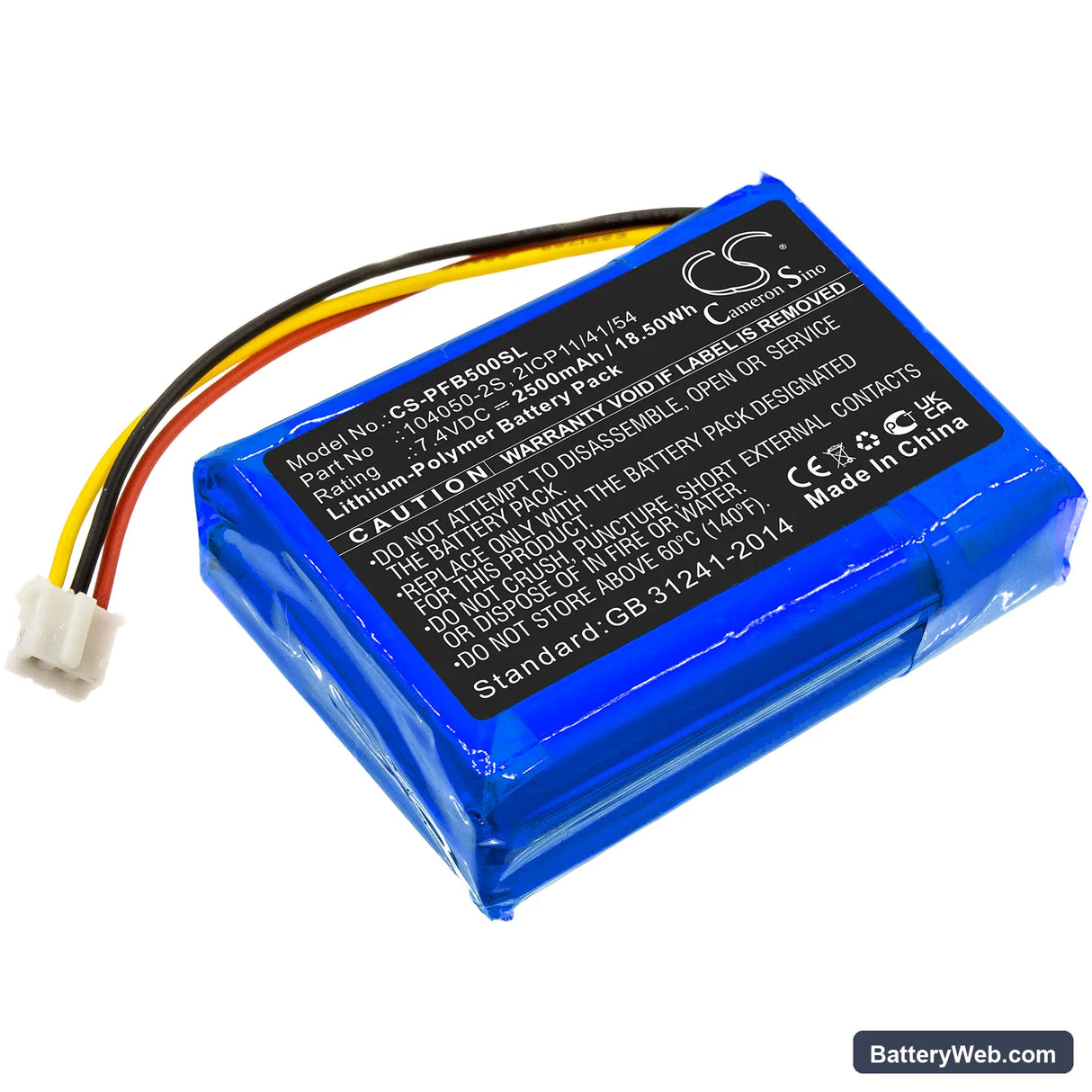

This is a 7.4V, 2500mAh Li-Polymer replacement battery for the Philips Fidelio B5, B5/12, HTL9100, and HTL9300 portable wireless speakers. It matches the OEM cell format at 53.42 x 38.90 x 20.00mm and slots into the original housing without modification. When the stock cell starts losing charge quickly or stops holding power altogether, this is the direct swap.

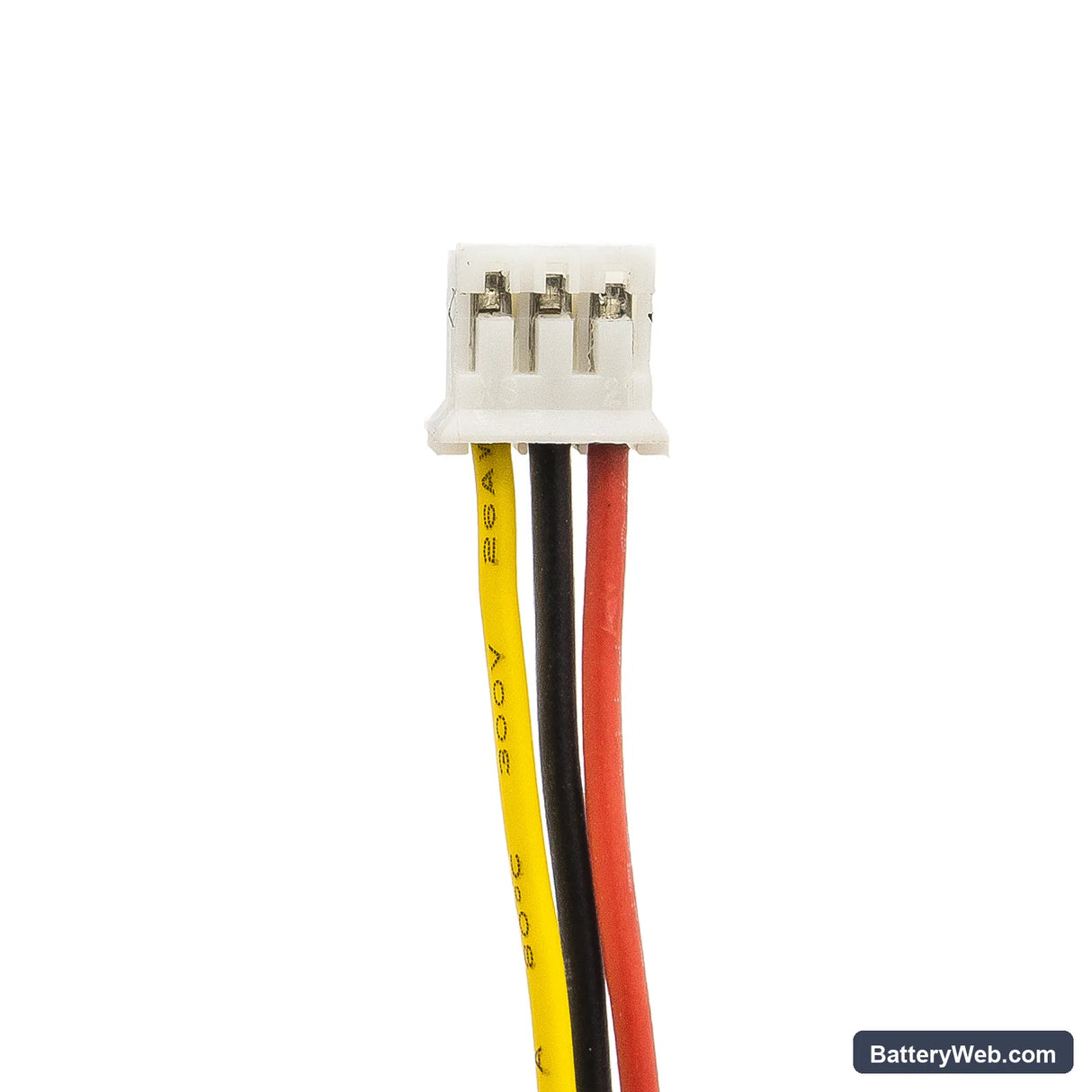

• Fidelio B5 and HTL series compatibility: These models share the same 7.4V battery bay, connector pinout, and BMS communication protocol. The 104050-2S cell format fits all listed variants without adapter cables or housing trimming.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the Fidelio B5. The onboard BMS accepted the battery without error flags, balanced both cells correctly, and held stable voltage through full audio output loads at the amplifier stage.
• Monthly discharge routine for the Fidelio B5: These speakers sit plugged in at desks or beside TVs and rarely drop below 70% before recharging. Do a full discharge to under 20% at least once a month — this recalibrates the fuel gauge and slows cell degradation from shallow cycling.

Fidelio B5 showing full charge but audio cuts out after an hour

This happens when the fuel gauge has drifted after months of shallow top-off charging. The speaker reports a high state of charge, but the actual cell capacity is far lower than the reading. The BMS hits its low-voltage cutoff earlier than expected and shuts the amplifier down. Replacing the cell resets the baseline — the new cell and a full charge-discharge cycle will re-sync the gauge reading to actual capacity.

Audio distorts before the battery indicator shows empty

At high playback volume, the amplifier stage draws a sharp current spike. If the cell is aged and its internal resistance has increased, voltage sags under that load before the indicator drops to critical. The amplifier clips because it cannot sustain rail voltage, producing audible distortion. A fresh cell with lower internal resistance holds voltage above the 6.0V sag threshold even at peak draw, eliminating the clipping.
