JBL PartyBox 300 Compatible Battery 7.4V 10400mAh

JBL PartyBox 300 — 7.4V Li-ion Replacement Battery (SUN-INTE-125)

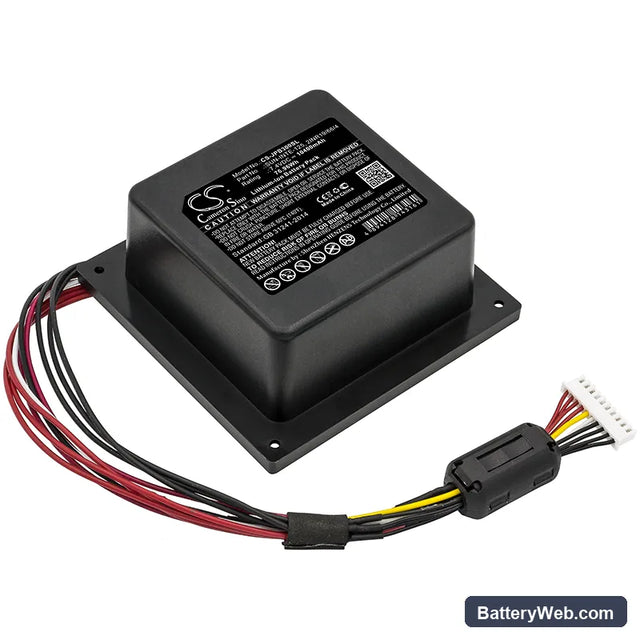

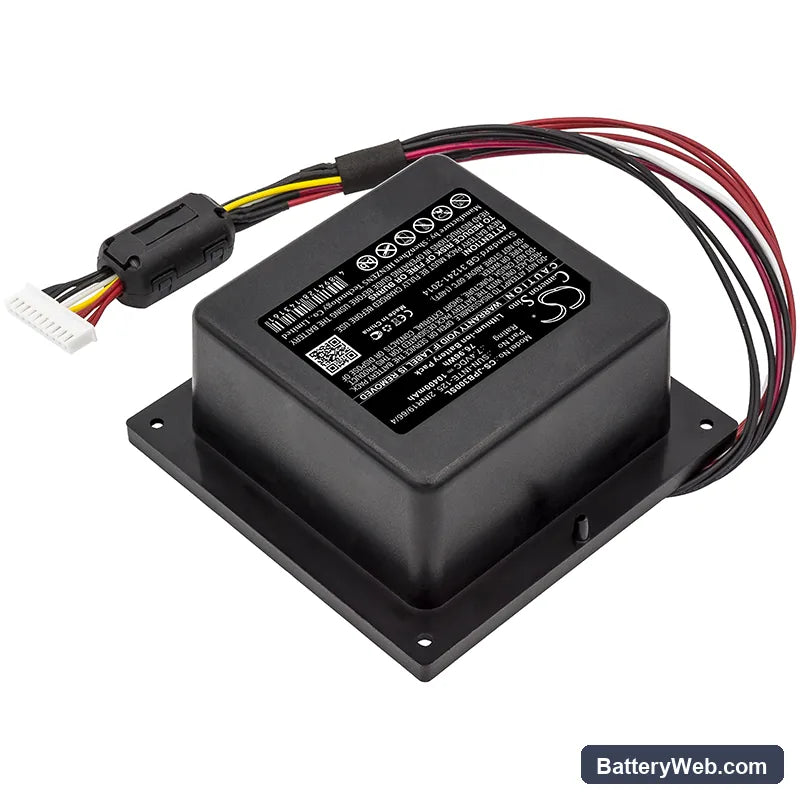

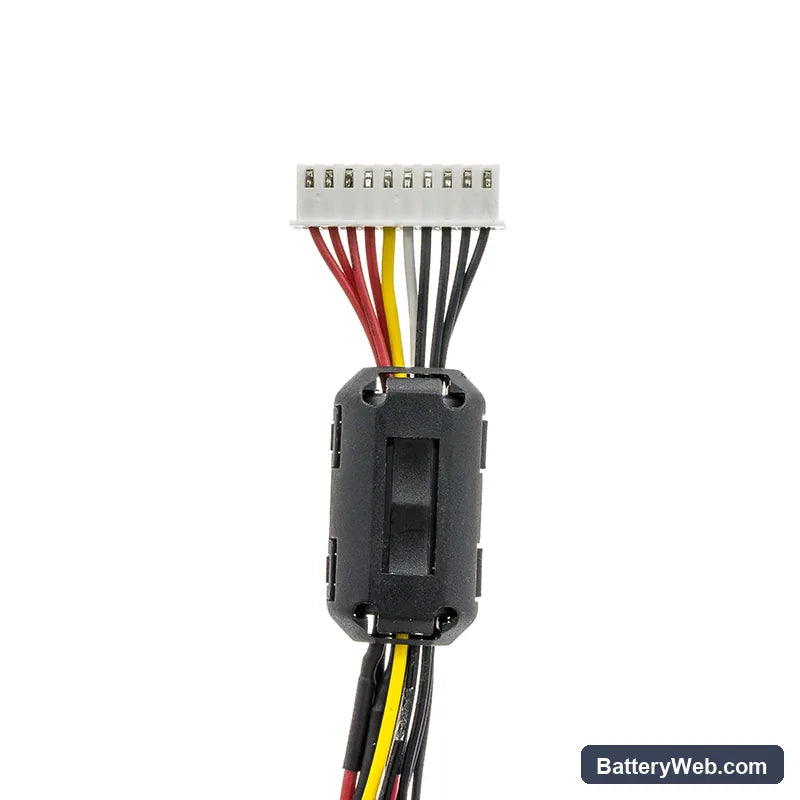

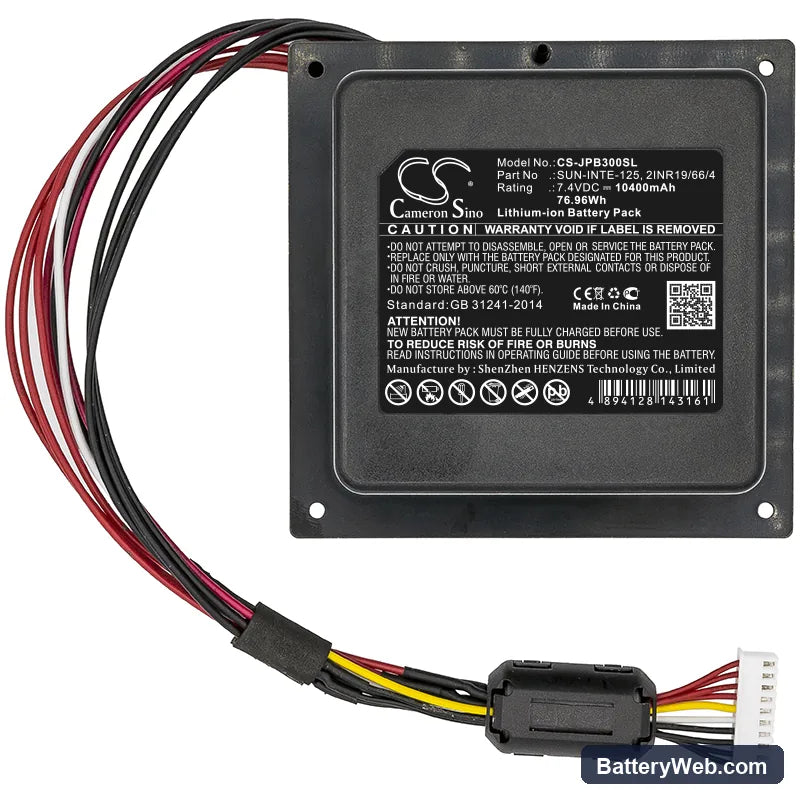

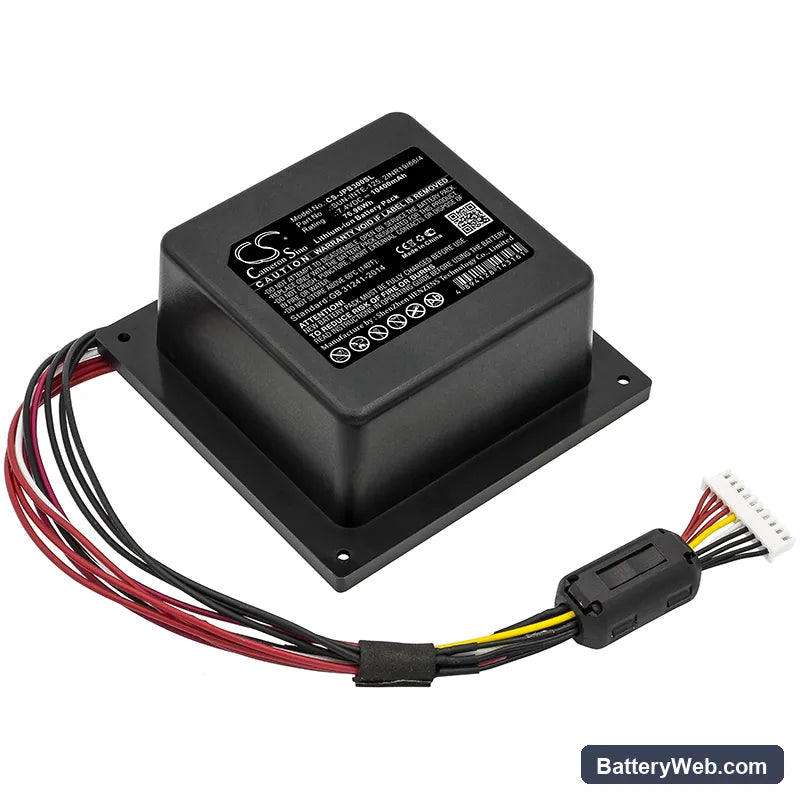

This 7.4V, 10400mAh Li-ion battery replaces the original pack in the JBL PartyBox 300 portable Bluetooth speaker. It fits both the PartyBox 300 and JBLPARTYBOX300CN variants. When the factory cell degrades and the speaker dies faster than it charges, this is the direct swap.

• PartyBox 300 and JBLPARTYBOX300CN compatibility: Both variants share the same battery bay, connector pinout, and BMS communication protocol. The 7.4V nominal rail feeds the amplifier board and the Bluetooth radio through the same power path — swapping to a different voltage would trip the protection circuit immediately.
• Bench tested on actual hardware: We ran the pack through charge and discharge cycles on the PartyBox 300 board. The BMS handshake completed without fault codes, charge acceptance was normal from 0% state-of-charge, and the amplifier rail held stable voltage under high-volume load.
• Monthly discharge cycle for PartyBox 300 users: If this speaker lives plugged in or gets topped off constantly before dropping below 50%, discharge it fully to under 20% at least once a month before recharging. Without a full discharge cycle, the fuel gauge drifts and the speaker will report incorrect charge levels within a few months.

Why the PartyBox 300 clips and distorts before the battery indicator hits empty

The amplifier inside the PartyBox 300 draws heavy current at high volume. As the battery discharges below around 7.0V under load, internal resistance causes voltage sag that the amplifier sees as insufficient headroom — it clips the audio signal before the fuel gauge registers empty. This is a voltage sag issue, not a speaker fault. If audio is distorting but the indicator still shows bars, the cell is likely aged and its internal resistance has climbed. A new cell with lower internal resistance holds the voltage rail stable further into the discharge curve.

PartyBox 300 won't wake from USB-C when battery is deeply discharged

Li-ion cells below roughly 6.0V fall outside the acceptance voltage window for USB-C Power Delivery negotiation. The charger sends a probe voltage, the BMS doesn't respond at normal thresholds, and the speaker appears completely dead. This isn't a failed board — it's a cell recovery situation. Connect the original JBL DC barrel charger instead of USB-C, leave it for 20–30 minutes, and the BMS pre-charge circuit will slowly bring the cell back above the PD minimum. Once the indicator LED activates, USB-C charging will resume normally.
