AEG 900273786 Cordless Vacuum Replacement Battery 10.8V 2500mAh

AEG 900273786 / AG3101 Series — 10.8V Li-ion Replacement Battery

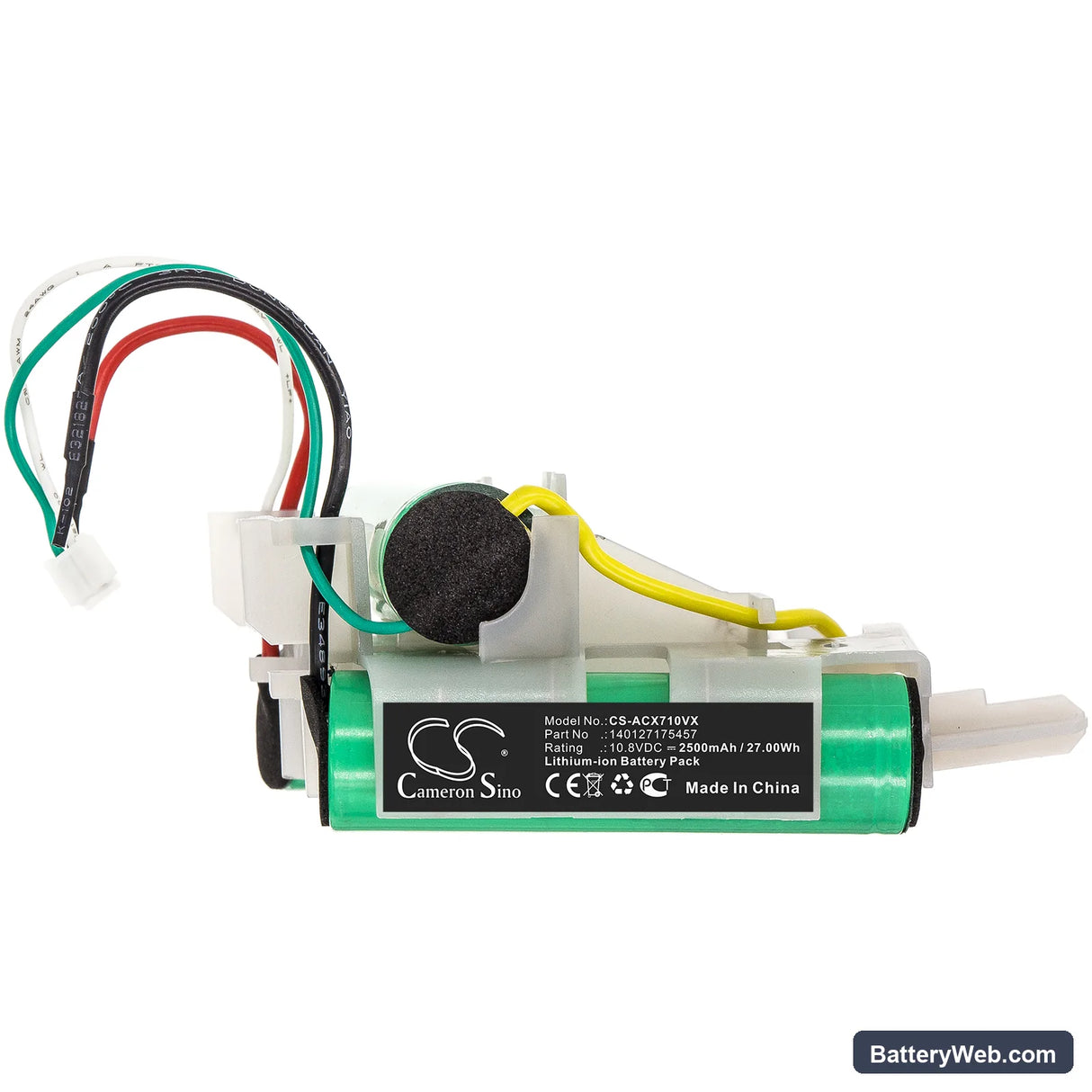

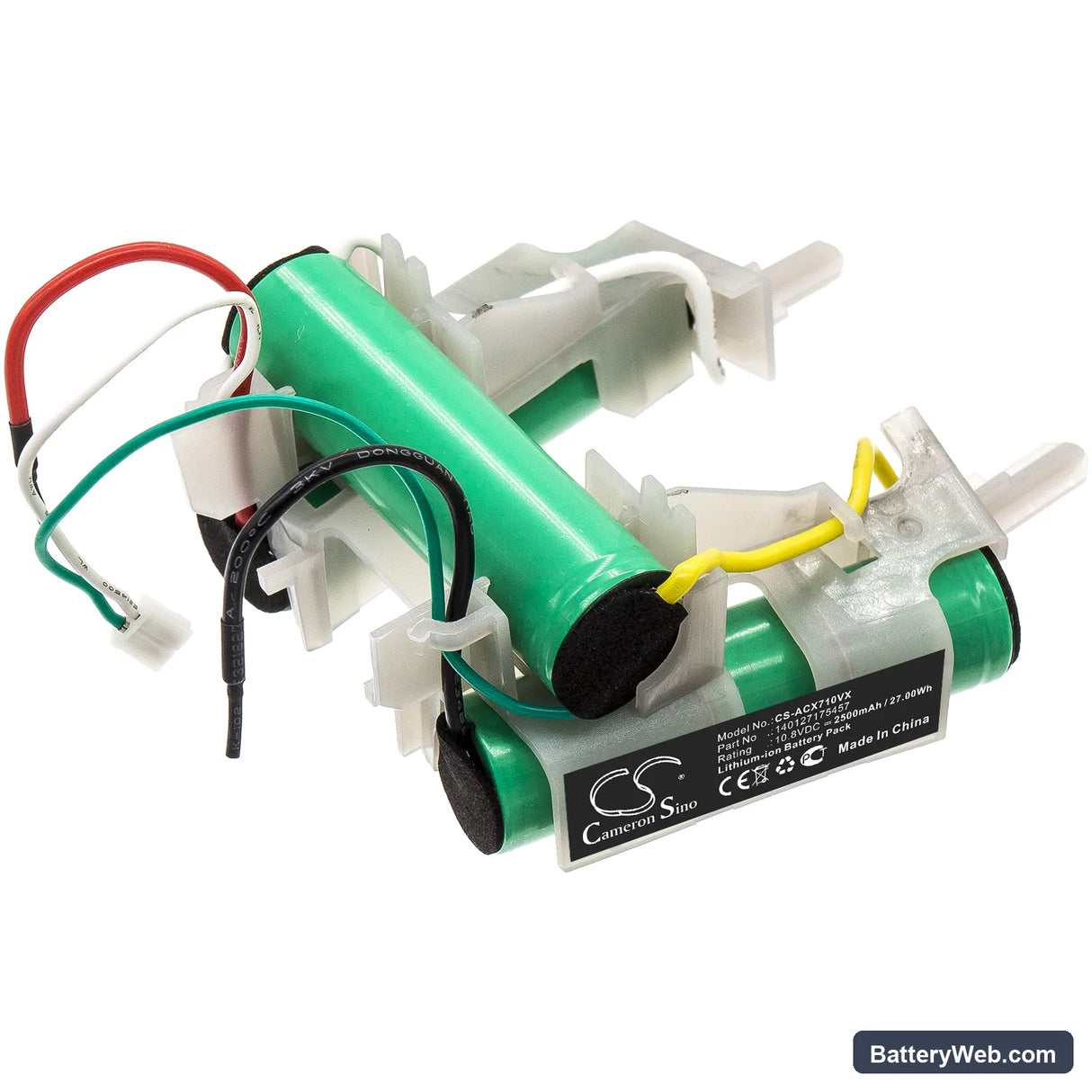

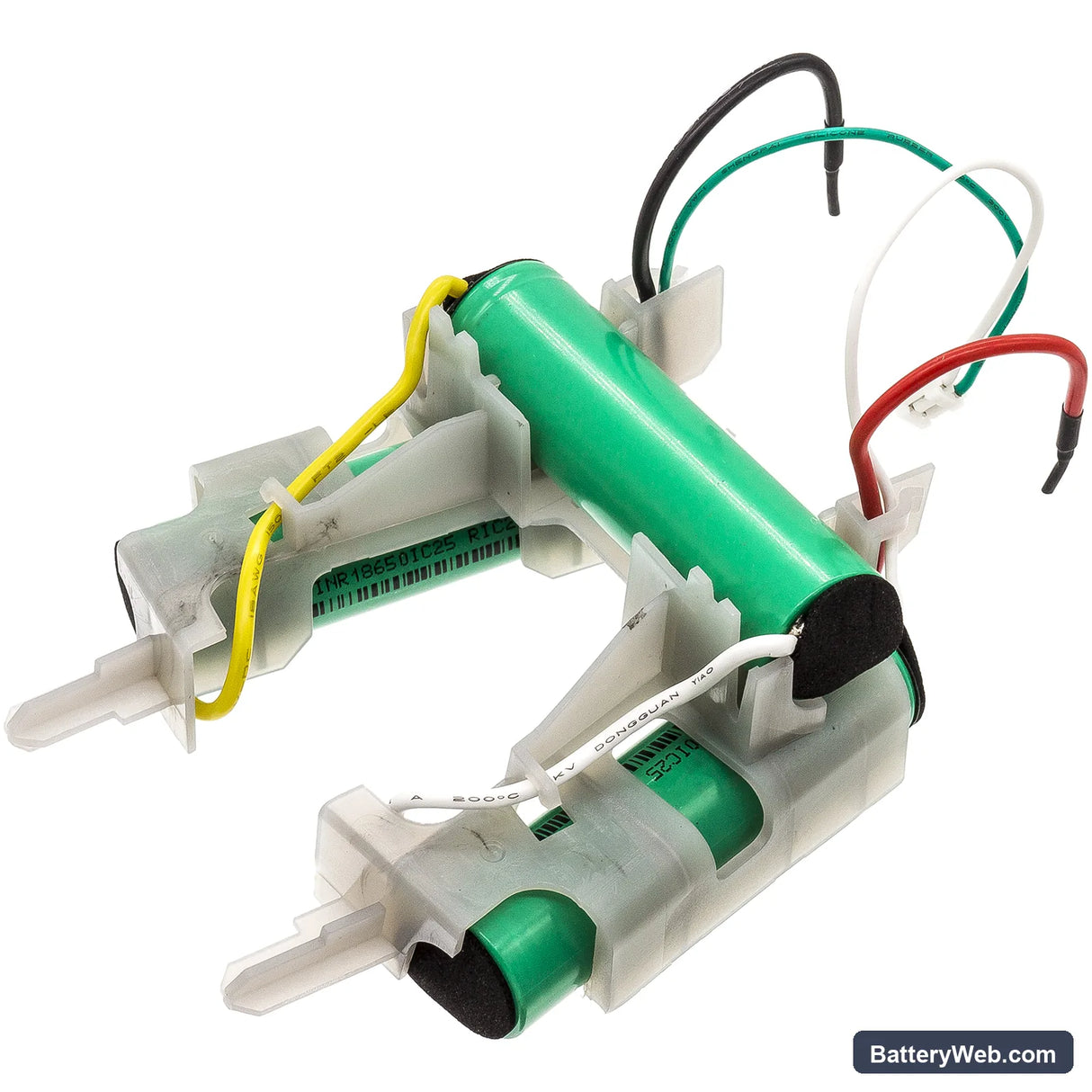

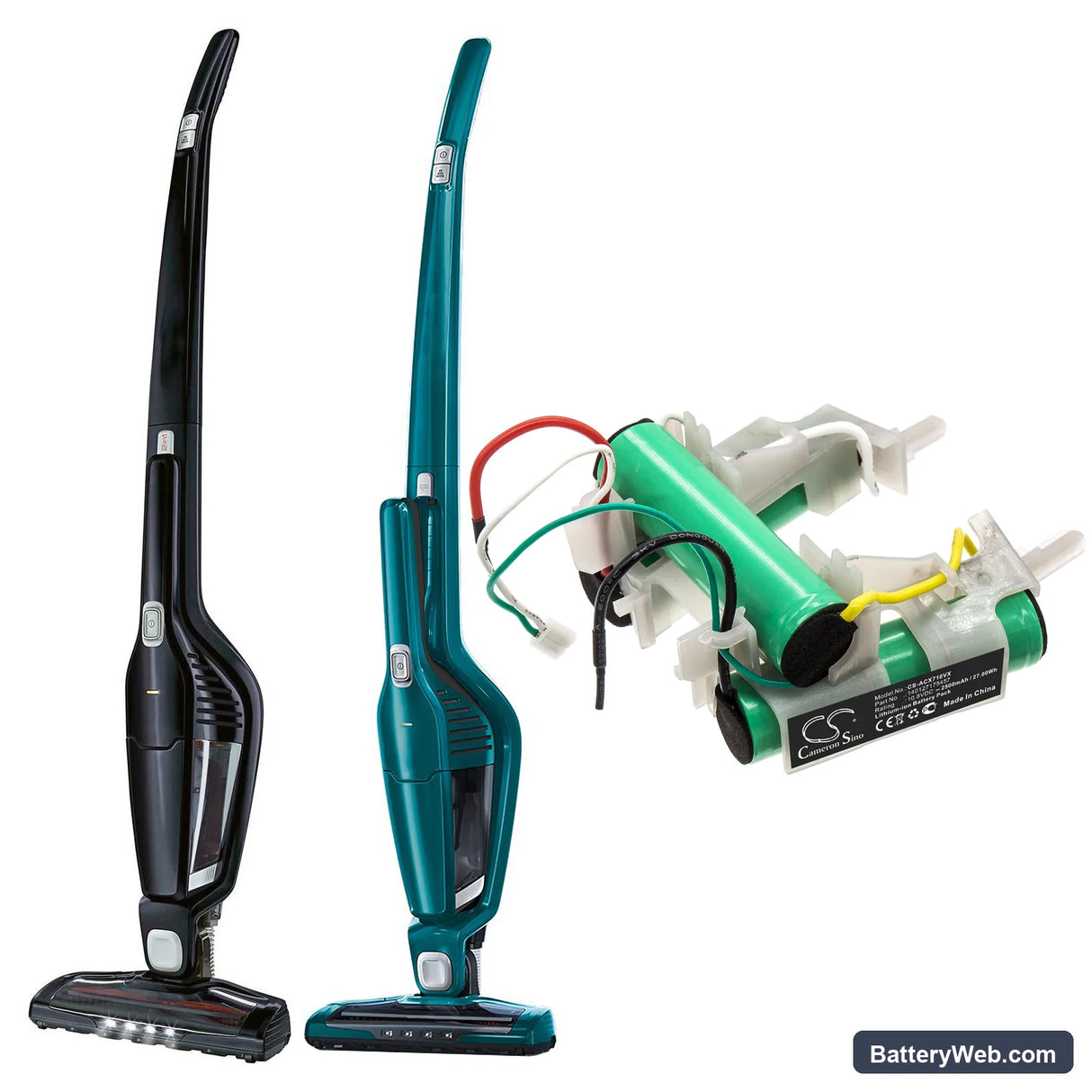

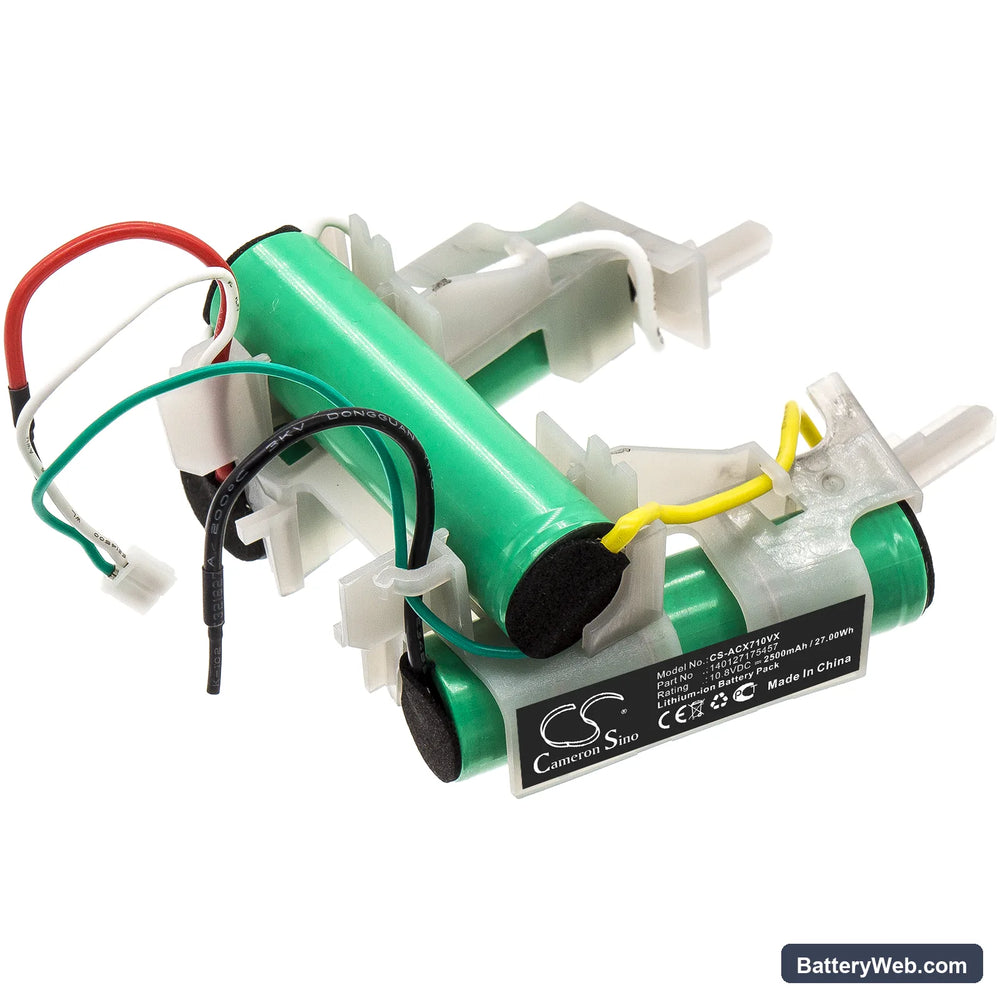

This 10.8V 2500mAh Li-ion battery replaces the original pack in AEG cordless stick and handheld vacuums, including the 900273786, AG3101, 900273793, and 900273794 models. When the original cell degrades after repeated charge cycles, suction drops and run time shrinks — this pack restores the voltage rail the motor needs. Capacity is 2500mAh (27Wh), matching OEM specification.

• AG3101 and 900273786 platform compatibility: These models share the same 10.8V battery housing, connector pinout, and BMS handshake protocol. Swapping between them does not require adapter leads or firmware changes — the charger reads the replacement pack the same way it reads the original.
• Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the AG3101 platform. The BMS held the low-voltage cutoff cleanly at the correct threshold and did not trigger false overcurrent trips during motor start-up surges.
• Dock charging habit for this platform: Do not leave the vacuum on the charging dock permanently. AEG cordless vacuums on continuous dock charge develop capacity fade significantly faster than units charged only when depleted. Charge to full, then remove from the dock.

Cordless vacuum losing suction before the battery indicator reaches low

This happens when a partially blocked filter forces the motor to draw more current than its rated load. The BMS reads the elevated draw as a voltage sag and begins throttling output — even though the battery still holds charge. The vacuum loses suction well before the indicator light signals low battery. Clear the filter first, then retest; if suction recovers, the battery was not the fault.

Motor cuts out mid-clean and then recovers after a few seconds

This is a BMS overcurrent trip, not a dead battery. When suction is restricted — blocked filter, clogged nozzle, or carpet pile jamming the brush — the motor pulls a sustained high current and the BMS cuts power to protect the cells. After a few seconds the BMS resets and power returns. Check and clear any airflow restriction, then run the vacuum again. If trips continue with a clear filter, measure resting pack voltage — it should read at or above 11.1V when fully charged.
