BBK VIVO X9 Replacement Battery B-B3 3.85V 3000mAh

BBK Vivo X9 — 3.85V Li-Polymer Replacement Battery (B-B3)

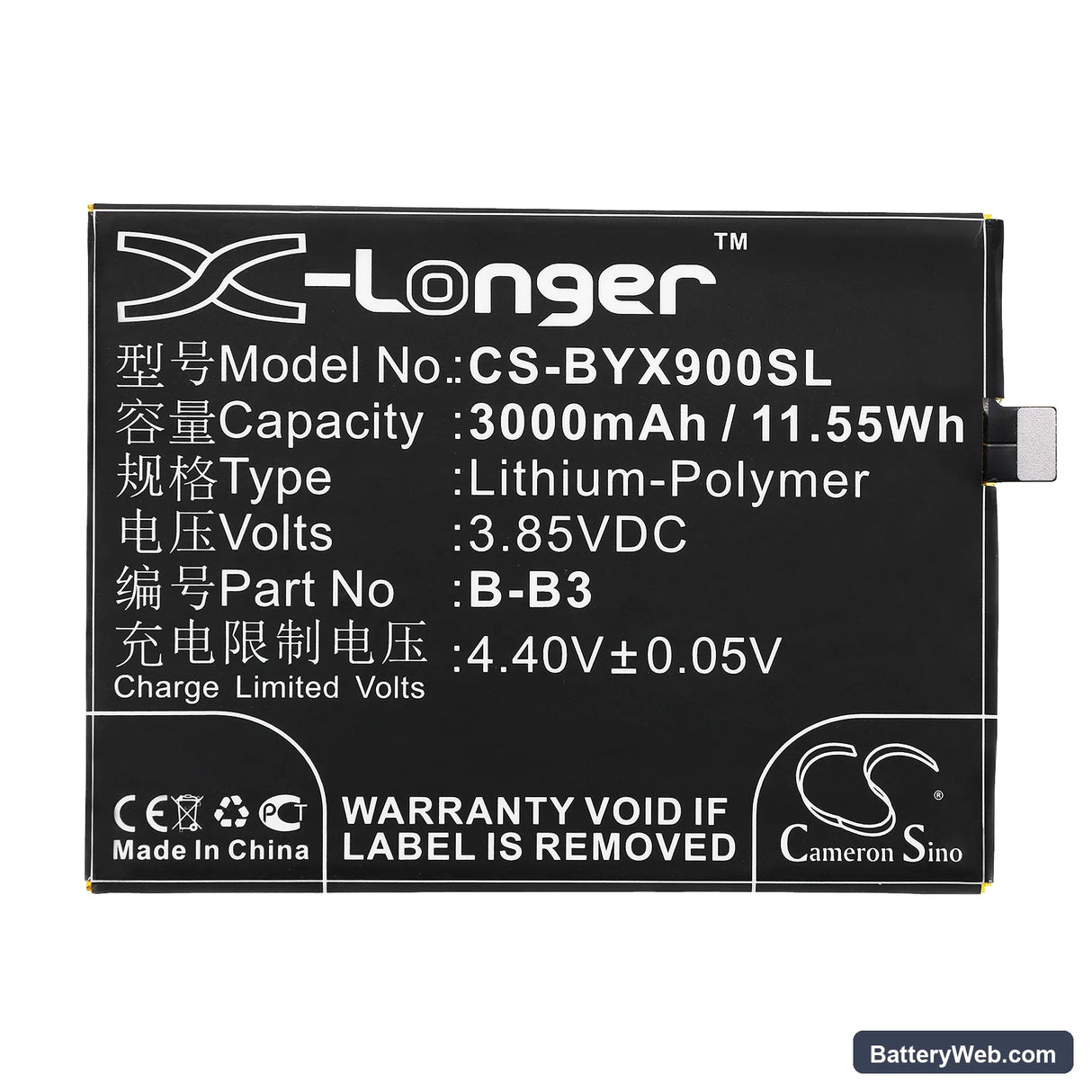

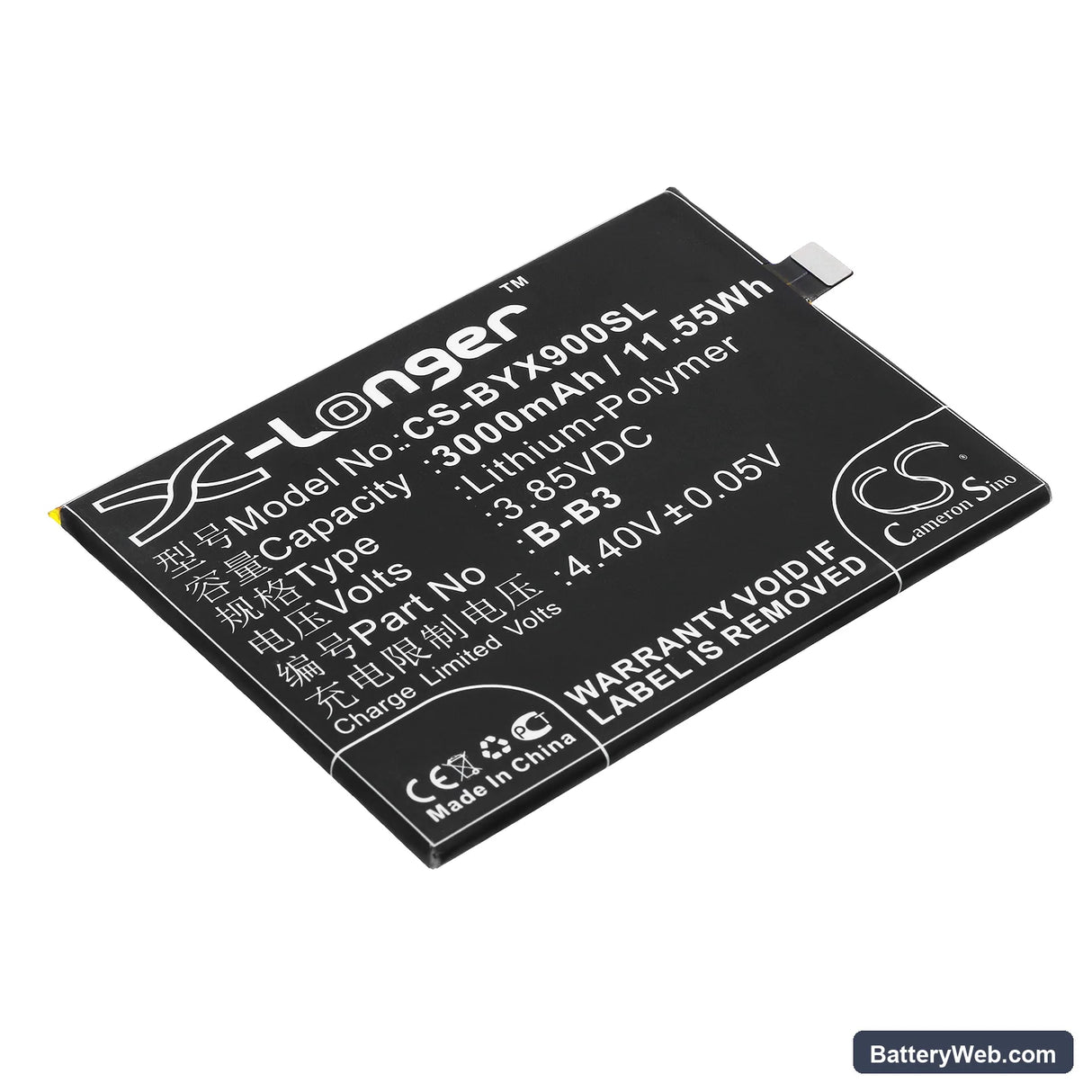

This is a 3.85V, 3000mAh (11.55Wh) Li-Polymer cell that fits the Vivo X9 smartphone. It replaces part number B-B3 when the original cell has lost capacity through repeated charge cycles. The battery matches the original's voltage, physical dimensions, and connector pinout.

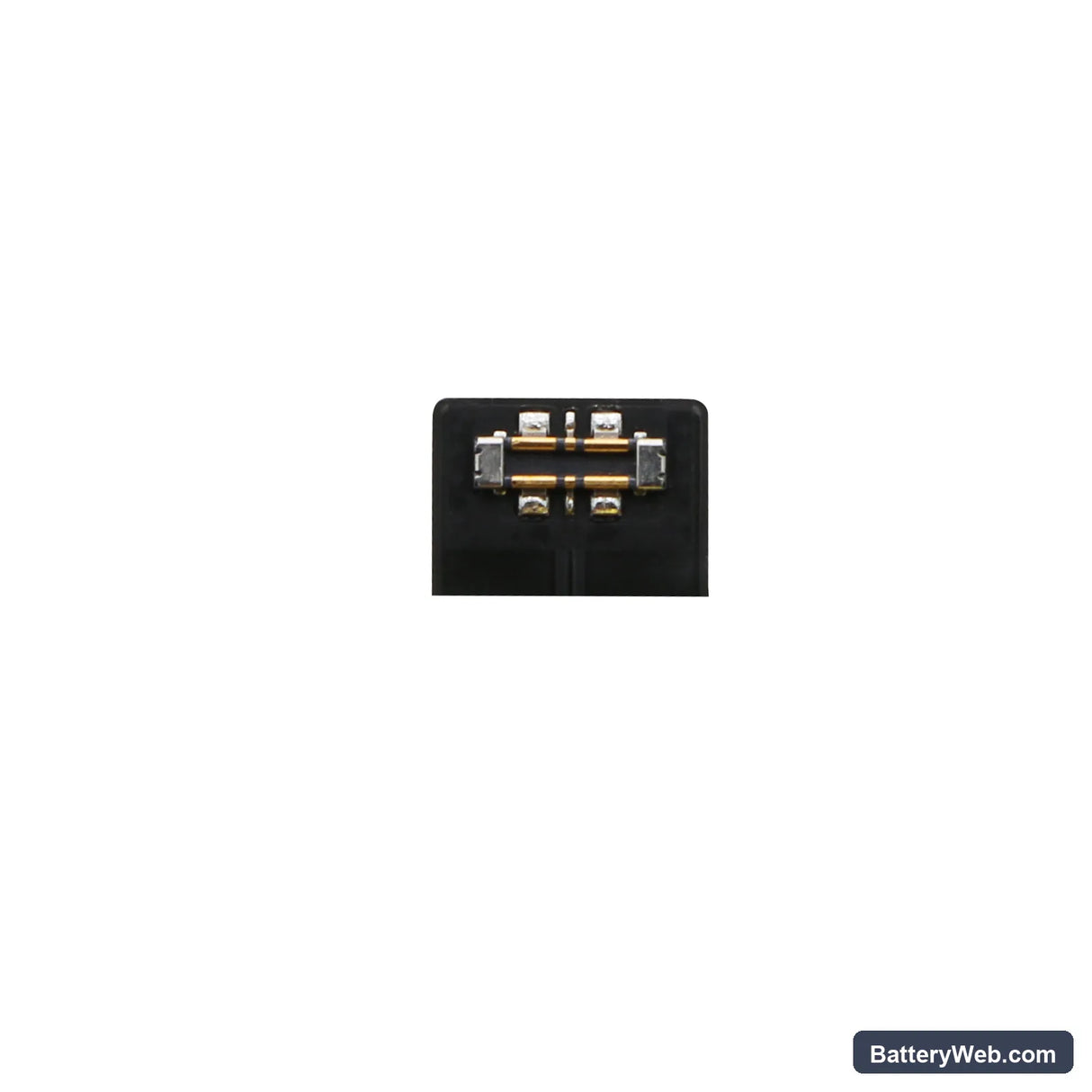

• Vivo X9 fit: The X9 uses a specific BMS handshake tied to the B-B3 connector pinout and voltage profile. This cell matches that profile, so the phone's charge IC accepts it without triggering a fault state on boot.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the X9 platform. The BMS accepted charge current correctly, the charge IC stepped through CC and CV phases without interruption, and no thermal fault was logged.
• Fuel gauge recalibration on first use: On first use after installation, disable fast charging and run one full discharge-charge cycle at standard current. This gives the fuel gauge IC a clean discharge curve to map against the new cell — skipping this step is the main reason the percentage reads incorrectly after a swap.

Why the Vivo X9 reports wrong battery percentage after a cell swap

The X9 uses a coulomb counter that builds its capacity model from the original cell's discharge curve. When a new cell goes in, that model is stale — it was calibrated to a degraded cell, not a fresh one. The gauge IC doesn't know how much actual capacity the new cell holds until it observes at least one full discharge cycle. Until then, the percentage shown on screen is an estimate extrapolated from old data. Run one full discharge to approximately 3.4V, then charge to 100% at standard current to let the IC rebuild its model.

Sudden shutdown at 20–30% remaining on the replacement cell

This happens when the modem or display draws a current spike that drops cell voltage below the BMS cutoff threshold — even though the gauge still shows charge remaining. A new cell with an uncalibrated fuel gauge is especially prone to this because the IC hasn't yet mapped the voltage-to-capacity curve accurately near the lower end. The BMS trips on the voltage sag before the gauge catches up. One full slow-charge cycle corrects the curve; after that, the gauge anticipates the sag and the shutdowns stop.
