Bissell 37643 Replacement Battery 25.9V 2500mAh

Bissell SpinWave® + Vac 37643 — 25.9V Li-ion Replacement Battery (1634753)

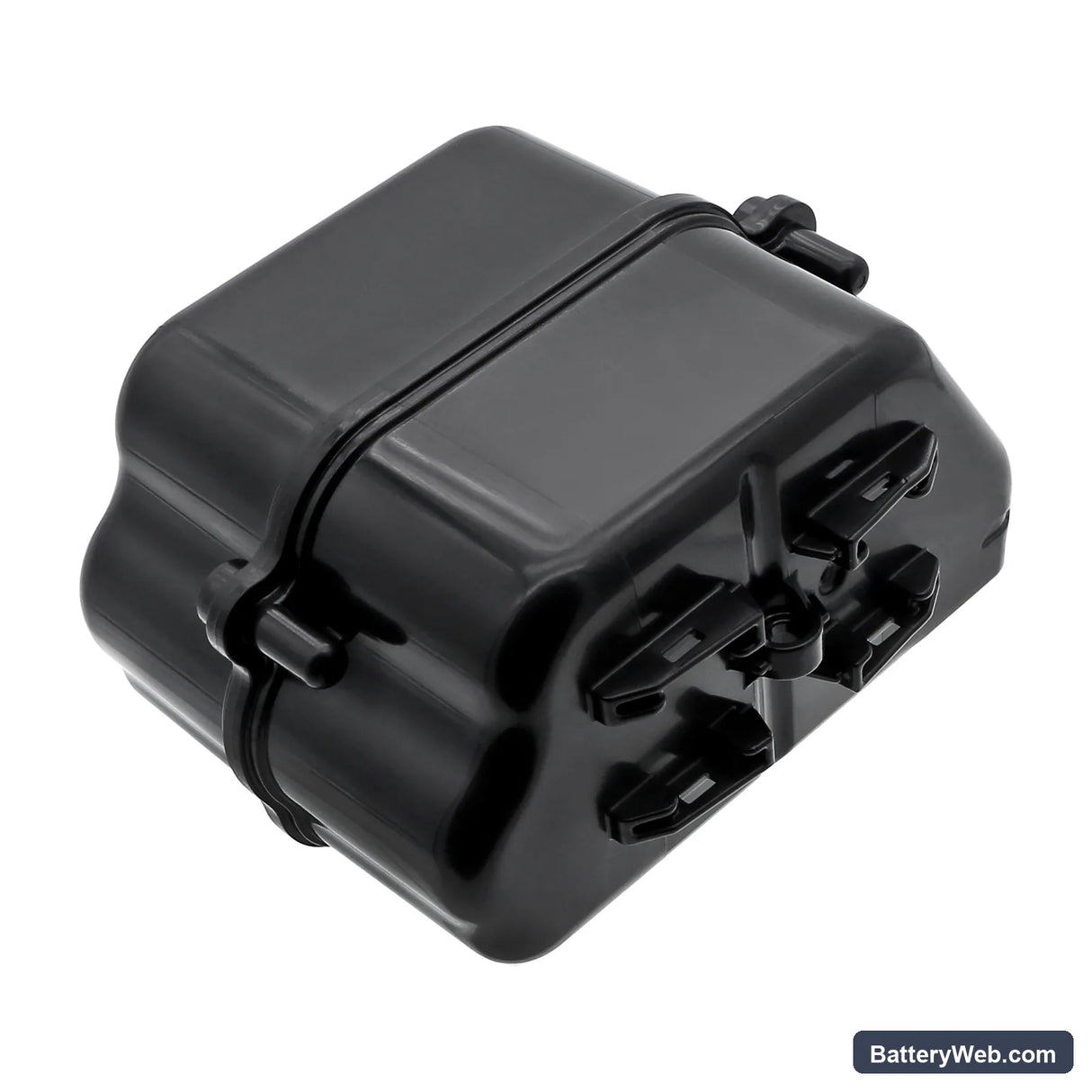

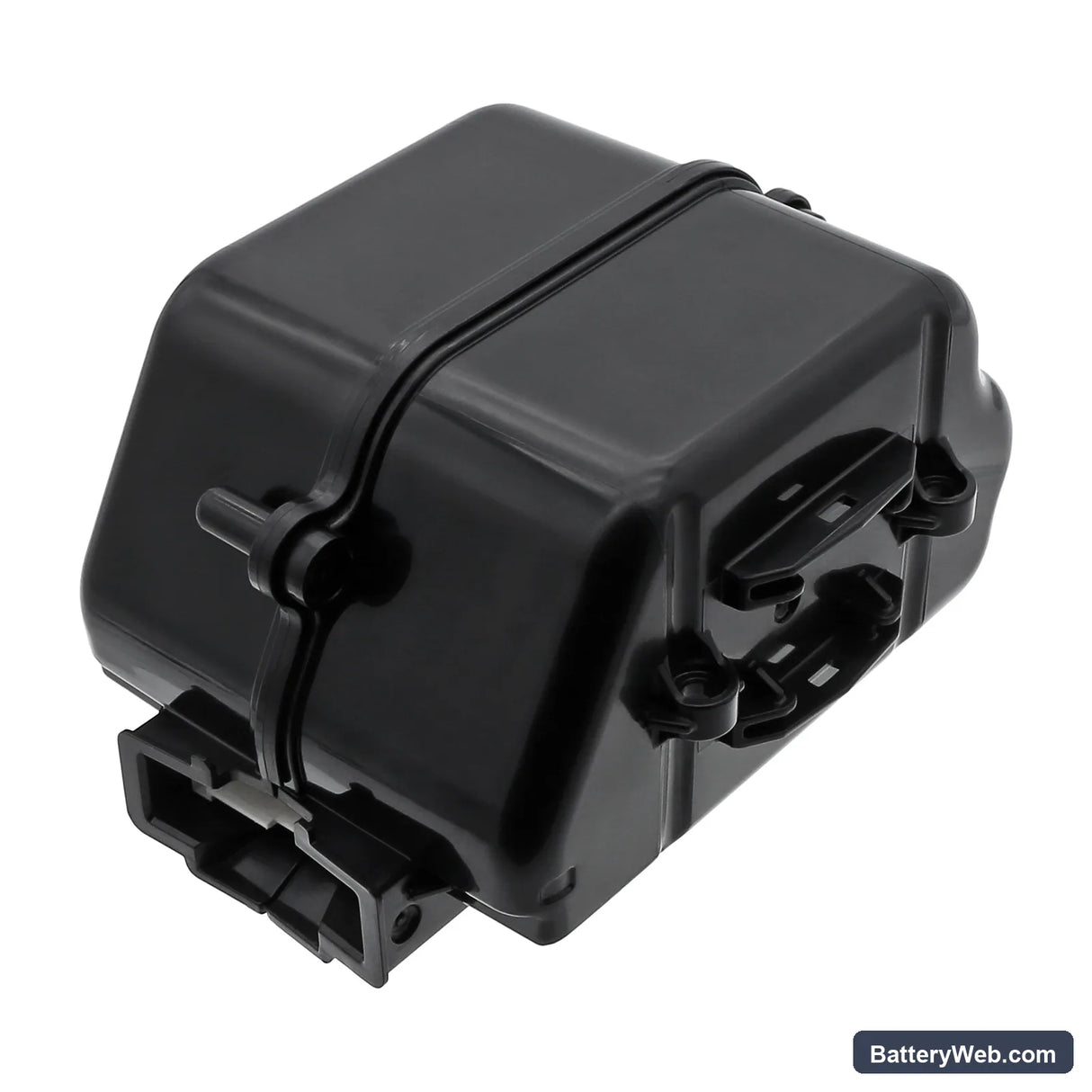

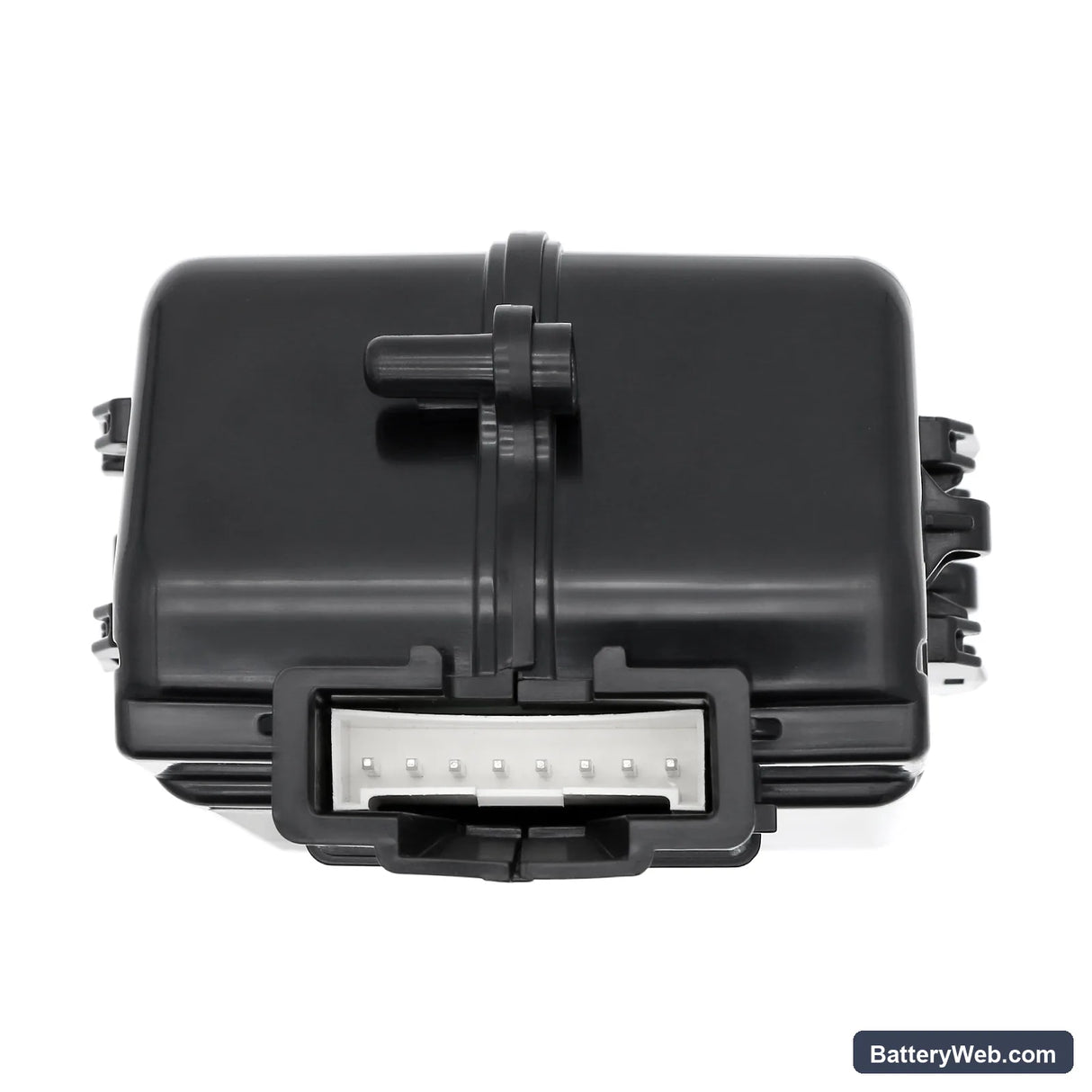

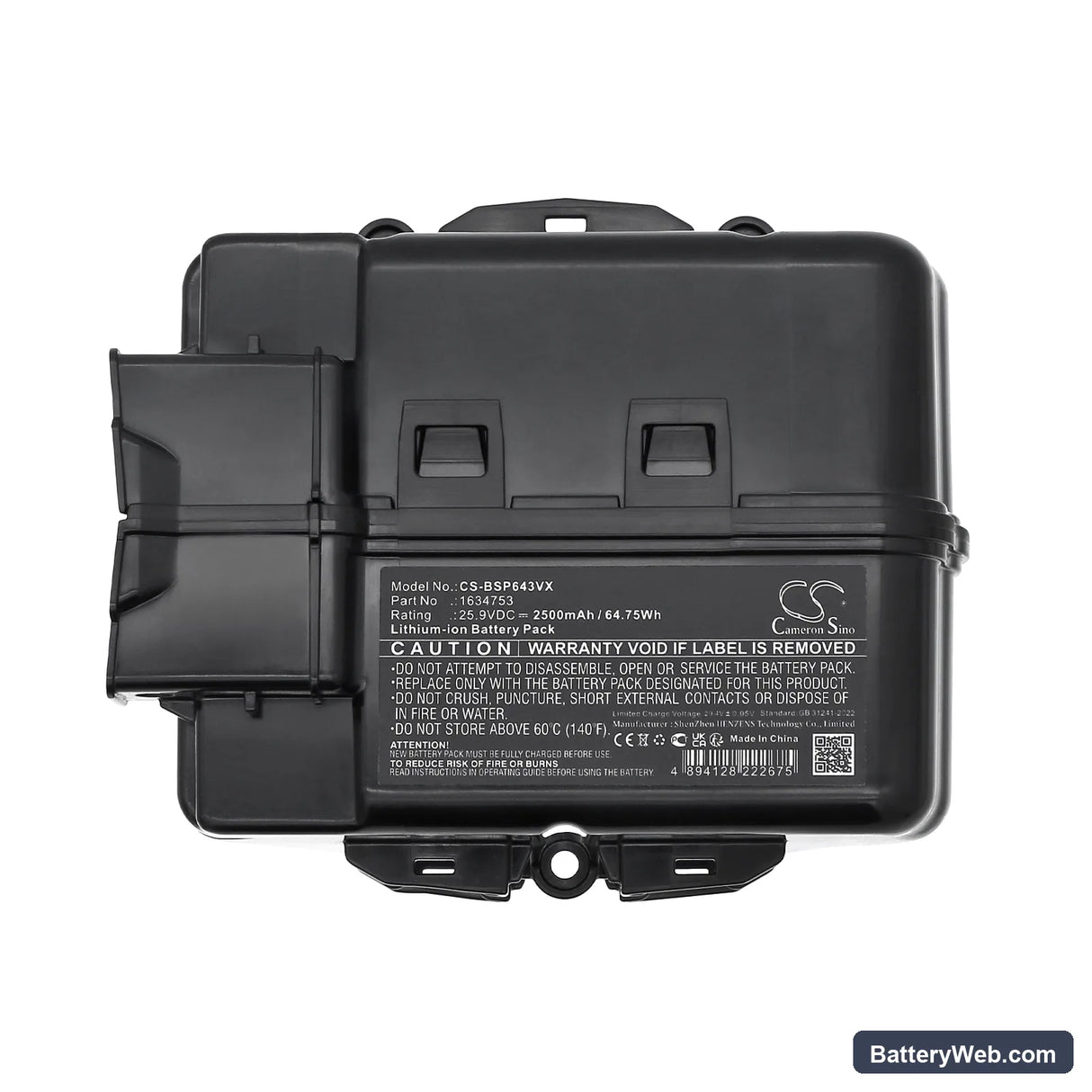

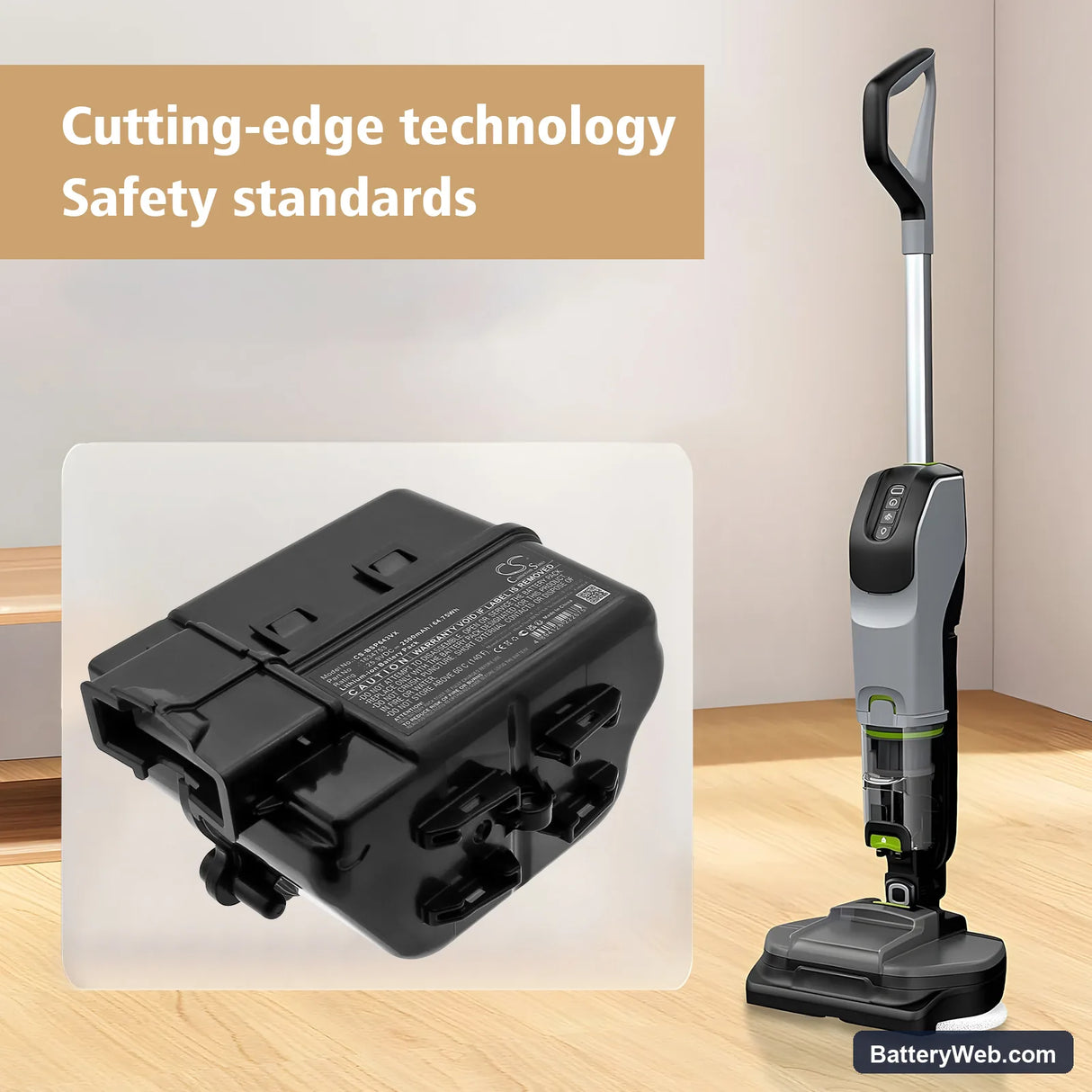

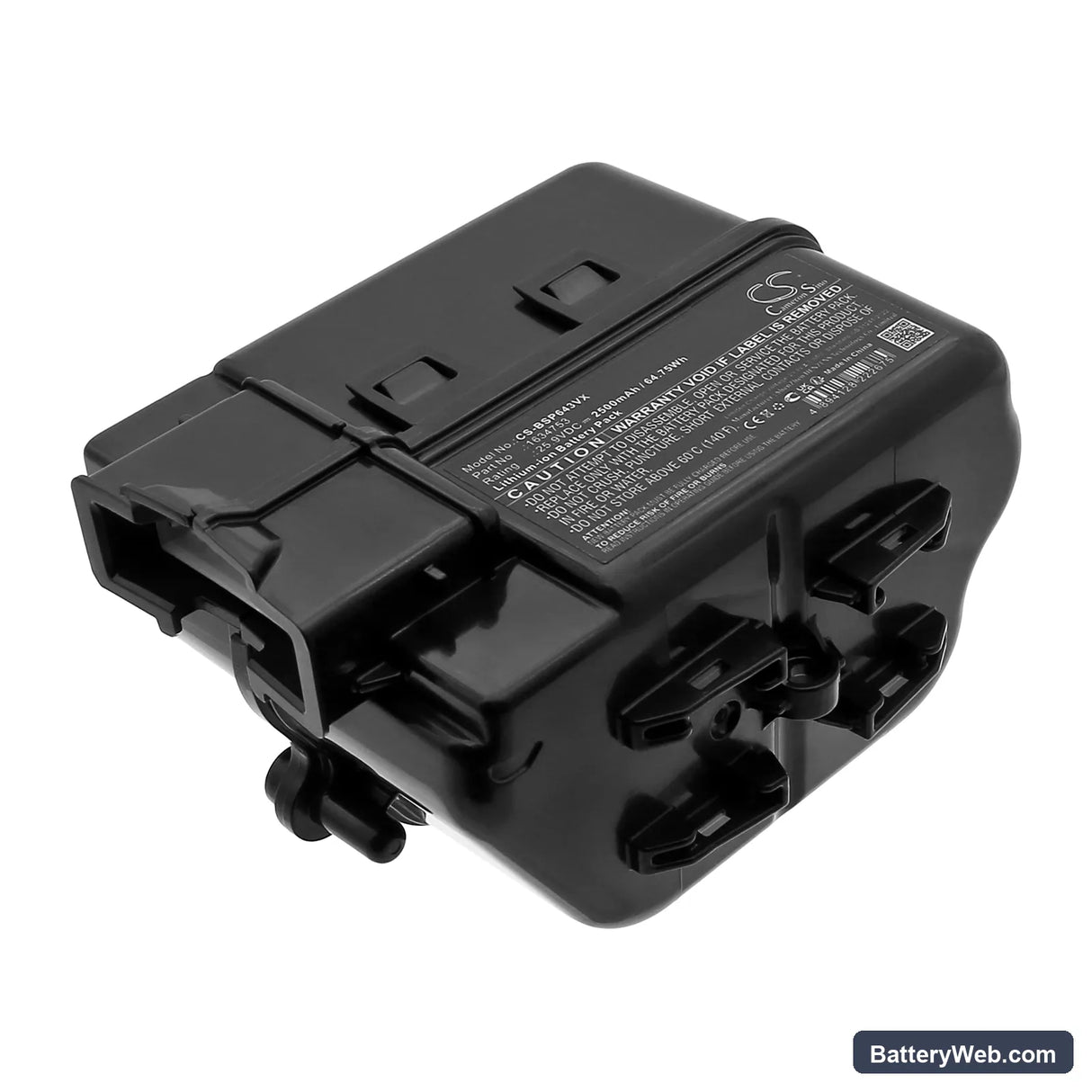

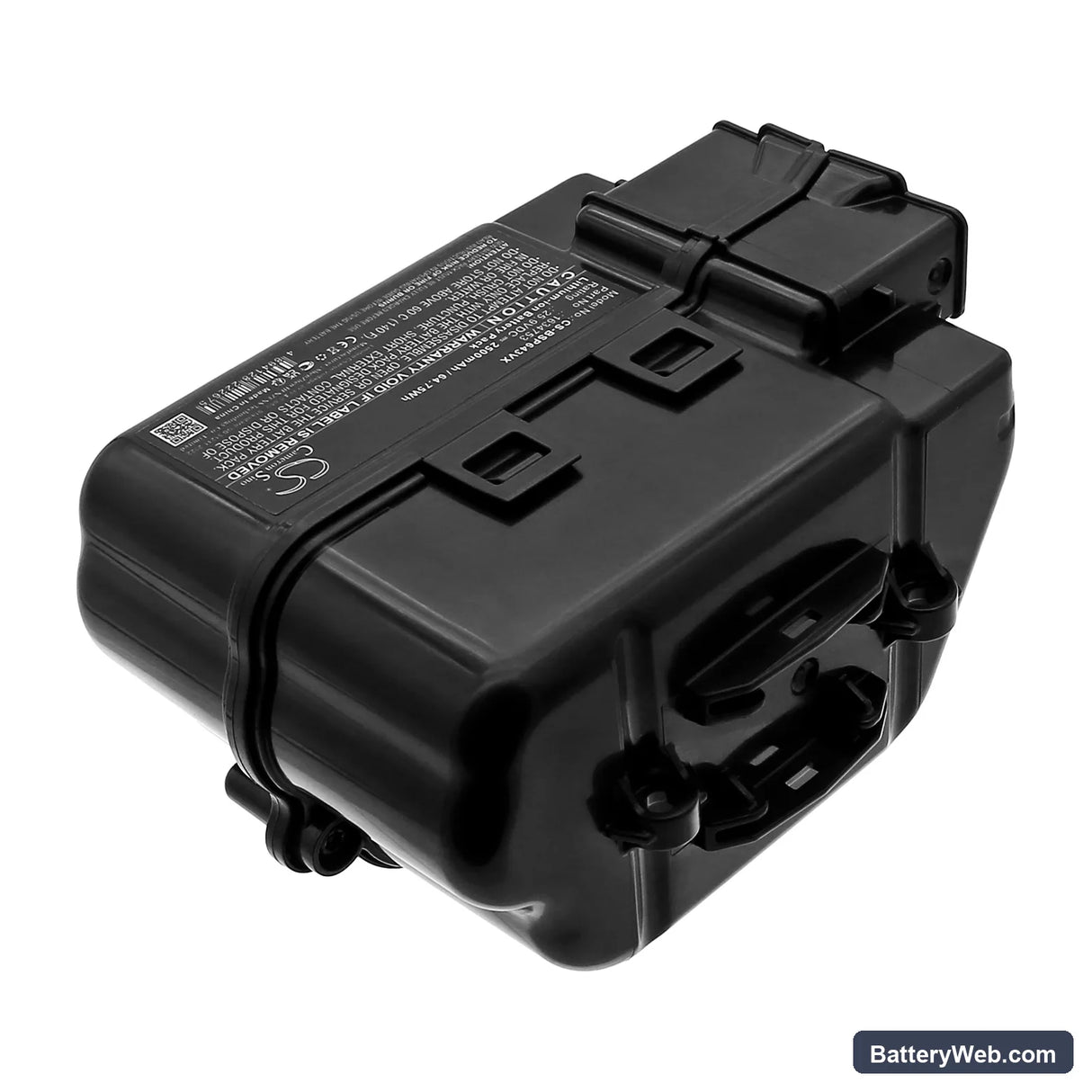

This 25.9V, 2500mAh Li-ion battery replaces OEM part 1634753 in the Bissell 37643 SpinWave® + Vac All-in-One Powered Spin Mop and Vacuum. It slots into the same battery bay and connects to the same BMS interface as the original cell. Voltage and capacity match the factory spec exactly.

• SpinWave® + Vac 37643 fitment: The 37643 platform runs both the vacuum motor and the spinning mop pads from a single 25.9V rail. Both loads share the same BMS circuit, so the replacement cell must match voltage and connector orientation precisely — this battery does both.
• Bench tested on actual hardware: We ran this battery through full charge and discharge cycles on the 37643 platform. The BMS handshook cleanly with the charger, current draw during motor start was within rated limits, and the overcurrent protection tripped correctly under a simulated blockage test.
• Dock charging habit on the SpinWave® + Vac: Do not leave this vacuum sitting on the charging dock between uses. The 37643 dock does not cut charge current once the cell is full. Continuous trickle charge degrades cell capacity faster than normal cycling — charge to full, then remove from the dock.

Suction dropping before the battery indicator shows low on the 37643

The 37643 runs two motors — suction and mop rotation — from the same 25.9V cell. Under heavy carpet load or a partially blocked filter, the combined current draw spikes and the BMS reduces output voltage before the battery indicator registers a problem. The result is a noticeable suction drop with the indicator still showing green or mid-level. This is not a fault in the battery — it is the BMS protecting the cell from overdraw. Clean the filter first, then retest. If suction still drops early, measure the pack voltage at rest — a healthy cell at partial charge should read above 22V.

Motor cuts out briefly then recovers during use

A momentary cutout that self-recovers within a few seconds is a BMS overcurrent trip, not a battery failure. On the 37643, this most often happens when the mop pad encounters resistance — a wet clump, a rug edge, or a floor transition — while the vacuum motor is running simultaneously. The combined peak current exceeds the BMS threshold and the pack trips to protect the cells. The BMS resets automatically once current normalises. If cutouts happen repeatedly, check whether the mop pad is saturated or the filter is clogged — both force the motors to draw above rated current.
