Dreame X40 Replacement Battery 14.4V 5200mAh Li-ion

Dreame X40 / X40 Pro — 14.4V Li-ion Replacement Battery (R2401-4S2P-MMYD)

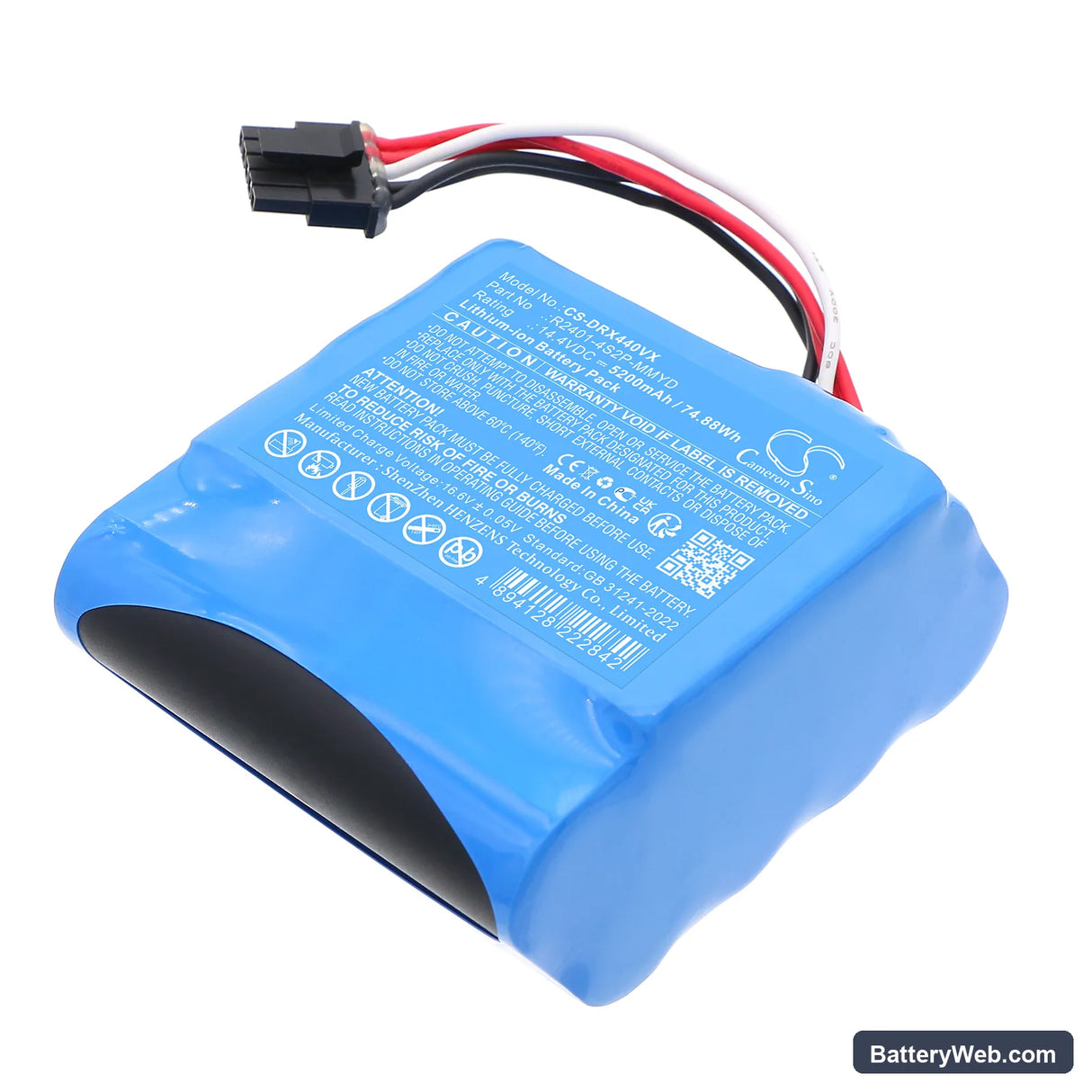

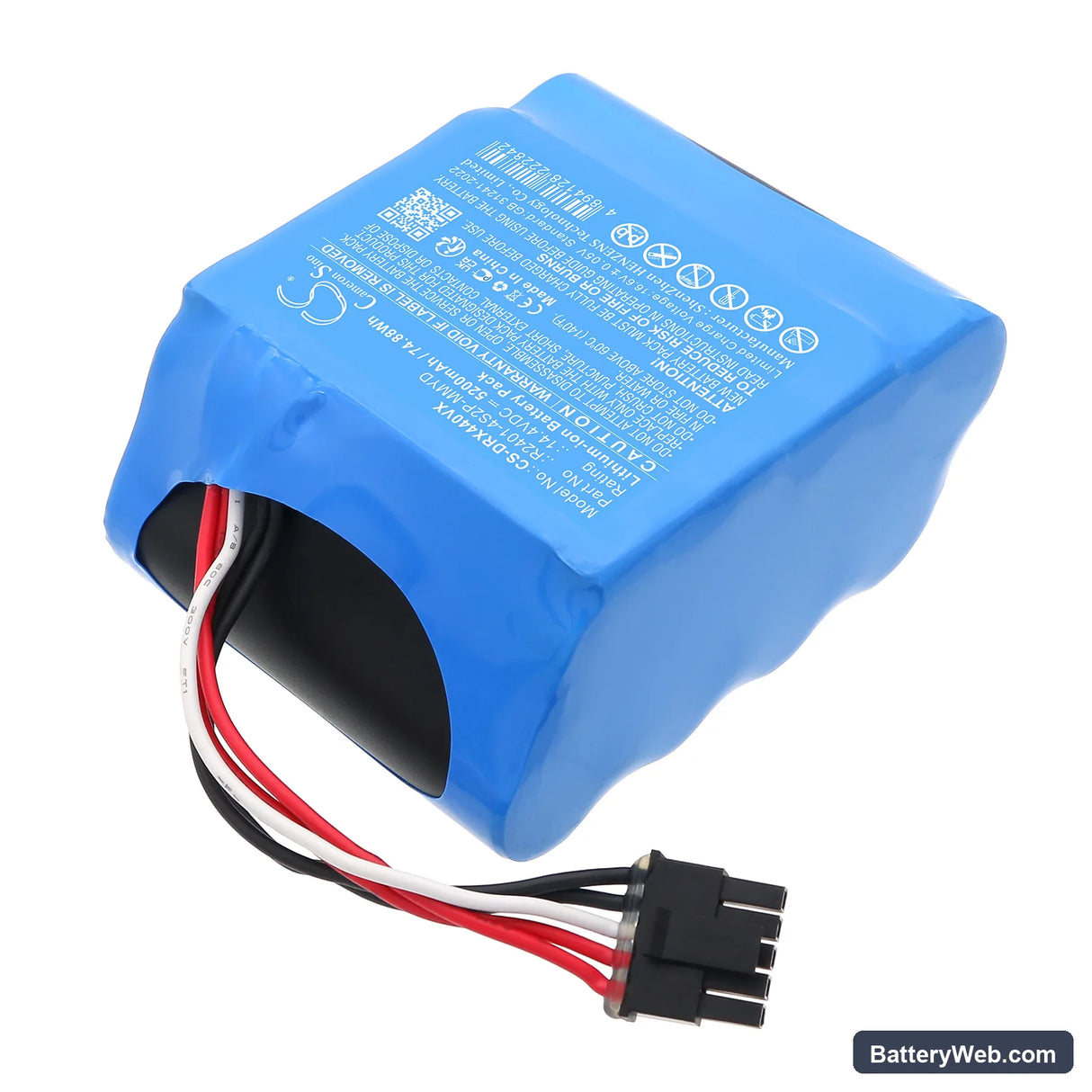

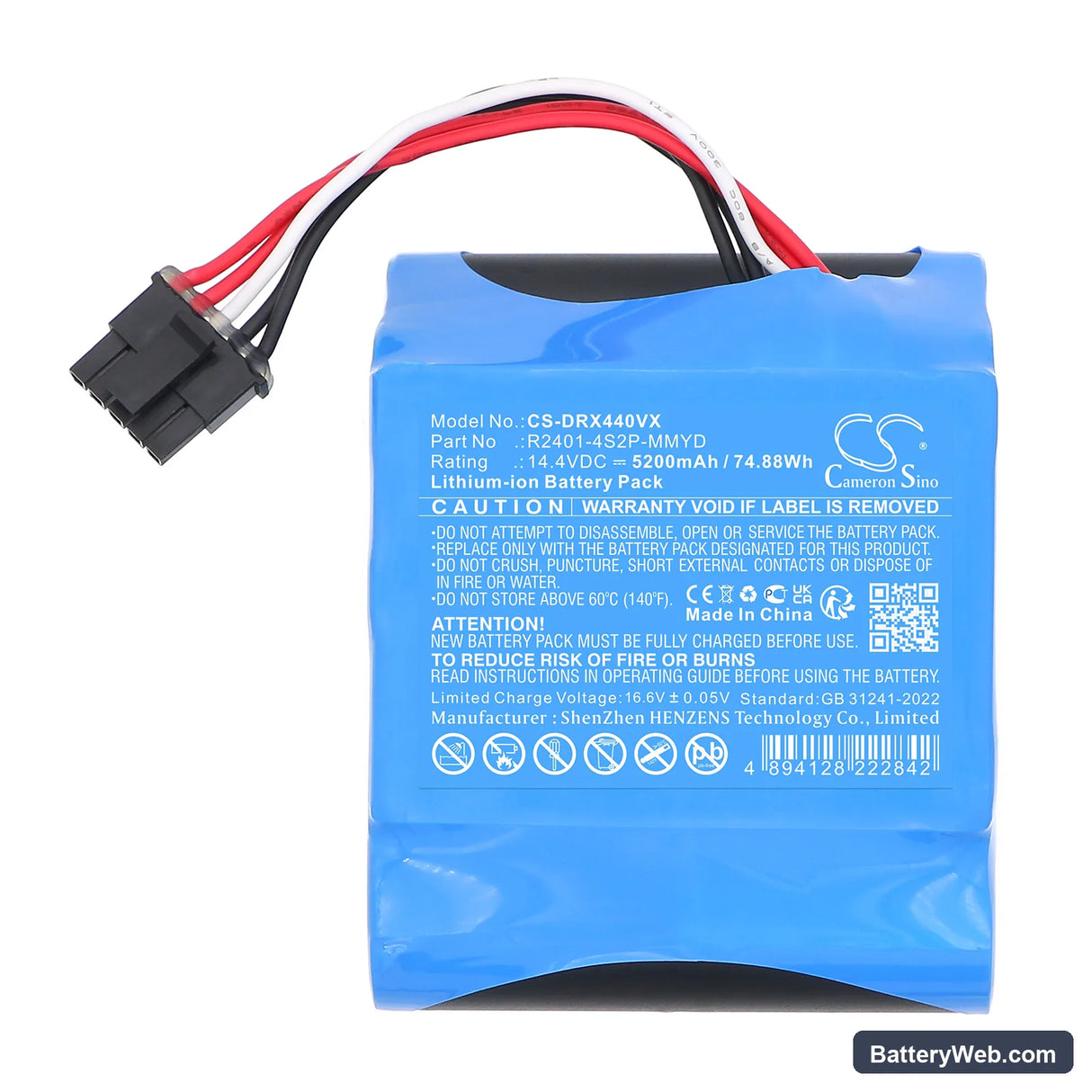

This is a 14.4V 5200mAh (74.88Wh) lithium-ion replacement battery for the Dreame X40 and X40 Pro cordless stick vacuum. It slots into the same battery bay as the original and works with the existing charger and BMS handshake. Replace it when the original no longer holds enough charge to complete a cleaning session.

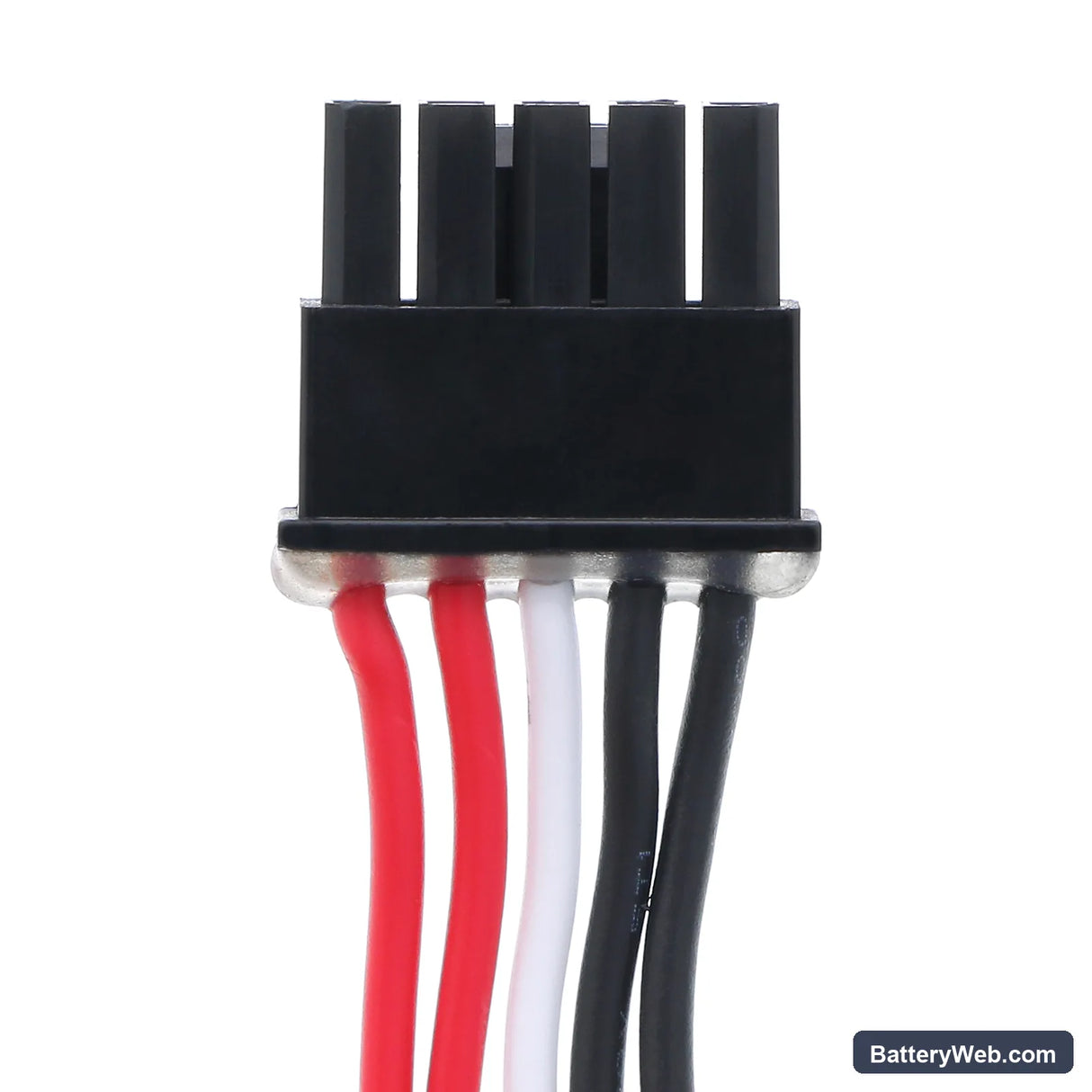

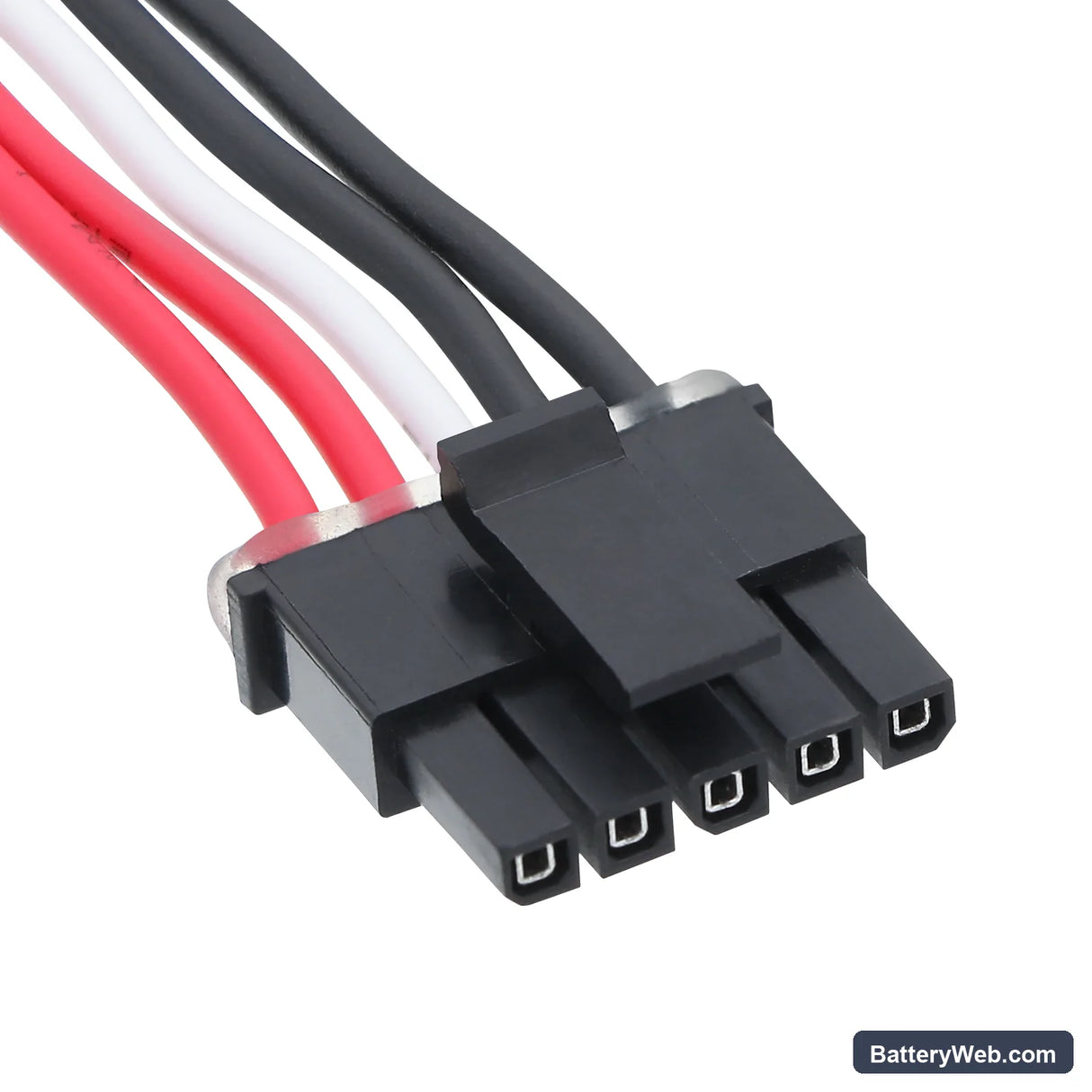

• X40 and X40 Pro compatibility: Both models share the same 14.4V battery platform, connector pinout, and BMS communication protocol — a single cell covers both units without any modification.
• Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on the X40 motor platform. The BMS handled both high-suction and MAX mode draw without tripping, and cell voltage stayed within the expected window throughout discharge.
• Dock charging habit on the X40: Do not leave the X40 sitting on its charging dock permanently. Continuous trickle charging is the fastest way to degrade lithium-ion capacity on stick vacuums. Charge to full, remove from the dock, and return it only when the battery is depleted.

Suction dropping before the battery indicator reaches low

The X40 motor pulls significantly more current when airflow is restricted — a partially blocked filter or full dust cup forces the motor to compensate, and actual cell voltage sags under that elevated draw. The BMS reads the voltage sag as a low-battery condition and scales back power to the motor before the indicator LED reflects it. Clean the filter and empty the dust cup first; if suction recovers immediately, the battery is not the cause. If suction remains weak on a clean filter, measure resting cell voltage — a healthy 14.4V pack should sit above 15.8V fully charged.

Motor cutting out mid-session and then restarting after a pause

This is a BMS overcurrent trip, not a dead battery. When sustained suction restriction forces the motor to draw beyond the BMS threshold — typically triggered by a blocked roller brush or clogged post-motor filter — the BMS opens the circuit to protect the cells. The vacuum goes silent, and after 30–60 seconds the BMS resets and power returns. Clear the roller brush of tangled debris, check the post-motor HEPA filter for grey saturation, and retry on a hard floor. If trips continue on an unobstructed surface, the cell may be aged and the internal resistance is elevating apparent current draw — replacement is the correct step.
