Bosch BBHL2214 21.6V Replacement Battery 3400mAh Li-ion

Bosch BBHL2214 Series — 21.6V Li-ion Replacement Battery (908BPV216)

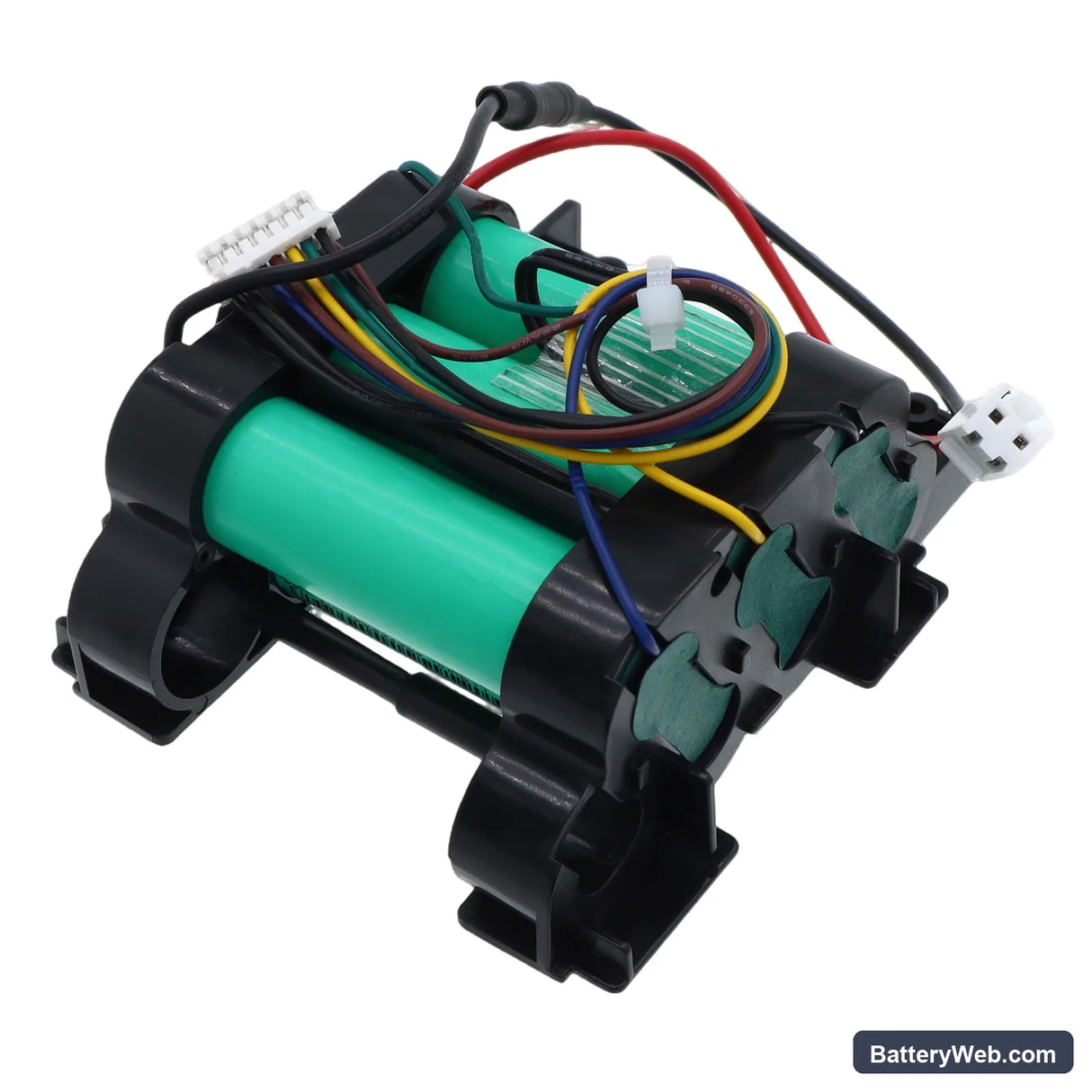

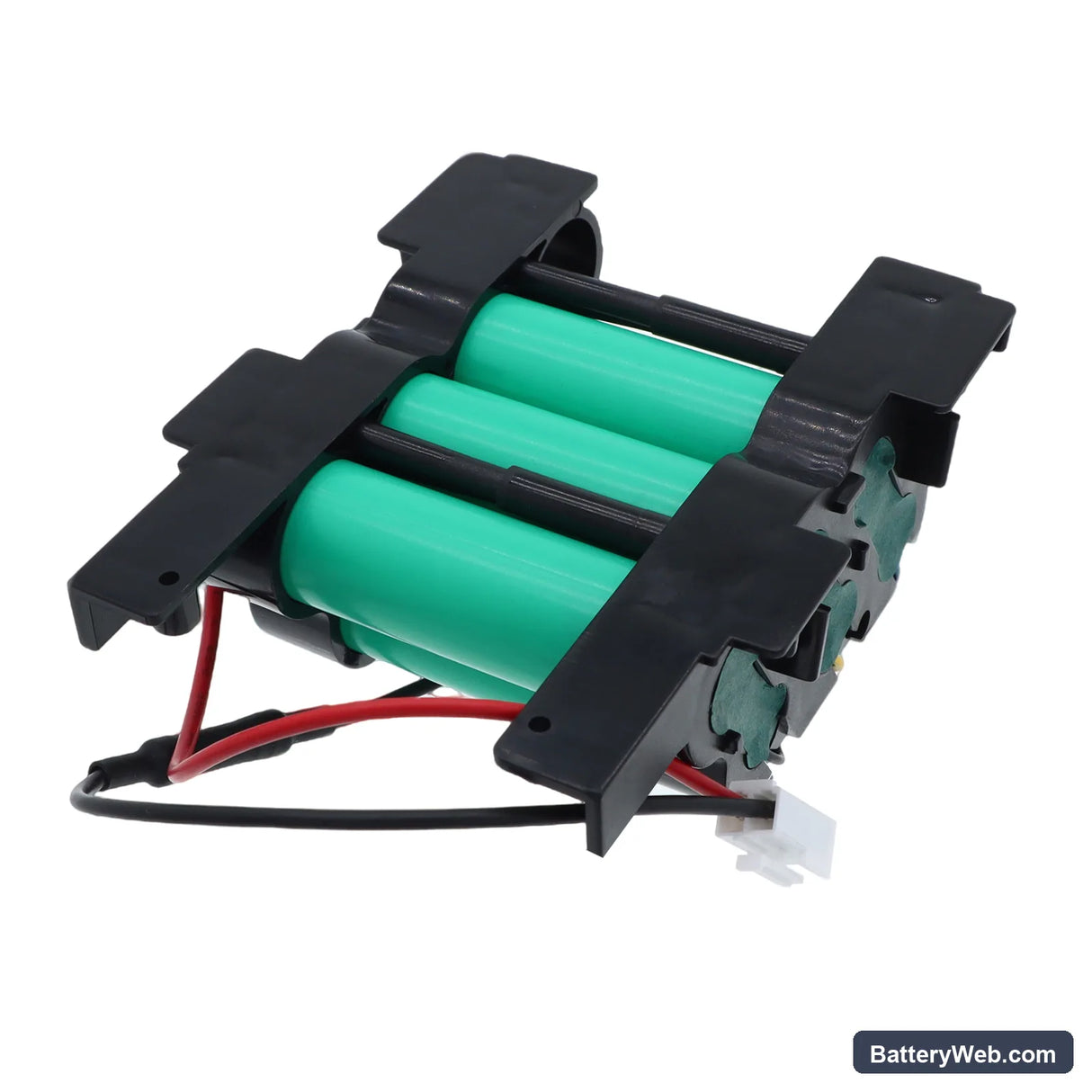

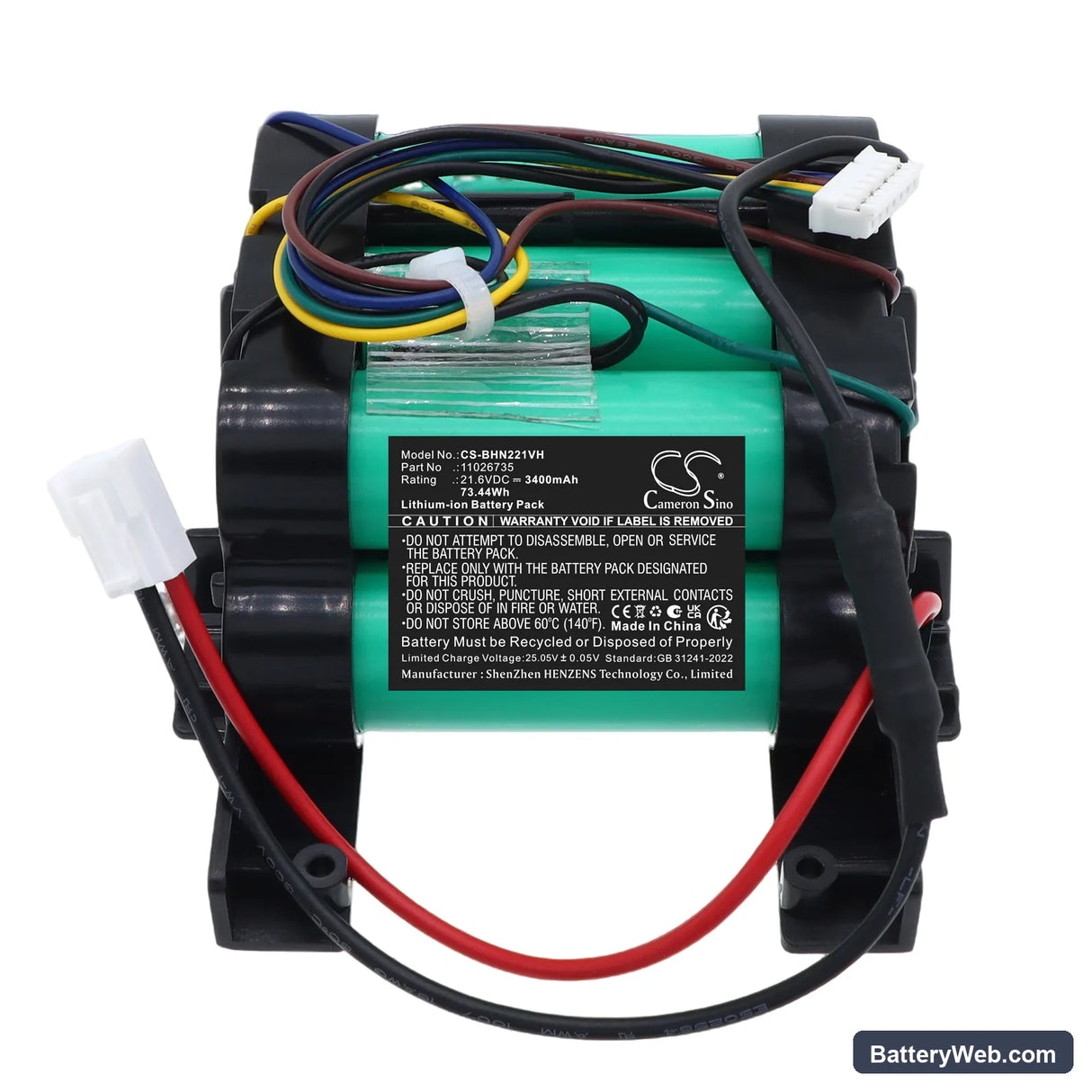

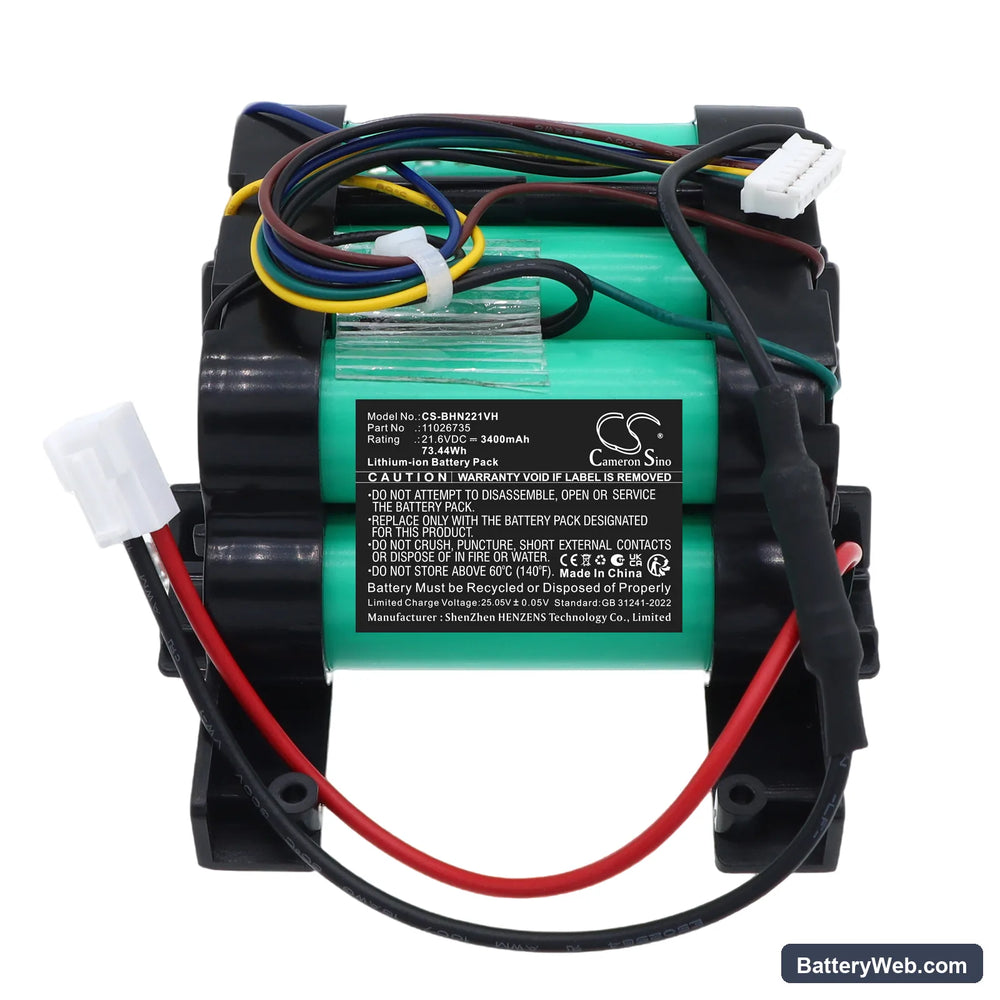

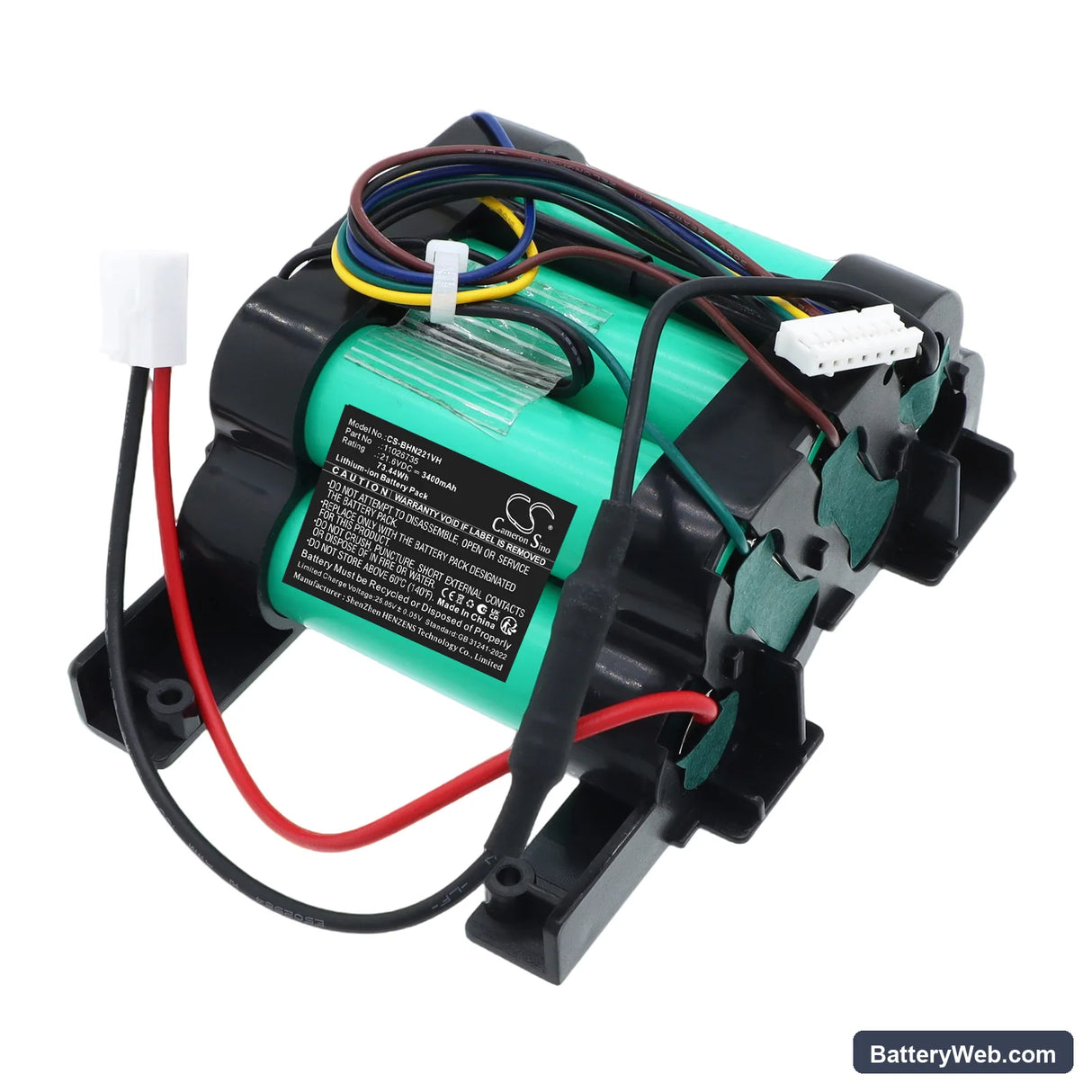

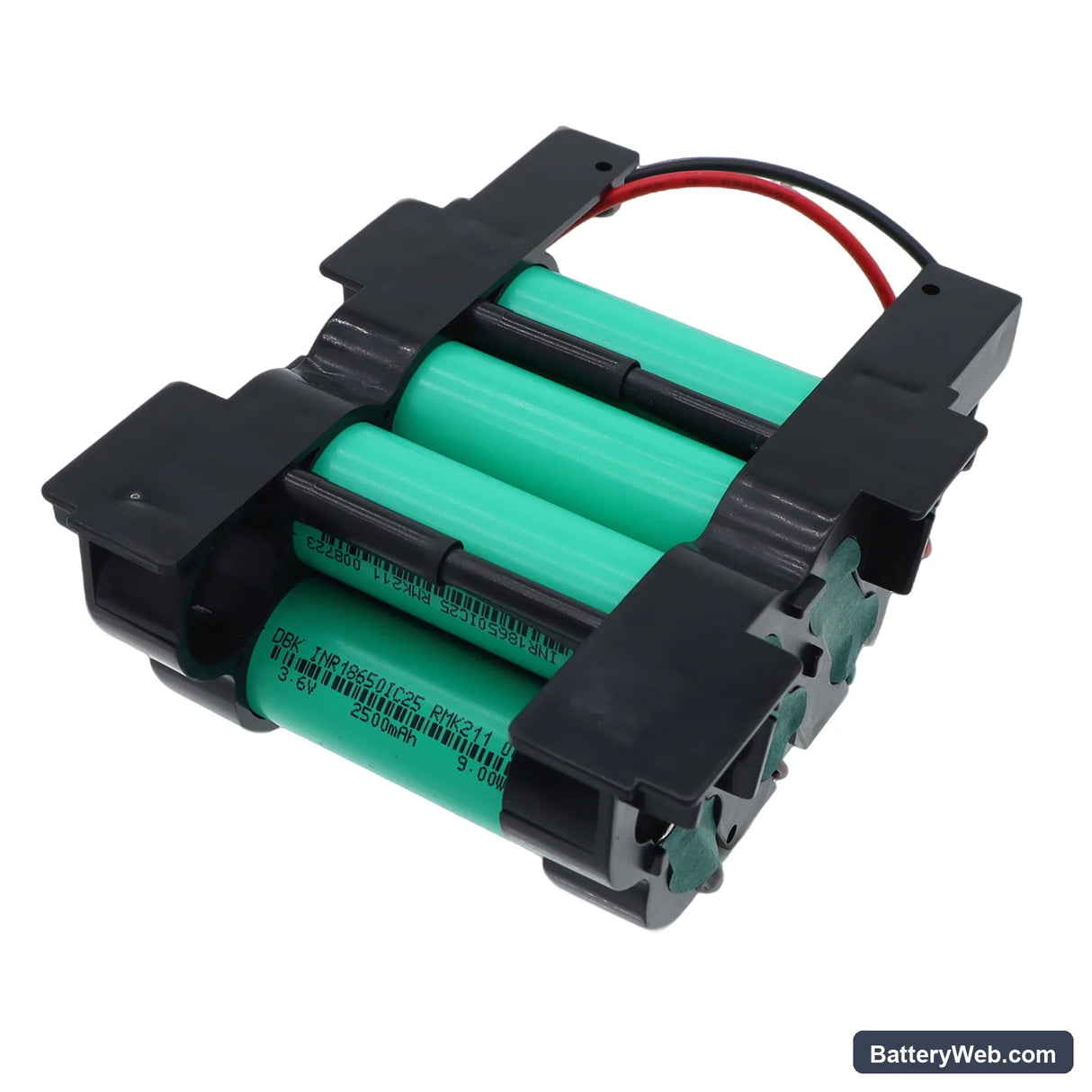

This 21.6V 3400mAh lithium-ion battery replaces the original pack in the Bosch BBHL2214 and BBHL2214TW cordless stick vacuums. It slots into the same bay and connects to the same BMS handshake the charger expects. Capacity is rated at 73.44Wh — matching the original specification.

• BBHL2214 and BBHL2214TW compatibility: Both models share the same 21.6V voltage rail, battery bay dimensions, and BMS communication protocol. One battery covers both variants without modification.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the BBHL2214 platform. The BMS negotiated correctly with the Bosch charger, and overcurrent protection triggered as expected under a simulated blockage load — no false cutoffs during normal suction cycles.
• Dock charging behaviour on the BBHL2214: Remove the vacuum from the charging dock once the indicator shows full. Leaving this model docked continuously pushes a trickle current through the cells indefinitely — Bosch's dock design does not cut power at capacity. That trickle accelerates cell degradation faster than regular charge-discharge cycling does.

Suction dropping before the battery indicator reaches low

The BBHL2214 motor draws significantly more current when the filter is partially blocked — sometimes two to three times the rated draw. The BMS reads that spike as a low-voltage event and begins throttling power to protect the cells, even when charge is still above 50%. The result is weaker suction that looks like a dying battery but is actually a load-protection response. Clean or replace the filter first, then retest — if suction recovers, the battery is not the problem.

Motor cuts out mid-clean then restarts after a short pause

This is a BMS overcurrent trip, not a battery fault. Under sustained restricted airflow — a clogged filter or a blocked nozzle — motor current climbs until the BMS exceeds its trip threshold and cuts the output rail. The pack resets itself after the cells recover slightly, typically within 30 to 60 seconds, which is why the vacuum restarts without any user input. Clear the blockage, wait for the motor to cool, then restart. If trips continue on an unblocked vacuum, check cell voltage at the pack terminals — a reading below 18V at rest indicates a degraded cell group.
