Casio DT-X30 Barcode Scanner Replacement Battery 7.4V HA-G20BAT

Casio DT-X30 Series — 7.4V Li-ion Replacement Battery (HA-G20BAT)

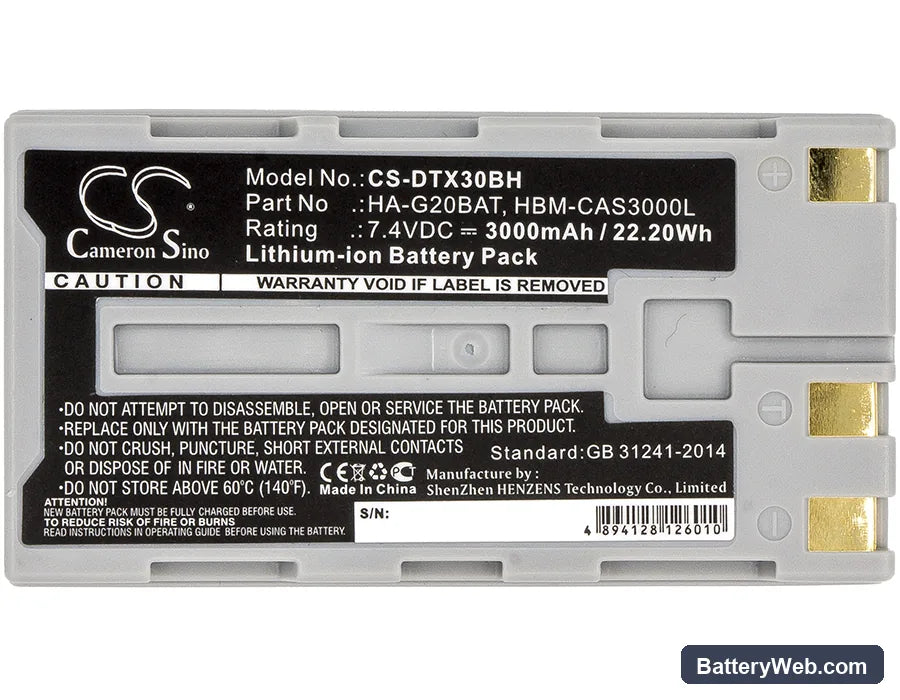

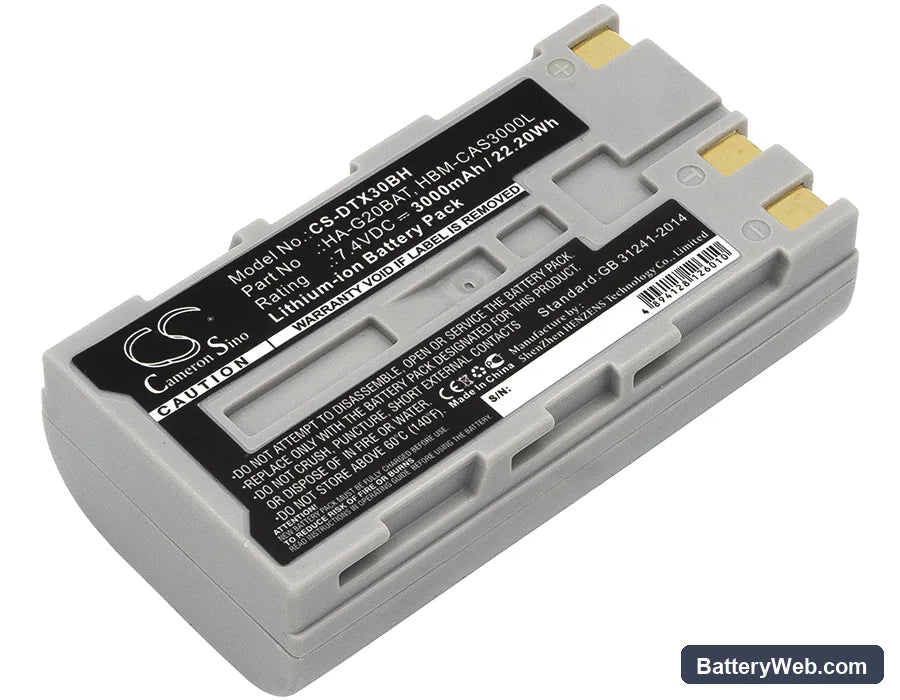

This is a 7.4V, 3000mAh Li-ion battery for the Casio DT-X30 mobile barcode scanner. It fits the DT-X30, DT-X30G, DT-X30GR-30C, and IT-9000 handheld units. Capacity is 22.2Wh, matching the original HA-G20BAT specification.

• DT-X30 and IT-9000 platform fit: These models share the same 7.4V power rail, battery bay dimensions, and BMS handshake protocol. One pack covers the full range without modification or adapter.
• Bench tested on actual hardware: We ran this pack through cold-boot, active scan bursts, and wireless polling cycles. The BMS held voltage within spec under combined radio and trigger inrush loads without tripping a false low-cell fault.
• First-shift prep for pick-and-pack: After installing, seat the scanner in its charging cradle and run a full charge cycle before the first shift. The scan trigger draws its highest inrush current when the cell is near minimum charge, and a fully charged pack prevents false BMS trips on the opening scans of the day.

Cradle showing a charging error on a new pack

A charging error on a new pack is almost always a contact resistance issue, not a pack fault. The DT-X30 cradle uses spring-loaded gold contacts that oxidise and collect debris from repeated insertions. Resistance above roughly 0.2Ω on the contact pins causes the dock to read a handshake fault and abort the charge cycle. Wipe the battery contacts and the cradle pins with a dry cloth, then reseat the pack firmly until it clicks.

Scanner losing wireless connection during rapid scan bursts

During a fast scan burst, the imager and the wireless radio draw current simultaneously. If the cell voltage sags below the radio module's minimum operating threshold — typically around 6.8V under combined load — the wireless stack drops the connection before the BMS trips on low cell voltage. A degraded or partially charged battery sags further and faster under this combined draw than it does at rest. Charge the pack fully before a high-throughput shift and check that the battery contacts are clean, since contact resistance amplifies voltage sag under load.
