Dell Latitude E6120 11.1V Replacement Battery 9GXD5

Dell Latitude E6120 / E6220 / E6230 / E6320 — 11.1V Li-ion Replacement Battery (9GXD5)

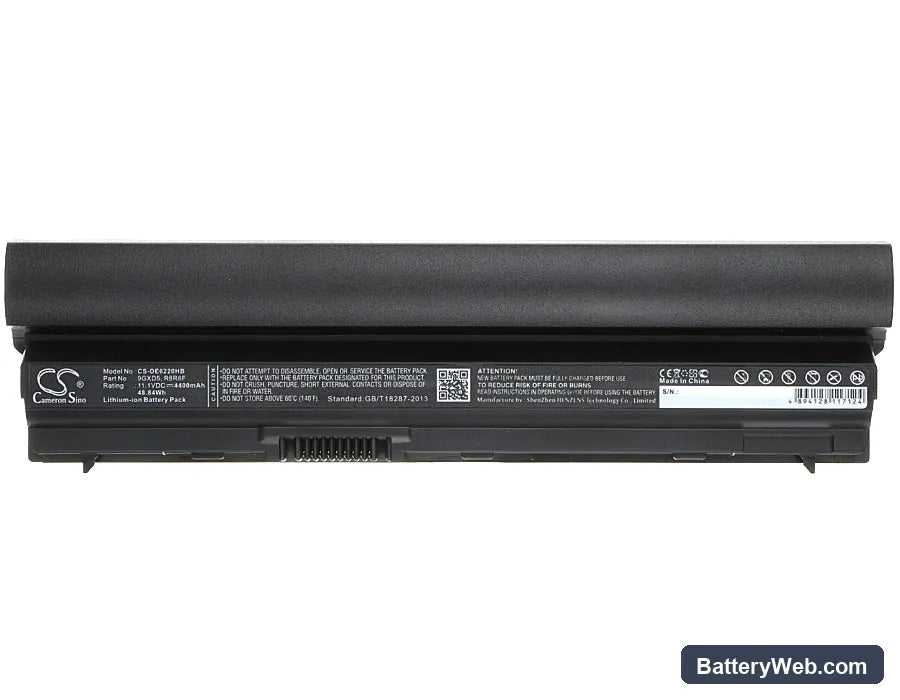

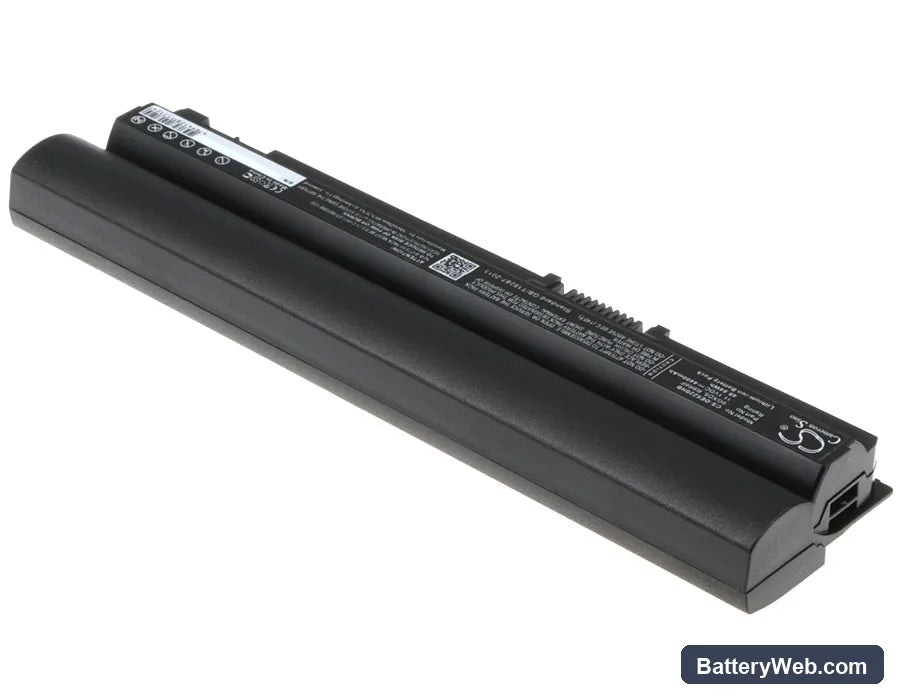

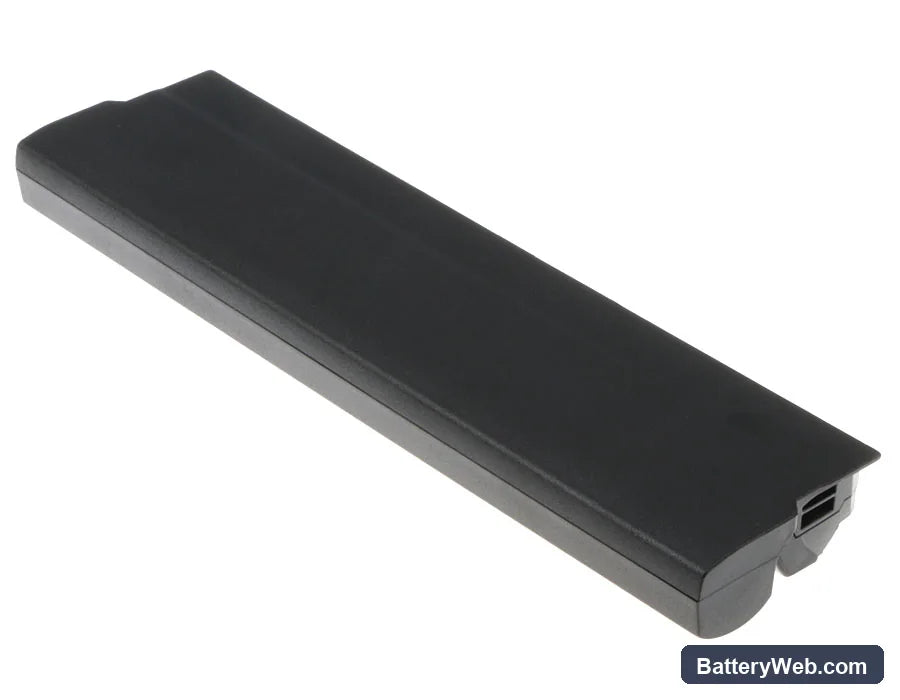

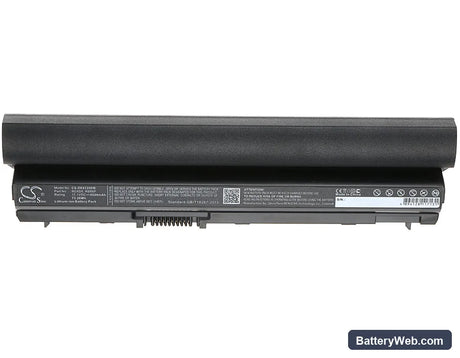

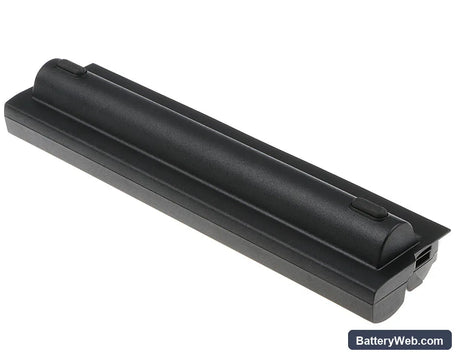

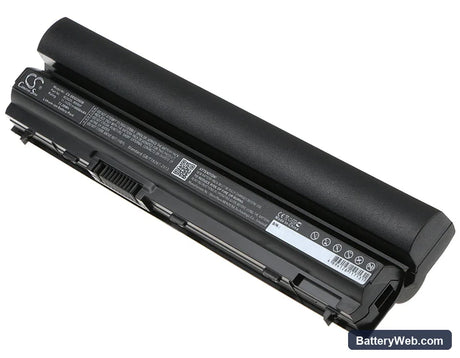

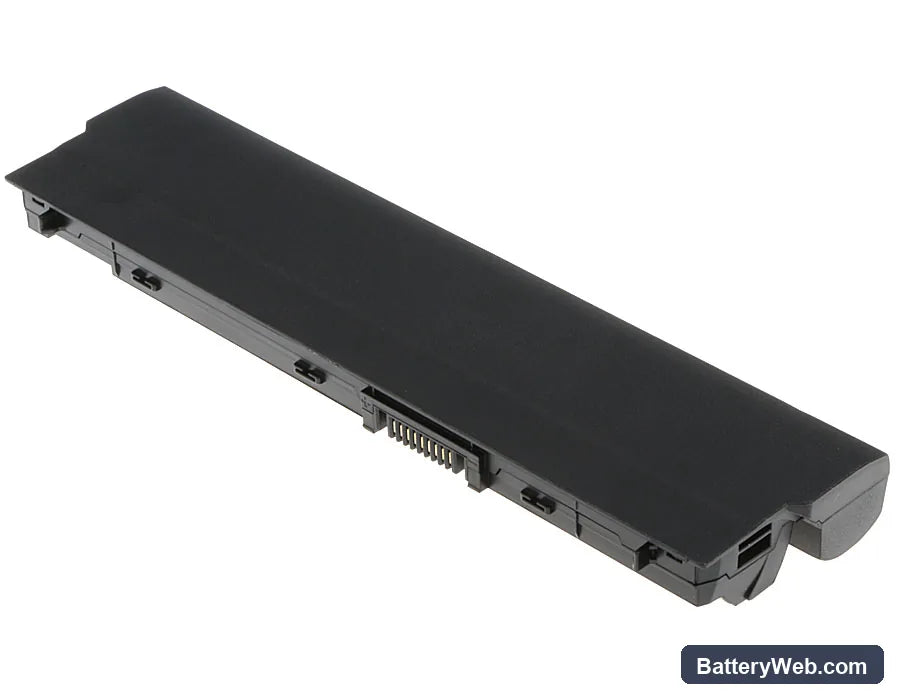

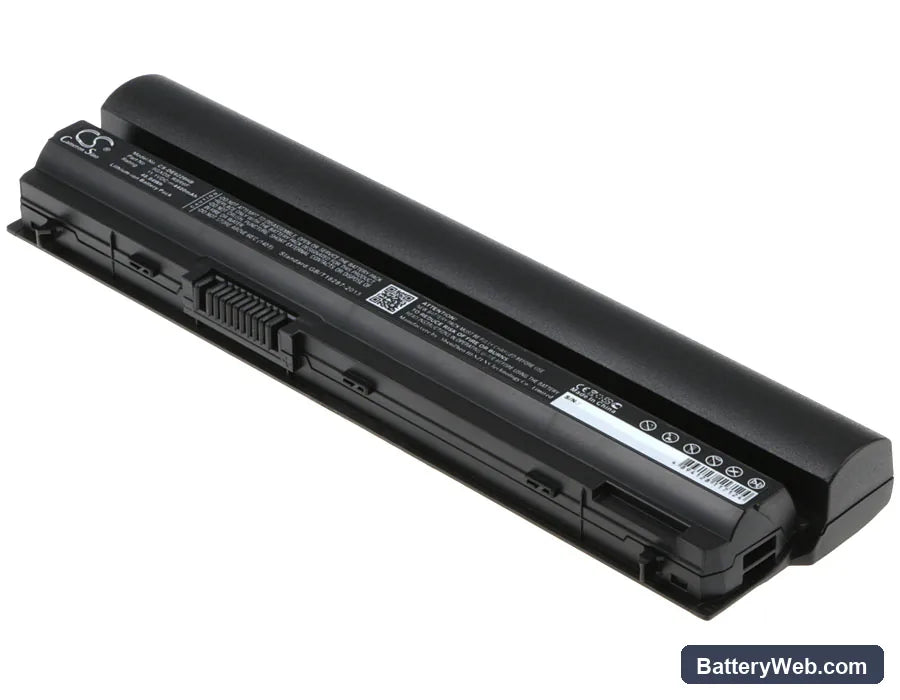

This is an 11.1V 4400mAh (48.84Wh) lithium-ion battery for the Dell Latitude E6120, E6220, E6230, and E6320 series notebooks. It replaces OEM part numbers 9GXD5, R8R6F, RFJMW, 312-1239, and several other Dell-issued part numbers from this platform. Install it when the original cell no longer holds a charge or the system reports critical battery health.

• E6120 / E6220 / E6230 / E6320 platform fit: These four Latitude models share the same battery bay dimensions, 11.1V rail, and SMBus connector pinout. The BMS handshake protocol is identical across the series, so one cell covers all four without any firmware conflict.
• Bench tested on actual hardware: We ran this cell on an E6220 chassis and monitored the SMBus dialogue through full charge and discharge cycles. The BMS reported state-of-charge accurately and charge termination cut in cleanly at the expected voltage ceiling.
• Post-install discharge cycle on Dell Latitude: After installing, run one full discharge to hibernate-cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on this platform.

BIOS reporting battery health as poor immediately after replacement

The Dell BIOS on the E6120 series reads health data from the battery's EEPROM, which stores cycle count and wear metrics from the previous cell. When a new cell is installed, that EEPROM data resets, and the BIOS briefly interprets the mismatch as a fault. This is not a defect in the replacement cell. Run one full discharge-to-hibernate followed by an uninterrupted charge to 100% to force the BIOS to re-read the new cell's data. After one or two learn cycles, the health indicator returns to normal.

Laptop shuts down at 20–30% charge shown on screen

This happens when the cell voltage drops below the BMS cutoff threshold under combined CPU and display load, even though the fuel gauge still shows charge remaining. The fuel gauge IC calibrates against a new cell over the first few cycles, so early readings can be 15–25% optimistic under load. It is not a faulty battery — it is the fuel gauge IC catching up to the new cell's actual discharge curve. Run two or three full discharge-to-hibernate cycles and the reported percentage at shutdown will converge; expect the system to sustain load down to around 10.5V per cell group before cutoff.
