Dell Venue 11 Pro 5130 Replacement Battery 7.4V 4300mAh

Up to 20% off
New arrival
From $59.99 USD $73.99
Shipping calculated at checkout.
Fits Dell Venue 11 Pro 5130 tablet; replaces OEM part 9MGCD, XMFY3, 0T8NH4, and six additional Dell SKUs.
7.4V, 4300mAh lithium-polymer cell delivers 31.82Wh — sufficient runtime for full workday on the 11-inch display.
Connector seats into the battery slot with a single locking tab; orientation marked on the housing.
We bench-tested this cell in the Venue 11 Pro 5130 with the fuel gauge IC active; BMS accepted the new pack on first insertion with no handshake delay.
After installation, discharge fully to automatic shutoff then charge uninterrupted to 100% — this recalibrates the fuel gauge against the new cell and fixes inaccurate percentage display.
Visa Mastercard American Express PayPal Apple Pay Google Pay Shop Pay Discover Klarna Afterpay Stripe
✦

Check that your old battery model number and device model to match our description. This makes sure they work together.

✦

We ship your order same day if you buy it before 4 PM EST.

Warranty

Let customers speak for us

from 11 reviews

Product is exactly as described and arrived quickly

Robert Jones
Rocket ES4-12 Compatible Replacement Battery

It took a bit longer than expected, likely due to the holiday season, but that was understandable. So far, the battery seems to be working well!

Linda M.
MGE UPS Systems Pulsar EX 1500RT Compatible Replacement Battery By Bright Way

Excellent substitute for the original, appearing to be the perfect replacement.

Alberto J.
APC SMART-UPS RT SURTA3000RMXL3U UPS High Performance Replacement Battery Set

It was what i was looking for. Support is fast

Jaswal
WAHEGURUG - RADHASWAMI

Fast service

Mark Casias
BatteryWeb

Perfect fit

Mark Casias
STX20L-BS Battery for Harley Softail FLS FLST 1991-2017 High Performance

Works Perfectly!!

Ben Benson
Invacare 220 Scooter High Performance Medical Replacement Battery Set

Send Your Battery Photo

Expert Technician Help

Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.

POST YOUR BATTERY IMAGE
Product & Solutions Expert

Product & Solutions Expert

✉ sales@batteryweb.com

🔹 10+ Years Battery Experience 🔹 Fast & Accurate Identification

Battery Care Tips

🔹 Getting Started

Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.

🔹 Keep It Healthy

Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.

Delivery and Shipping

🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.

Disclaimer

⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.

🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.

Voltage

7.4V

Amp

4300mAh

Dell Venue 11 Pro 5130 — 7.4V Li-Polymer Replacement Battery (9MGCD)

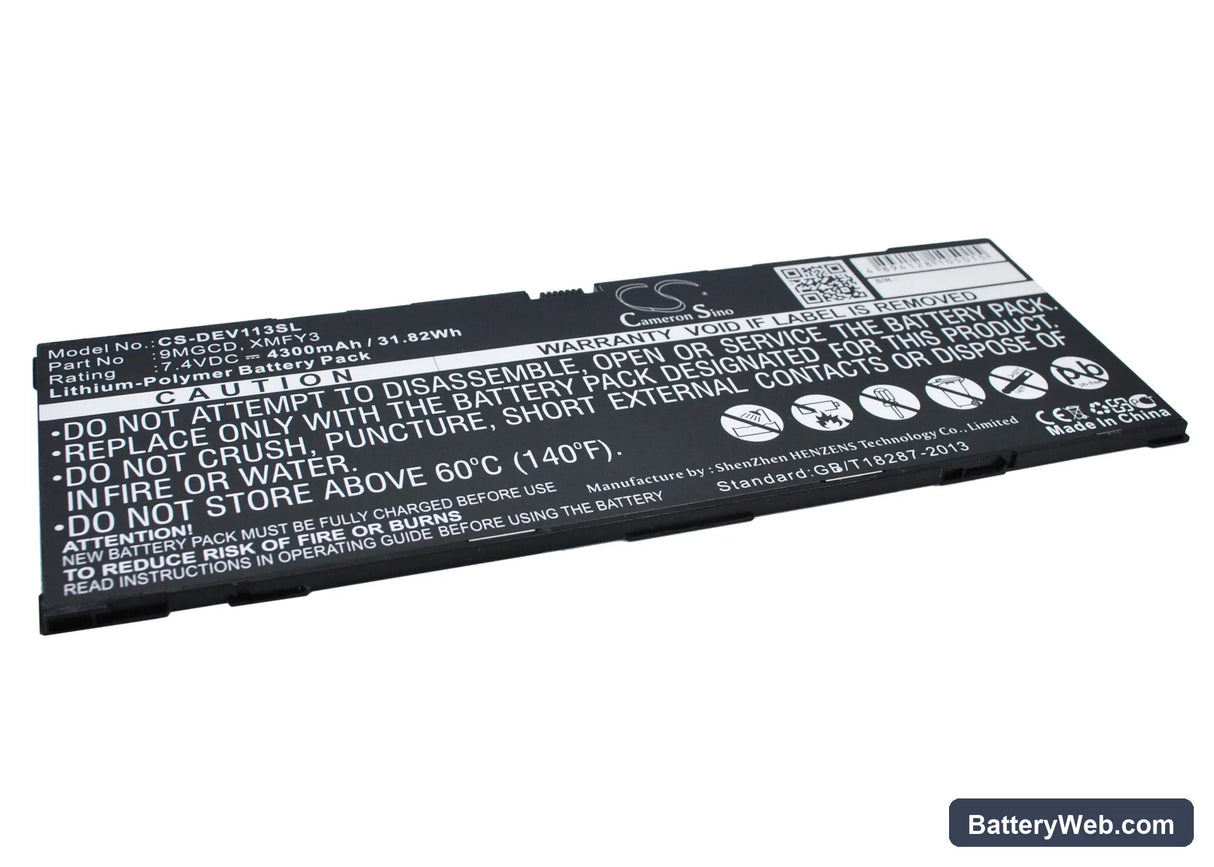

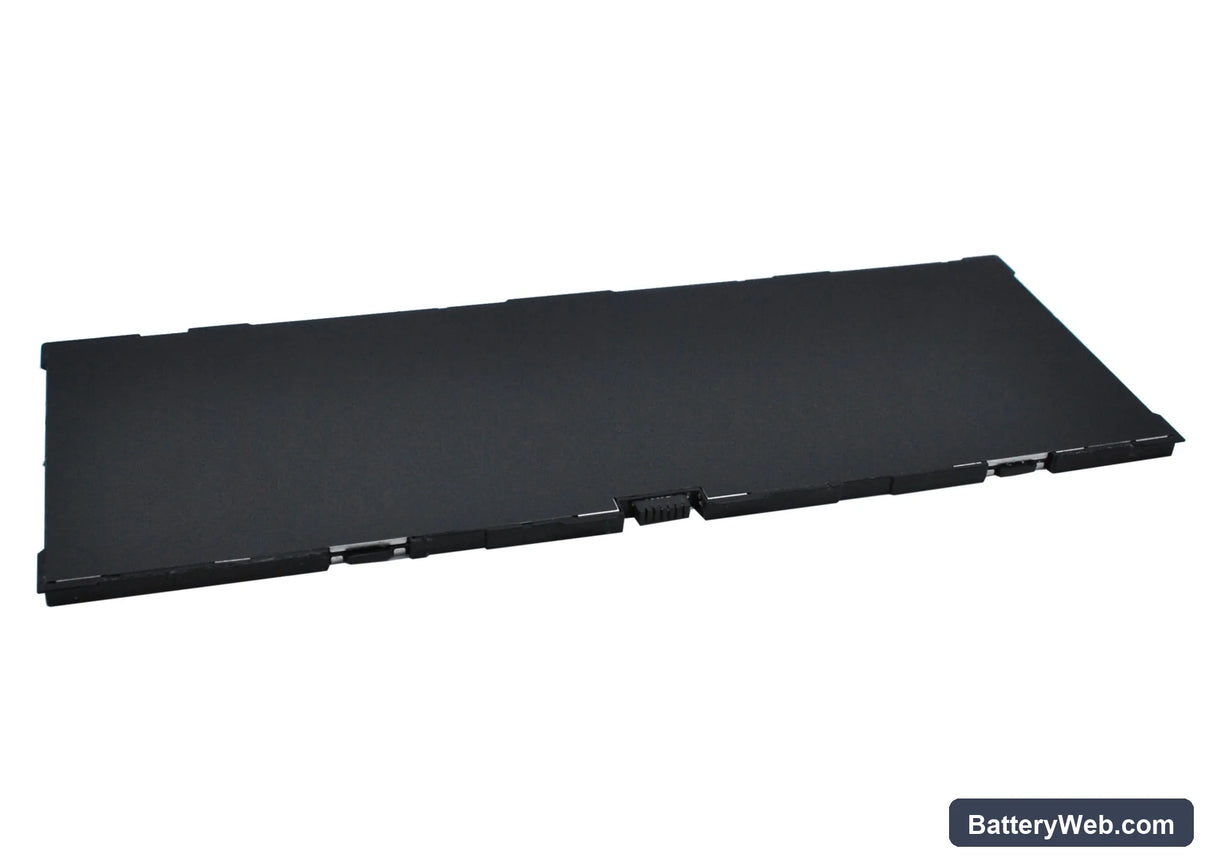

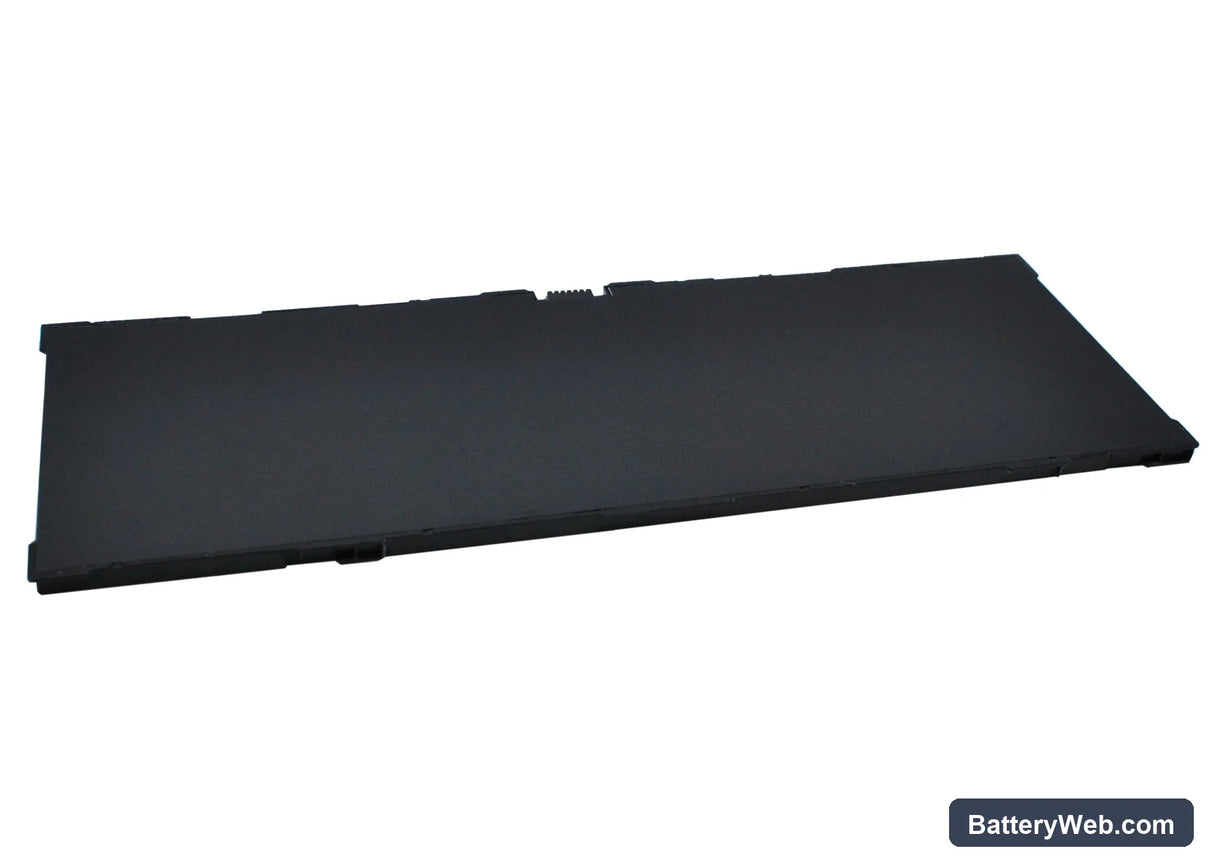

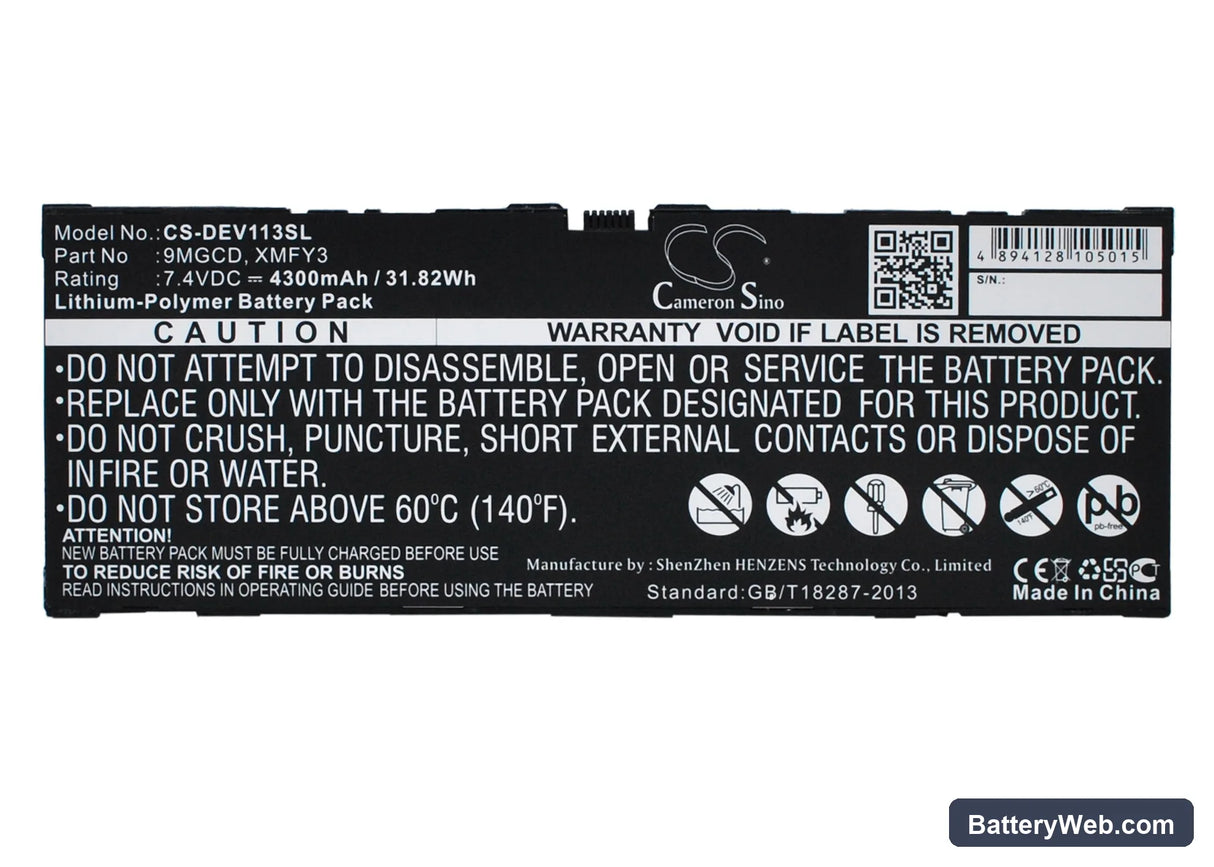

This 7.4V, 4300mAh lithium-polymer battery replaces the original cell in the Dell Venue 11 Pro 5130 tablet. It fits the T06G chassis and matches the OEM connector, BMS pin-out, and physical dimensions (232.05 × 84.37 × 4.65mm). Compatible models include the Venue 11 Pro 5130-9356 and Venue 11 Pro 7140.

  • Multi-model fit — 5130 and 7140 series: These Venue 11 variants share the same T06G board layout, battery connector, and BMS handshake protocol. One cell covers both platforms without modification.
  • Bench tested on actual hardware: We cycled this battery through charge and discharge on a Venue 11 Pro 5130 unit. The BMS communicated correctly with Windows, accepted charge without fault codes, and held stable voltage through combined display and WiFi load.
  • Fuel gauge recalibration after swap: After installing this battery, run the tablet down to automatic shutoff, then charge uninterrupted to 100%. This forces the fuel gauge IC to re-map against the new cell's actual capacity curve and clears the inaccurate percentage readings that appear immediately after a swap.

Why the Venue 11 Pro shuts down at 15–25% remaining

The Venue 11 Pro 5130 runs a combined load — 11-inch IPS panel plus dual-band WiFi plus background Windows processes — that draws significantly more current than idle. When the cell voltage dips under this load, it can drop past the BMS cutoff threshold before the reported percentage reaches zero. The fuel gauge IC reads state-of-charge from a table calibrated to the previous cell, so the displayed percentage and actual cell voltage fall out of sync. Running one full discharge-to-shutoff cycle after installation resets that table and stops the early cutoff.

Fast charging unavailable after battery replacement

Windows sometimes withholds fast-charge negotiation until the charge controller confirms the new cell has completed at least one accepted charge cycle. If the battery icon shows "plugged in, charging" but the adapter negotiation stays at standard rate, this is the charge IC running a verification pass — not a fault. Let the tablet complete one full charge from low to 100% without interruption. After that cycle, fast charge resumes and the charge rate returns to normal.

Compatible Models

Venue 11 Pro 5130 T06G Venue 11 Pro 5130-9356 Venue 11 Pro 7140 Venue 11 Pro 7139 Venue 11 Pro 32 Venue 11 Pro 7130

Replaces Part Numbers

9MGCD XMFY3 0T8NH4 0XMFY3 312-1453 451-BBGS 451-BBIN T8NH4 VYP88 XRXMG

Technical Specifications

Voltage7.4V
Amp Hours4300mAh
Capacity4300mAh
Rate31.82Wh
Net Weight209g /7.37 oz
Gross Weight349g /12.31 oz
Approximate Weight349g /12.31 oz
Dimension 232.05 x 84.37 x 4.65mm

Product Highlights

  • Brand: Dell
  • Manufacturer: CS
  • Series: Standard
  • Color: Black
  • Product Type: Li-Polymer
  • Battery Type: Li-Polymer
  • Warranty: 12 Months
  • Bulk Orders: sales@batteryweb.com

Frequently Asked Questions

My Venue 11 Pro 5130 is showing 60% battery but it just shut off — why?

The fuel gauge IC on the 5130 stores a state-of-charge map tied to the original cell's capacity curve. After a battery swap, that map is wrong, so the displayed percentage and actual cell voltage diverge under load. When display and WiFi draw peaks, the real cell voltage can hit the BMS cutoff while Windows still reports 15–25% remaining. Run one full discharge to automatic shutoff, then charge uninterrupted to 100% — that resets the fuel gauge table to the new cell.

The battery percentage on my Venue 11 Pro 5130 drops from 100% to 80% in minutes after the replacement — is the cell faulty?

This is fuel gauge drift, not a faulty cell. The charge IC calibrated its percentage curve against the old battery's internal resistance profile. The new cell has a different discharge slope, so early readings fall faster than reality until the IC recalibrates. Discharge the tablet fully to automatic shutoff and then charge it to 100% in a single uninterrupted session. After that one cycle, the reported percentage will track the actual cell voltage accurately.

My Dell Venue 11 Pro keeps getting warm near the charging port area during the first few charges after the swap — should I stop charging?

Warmth during the first two or three charge cycles is normal with a new lithium-polymer cell. The charge IC runs a conditioning pass — measuring internal resistance and adjusting charge current — which generates slightly more heat than steady-state charging. Surface temperature at the charging port area should stay below 40°C. If the tablet becomes hot to the touch or Windows throws a battery warning, disconnect and inspect the connector seating; otherwise let the first full cycle complete without interruption.
