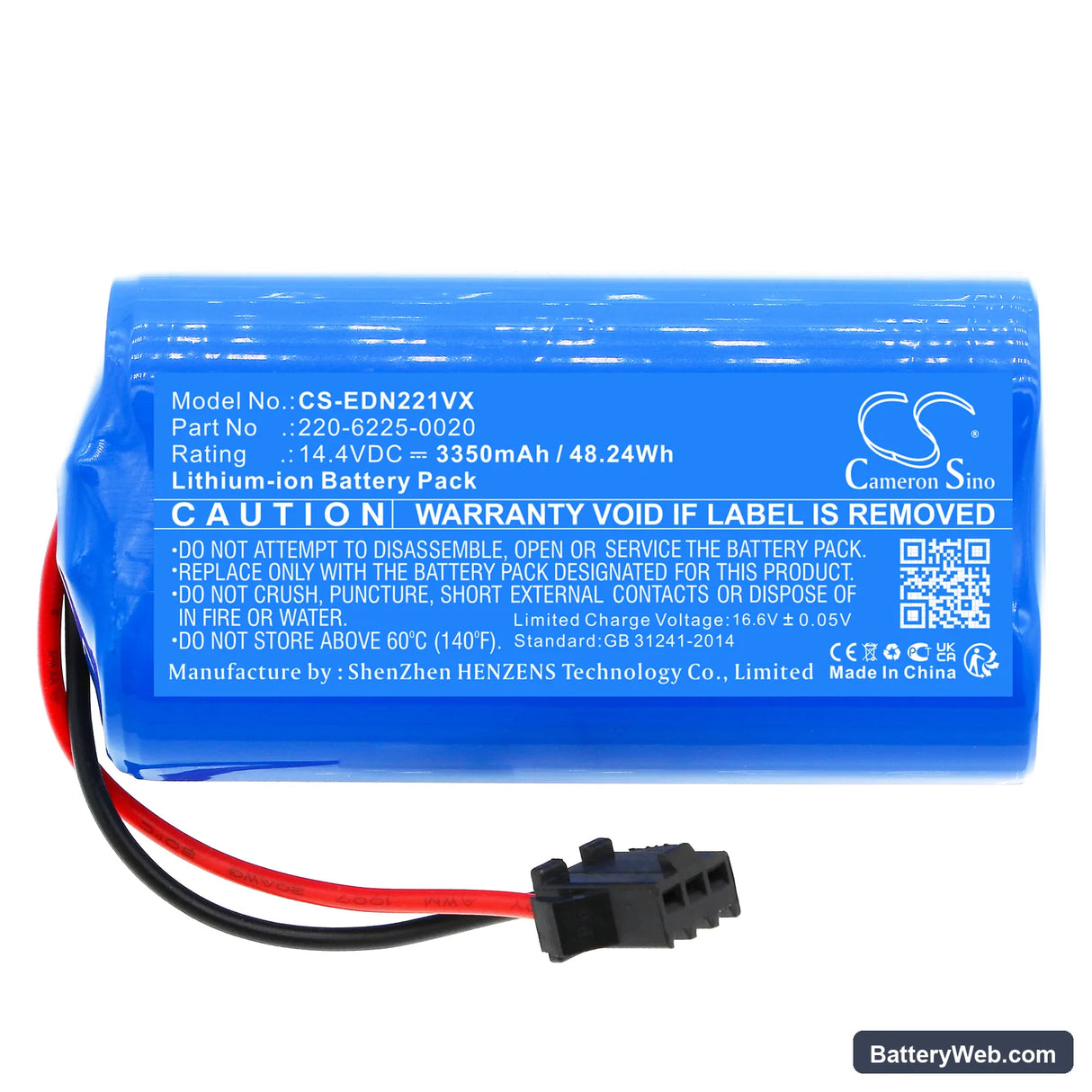

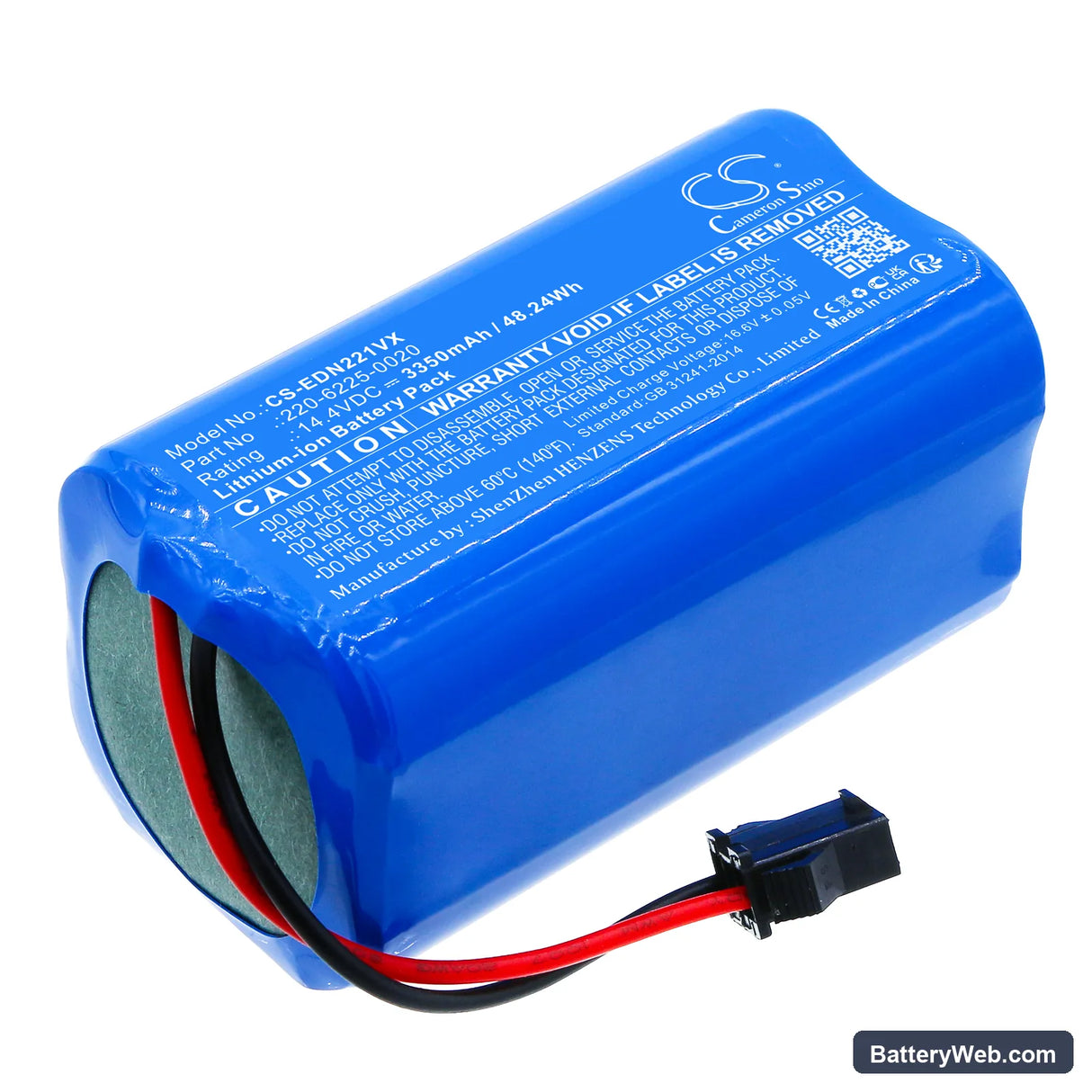

Ecovacs D83 Replacement Battery 14.4V 3350mAh Li-ion

Ecovacs Deebot D83 Series — 14.4V Li-ion Replacement Battery (220-6225-0020)

This 14.4V 3350mAh lithium-ion battery replaces the original power cell in the Ecovacs Deebot D83 robotic vacuum. It fits the D83, ECOMB83, DGN22, and DGN22-11 platforms. Capacity matches OEM spec at 48.24Wh — use this figure, not the mAh alone, when comparing cells.

• D83 platform compatibility: The D83, ECOMB83, DGN22, and DGN22-11 share the same 14.4V battery rail, connector pinout, and BMS handshake protocol. Swapping between these models works because the BMS firmware expects identical voltage thresholds and charge termination signals across the range.
• Bench tested on actual hardware: We ran this cell through the D83 charge cycle and confirmed the BMS accepted the handshake without fault codes. The protection circuit tripped correctly at the low-voltage cutoff and recovered cleanly on reconnection to the dock.
• Dock charging habit on the D83: The D83 auto-docks after every run and stays connected until the next scheduled cycle. Left on the dock continuously between sessions, the trickle charge degrades cell capacity faster than normal use alone. Run the robot until the low-battery alert triggers, then charge to full and let it sit off-dock if storing for more than a few days.

Suction dropping before the battery indicator reaches low on the D83

The D83 motor draws peak current when the suction path is partially restricted — a clogged filter or tangled brush roll pushes draw above normal operating levels. The BMS reads this as an overcurrent condition and throttles output voltage before the fuel gauge registers a low charge state. The result looks like a weak battery but is actually a protection response. Clean the filter and check the brush roll before replacing the cell — if suction restores immediately, the battery is not the fault.

D83 motor cutting out mid-cycle and recovering after a pause

This cut-and-recover pattern is a BMS overcurrent trip, not a dying cell. When the suction path stays restricted for several seconds — packed filter, wedged debris in the intake — current spikes beyond the BMS trip threshold and the circuit opens. Removing the load for 30–60 seconds lets the BMS reset and the motor restarts. If the cycle repeats, inspect the intake and filter before assuming battery failure. A healthy cell showing this symptom will read above 12.5V under no load after the trip.
