Eufy RoboVac X8 PA61 Replacement Battery 14.4V 5200mAh

Eufy RoboVac X8 Series — 14.4V Li-ion Replacement Battery (PA61)

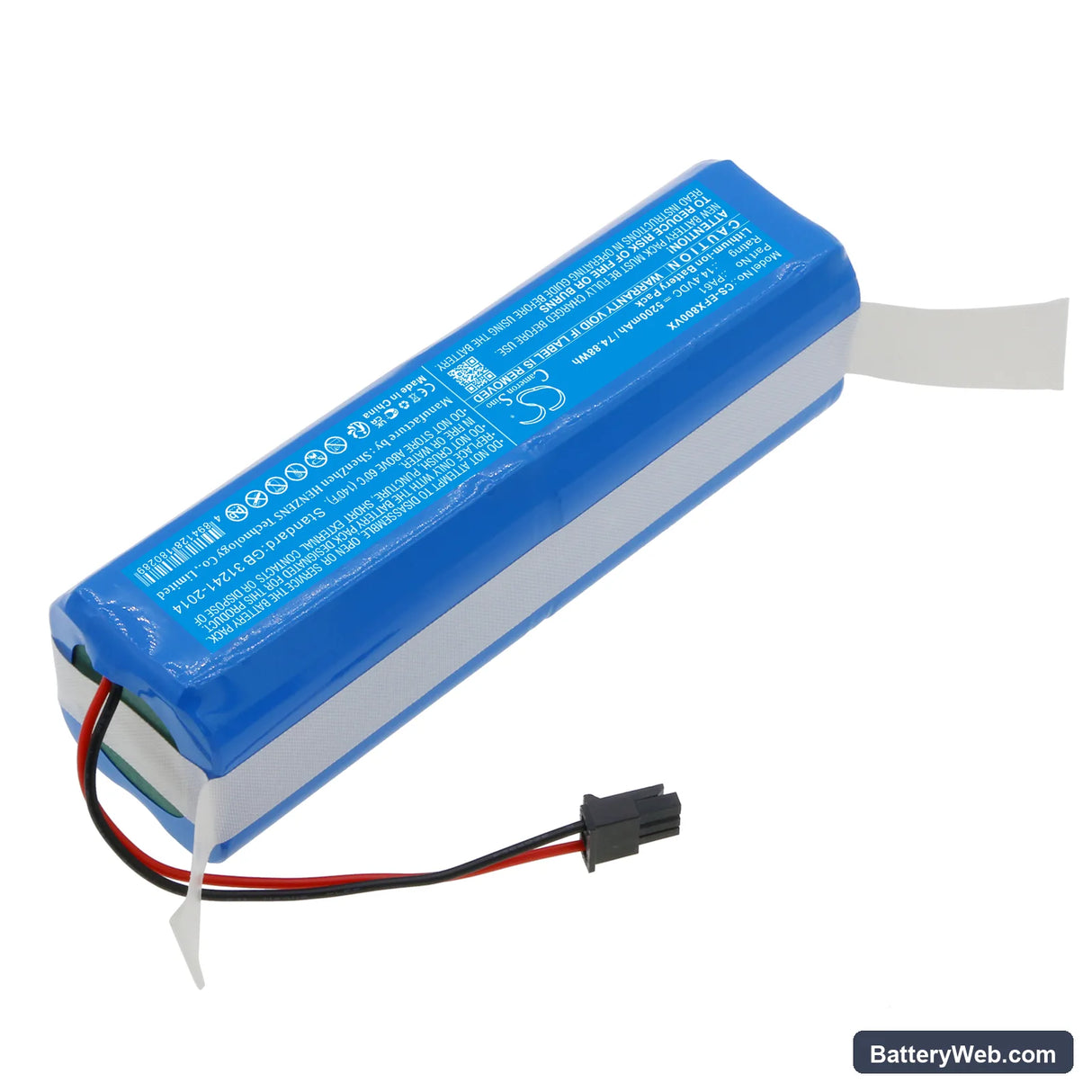

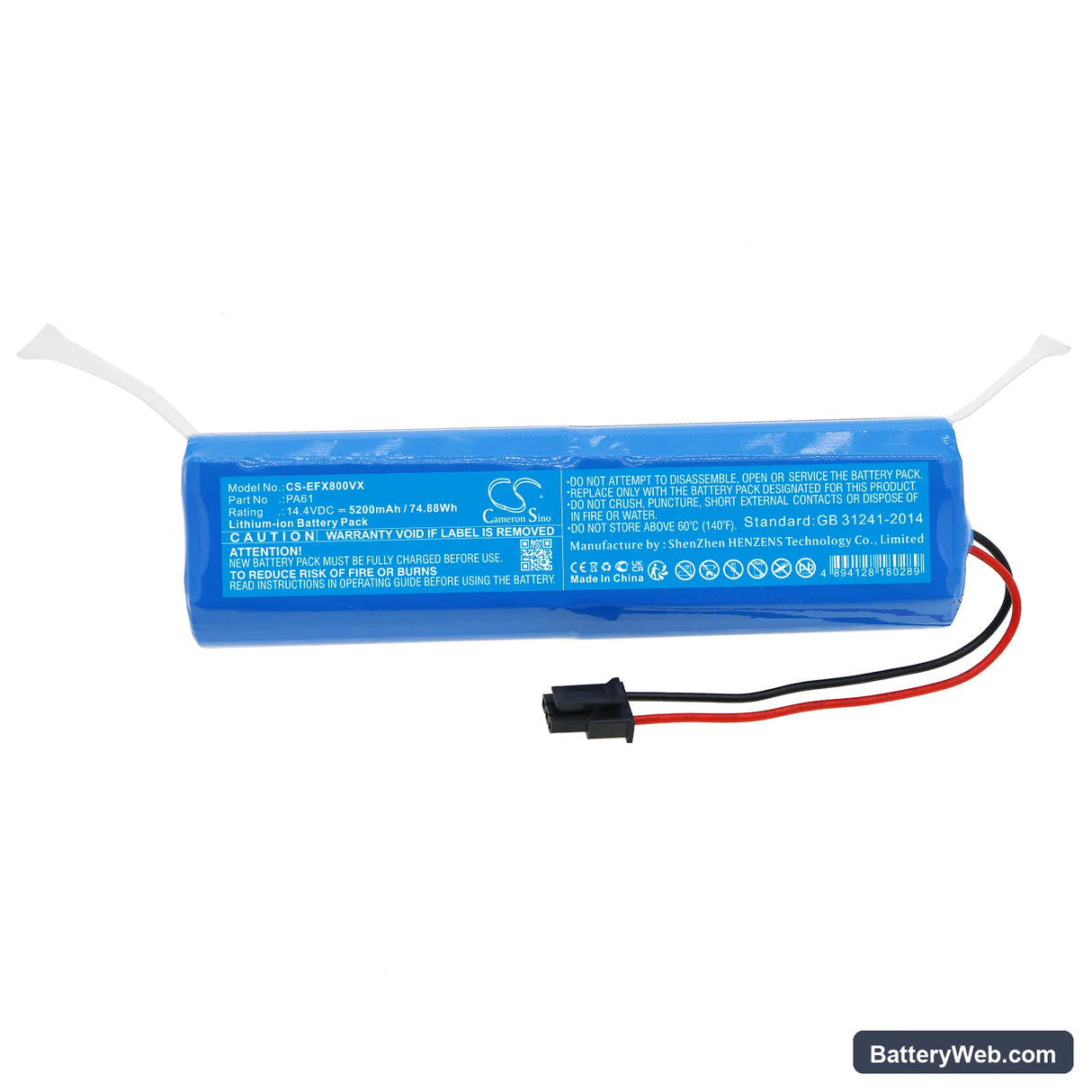

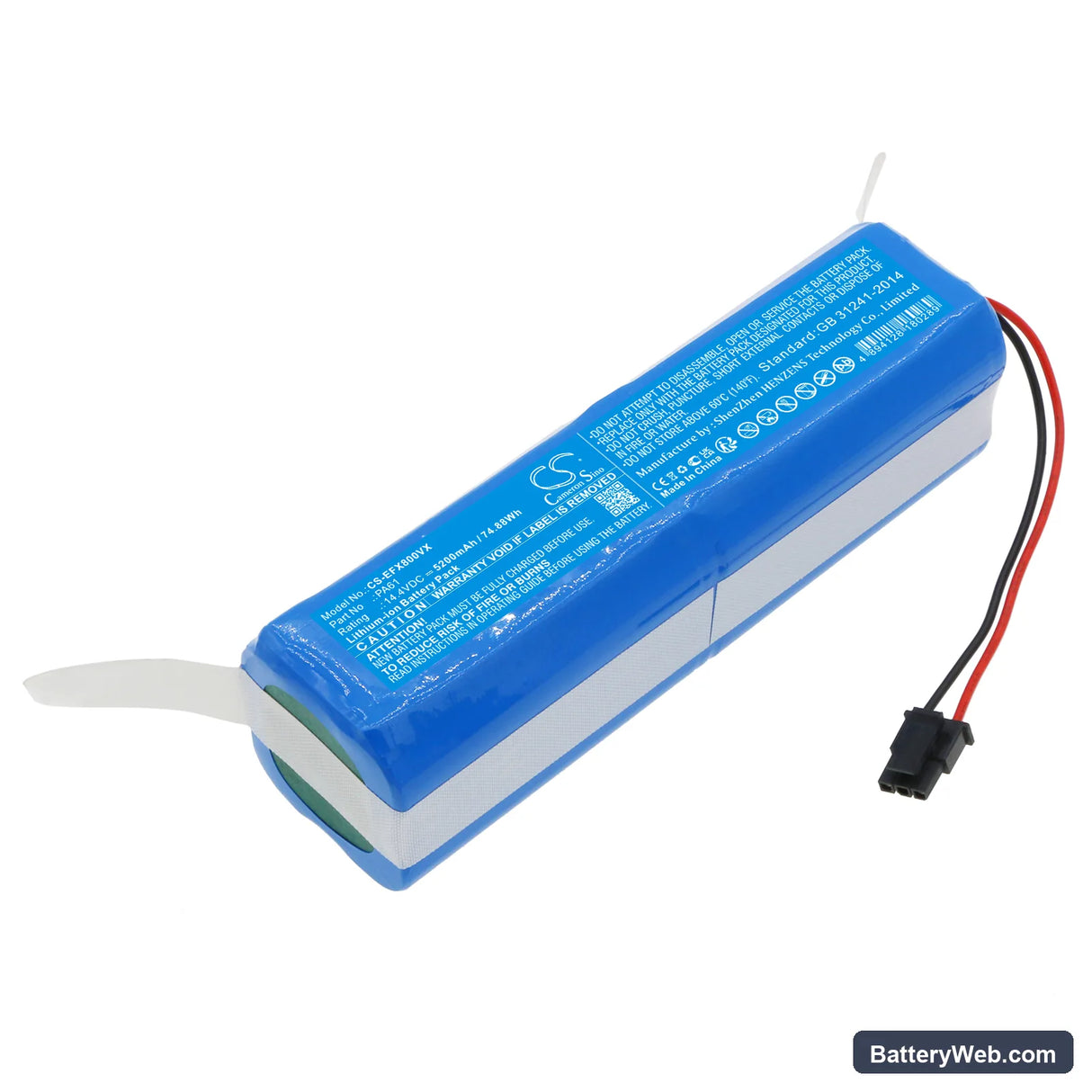

This is a 14.4V, 5200mAh Li-ion replacement battery for the Eufy RoboVac X8, RoboVac X8 Hybrid, RoboVac X8 White, and RoboVac X8 Hybrid White robotic vacuums. It fits the PA61 battery slot and powers both the drive motors and the onboard navigation system. Capacity is 5200mAh (74.88Wh) — matching the original cell specification.

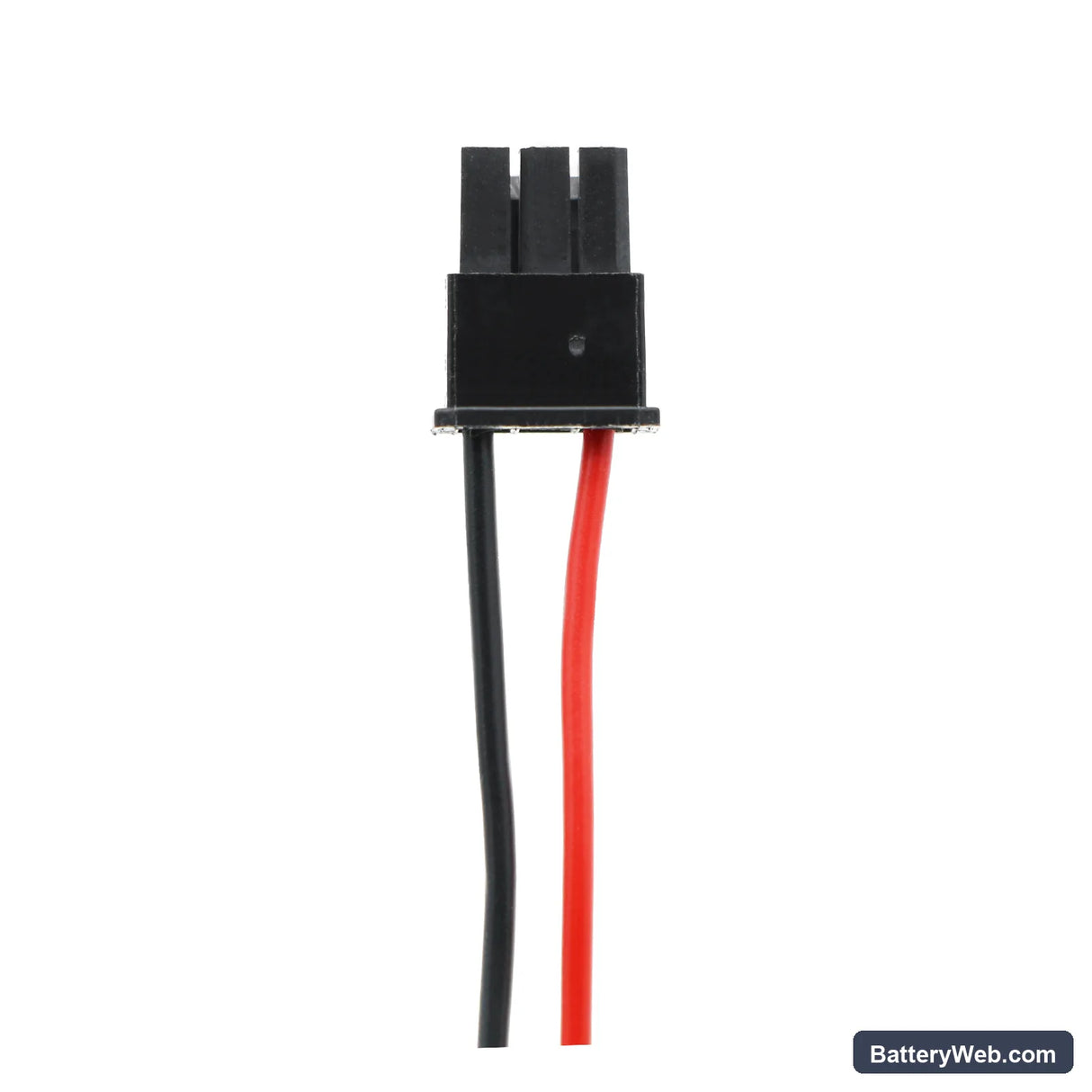

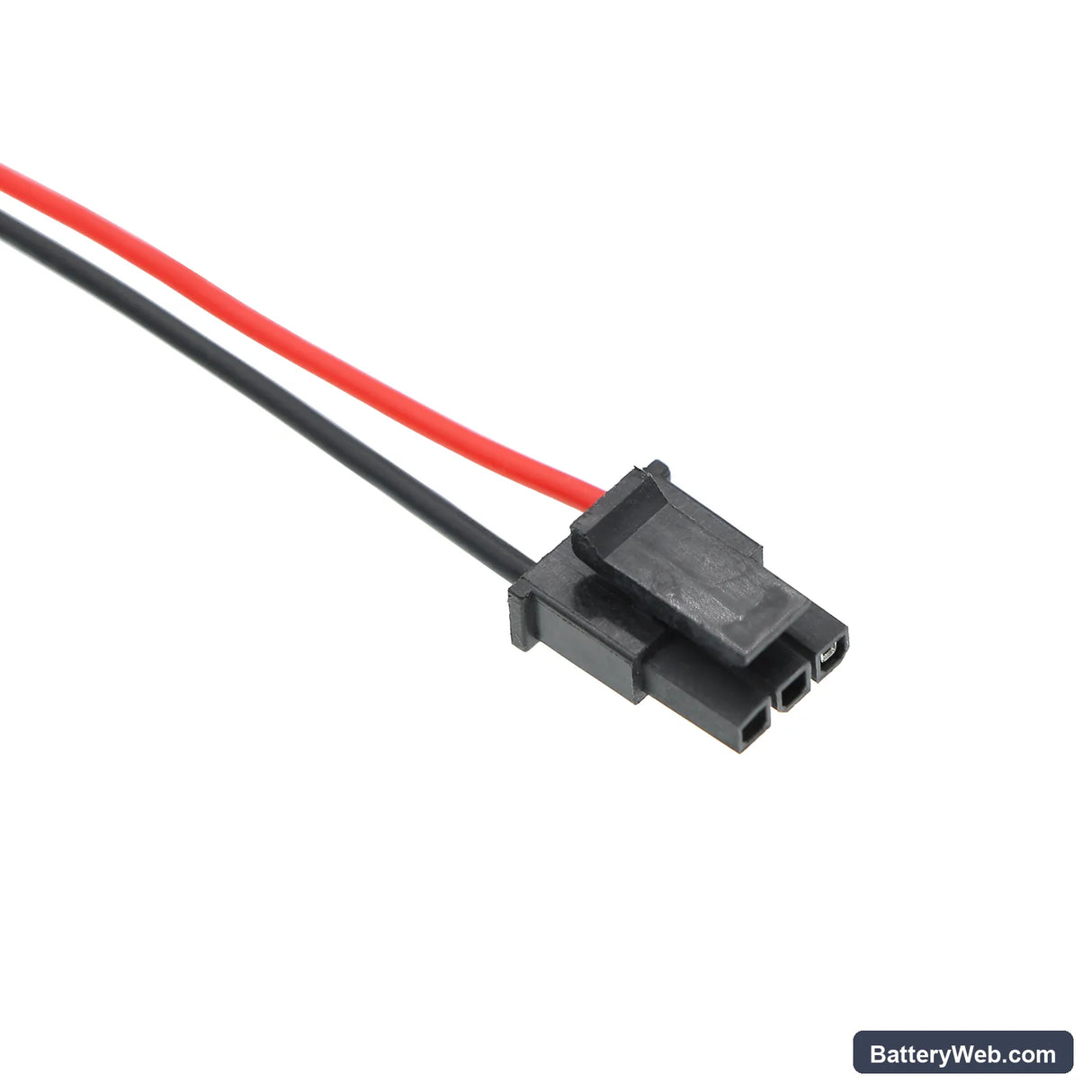

• X8 and X8 Hybrid compatibility: All four X8 variants share the same 14.4V battery bay, connector pinout, and BMS handshake protocol. The PA61 part number covers the full X8 line — swapping between standard and Hybrid models does not require a different cell.
• Bench tested on actual hardware: We ran this cell through the RoboVac X8 charging cycle and confirmed the BMS accepted the charge handshake without fault codes. The protection circuit tripped correctly at the rated low-voltage cutoff during discharge testing — no false positives under normal suction load.
• Dock charging habit for RoboVac X8: The RoboVac X8 defaults to returning to dock after every clean. Left permanently docked, the trickle charge from the base station degrades cell capacity faster than normal cycling. Charge to full, then remove the unit from the dock if it will sit unused for more than two days.

Suction dropping before the battery indicator reaches low on the RoboVac X8

The X8's dual turbine motors draw significantly more current when the filter is partially blocked — the battery voltage sags under that elevated load even when the cell still holds usable charge. The BMS reads the sag as a near-depleted state and begins throttling motor speed to protect the cell. This shows up as weaker suction with a battery bar still showing two or three segments. Clean or replace the HEPA filter first; if suction recovers immediately, the battery was fine — the filter was forcing it to work too hard.

RoboVac X8 motor cuts out mid-clean and then recovers on its own

This is a BMS overcurrent trip, not a dying battery. When suction airflow is restricted — blocked brush roll, clogged filter, or a sealed-off intake — the turbine motors spike current draw above the BMS protection threshold. The circuit opens, the motors stop, and after a few seconds the BMS resets and allows the unit to resume. A degraded original battery makes this worse because higher internal resistance amplifies the voltage drop during the current spike. Clear the brush roll of hair and debris, then check that the filter is seated correctly and unblocked.
