Garmin Nuvi 1100 Replacement Battery 3.7V 1000mAh

Garmin Nuvi 1100 / 1100LM — 3.7V Li-ion Replacement Battery (AE10AE16AB2BX)

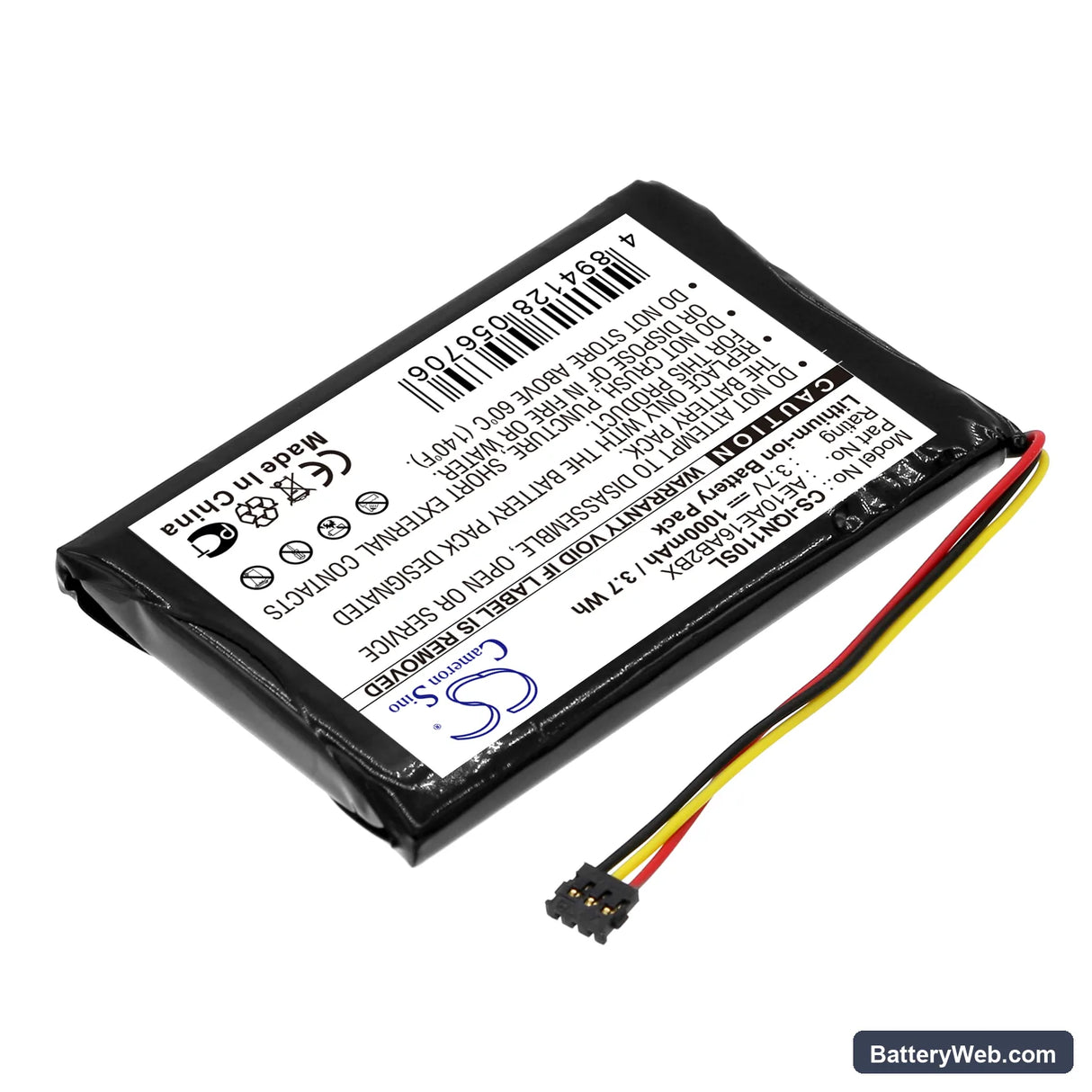

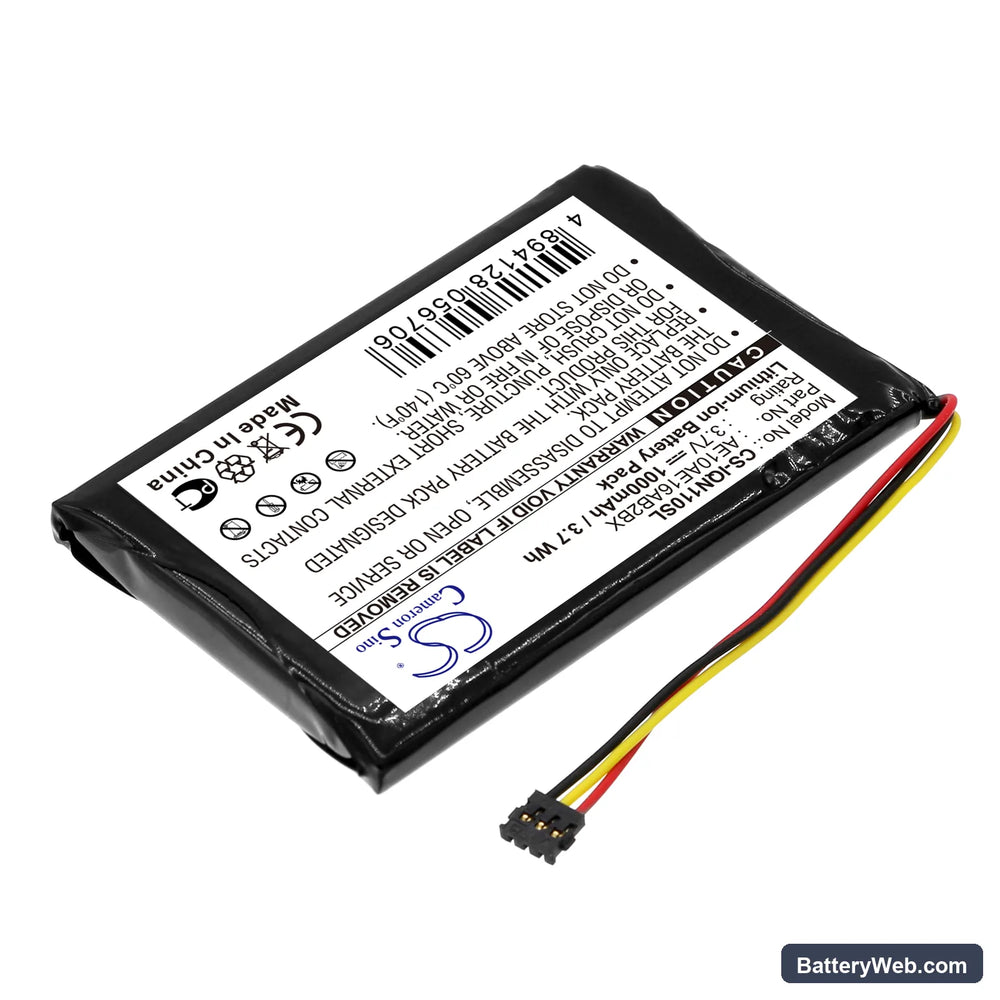

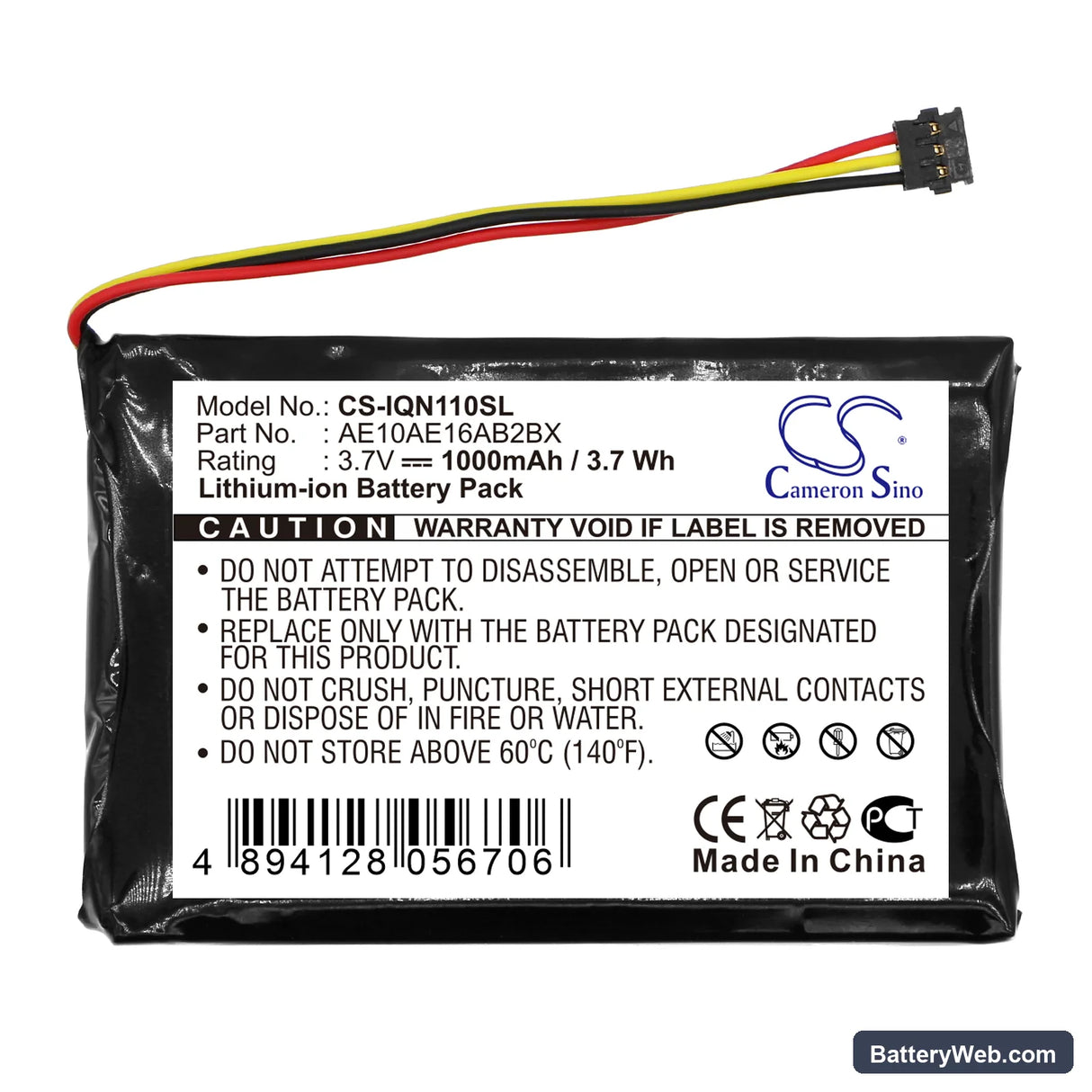

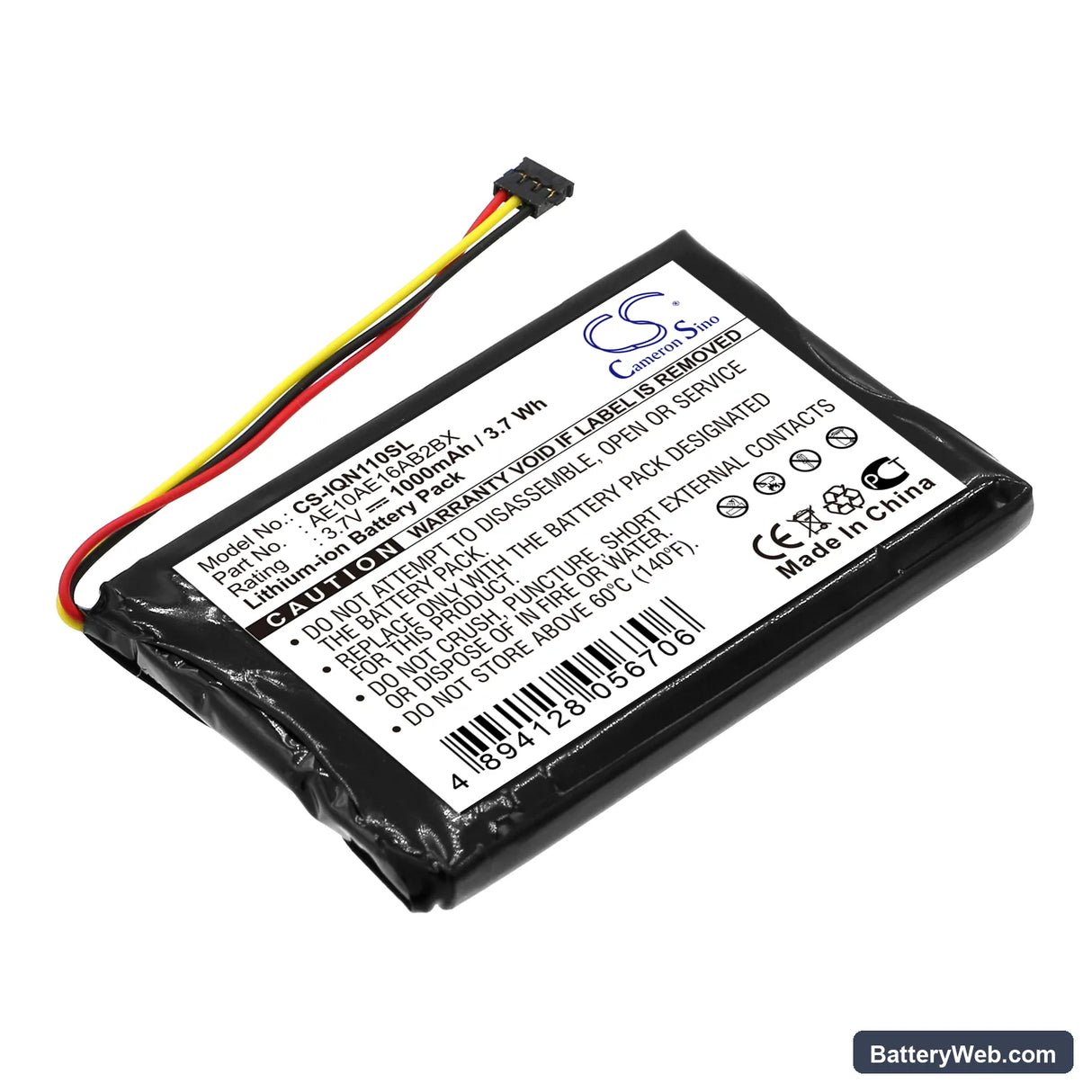

This 3.7V Li-ion cell replaces the original AE10AE16AB2BX battery in the Garmin Nuvi 1100 and Nuvi 1100LM portable GPS navigators. Capacity is 1000mAh (3.7Wh), matching the stock specification. Dimensions are 53.24 x 34.05 x 5.34mm — a direct physical match for the battery bay.

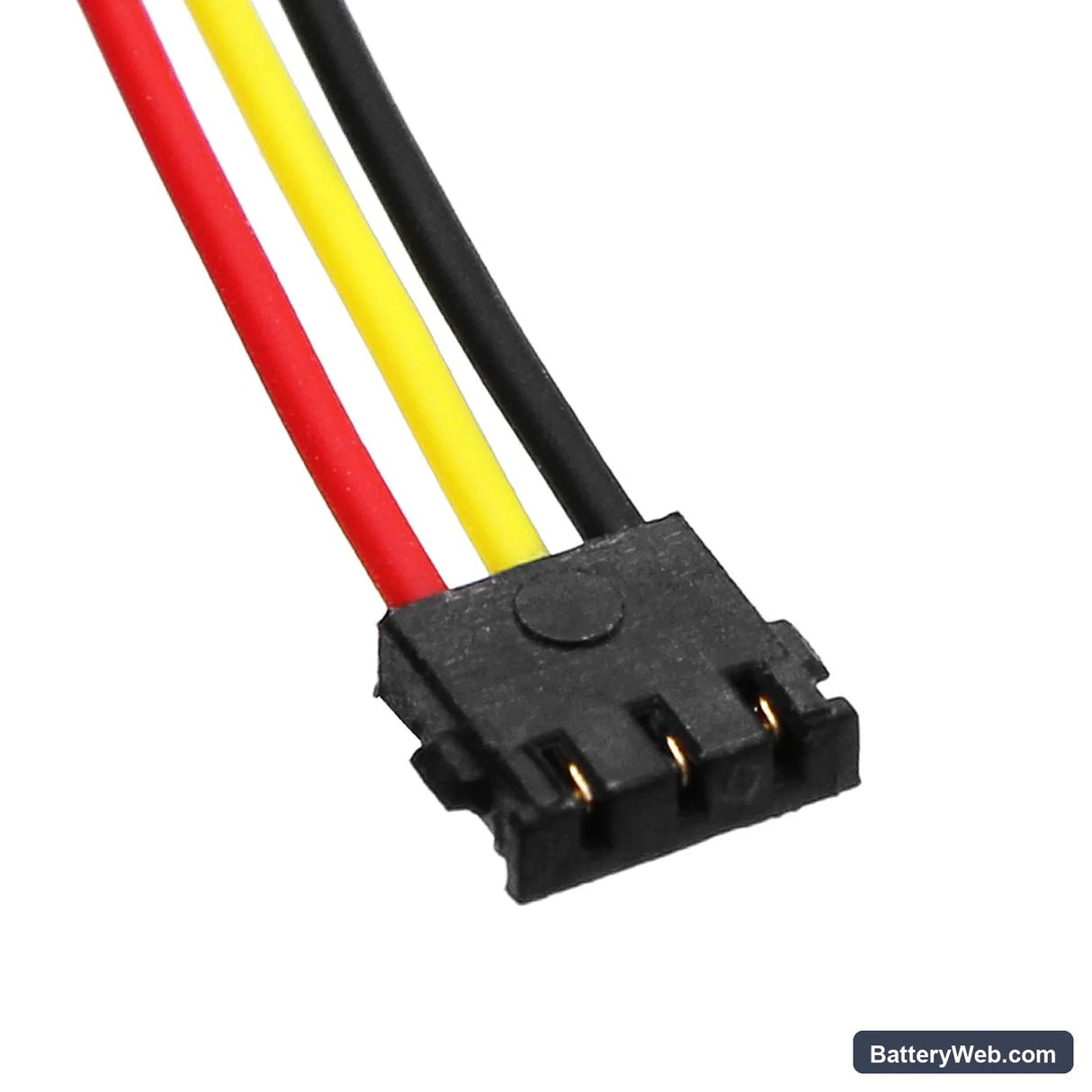

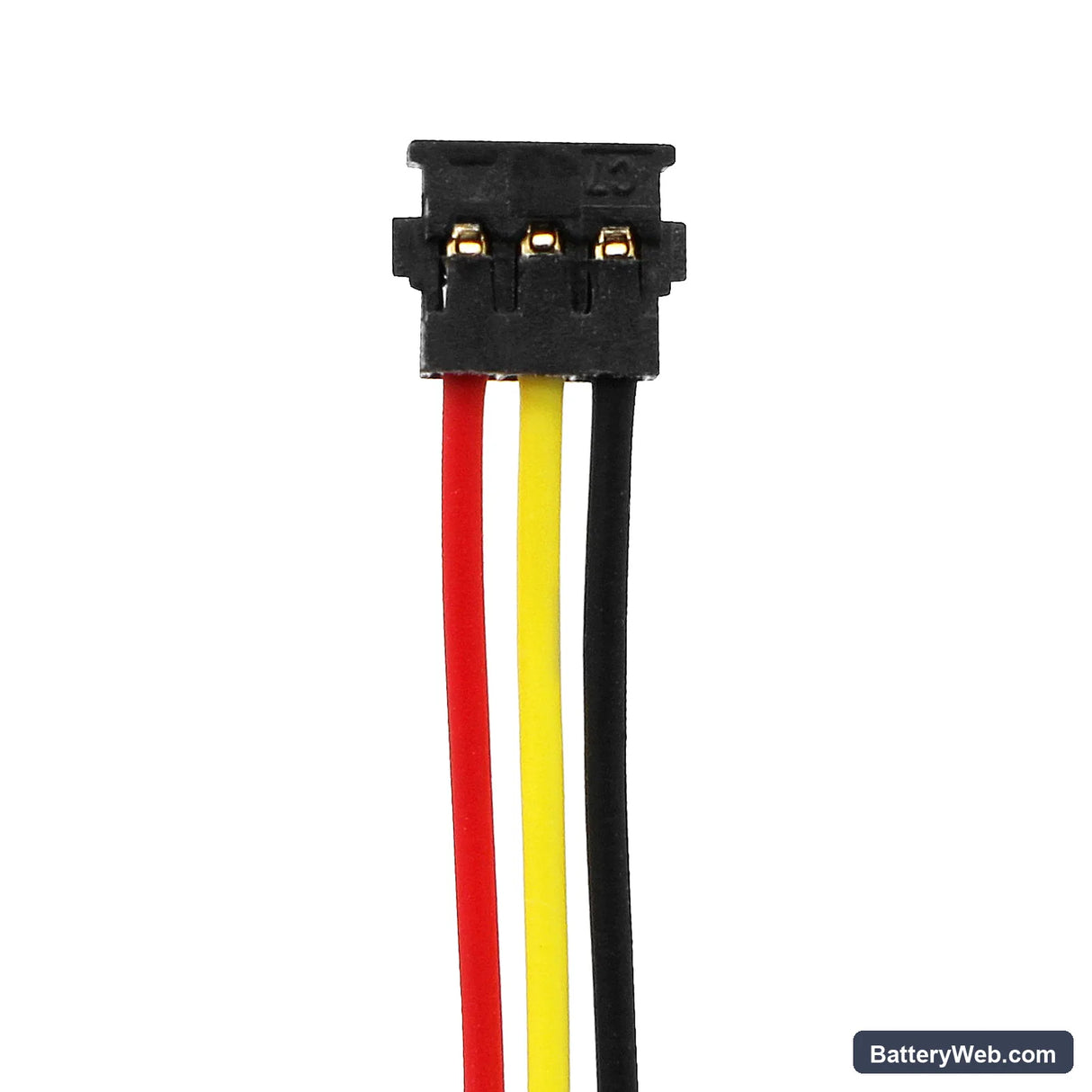

• Nuvi 1100 and 1100LM coverage: Both models share the same battery bay dimensions, connector pinout, and 3.7V supply rail, so one cell covers the full pair. No adapter or wiring change needed.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the Nuvi platform and confirmed the BMS communicates charge state correctly to the device — no false full-charge flags or early cutoff events.
• Cold-start satellite acquisition after swap: After fitting this cell, power the Nuvi fully on outdoors before driving. A full power interruption clears the GPS receiver's almanac cache, triggering a cold start. First fix can take 5–10 minutes. Subsequent power-ons warm-start in under a minute once the almanac is rebuilt.

GPS accuracy reduced at low battery on the Nuvi 1100

When the cell voltage drops below roughly 3.5V, the Nuvi 1100 reduces power to the GPS receiver module to extend operation time. Lower receiver power means weaker signal sensitivity, which can cause position drift or missed turns in areas with obstructed sky view. Swapping a degraded battery that spends most of its cycle below 3.5V will correct this. A healthy cell holds above 3.6V through most of its discharge curve under navigation load.

Nuvi 1100 shuts off without warning at low battery

The Nuvi 1100's battery indicator relies on voltage-to-capacity mapping calibrated to the original cell's discharge curve. A degraded or mismatched cell can show two bars on the indicator right up to the point the voltage collapses below the device's cutoff threshold, then the unit dies instantly with no warning. This is a calibration mismatch, not a device fault. After fitting this replacement, run two full charge-discharge cycles under navigation use — the device will re-map the indicator to the new cell's curve and low-battery warnings will appear at the correct point.
