HTC J Butterfly Replacement Battery BL83100 3.8V 2020mAh

HTC J Butterfly / HTL21 / X920 — 3.8V Li-Polymer Replacement Battery (BL83100)

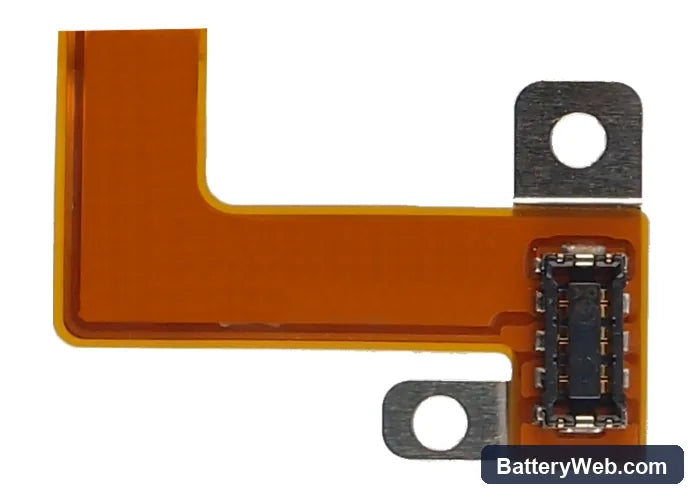

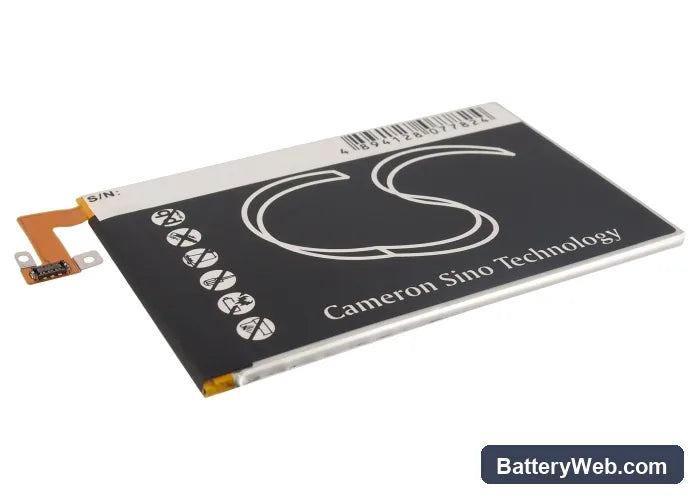

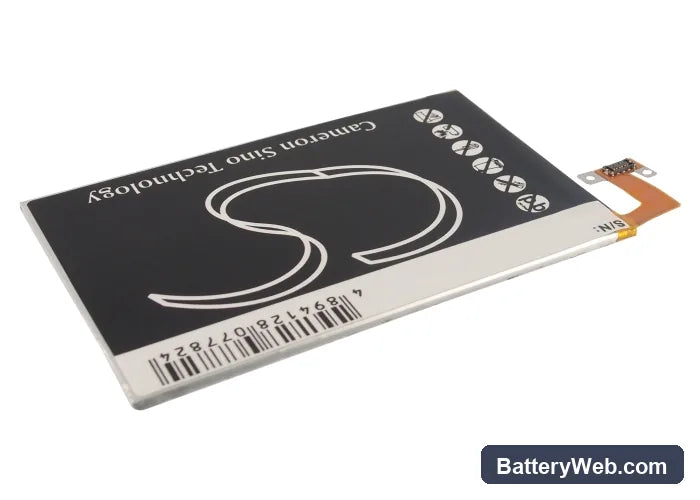

This is a 3.8V, 2020mAh Li-Polymer cell replacing the original BL83100 battery in the HTC J Butterfly, HTL21, and X920 series smartphones. It fits the same slot, connects to the same flex-cable connector, and communicates with the phone's charge IC over the same single-wire bus. Capacity figure is 7.68Wh at rated voltage.

• J Butterfly / HTL21 / X920 platform fit: These models share the same PCB layout, connector pinout, and BMS handshake protocol. One cell covers the full variant list — hardware differences between the X920 and HTL21 carrier builds do not affect battery compatibility.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the J Butterfly platform. The charge IC accepted the BMS handshake without fault codes, and the protection circuit tripped correctly at the low-voltage cutoff threshold — no runaway, no false full-charge termination.
• Fuel gauge recalibration on first use: Disable fast charging for the first complete discharge-charge cycle after fitting this cell. The fuel gauge IC ships calibrated to a reference curve — running one slow cycle lets the coulomb counter lock onto the actual discharge profile of this specific cell before high-current charging begins.

Why the J Butterfly reports the wrong battery percentage after a cell swap

The J Butterfly uses a coulomb counter inside the fuel gauge IC to track charge state. That counter was calibrated against the original cell's internal impedance and discharge curve. A new cell has different impedance characteristics, so the stored calibration data no longer matches actual cell behaviour. The phone reads voltage and current correctly but maps them to the wrong state-of-charge estimate. One full discharge to automatic shutdown followed by a complete uninterrupted charge cycle resets the learned parameters and brings percentage reporting back into alignment.

Sudden shutdown at 20–30% remaining on the replacement cell

This happens when the cell voltage drops below the modem's or display's minimum rail voltage under peak load — even though the fuel gauge still shows charge remaining. The new cell's voltage sags faster than the old calibration curve predicts during high-current draws. The phone's PMIC interprets the voltage drop as a critical low and cuts power before the fuel gauge catches up. Run the phone to automatic shutdown at least twice, charging fully each time, and check that the shutdowns move progressively lower — if they stabilise above 15%, the gauge IC is still recalibrating; if shutdown still hits 25% or above after three full cycles, check that the battery connector is seated flat with no lifted pins on the flex cable.
