IBM ThinkPad X220 / X230 — 11.1V Li-ion Replacement Battery (0A36281)

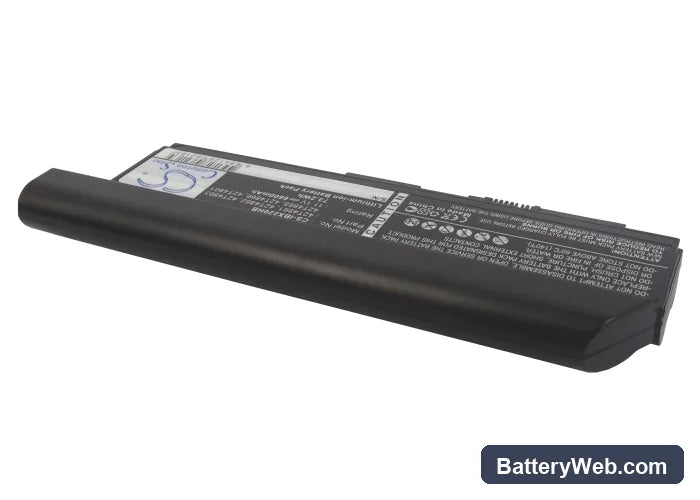

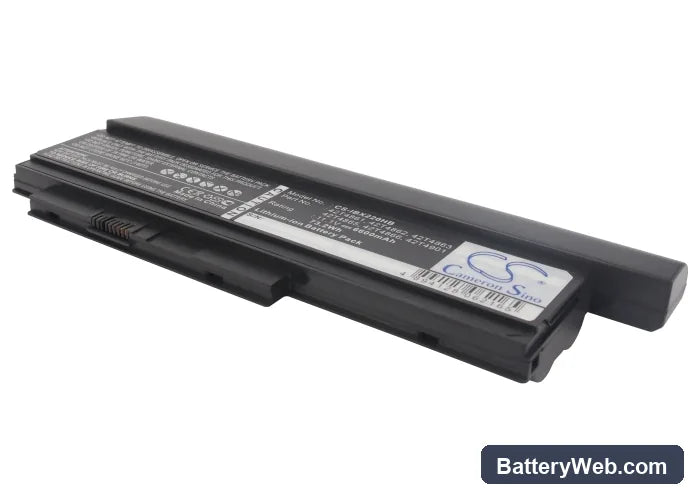

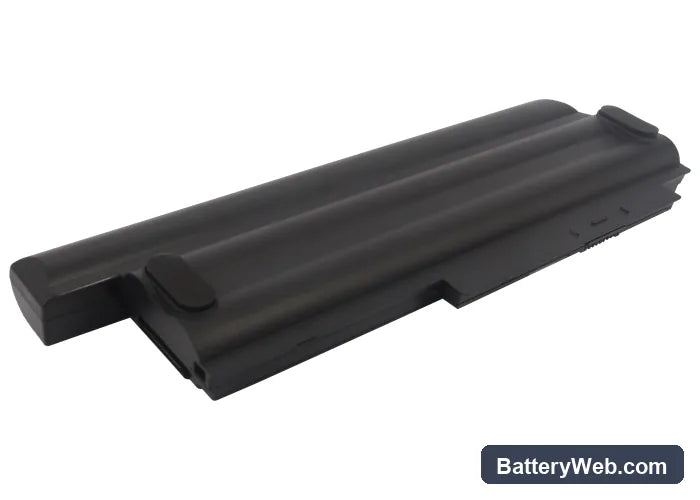

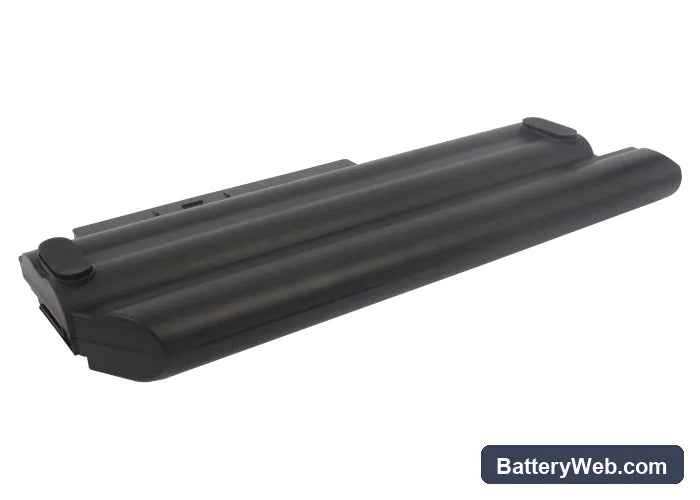

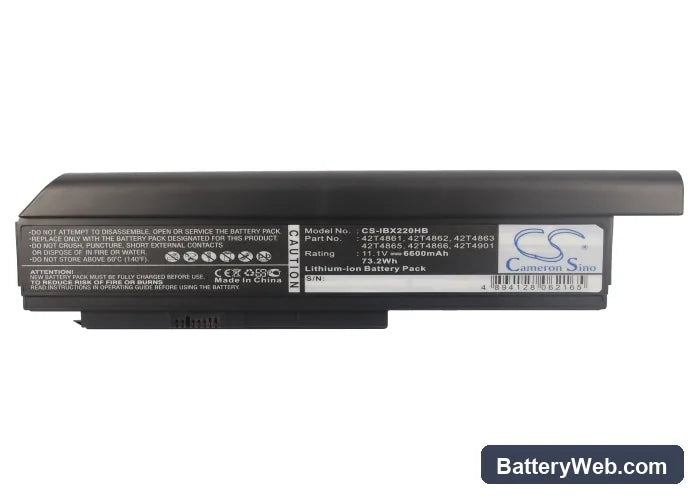

This 11.1V, 6600mAh (73.26Wh) Li-ion battery is a direct replacement for the IBM ThinkPad X220, X220i, X220s, and X230. It replaces a wide range of original IBM part numbers including 0A36281, 42T4861, and 45N1024. Install it when the original cell no longer holds a charge or BIOS flags degraded health.

• X220 and X230 platform compatibility: Both the X220 series and X230 share the same 11.1V battery rail, connector pinout, and BMS handshake protocol — that is why a single cell covers all four models listed. The SMBus communication lines are identical across this chassis generation.
• Bench tested on actual hardware: We ran this cell on a ThinkPad X220 and X230 unit. The BMS completed the SMBus handshake without error, charging initiated immediately, and the protection circuit held cutoff at the expected voltage floor under load.
• First-cycle calibration on X220 and X230: After fitting this cell, discharge fully until the system hibernates, then charge uninterrupted to 100% without interruption. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on these ThinkPad models.

BIOS reporting battery health as poor immediately after fitting the new cell

The ThinkPad BIOS reads health data from EEPROM registers embedded in the battery's BMS — not from the cells themselves. When a new cell ships, the EEPROM cycle count and capacity data do not match what the BIOS expects from a "known good" unit. The system flags this mismatch as poor health even though the cell is brand new. Running one full discharge-to-hibernate then a full uninterrupted charge completes the BIOS battery learn cycle and rewrites the health register correctly.

Laptop shuts down suddenly at 20–30% remaining shown on the fuel gauge

This is a fuel gauge IC calibration problem, not a fault with the cell. The fuel gauge IC builds its model of the battery's discharge curve from cycle history — when fitted with a new cell, its stored curve no longer matches actual cell voltage behaviour. Under combined CPU and display load, voltage drops faster than the gauge predicts, and the system hits its undervoltage shutdown threshold while the gauge still shows 20–30%. Two to three full discharge and charge cycles allow the fuel gauge IC to rebuild an accurate curve. After calibration, the shutdown point realigns with actual cell voltage — target a resting open-circuit voltage of around 11.1V at nominal charge.
