JBL Tune 520 BT Compatible Battery 3.8V 650mAh GSP583028

JBL Tune 520 BT — 3.8V Li-Polymer Replacement Battery (GSP583028)

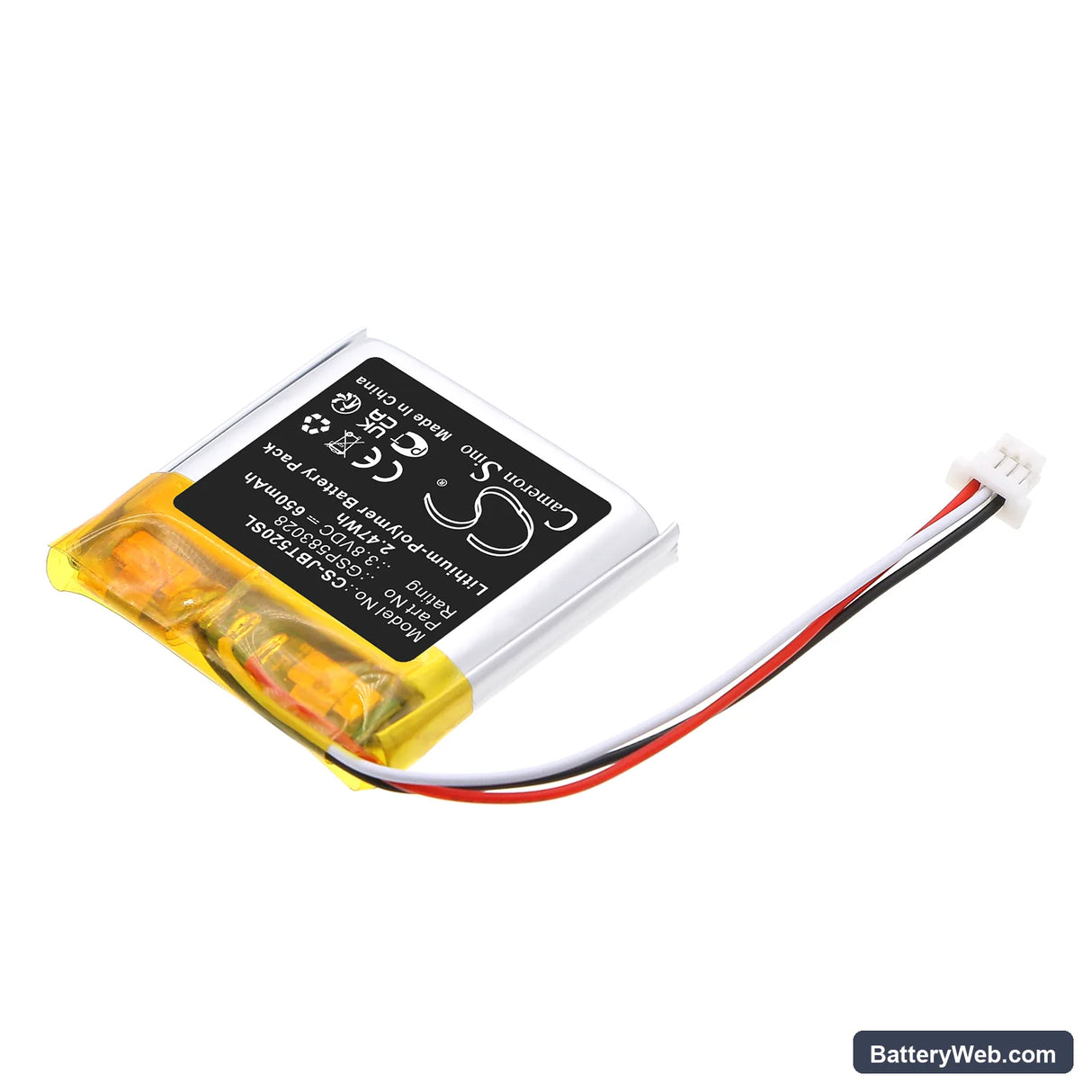

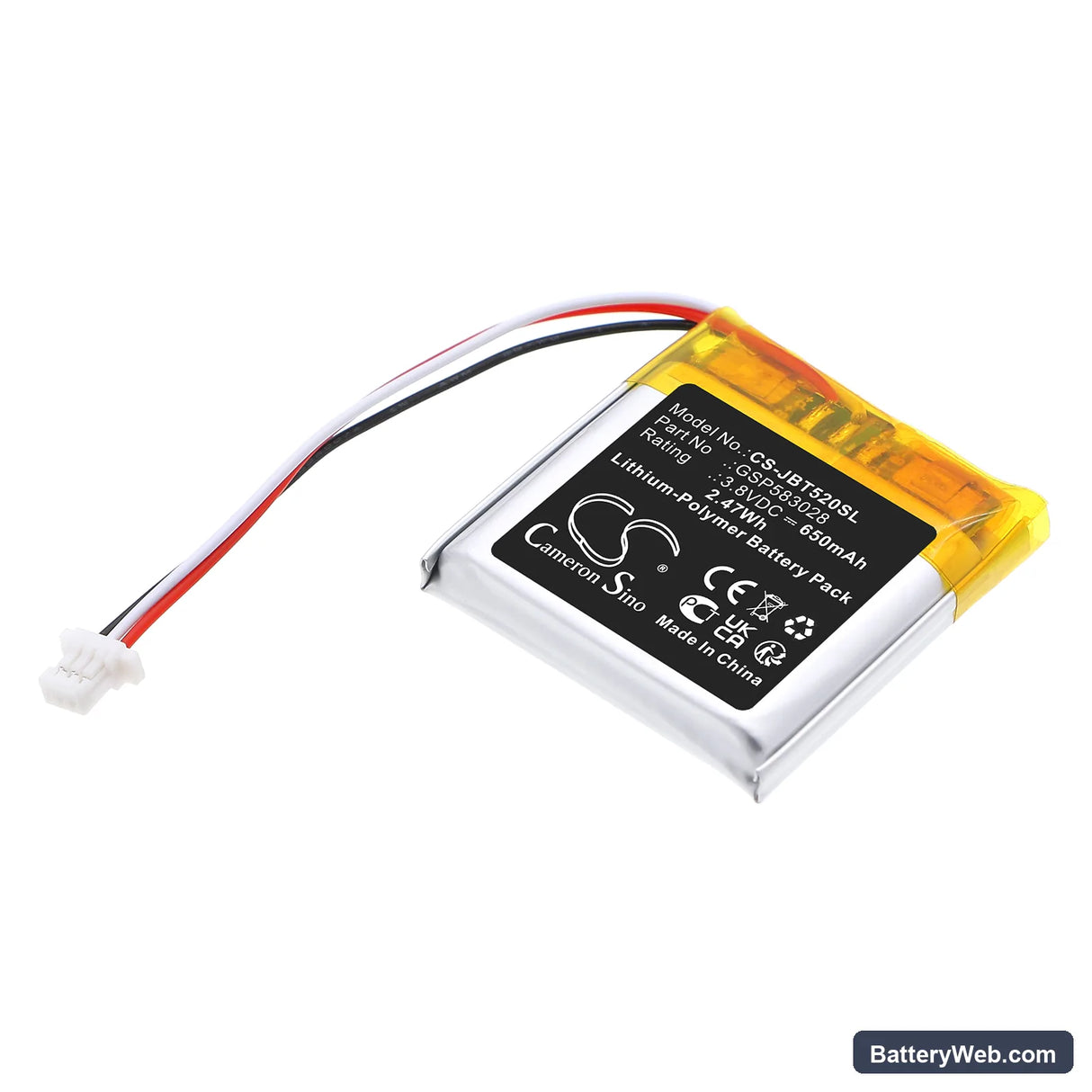

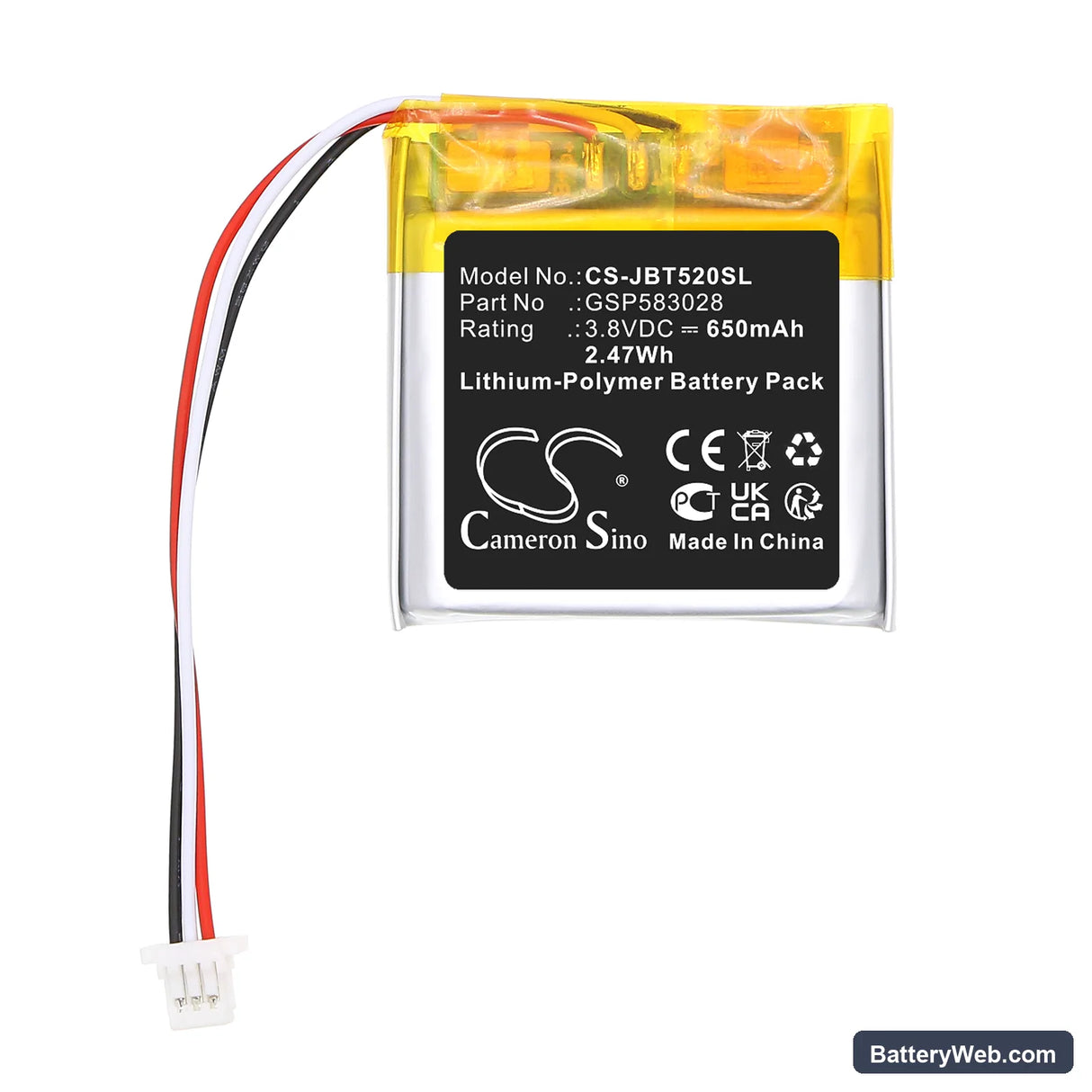

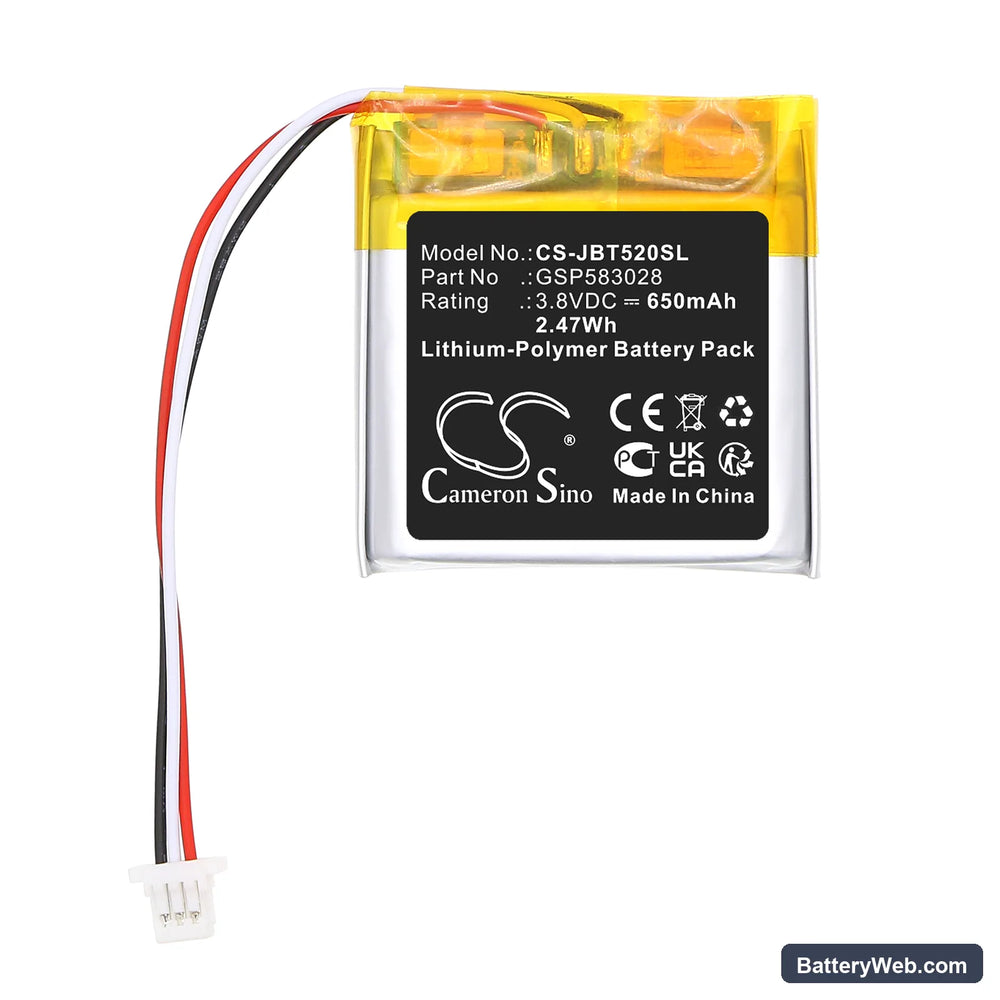

This is a 3.8V, 650mAh Li-Polymer cell for the JBL Tune 520 BT wireless headphones. It replaces part number GSP583028 — the original cell inside the Tune 520 BT earcup. Fit this when the headset no longer holds a charge or cuts off early despite showing full on the charging indicator.

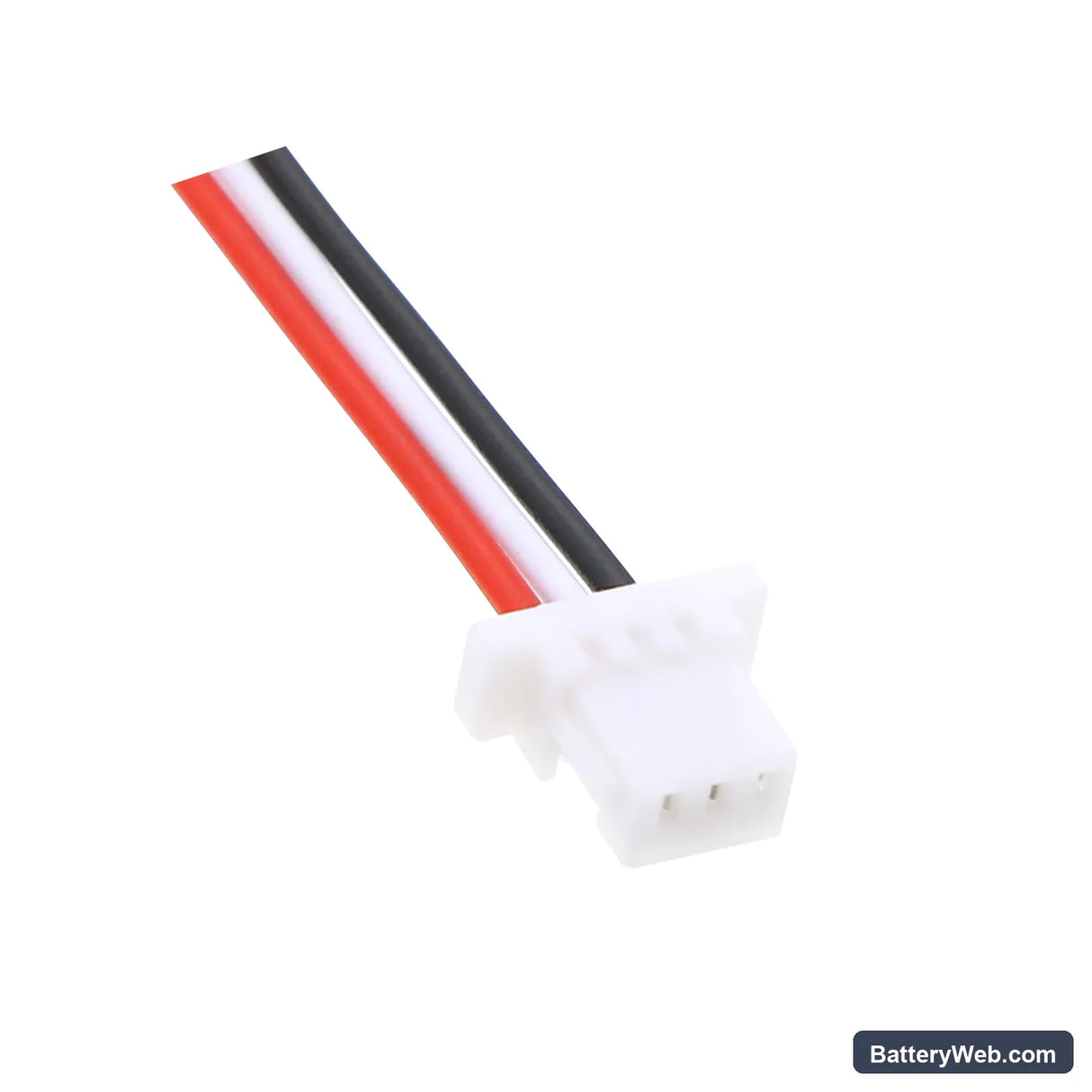

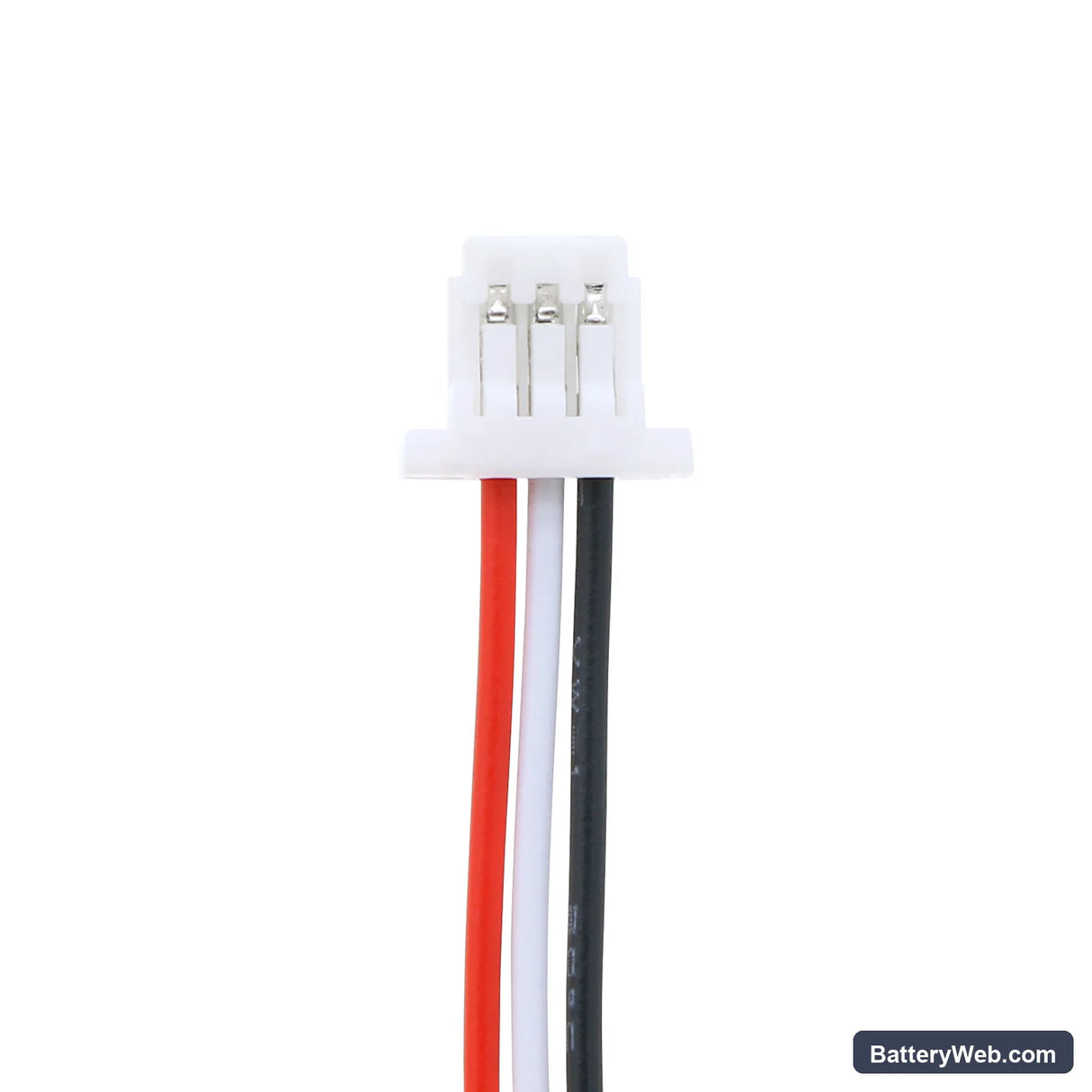

• Tune 520 BT compatibility: The Tune 520 BT runs a single-cell 3.8V Li-Polymer pack with a BMS that monitors cell voltage and communicates charge state to the headset firmware. This GSP583028 cell matches that voltage rail and connector pinout exactly — the BMS handshake completes without requiring any firmware override.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the Tune 520 BT platform. The BMS accepted the new cell without fault codes, charge termination triggered correctly at 4.2V, and the protection circuit cut off at the expected low-voltage threshold under combined Bluetooth and audio draw.
• First-cycle charging on the Tune 520 BT: After fitting, run a full charge from flat before use. The Tune 520 BT's charge indicator reads from BMS state-of-charge data — a new cell at storage voltage will report an inaccurate level until the first complete charge cycle calibrates the gauge.

Why the Tune 520 BT cuts out mid-call on a new battery

The Tune 520 BT draws simultaneously from the audio driver and the Bluetooth radio during calls. On a new cell sitting at storage voltage — typically around 3.7V — that combined draw can momentarily pull the cell below the BMS low-voltage trip point. The protection circuit interprets this as an unsafe discharge event and cuts power. Running one full charge cycle before making calls brings the cell to 4.2V and gives the BMS enough headroom to handle the combined load without tripping.

Talk time shorter than rated on the first few charges

Li-Polymer cells ship partially charged and don't deliver full capacity on the first cycle. The Tune 520 BT's rated talk time assumes a fully conditioned cell. Capacity builds gradually over three to five full charge-discharge cycles as the electrolyte wets the electrode surfaces evenly. If talk time is still noticeably short after five cycles, check that charge voltage at the USB port is reaching 5V — low input voltage extends charge time and can cause incomplete top-up.
