Lenovo ThinkPad X390 02DL017 Replacement Battery 11.4V 47.31Wh

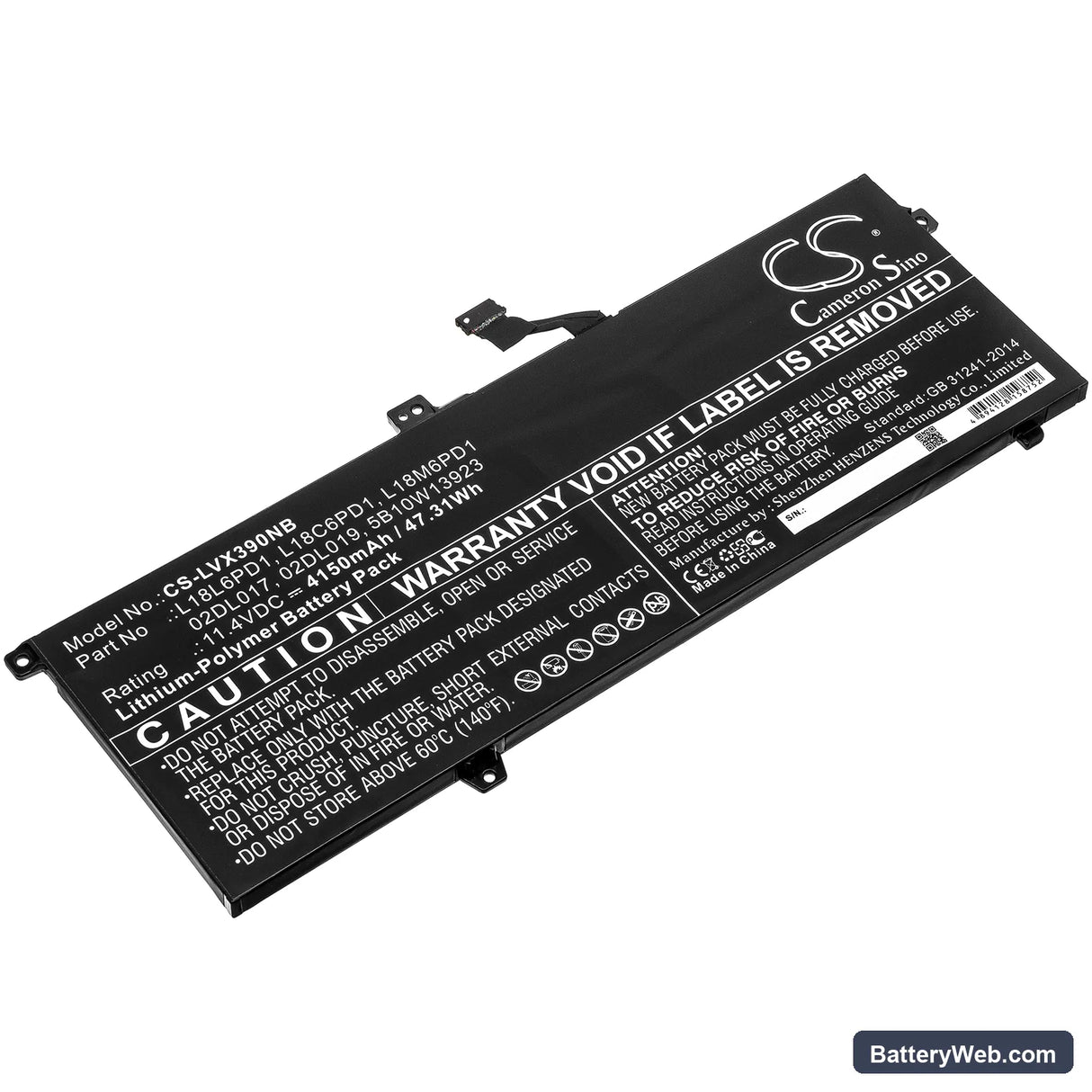

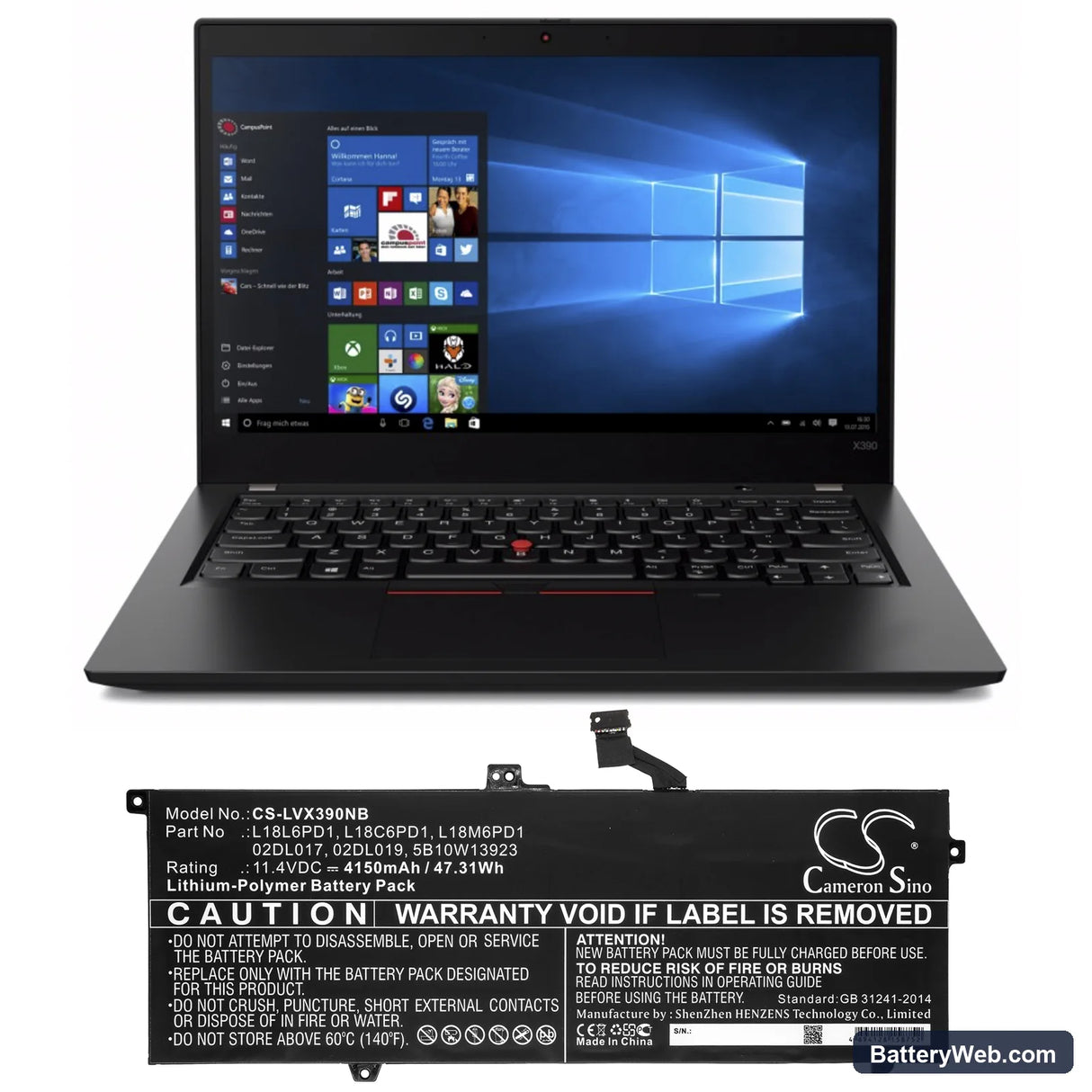

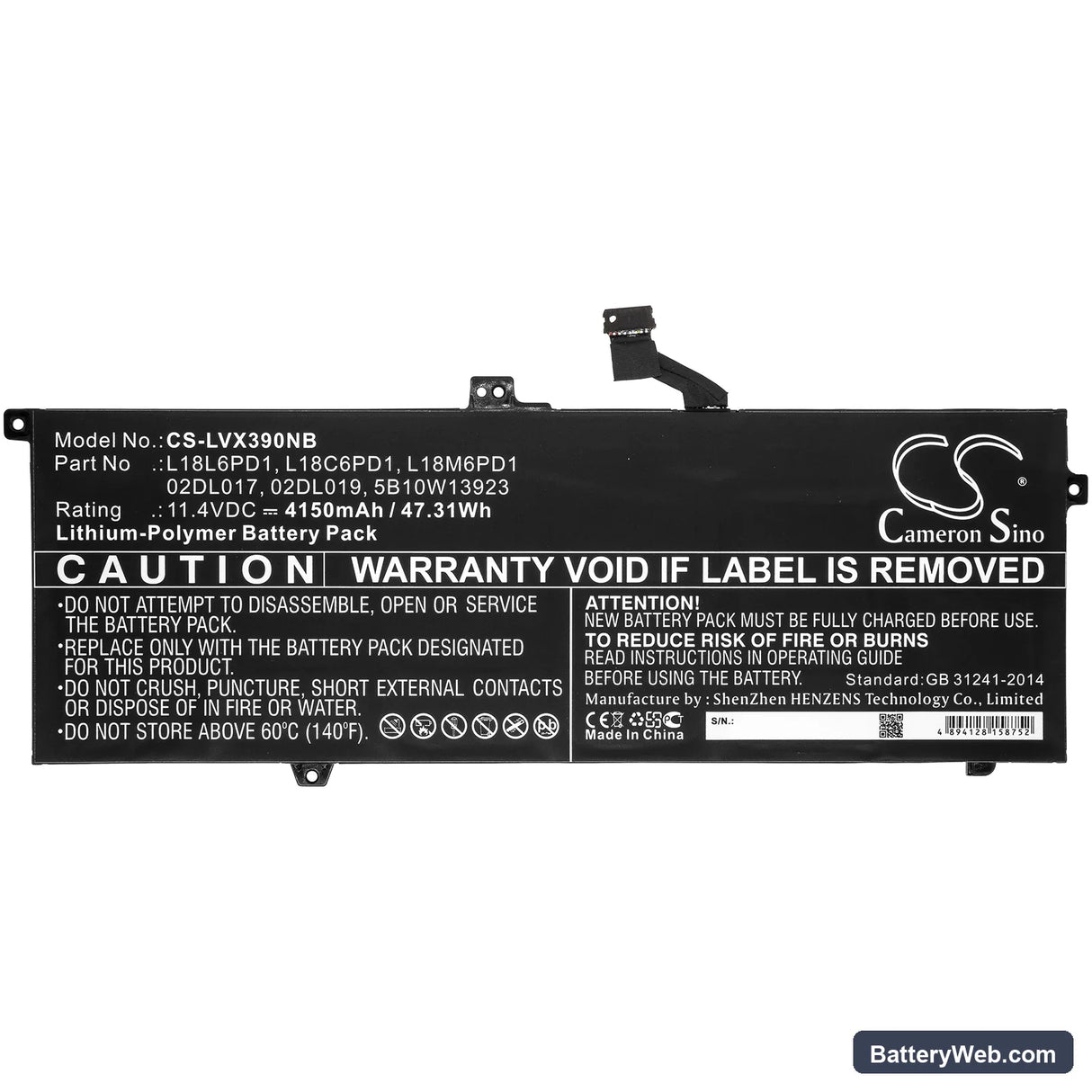

Lenovo ThinkPad X390 Series — 11.4V Li-Polymer Replacement Battery (02DL017)

This 11.4V, 4150mAh (47.31Wh) Li-Polymer cell replaces the original battery in the Lenovo ThinkPad X390 ultraportable business notebook. It fits multiple X390 variants including the 20Q0A00GCD, 20Q00039CD, 20Q0A00FCD, and 20Q0A00BCD, among others. Cross-reference OEM part numbers 02DL017, 02DL019, L18C6PD1, L18L6PD1, L18M6PD1, or SB10K97655 to confirm fitment.

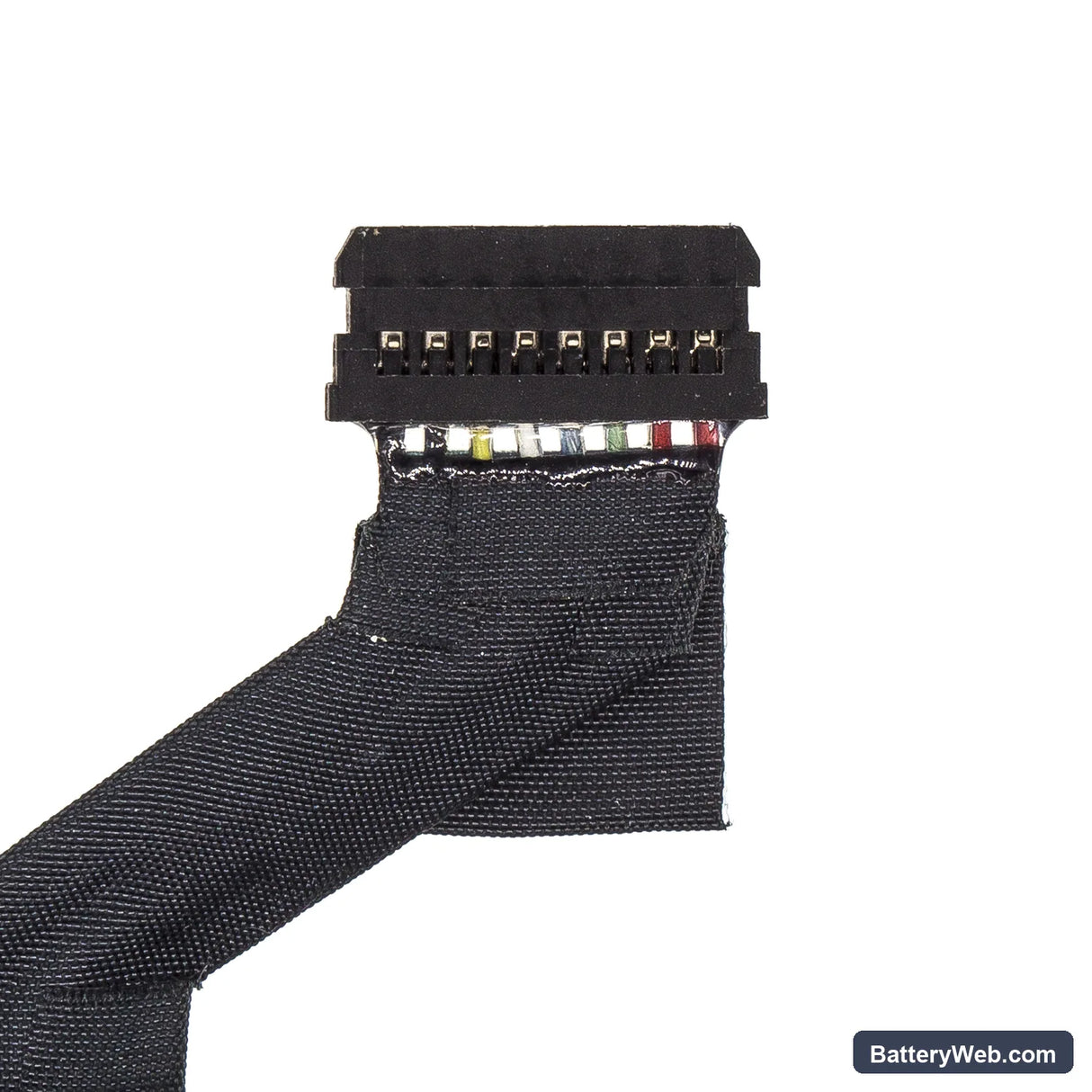

• X390 platform compatibility: The X390 series uses a shared battery bay geometry and a consistent 11.4V three-cell Li-Polymer configuration across its model variants. The BMS connector pinout and charge handshake protocol are identical across the affected SKUs, which is why one cell covers the full variant spread.
• Bench tested on actual hardware: We ran this cell through charge cycles on the X390 platform and confirmed the BMS communicates correctly with the Lenovo EC firmware. The cell reaches full charge without tripping the protection circuit, and discharge curves stay within expected voltage rails under mixed CPU and display load.
• Post-install battery learn cycle: After fitting this cell, run a full discharge to hibernate cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after a cell swap. Skipping this step often leaves Windows reporting a false low-health status for weeks.

BIOS reporting poor battery health immediately after swap

The ThinkPad EC reads health data stored in the old cell's EEPROM and compares it against the new cell's reported state. A fresh cell has no accumulated cycle data, which the firmware misreads as a degraded or unknown battery. This triggers the health warning in both the BIOS battery screen and Lenovo Vantage. Running one complete discharge-to-hibernate followed by a full uninterrupted charge allows the BIOS learn cycle to write fresh baseline data to the new cell's EEPROM and clears the warning.

ThinkPad X390 shutting down at 20–30% charge remaining

This happens when the fuel gauge IC's charge map no longer matches the actual voltage curve of the installed cell. Under combined CPU and display load, the cell voltage drops faster than the calibrated map predicts, and the EC triggers an emergency shutdown before the display reading hits zero. It is not a faulty cell — it is a calibration mismatch from the previous battery. Run two full discharge-to-hibernate cycles followed by complete charges, and the fuel gauge IC will recalibrate its low-voltage threshold to the new cell. After the second cycle, the shutdown point should sit below 5%.
