Nintendo DSi XL Replacement Battery UTL-003 3.7V 900mAh

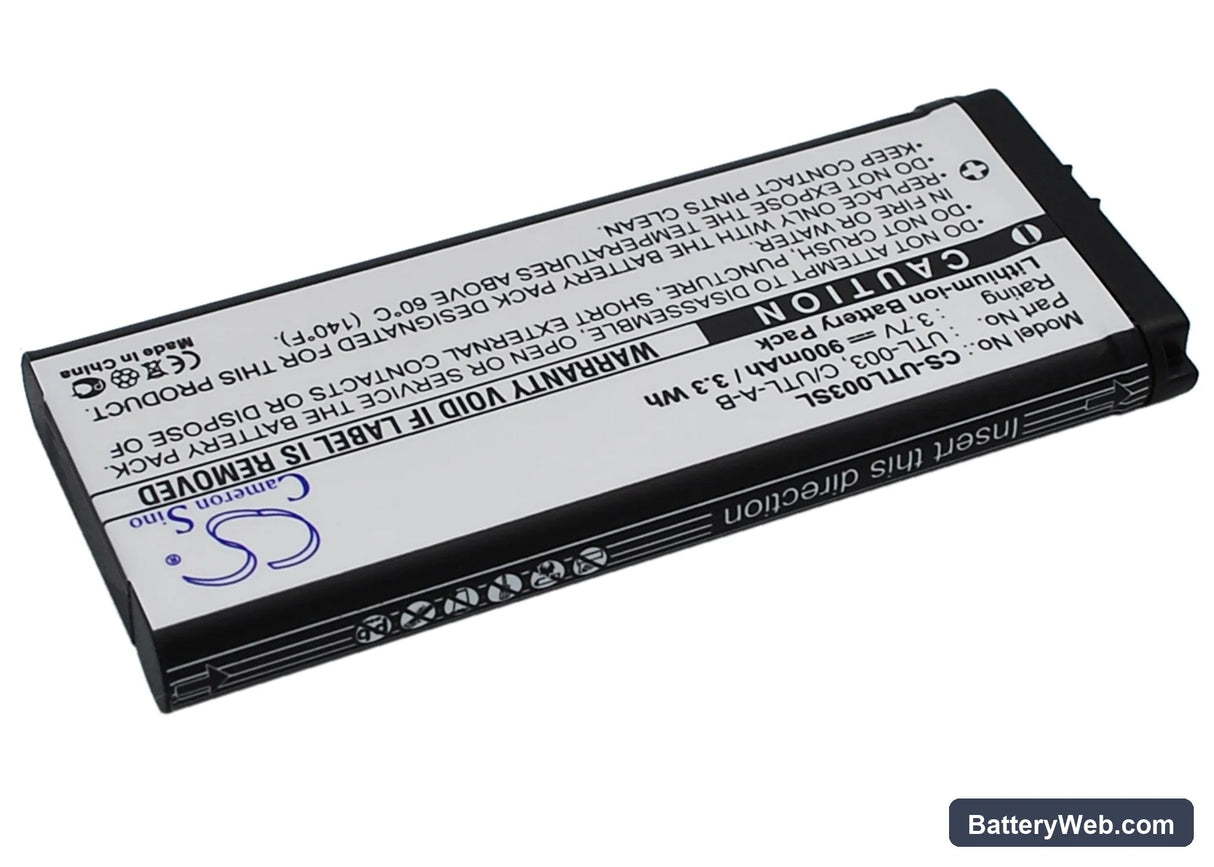

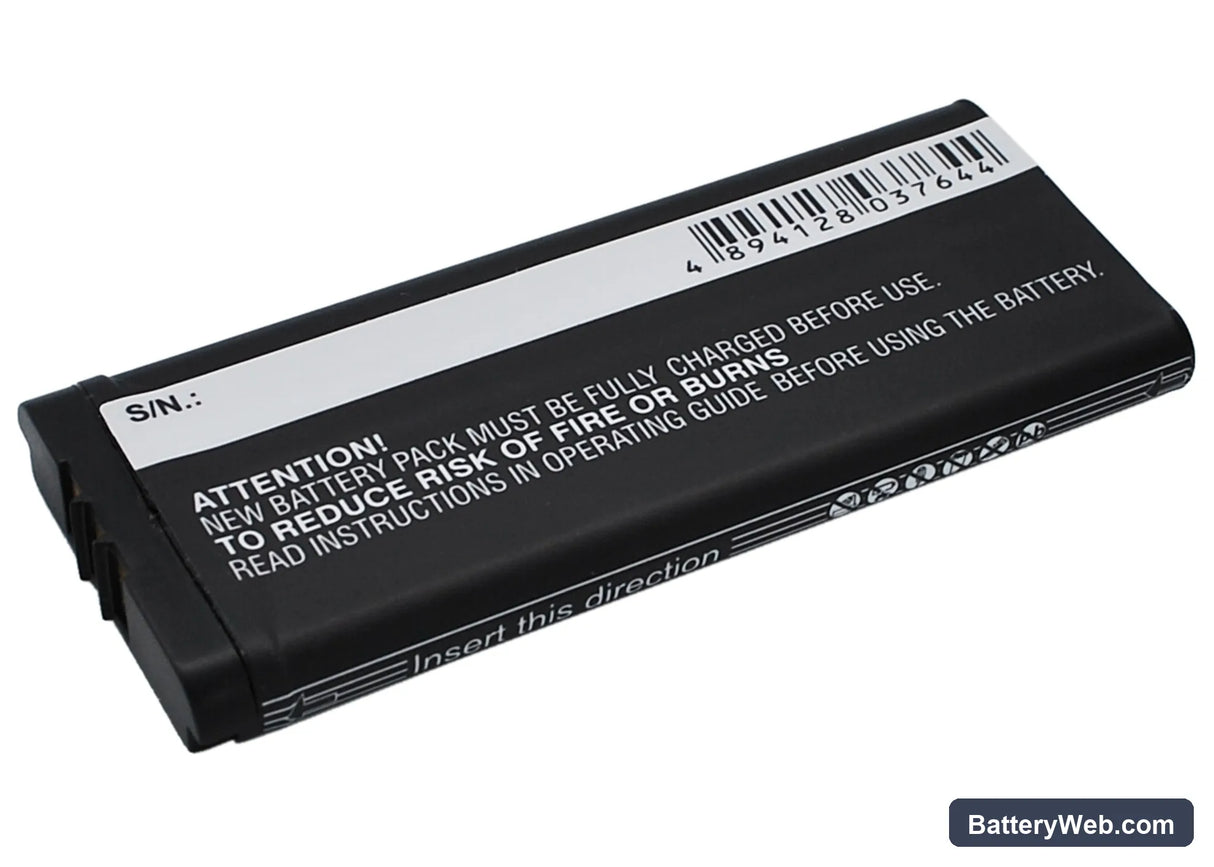

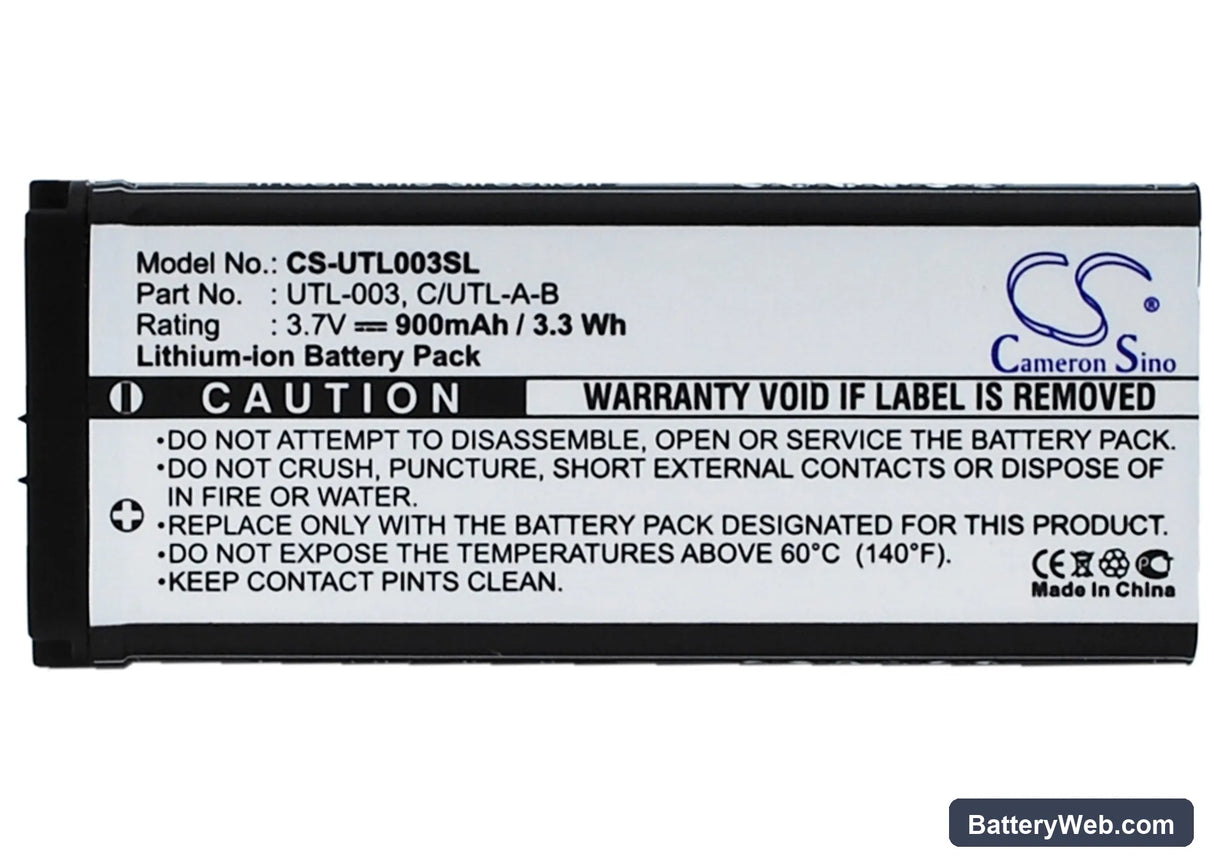

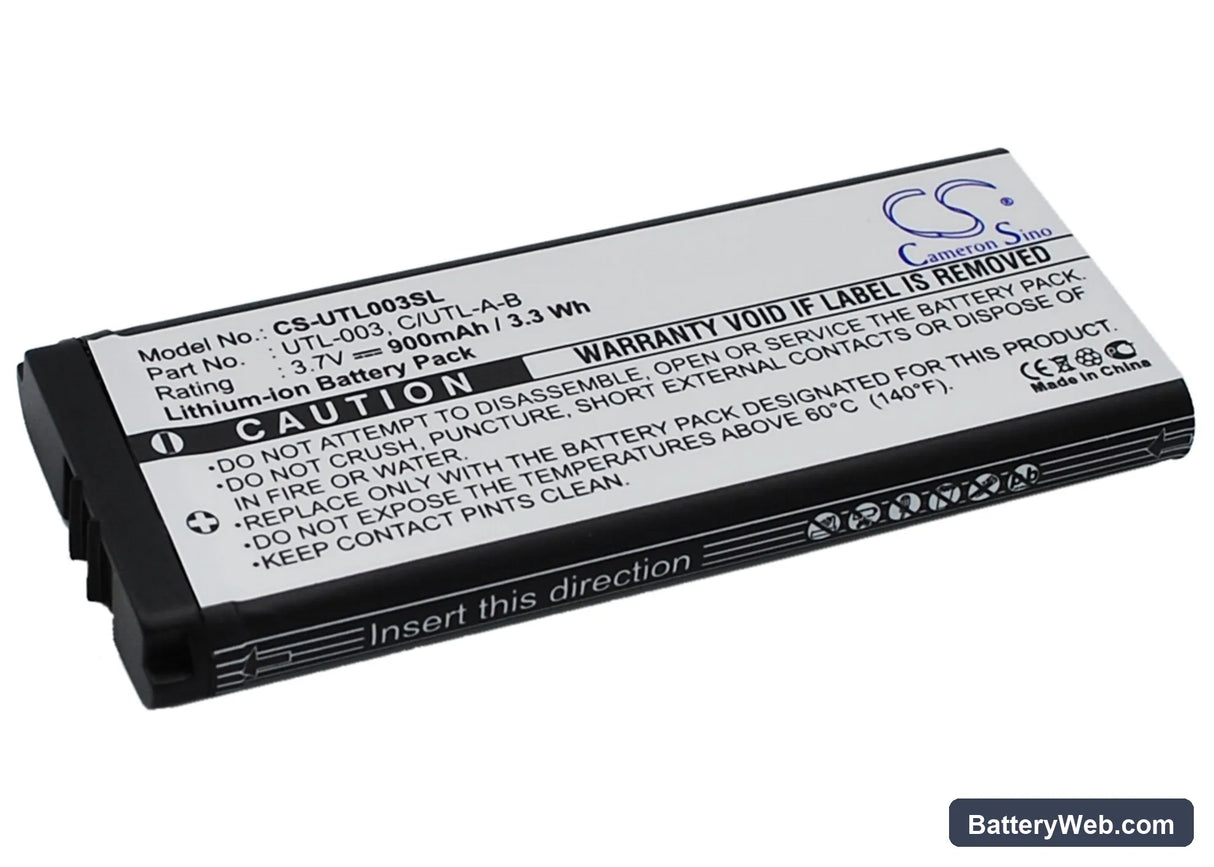

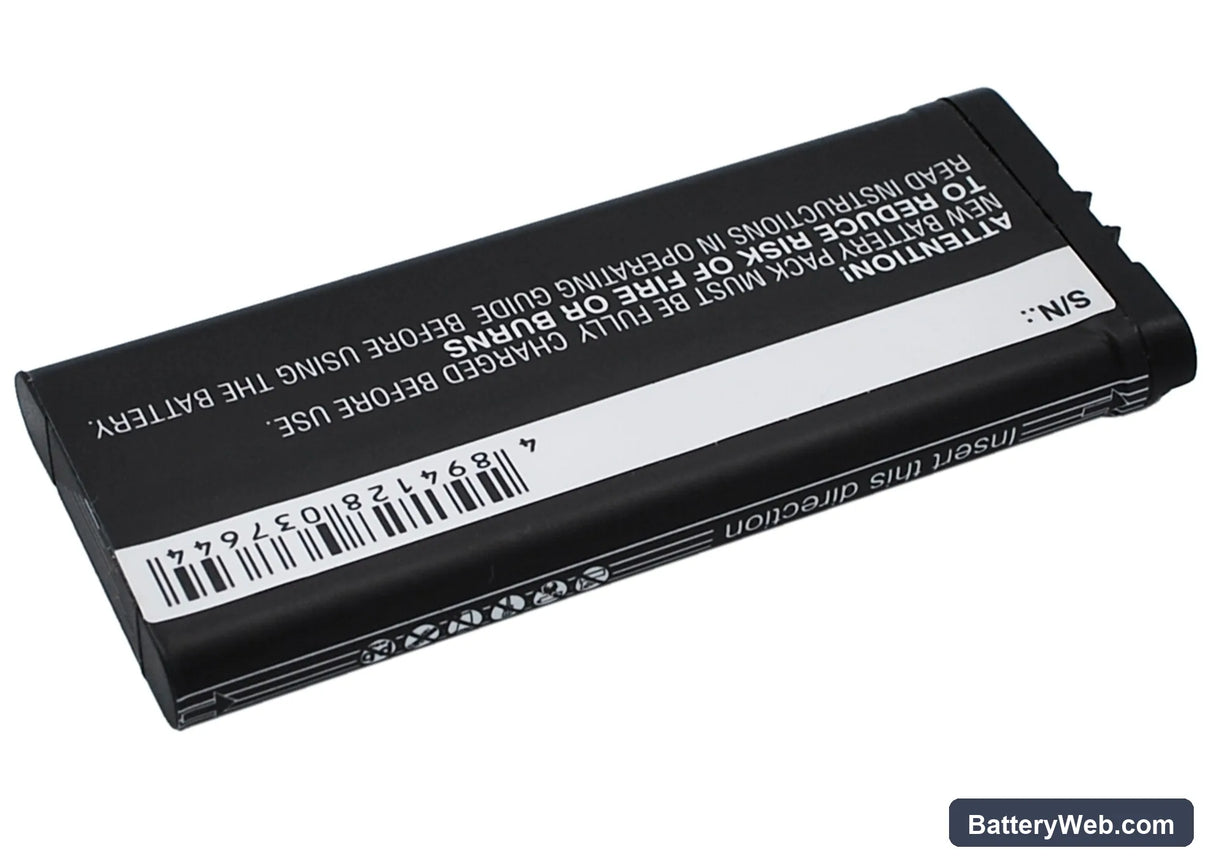

Nintendo DSi XL — 3.7V Li-ion Replacement Battery (UTL-003)

This is a 3.7V 900mAh Li-ion replacement battery for the Nintendo DSi XL handheld console. It fits the UTL-001 and DSi LL (DS XL) as well, all of which share the same battery bay dimensions and connector. Use the capacity figure from the product listing — 900mAh — as your reference, not third-party specs.

• DSi XL, UTL-001, and DSi LL compatibility: These models share an identical battery bay, the same JST-style two-pin connector, and the same 3.7V nominal voltage rail. No BMS handshake is required — the charge IC reads cell voltage directly, so any correctly spec'd Li-ion cell with a matching connector seats and charges without negotiation.
• Bench tested on actual hardware: We cycled this cell in a DSi XL unit and confirmed the charge IC accepted the new cell without fault codes. The protection circuit on the cell tripped correctly at the low-voltage cutoff threshold during the discharge phase, then cleared on the next charge cycle.
• Fuel gauge reset after install: The DSi XL uses a basic coulomb-counting fuel gauge that anchors its empty reference to the first full discharge after a cell swap. Run one complete session to automatic shutdown before recharging — skipping this step causes the battery indicator to display inaccurate levels for subsequent charges.

Why the DSi XL fuel gauge jumps or reads wrong after a battery swap

The DSi XL tracks charge state by counting current in and out of the cell from a fixed reference point. When you install a new cell, that reference point no longer matches the new cell's actual discharge curve. The gauge will show erratic percentages — jumping from 50% to 10%, or cutting off while the indicator still shows bars. One complete discharge-to-cutoff cycle resets the reference point to match the new cell, and the gauge stabilises from there.

Console shuts off unexpectedly while the battery indicator still shows charge

This happens when the cell's resting voltage drops faster than the fuel gauge expects under load — a mismatch between the stored discharge curve and the actual cell behaviour. On a new replacement cell, it typically clears after three to five full charge and discharge cycles as the cell reaches its rated capacity. If shutdowns persist past five cycles, measure the battery voltage under load with a multimeter — a healthy cell under light DSi XL draw should stay above 3.5V. Voltage collapsing below 3.3V under minimal load points to a cell fault, not a calibration issue.
