Oppo A32 BLP805 Compatible Battery 3.85V 4900mAh

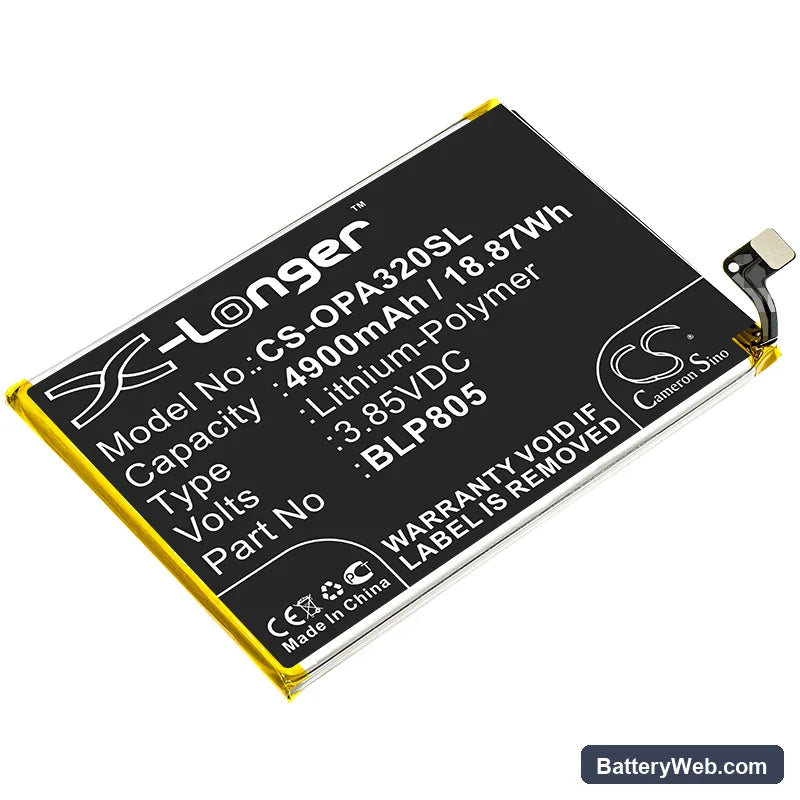

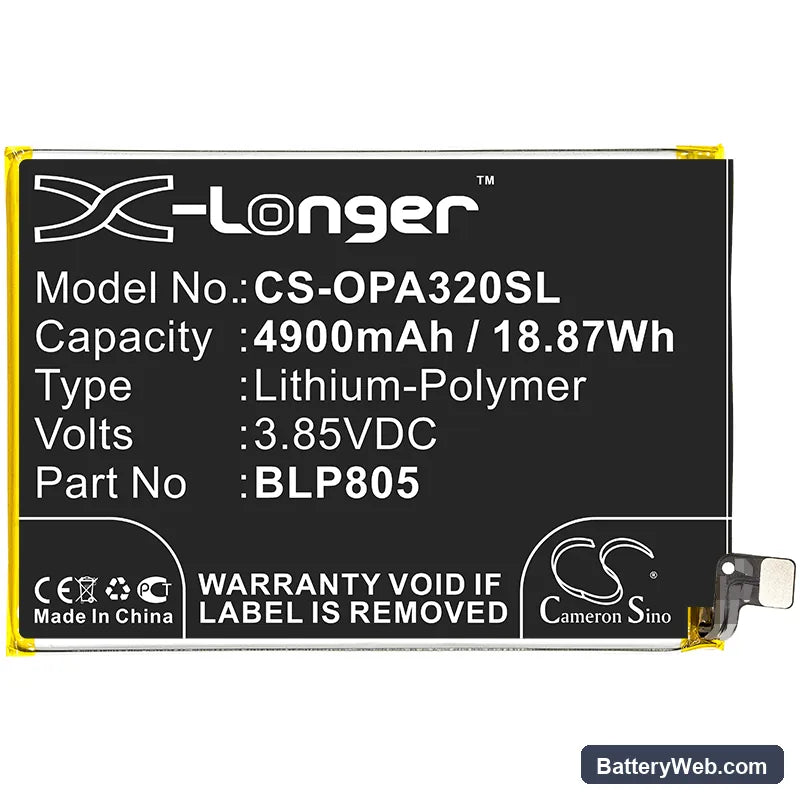

Oppo A32 / A53 — 3.85V Li-Polymer Replacement Battery (BLP805)

The BLP805 is the OEM-matched Li-Polymer cell for the Oppo A32 and A53 smartphones. It runs at 3.85V with a 4900mAh (18.87Wh) capacity. This battery fits both models because they share the same battery bay dimensions, connector pinout, and BMS handshake protocol.

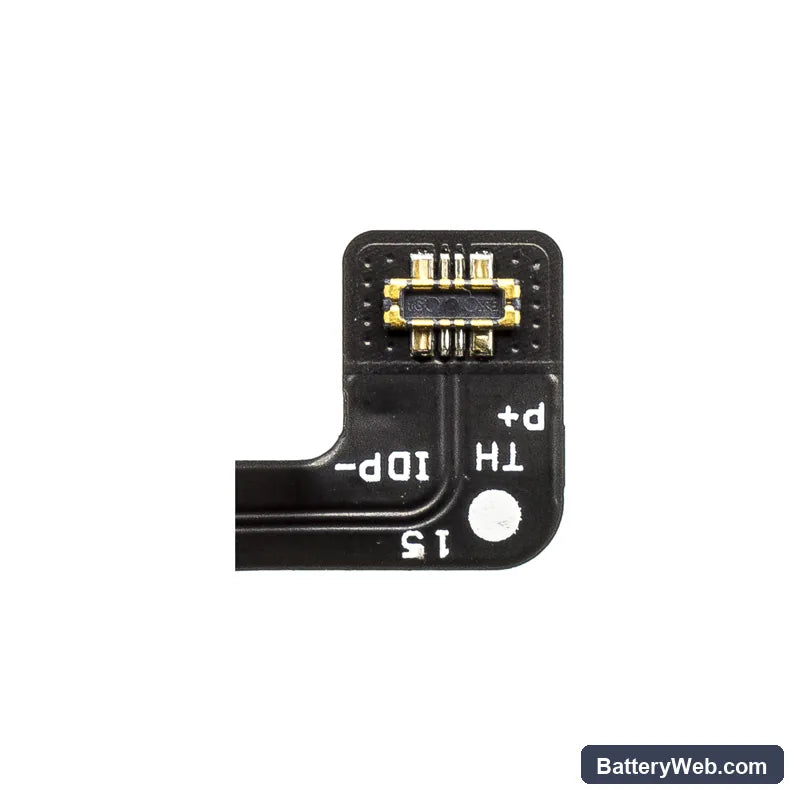

• A32 and A53 platform compatibility: Both models use the same battery bay — 92.10 x 64.60 x 4.36mm — and the same BLP805 connector. The BMS in each device communicates over the same data line, so one cell covers both without adapter or modification.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the A32 platform. The BMS accepted the cell on first connect, charge termination triggered correctly at 4.35V, and the protection circuit tripped cleanly at the low-voltage cutoff threshold.
• Fuel gauge recalibration on first use: On first use after installation, disable fast charging and run one full discharge-to-charge cycle at standard speed. The fuel gauge IC is still calibrated to the old cell's discharge curve — one full cycle at low current lets it remap to the new cell before high-current charging begins.

Why the Oppo A32 shuts down suddenly at 20–30% after a cell swap

A new cell has a slightly different internal resistance profile than the aged cell the fuel gauge IC was trained on. Under modem or display load, current draw spikes and the new cell's voltage briefly dips past the shutdown threshold — even though the reported percentage looks safe. The phone reads 25% but the actual cell voltage under load drops below 3.4V, which triggers an emergency cutoff. One complete discharge-charge cycle without fast charging lets the coulomb counter reset its capacity baseline and eliminates most of these false shutdowns.

USB fast charge not activating after BLP805 installation

Oppo's VOOC fast charge protocol requires a handshake between the charger, the charge IC, and the battery BMS. On the first cycle after a cell swap, the BMS may not complete that handshake because it has no charge history logged. The phone defaults to standard 5V charging as a safety fallback. Run one full standard charge cycle first — once the BMS has a completed cycle on record, plug in the VOOC charger and the protocol negotiation should resume normally.
