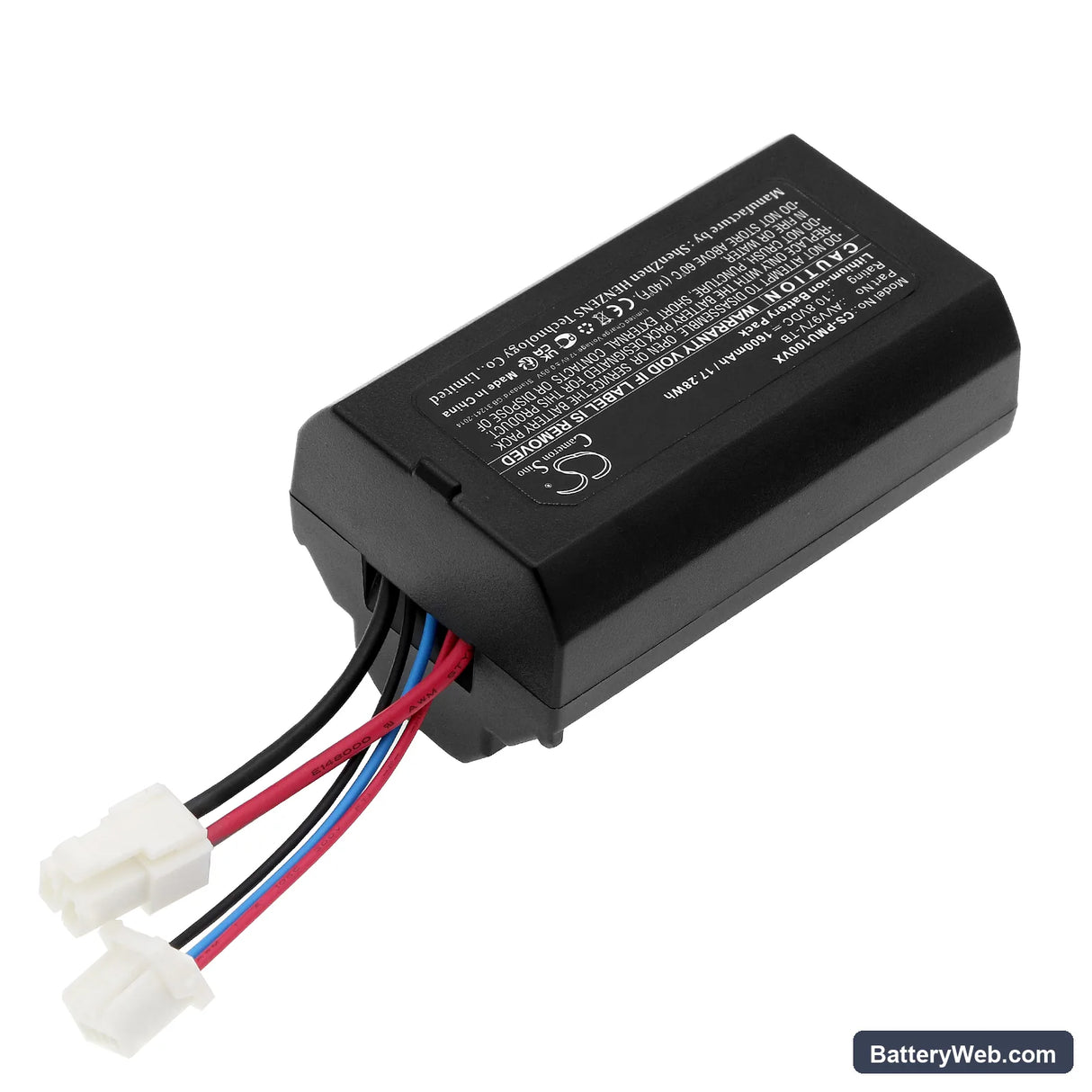

Panasonic MC-SBU1F-R Compatible Battery 10.8V 1600mAh

Panasonic MC-SBU1F Series — 10.8V Li-ion Replacement Battery (AVV97V-TB)

This 10.8V, 1600mAh Li-ion battery pack replaces the original cell in the Panasonic MC-SBU1F-R, MC-SBU1F-G, and MC-SBU1F-H cordless stick vacuums. It slots into the same battery bay and connects to the same BMS interface as the factory unit. When your original pack no longer holds a useful charge, this is the direct cell replacement.

• MC-SBU1F-R, G, and H compatibility: All three colour variants of the MC-SBU1F run the same 10.8V motor rail and use the same battery bay geometry, connector pinout, and BMS communication protocol. One battery part number — AVV97V-TB — covers the full colour range.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the MC-SBU1F platform. The BMS handshake completed correctly on first connection, the protection circuit responded to simulated overcurrent events, and charge acceptance matched the rated 1600mAh capacity within normal cell tolerance.
• Dock charging habit on the MC-SBU1F: The MC-SBU1F dock does not cut trickle current once the cell is full. Leaving the vacuum on the dock between every use accelerates capacity fade. Charge to full, remove the vacuum from the dock, and return it only when the battery needs a top-up.

Suction dropping before the battery indicator reaches low

The MC-SBU1F motor draws higher current the moment airflow is restricted — a partially blocked filter forces the motor to work harder to maintain suction speed. As current draw rises, the cell voltage sags under load even when the cell is not depleted. The vacuum's indicator reads state of charge at rest, not under load, so the indicator can still show mid-range while suction is already weak. Clean or replace the filter first; if suction recovers immediately, the battery is not the issue.

Motor cutting out mid-clean and recovering after a few seconds

This is a BMS overcurrent trip, not a dead battery. When the MC-SBU1F pulls sustained high current — typically from a blocked filter or a carpet edge catch — the BMS cuts power to protect the cell. The pack resets itself after a short thermal or timer window, which is why the motor restarts without pressing anything. The fix is to clear the blockage and check the filter before the next run. If trips continue on an unobstructed vacuum with a new filter, verify cell voltage after a full charge sits at or above 12.4V.
