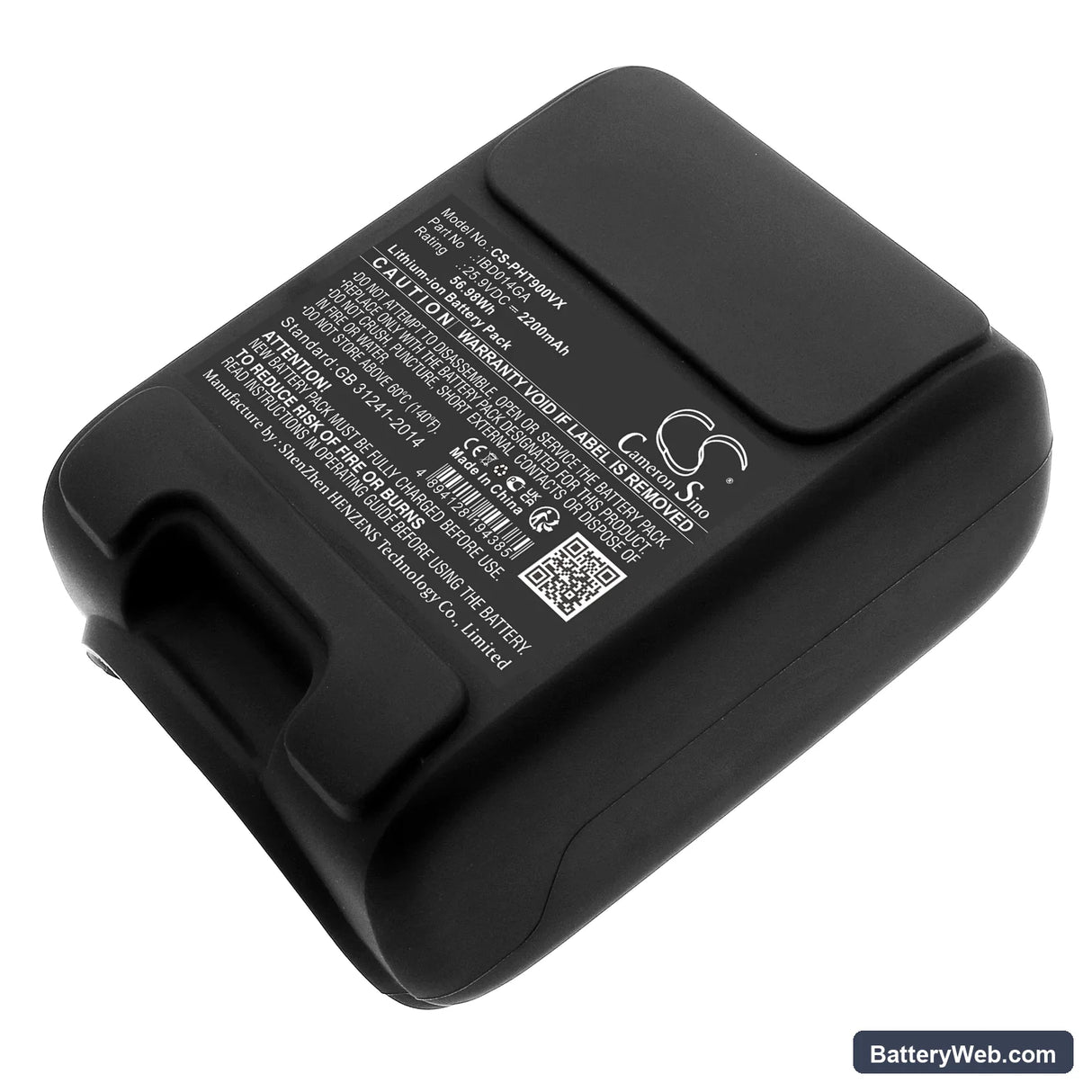

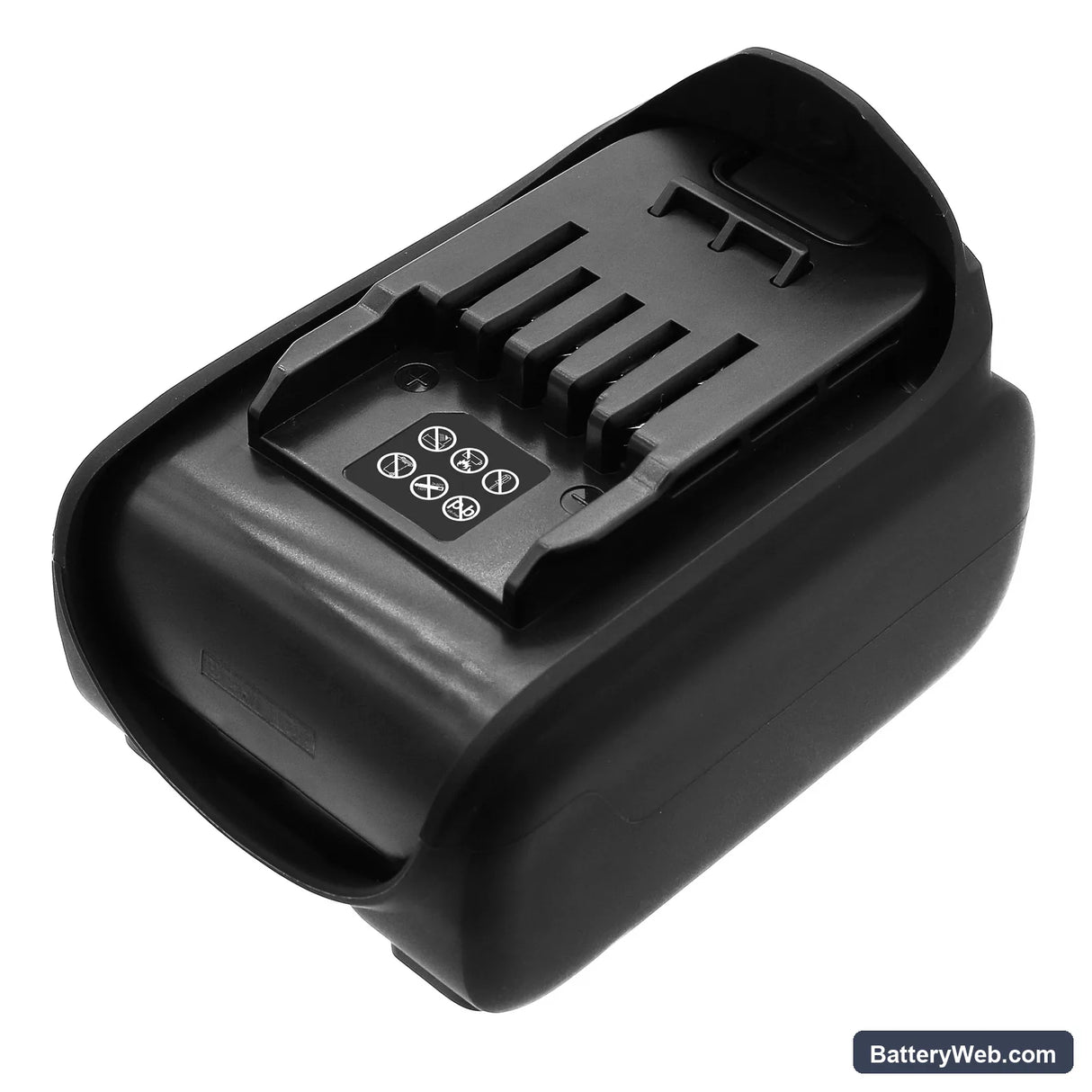

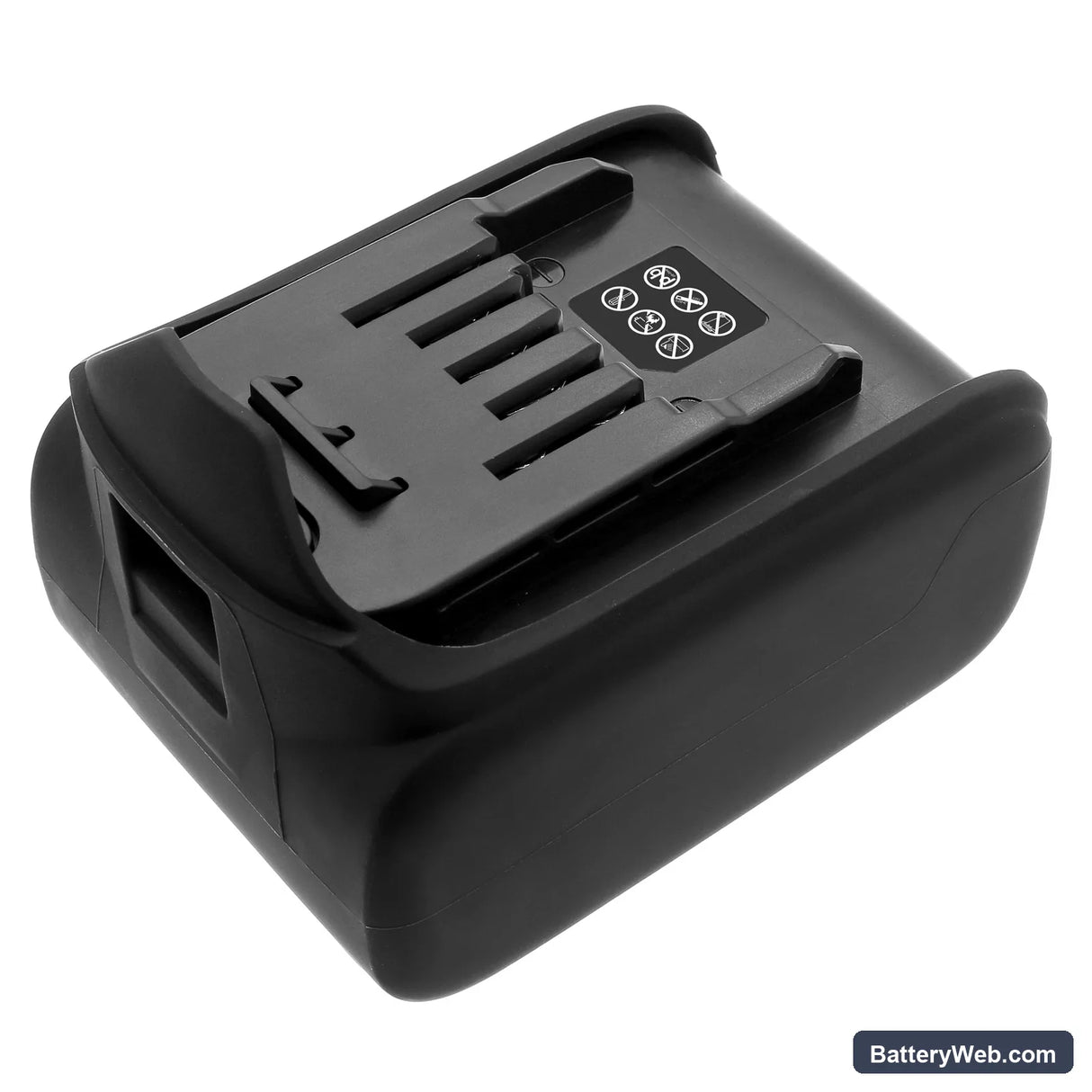

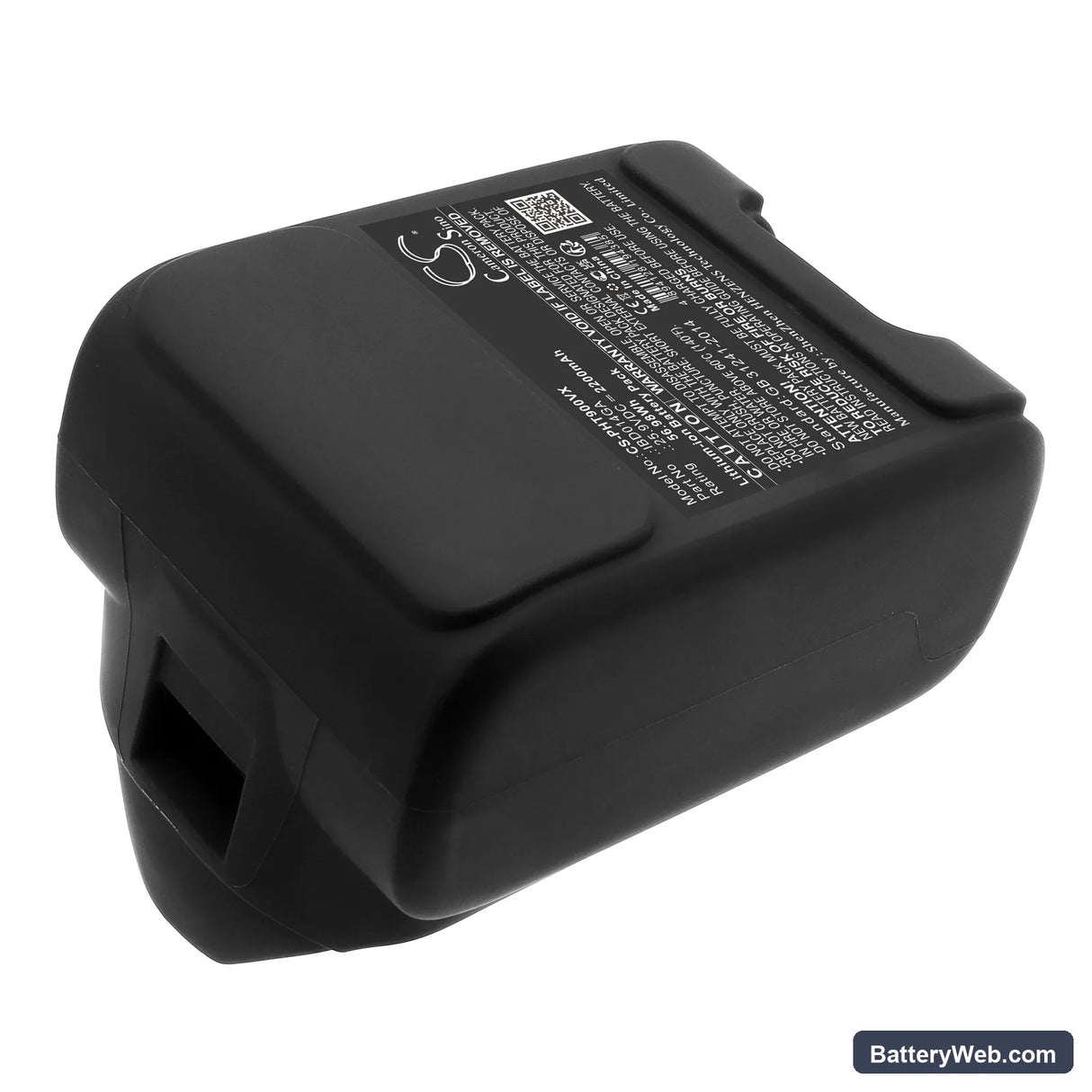

Philips AquaTrio 9000 Replacement Battery 25.9V 2200mAh

Philips AquaTrio 9000 Series — 25.9V Li-ion Replacement Battery (300008109471)

This 25.9V 2200mAh Li-ion battery replaces the original pack in the Philips AquaTrio 9000 and AquaTrio Cordless 9000 wet and dry vacuum cleaners. It also fits XC7053, XC7055, and over a dozen related AquaTrio variants sharing the same battery bay and connector. Voltage and cell count match the original 25.9V (7S) configuration exactly.

• AquaTrio 9000 platform fit: These models share a 25.9V seven-cell series pack with a common BMS handshake and locking connector. The vacuum's motor controller expects the correct voltage rail — a mismatched cell count causes the unit to refuse startup or shut down after a few seconds of operation.
• Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on the AquaTrio platform. The BMS communicated cleanly with the charger, accepted a full charge without fault, and the motor controller cleared its handshake check on first power-on.
• Dock charging on the AquaTrio 9000: Do not leave the vacuum sitting on the charging dock between every use. AquaTrio docks maintain a trickle charge once full — cells kept in this state develop capacity fade faster than those charged only when the pack is depleted. Charge to full, then remove from the dock.

Suction dropping before the battery indicator reaches low

This happens when the motor draws more current than the BMS current limit allows — not because the cell is empty, but because a restriction is forcing the motor to work harder. A partially blocked filter is the most common trigger. The BMS reads the elevated draw as an overcurrent event and throttles output, which the vacuum presents as weak suction. Clean or replace the filter first, then re-test — suction should recover to full strength at the same charge level.

Motor cuts out mid-clean and then recovers after a short pause

This is a BMS overcurrent trip, not a dead battery. When the AquaTrio picks up wet debris or hits a carpet edge with restricted airflow, the motor briefly spikes above the BMS current threshold. The BMS disconnects the output, the motor stops, and after a few seconds the BMS resets and allows restart. The fix is to clear the filter and check the nozzle for partial blockage before the next run. If it trips repeatedly on clean carpet with no obstruction, check cell voltage after a full charge — a healthy pack should read 29.4V at the terminals.
