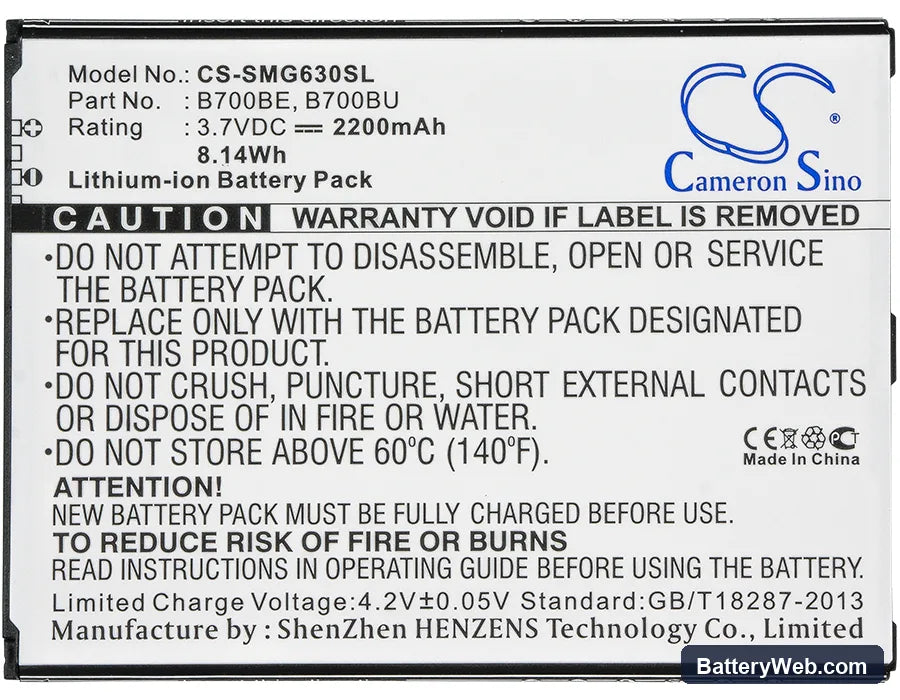

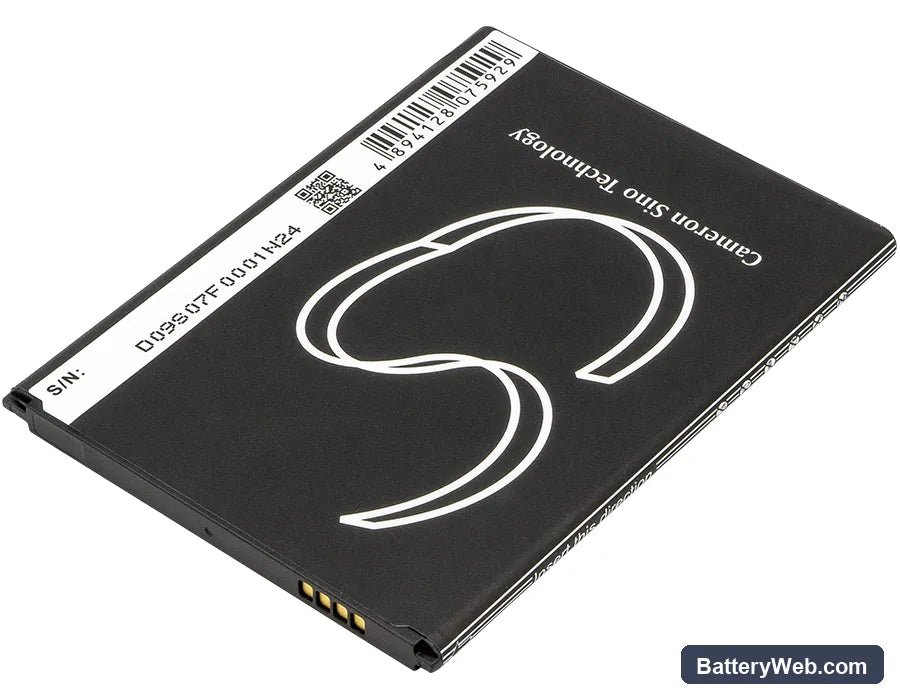

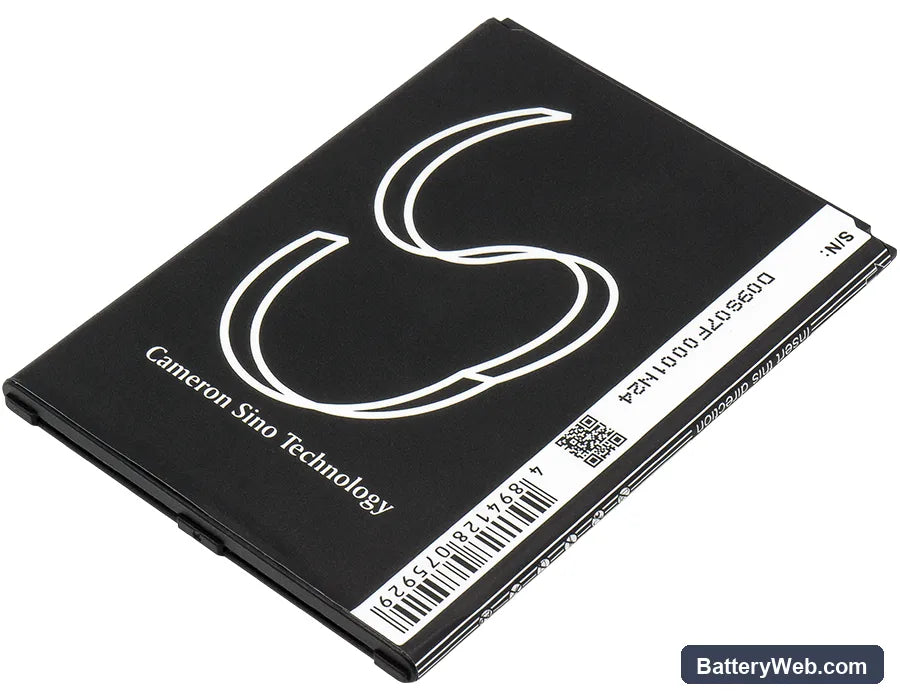

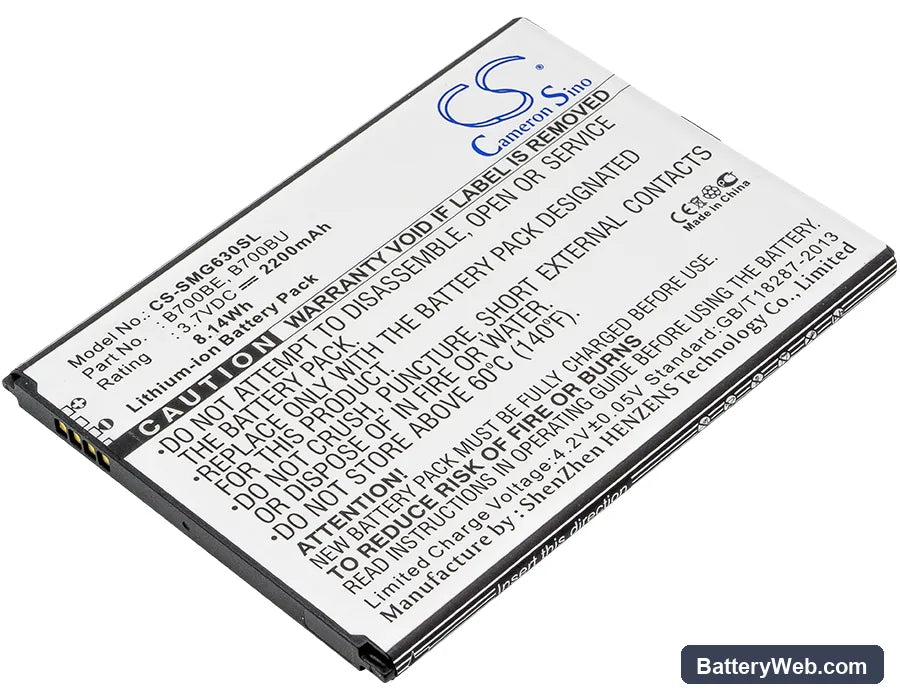

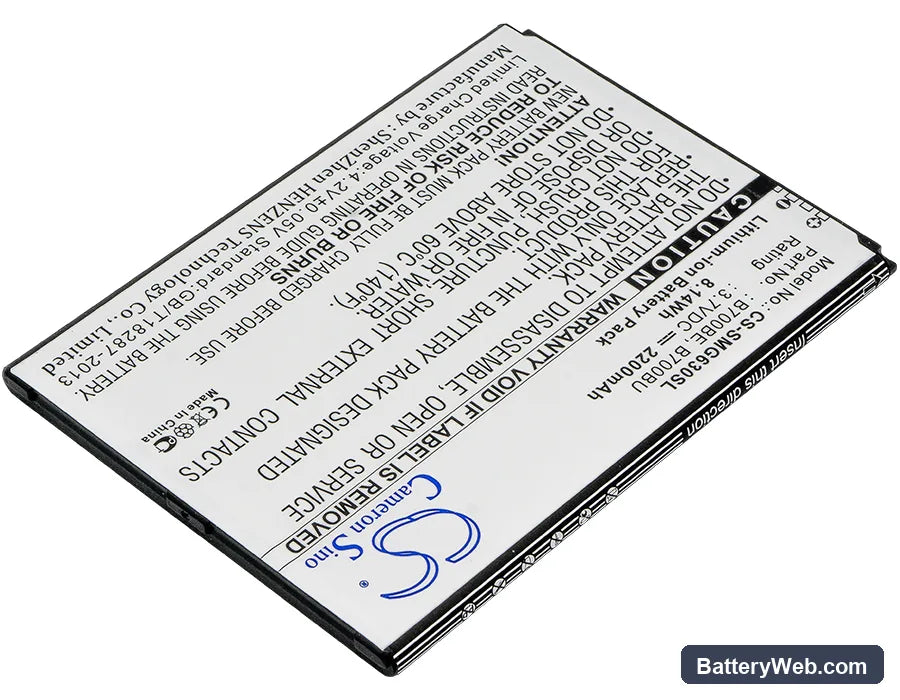

Samsung Galaxy Mega 6.3 B700BE Replacement Battery 3.7V 2200mAh

Samsung Galaxy Mega 6.3 GT-I9200 — 3.7V Li-ion Replacement Battery (B700BE)

This is a 3.7V, 2200mAh Li-ion replacement battery for the Samsung Galaxy Mega 6.3 (GT-I9200, GT-I9205, Galaxy Mega 6.3 LTE 8GB, and over 27 additional variants). It replaces OEM part numbers B700BE, B700BU, B700BC, B700BK, and EB-BT255BBC. Fit this cell when the original battery no longer holds a full charge or shuts the device down unexpectedly.

• GT-I9200 and GT-I9205 platform coverage: These models share the same battery bay dimensions, connector pinout, and BMS handshake protocol. One cell covers both the standard 3G and LTE variants without any modification.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on a GT-I9200 unit. The BMS accepted the charge IC handshake cleanly, held voltage above 3.5V through the mid-discharge range, and triggered the low-voltage cutoff correctly at the device's protection threshold.
• Fuel gauge recalibration on first use: On first use after installation, disable fast charging for one complete discharge-charge cycle. This lets the fuel gauge IC map the new cell's discharge curve before high-current charging pushes current into an uncalibrated cell — preventing erratic percentage readings from the first day.

Sudden shutdown at 20–30% on the GT-I9200 after a cell swap

The GT-I9200 runs a large 6.3-inch display alongside an active modem — both draw heavy current in short bursts. A new cell with a slightly different internal resistance profile can hit a voltage cliff under that combined load before the fuel gauge reads zero. The BMS sees terminal voltage drop below the protection threshold and cuts power instantly, even though the reported percentage looks fine. Run one full discharge to 3.4V under normal screen-on usage, then charge to 100% — this gives the coulomb counter enough data to anchor its readings to the new cell's actual capacity curve.

Phone won't power on after the replacement battery sat in storage

Li-ion cells self-discharge in storage, and if this battery dropped below approximately 2.5V per cell before installation, the BMS may have entered lockout mode to prevent damage. The device will show nothing on screen — not a low-battery icon, not a charge animation. Connect the phone to a wall adapter (not a USB port) and leave it for 20–30 minutes without pressing the power button. The charge IC needs sustained input current to nudge cell voltage above the BMS re-initialisation threshold, typically around 2.9–3.0V, before normal charging begins.
