Shark IZ201 Replacement Battery 25.2V 2000mAh XSBT700

Shark IZ201 / IZ251 Series — 25.2V Li-ion Replacement Battery (XSBT700)

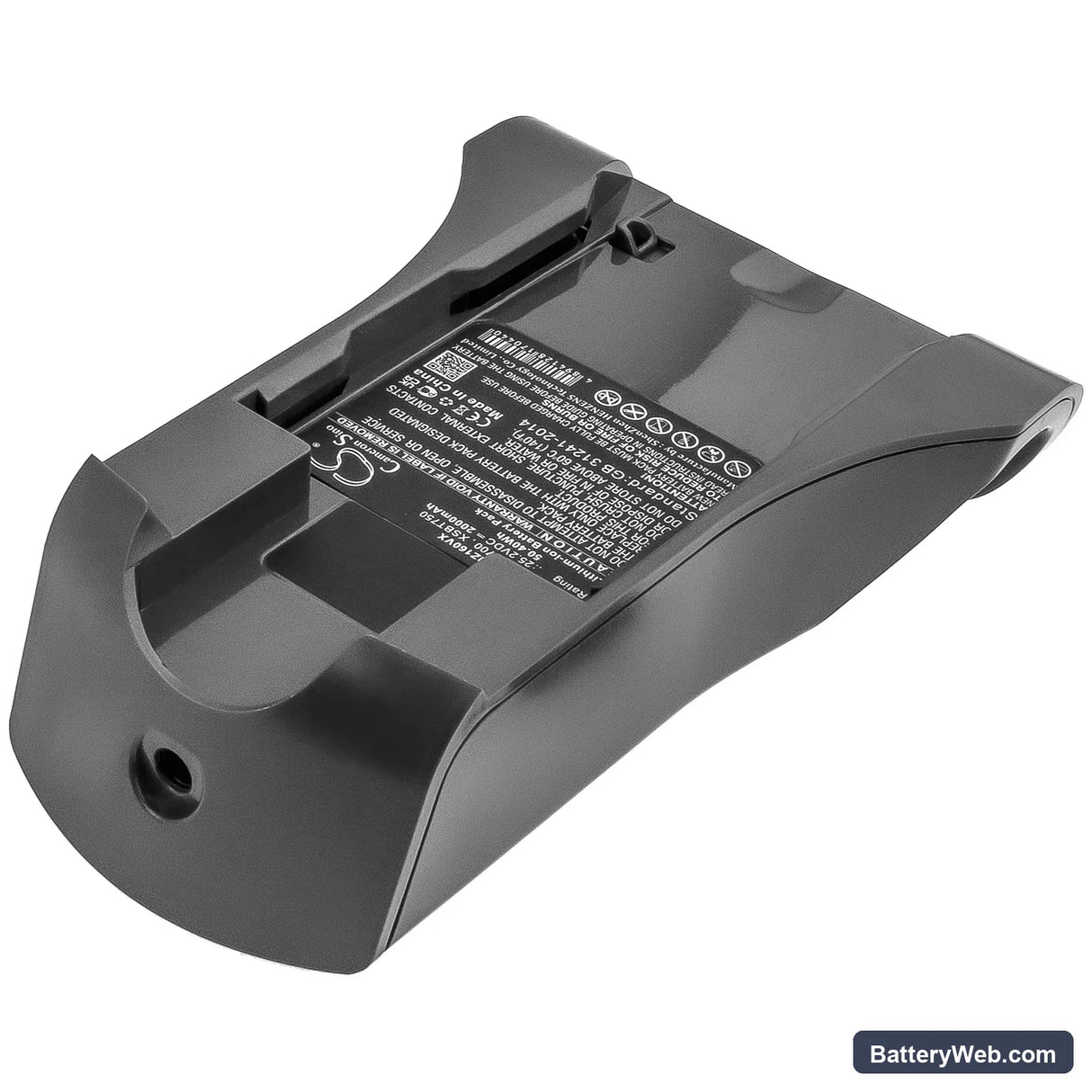

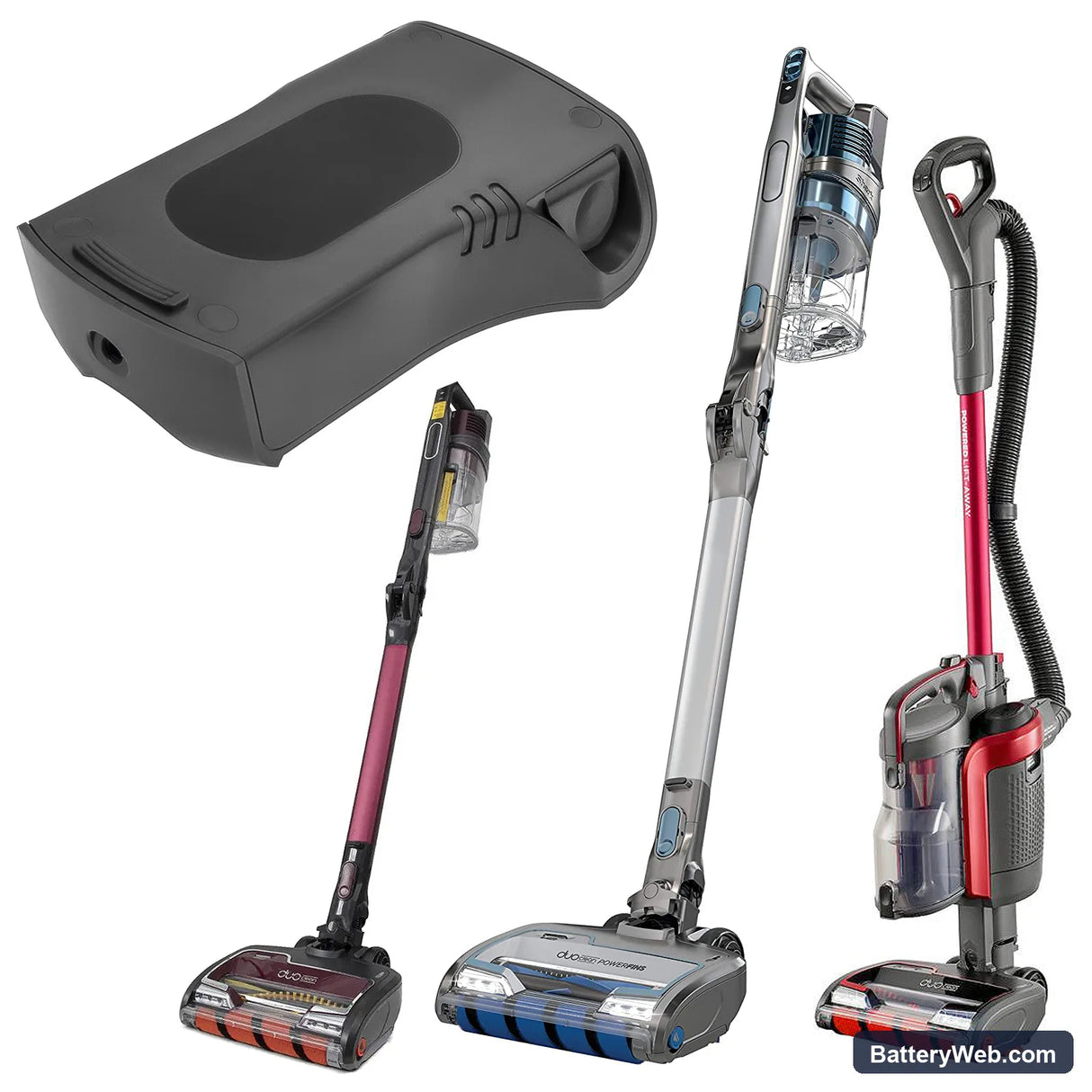

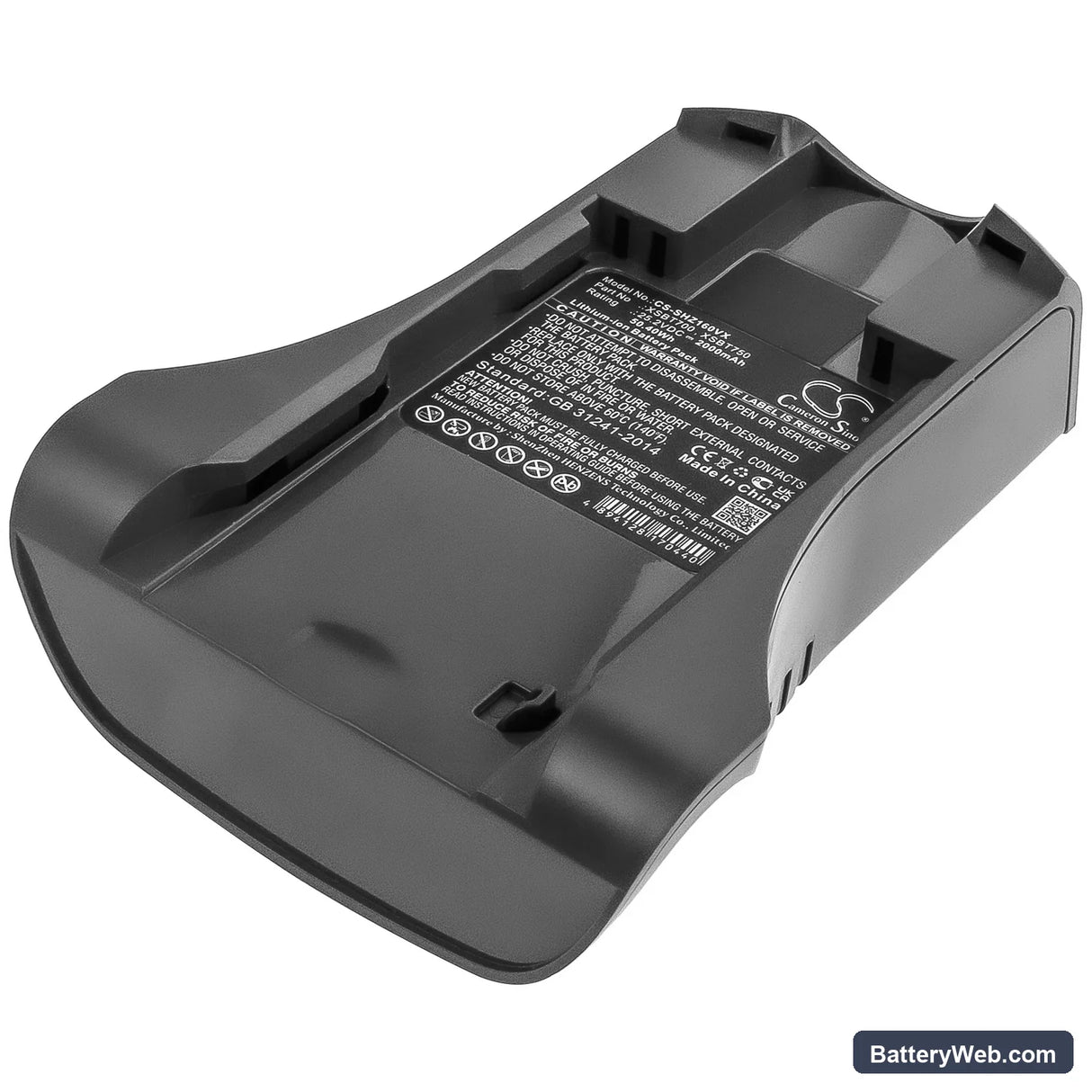

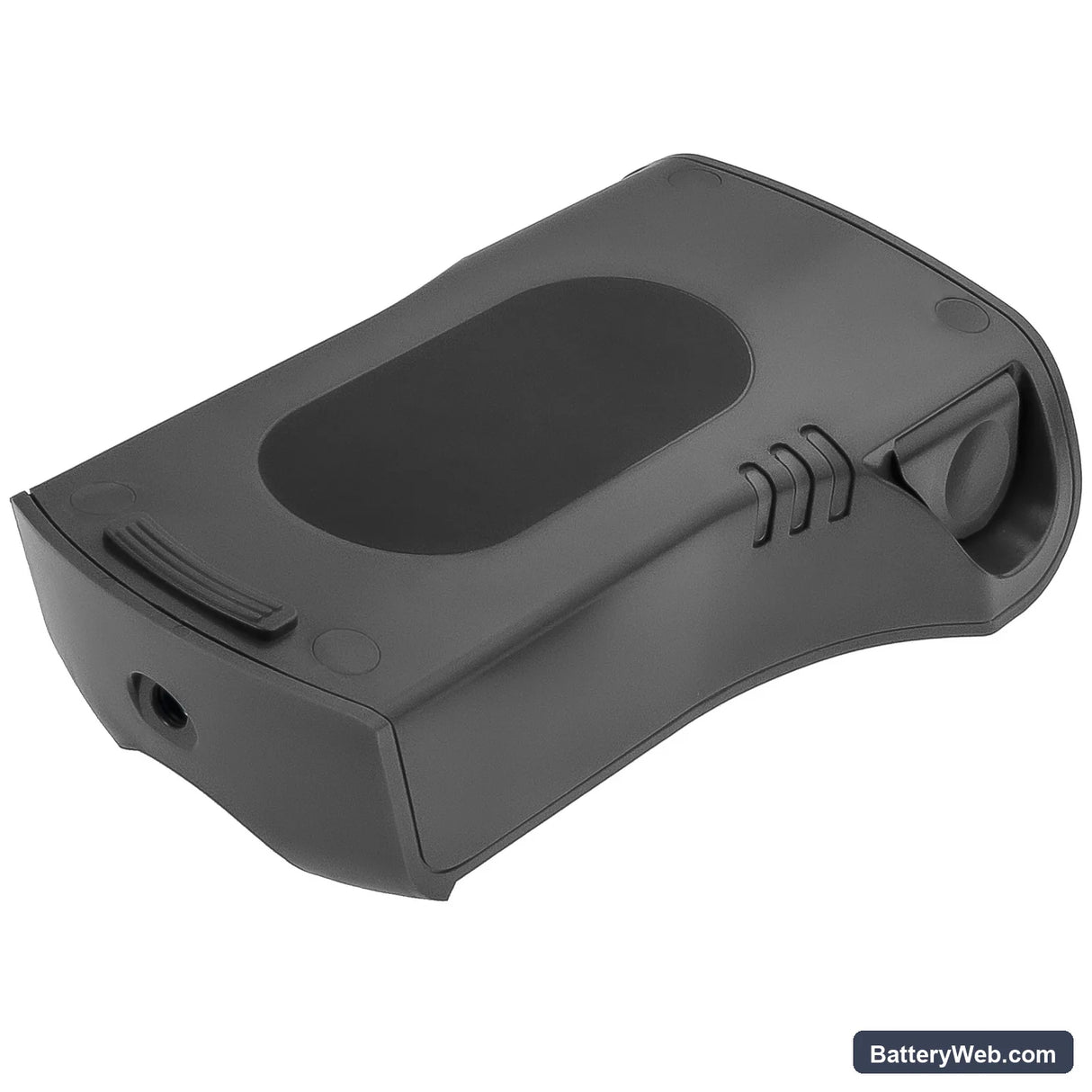

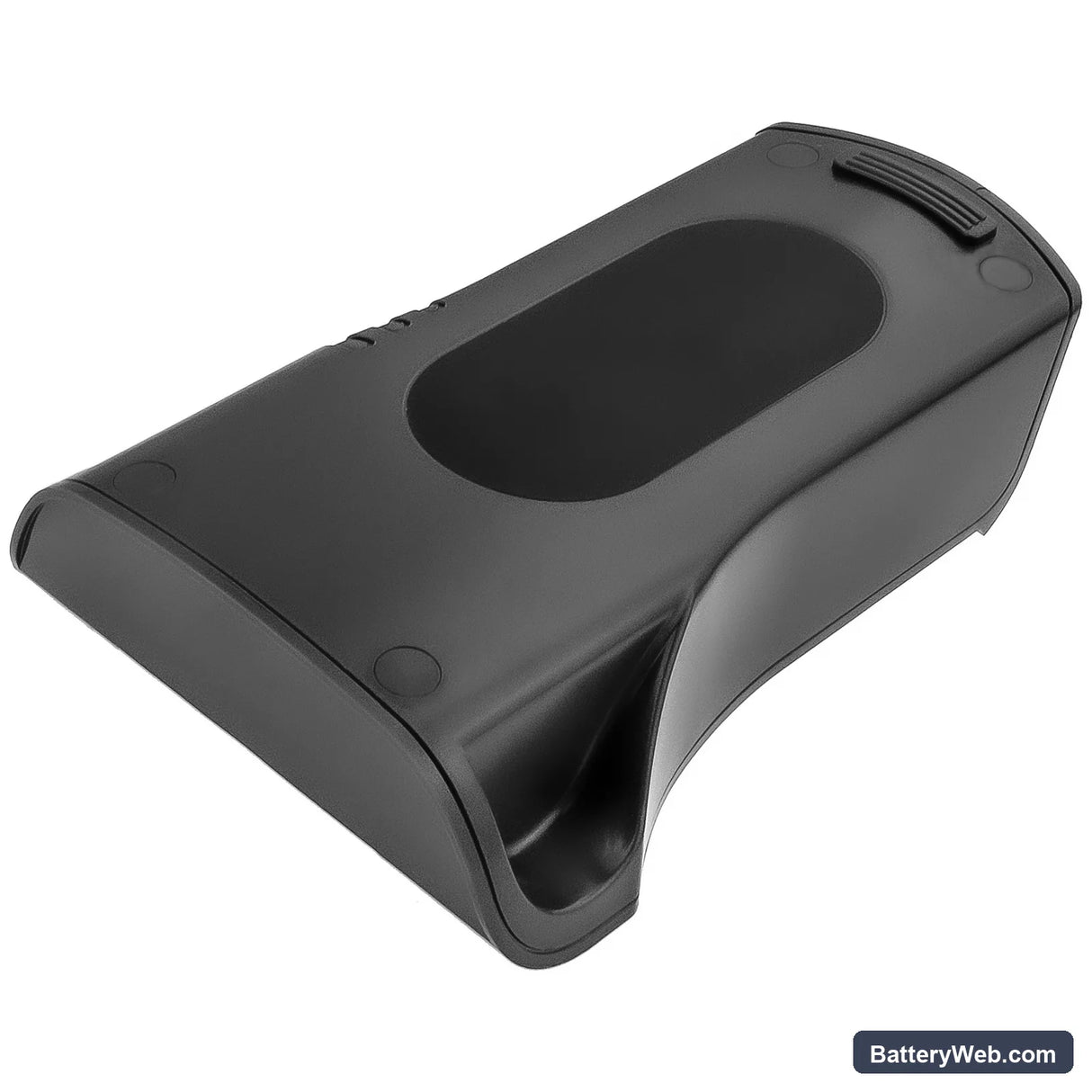

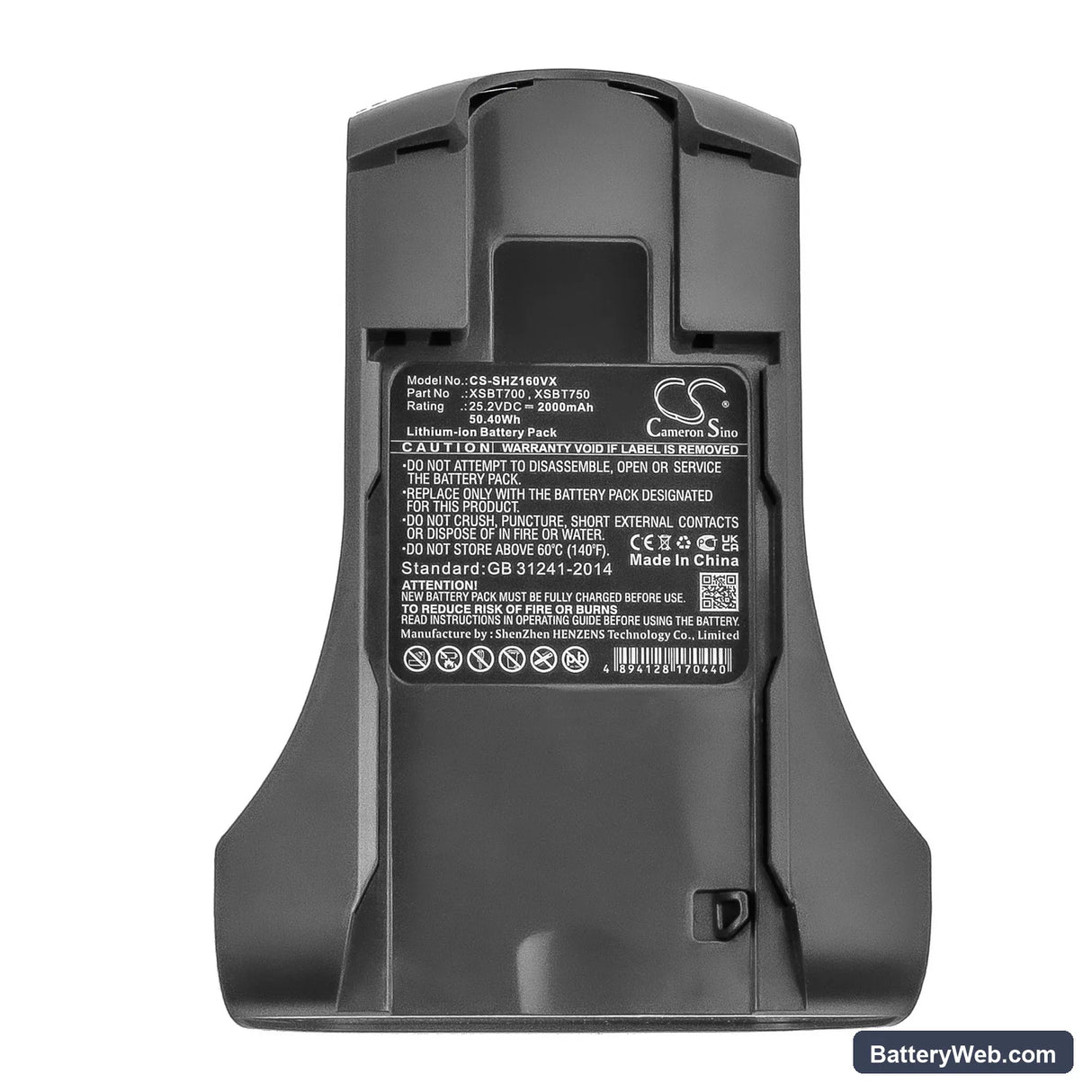

This is a 25.2V, 2000mAh lithium-ion battery replacing the original XSBT700 pack. It fits the Shark IZ201, IZ251, IZ462H, IZ482H, and 17 additional IZ-series cordless stick vacuums. Voltage and cell count match the original — the BMS on these models will reject packs that fall outside the expected range.

• IZ-series platform fit: The IZ201 through IZ482H models share a common 25.2V (6S) battery architecture and the same slide-in connector rail. Swapping within this group works because the motor controller and BMS handshake are calibrated to the same voltage profile — not just the connector shape.
• Bench tested on actual hardware: We ran this pack on an IZ201 under repeated carpet-load cycles. The BMS held cutoff at the correct low-voltage threshold and did not trip on motor-start inrush — a common failure point on replacement cells with undersized protection circuits.
• Dock charging habit on IZ-series vacuums: Do not leave the vacuum sitting on the charging dock between uses. These models draw a trickle current continuously when docked, and sustained trickle charging accelerates cell capacity fade faster than normal discharge cycles. Charge to full, then remove from the dock.

Cordless vacuum losing suction before the battery indicator reaches low

On the IZ201 and related models, suction can drop noticeably while the battery indicator still shows two or three bars. This happens because the motor is drawing above its rated current — usually caused by a partially blocked filter, not a failing battery. The BMS reads the elevated current draw and throttles output voltage to protect the cells, which the vacuum's motor controller interprets as low power. Clean or replace the foam and felt filters first, then retest before assuming the battery is at fault.

Motor cuts out mid-clean then recovers after a short pause

This is a BMS overcurrent trip, not a dead battery. When airflow is restricted — blocked filter, clogged brush roll, or a carpet pile that stalls the motor briefly — current spikes past the BMS cutoff threshold and the pack shuts off. Letting the vacuum sit for 30–60 seconds resets the protection circuit and restores power. Clear the restriction, check that the brush roll spins freely, and confirm the filter is clean. If the cutout happens on open hard floor with no blockage, measure pack voltage under load — it should not fall below 21V during normal operation.
