Shark RVBAT700-N 14.4V Replacement Battery for RV850BRN

Shark RV850BRN / RV851WV Series — 14.4V Li-ion Replacement Battery (RVBAT700-N)

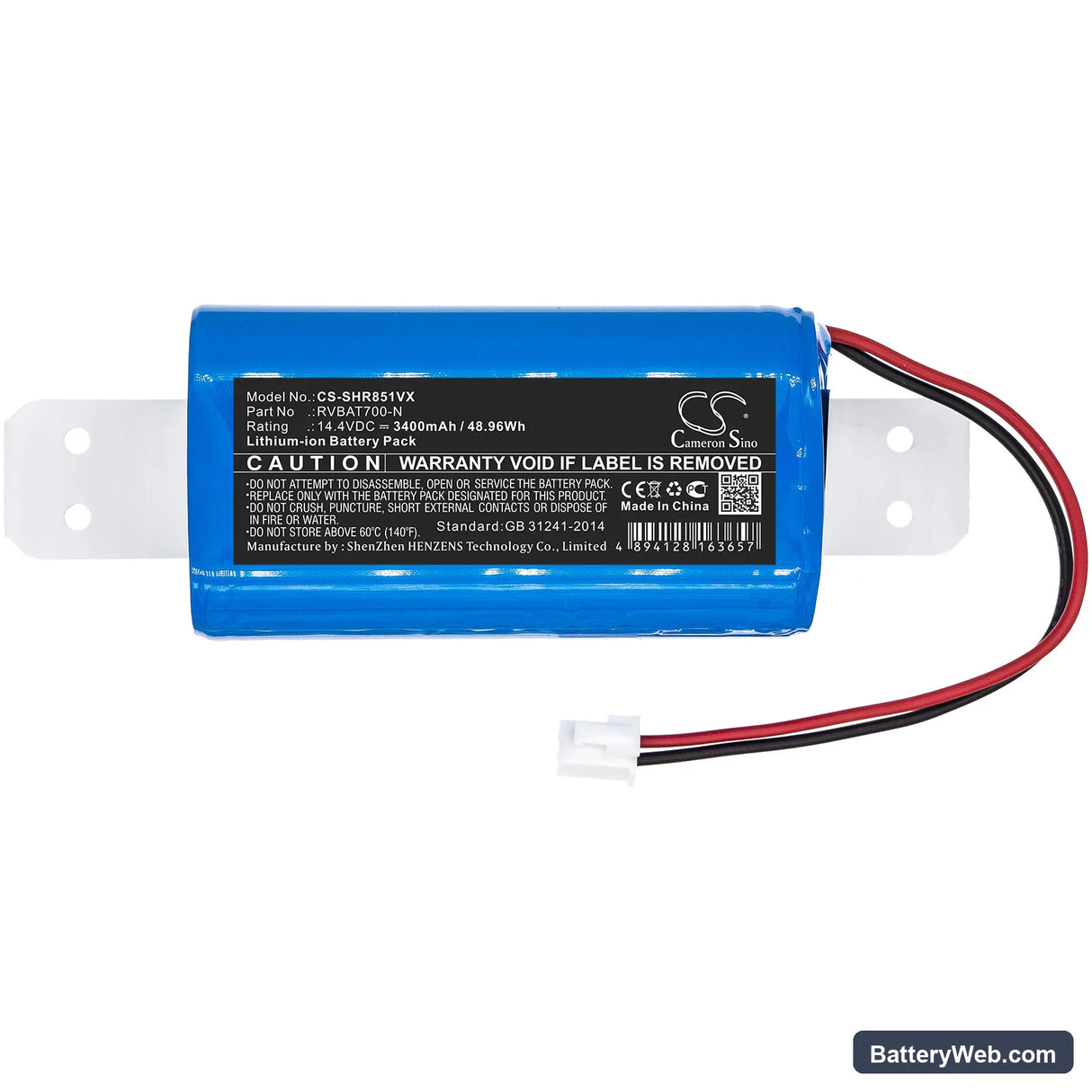

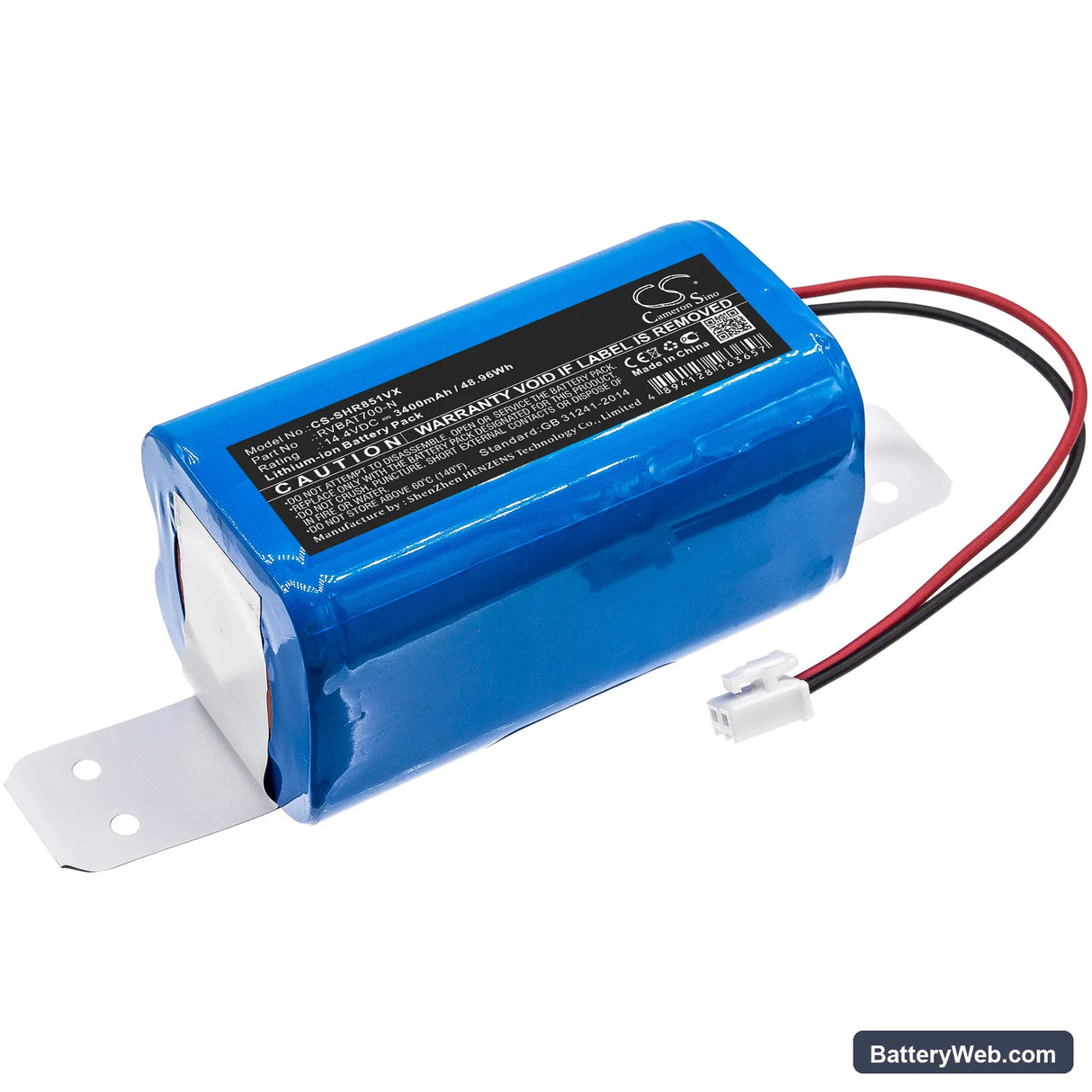

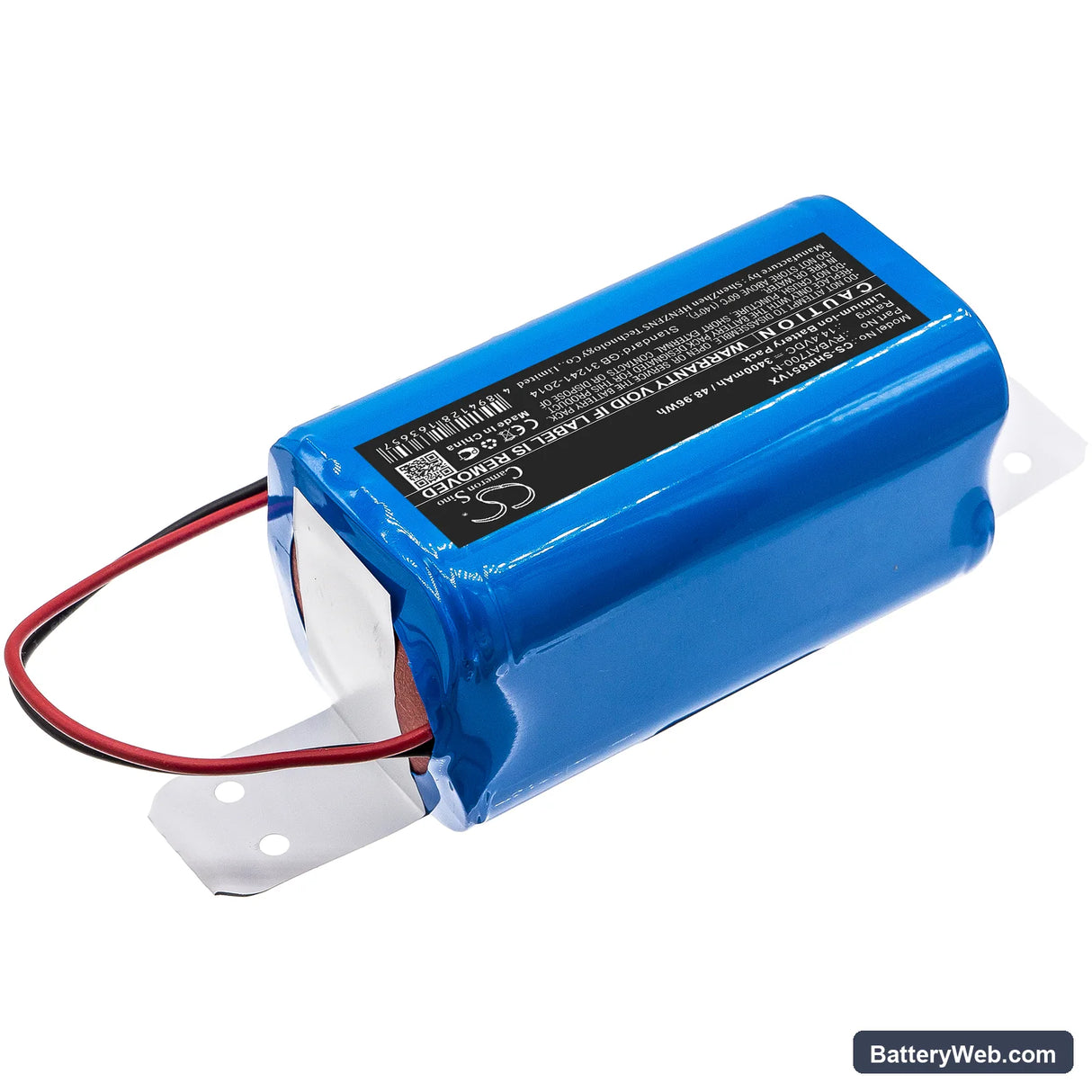

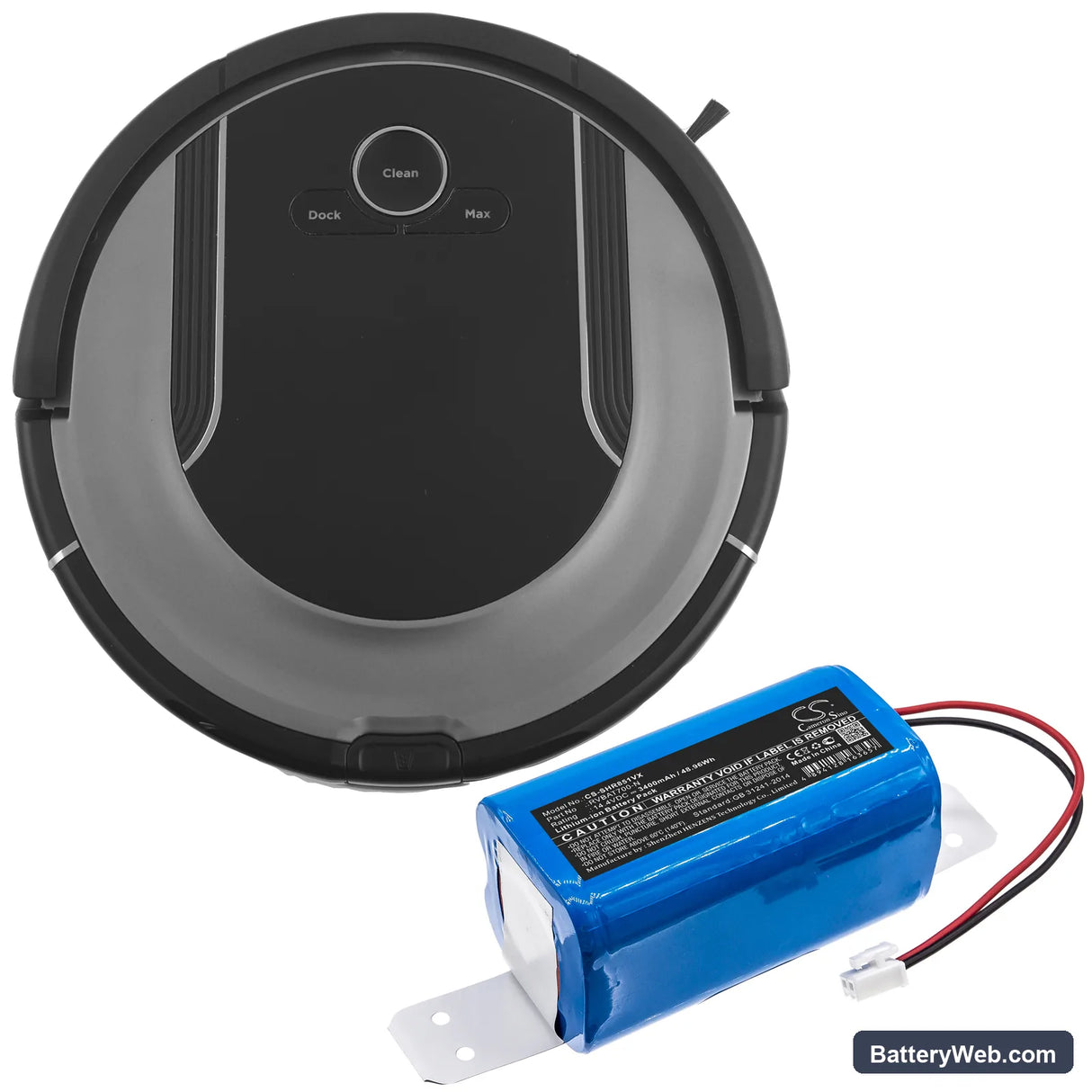

This is a 14.4V, 3400mAh lithium-ion replacement battery for the Shark RV850BRN robotic vacuum and compatible models including the RV850C, RV850WV, and RV851WV. It replaces OEM part RVBAT700-N directly. The battery restores autonomous cleaning operation when the original cell has degraded from repeated charge cycles.

• RV850 and RV851 series compatibility: These models share the same 14.4V battery bay, connector pinout, and BMS handshake protocol. The RV850BRN, RV850C, RV850WV, and RV851WV all draw from the same voltage rail, so one battery fits the full group without modification.
• Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on the RV850 platform. The BMS communicated correctly with the dock charger, accepted charge without fault codes, and the robot resumed navigation and suction without interruption.
• Dock charging habit for the RV850 series: Do not leave the robot sitting on the charging dock continuously between uses. The RV850 platform applies a trickle charge when docked full, and sustained trickle charging accelerates capacity fade in Li-ion cells. Charge to full, then remove from the dock until the next cleaning cycle.

Suction dropping before the battery indicator reaches low

The RV850 series motor draws higher current whenever airflow is restricted — a partially blocked filter forces the motor to work harder, pulling more amps than the battery is rated to sustain. This causes the terminal voltage to sag under load, and the robot's onboard controller reads that sag as low battery before the actual cell capacity is depleted. The fix is not always the battery. Check and clean the foam and HEPA filters first. If suction holds steady after cleaning the filters, the original cell may still have serviceable capacity remaining.

Robot stops mid-clean, then restarts after sitting a few minutes

This is a BMS overcurrent trip, not a dead battery. When the brush roll snags debris or carpet fibres bind the motor, current draw spikes sharply. The battery's protection circuit cuts output to prevent cell damage, and the robot powers down. After a short rest the BMS resets and the unit will start again. Clear any debris from the brush roll and side brushes, then confirm the filter is clean. If the trip keeps recurring on open floor with no obstruction, the original cell's internal resistance has risen enough that normal motor-start current is now tripping the protection threshold — that is when a cell replacement is warranted.
