Xiaomi 171502-AM Replacement Battery 15.2V 3500mAh

Xiaomi Gaming Laptop 7300HQ Series — 15.2V Li-Polymer Replacement Battery (G15B01W)

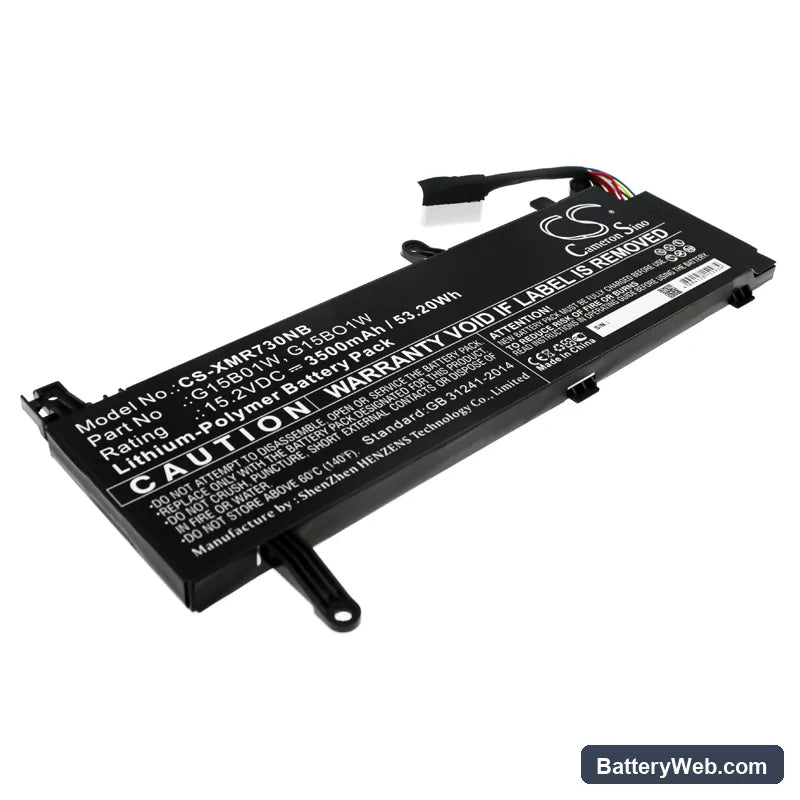

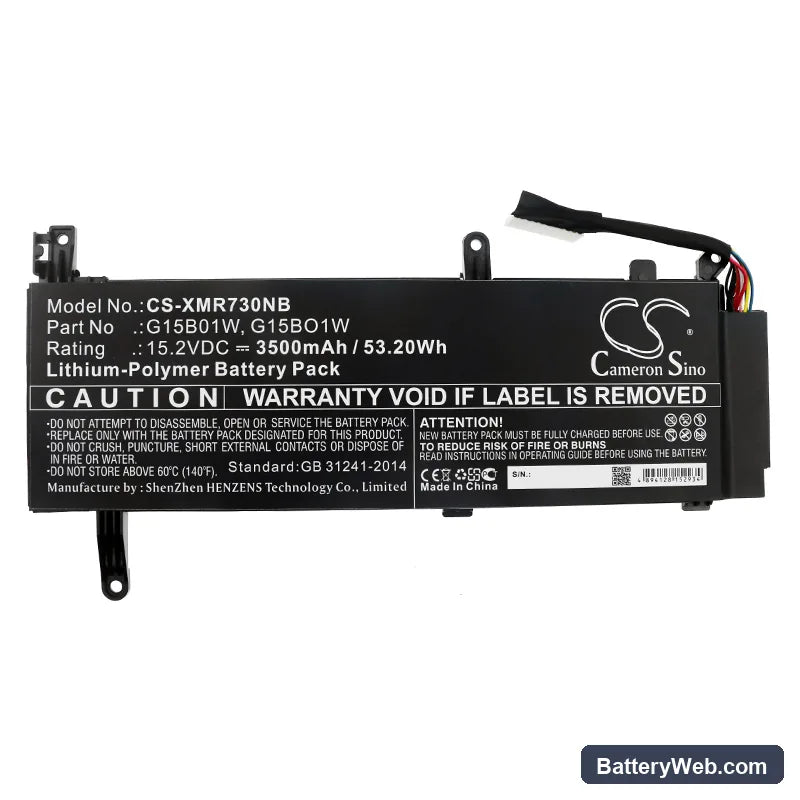

This is a 15.2V, 3500mAh (53.2Wh) Li-Polymer replacement battery for Xiaomi Gaming Laptops including the 7300HQ 1050Ti, 7300HQ 1060, and 171502-AM variants. It uses OEM part numbers G15B01W and G15BO1W and fits multiple Xiaomi notebook configurations sharing the same connector and BMS handshake profile. Voltage and capacity match the original cell specification from the product data.

• 7300HQ platform compatibility: The 1050Ti and 1060 GPU variants both draw from the same 15.2V four-cell Li-Polymer architecture. Xiaomi kept the BMS protocol and connector pinout consistent across these SKUs, so one cell fits the full range without firmware differences or adapter modifications.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the 7300HQ platform. The BMS handshook correctly on first connection, the fuel gauge IC registered the new cell, and charge current ramped normally from CV/CC entry through to taper-off at full charge.
• Post-swap BIOS recalibration: After installing this cell, run the laptop down to hibernate cutoff under normal load — CPU active, display on — then charge uninterrupted to 100% without interruption. This forces the BIOS battery learn cycle to reset against the new cell and clears the false "poor health" warning that appears after every cell swap on Xiaomi gaming notebooks.

Why the Xiaomi 7300HQ shuts down at 20–30% after a battery swap

Under combined CPU and discrete GPU load, the 7300HQ draws sharply enough to expose a voltage cliff in a cell the BIOS hasn't calibrated against yet. The fuel gauge IC still holds the discharge curve from the previous cell, so it misreads remaining capacity. The laptop interprets the voltage drop as a critical threshold and triggers an emergency shutdown — even though the percentage shown looks safe. Running one full discharge-to-hibernate cycle recalibrates the fuel gauge IC against the actual discharge curve of the new cell and pushes the false cutoff point back to the true low-voltage floor near 14.4V.

BIOS showing battery Wh rating as incorrect after installing this cell

The Wh value reported in the BIOS or Windows battery report pulls from EEPROM data written to the BMS chip — not directly from the cell chemistry. When a replacement cell arrives, the EEPROM may report a rated figure from a slightly different revision of the original firmware, causing a mismatch against the 53.2Wh spec. This is a reporting artefact, not a capacity fault. Confirm the discrepancy by checking the Design Capacity field in Windows PowerCfg battery report — if charge cycles are accumulating normally, the cell is working correctly regardless of the displayed Wh figure.
