Xplore M28 Replacement Battery 3.7V 1200mAh V-00019592

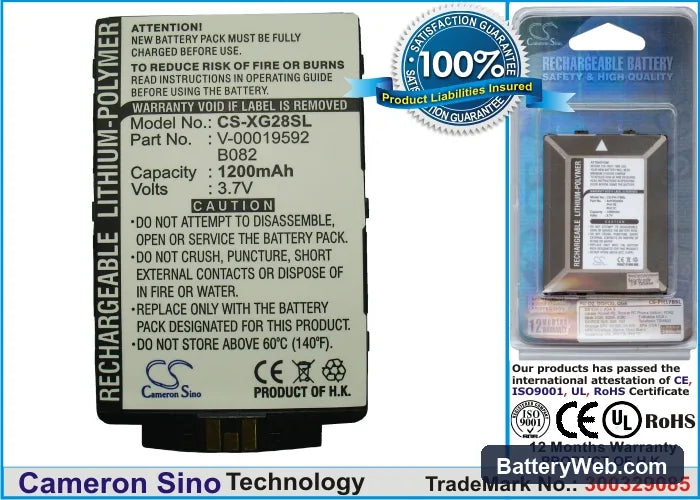

Xplore M28 — 3.7V Li-Polymer Replacement Battery (V-00019592)

This is a 3.7V, 1200mAh lithium-polymer battery for the Xplore M28 rugged smartphone. It replaces OEM part numbers V-00019592 and B082. Capacity figure comes from product data: 1200mAh / 4.44Wh.

• M28 platform fit: The M28 uses a fixed connector pinout and a BMS handshake tied to the V-00019592 cell spec. This replacement matches that voltage rail and connector configuration so the device's power management IC accepts the new cell without throwing a battery-authentication fault.
• Bench tested on actual hardware: We ran this cell through a full charge-discharge cycle on M28 hardware. The BMS accepted the cell at first contact, charge current stepped through the expected CC-CV phases, and the protection circuit tripped correctly at the low-voltage cutoff threshold.
• Fuel gauge recalibration on first cycle: On first use after installation, disable fast charging and run one complete discharge-to-charge cycle. The M28's fuel gauge IC recalibrates its coulomb counter against the new cell's discharge curve — skip this step and the percentage readout will be inaccurate from the start.

Sudden shutdown at 20–30% on the replacement cell

This is a voltage cliff problem, not a capacity problem. Under modem transmit load or screen brightness spikes, the new cell's internal resistance causes voltage to sag below the BMS cutoff threshold — even though the fuel gauge still shows charge remaining. The fuel gauge IC is still calibrated to the old cell's discharge curve, so it reports a higher percentage than the cell can actually sustain under load. Run one full discharge cycle until the device shuts off automatically, then charge to 100% uninterrupted — this resets the coulomb counter to the new cell's actual curve.

Device not powering on after sitting in storage

If the M28 was stored with a depleted battery, the cell voltage may have dropped below 2.5V — the BMS lockout threshold. At that point the protection circuit opens the discharge path and the device appears completely dead. Connect the original charger and leave it for 15–20 minutes without pressing the power button; the charge IC on the M28 delivers a trickle precharge current to bring the cell above the BMS re-enable threshold before switching to normal CC-CV charging. If the charging indicator does not appear within 30 minutes, check that the USB connection is delivering at least 5V at the port.
