Riester 12674 Otoscope Replacement Battery 7.4V 5200mAh

Riester 12674 / Ri-Vital — 7.4V Li-ion Replacement Battery (10693)

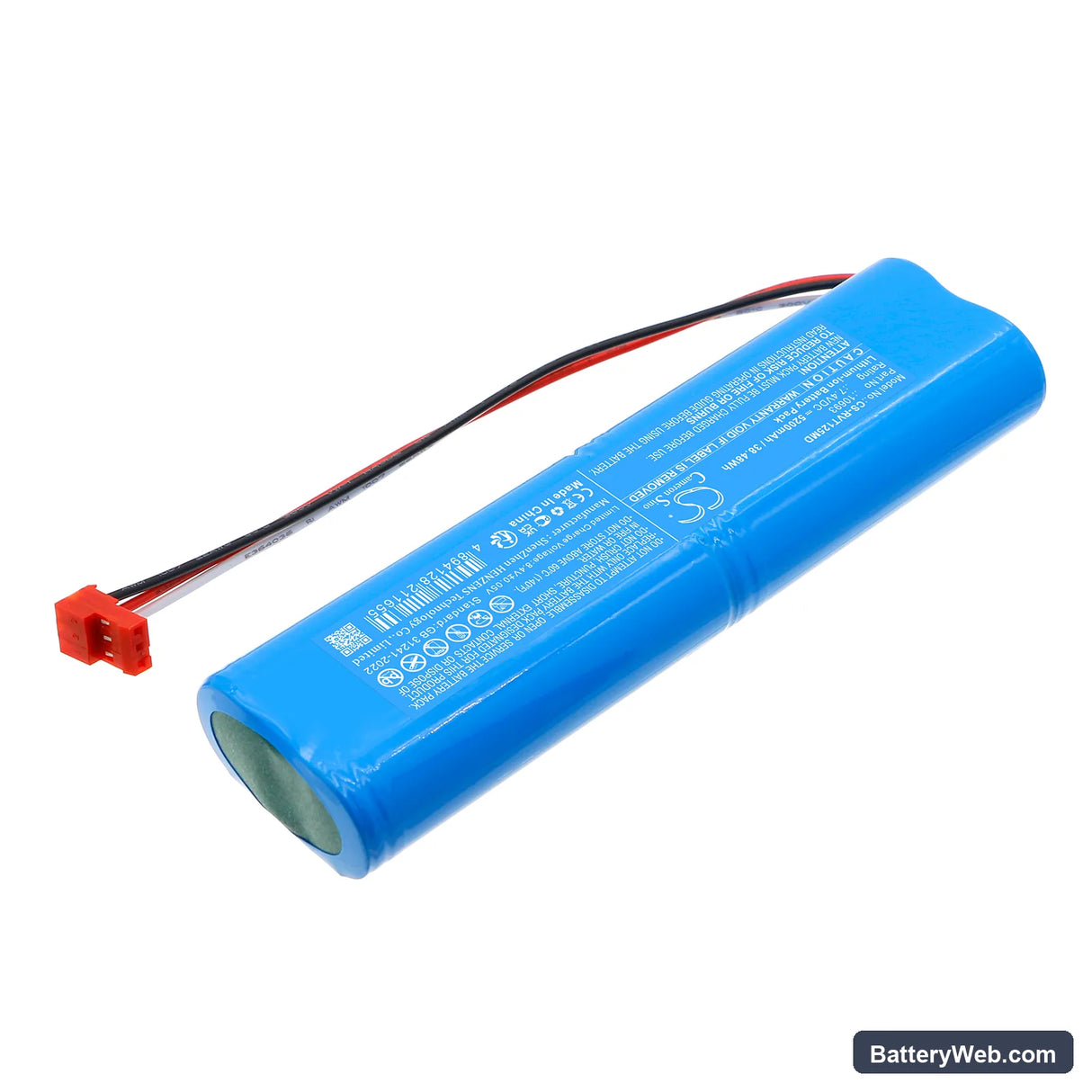

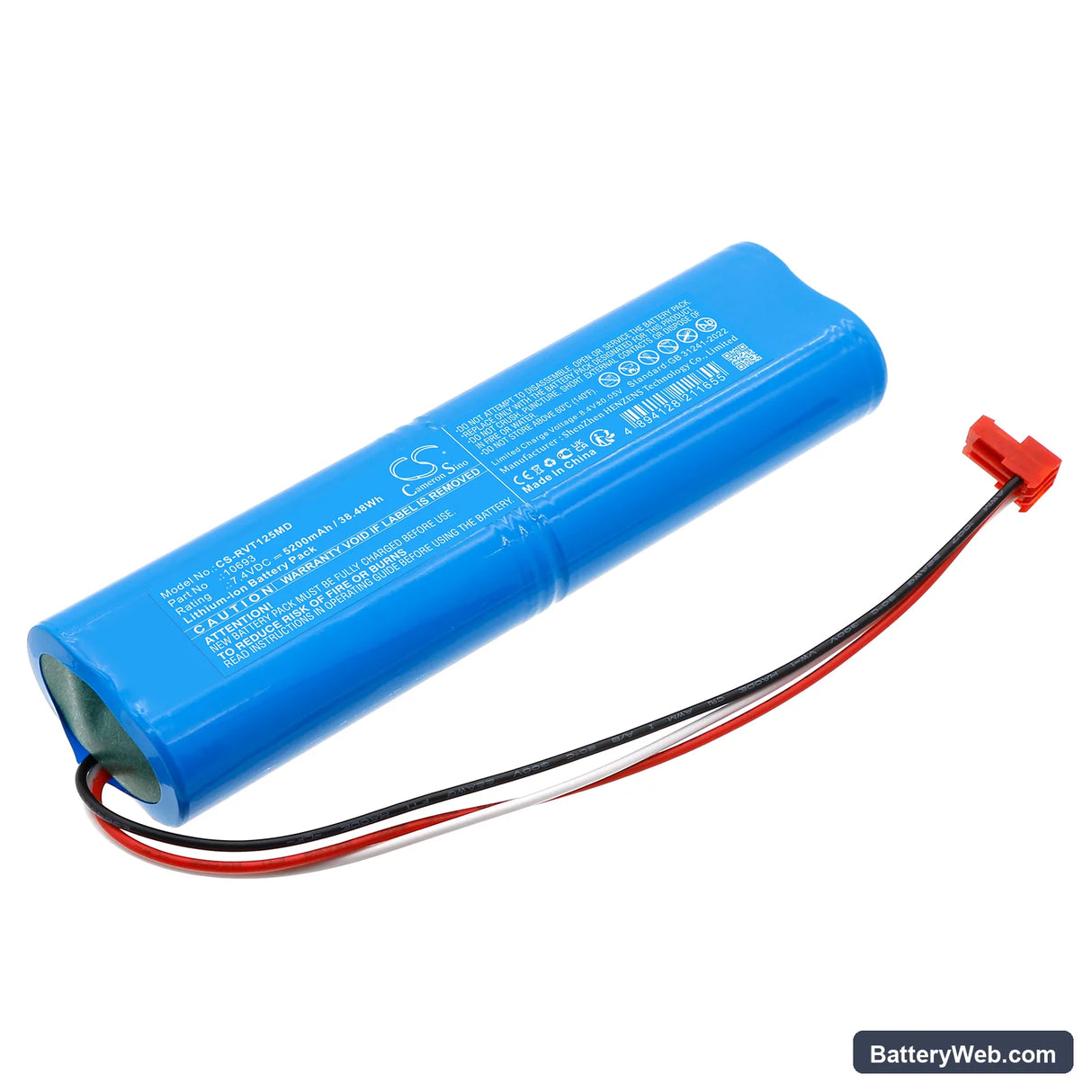

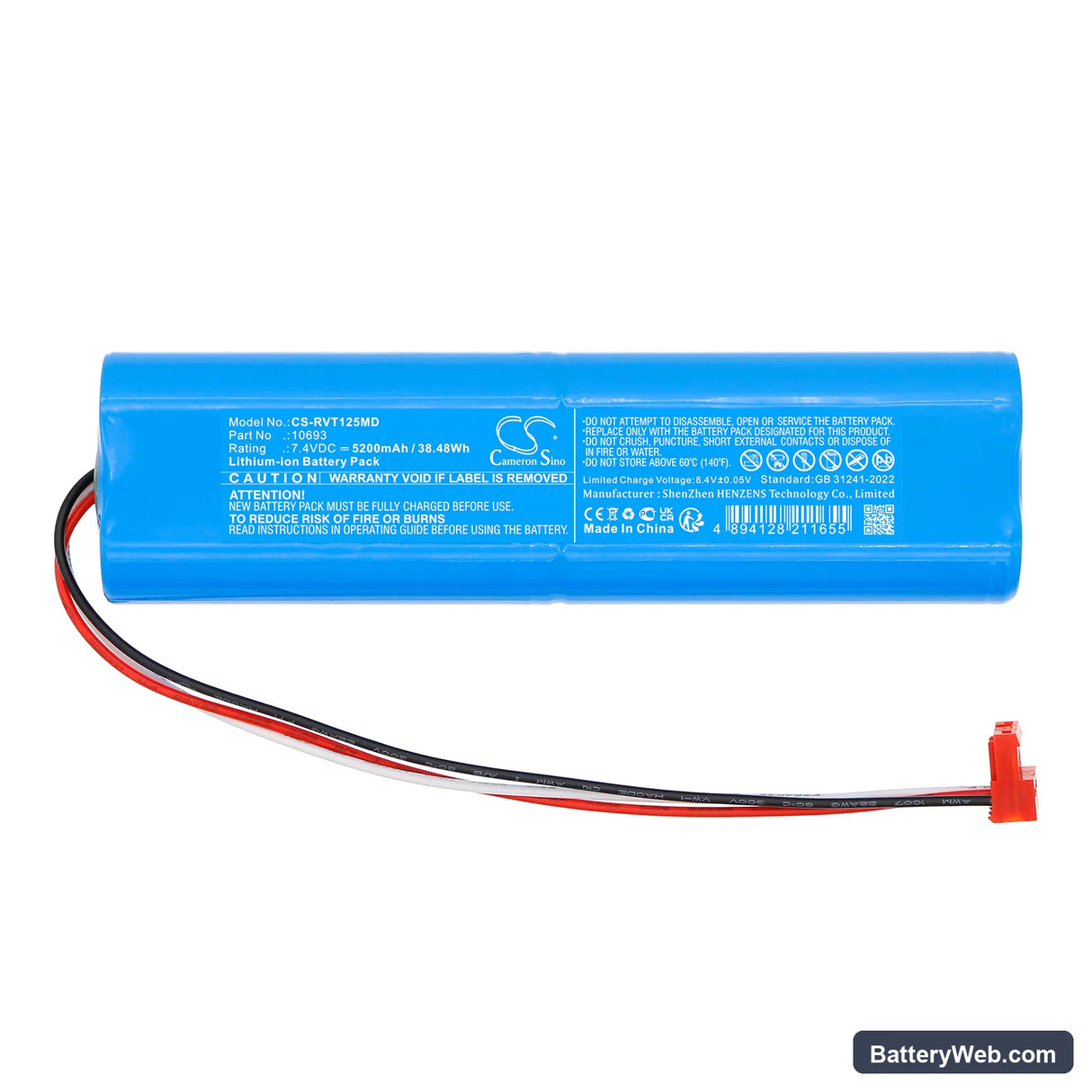

This is a 7.4V, 5200mAh Li-ion battery (38.48Wh) that replaces OEM part 10693 in the Riester 12674 and Ri-Vital diagnostic instruments. It powers the illumination system used during otoscope and ophthalmoscope examinations. When the original cell degrades after repeated charge cycles, this replacement restores full power to the diagnostic platform.

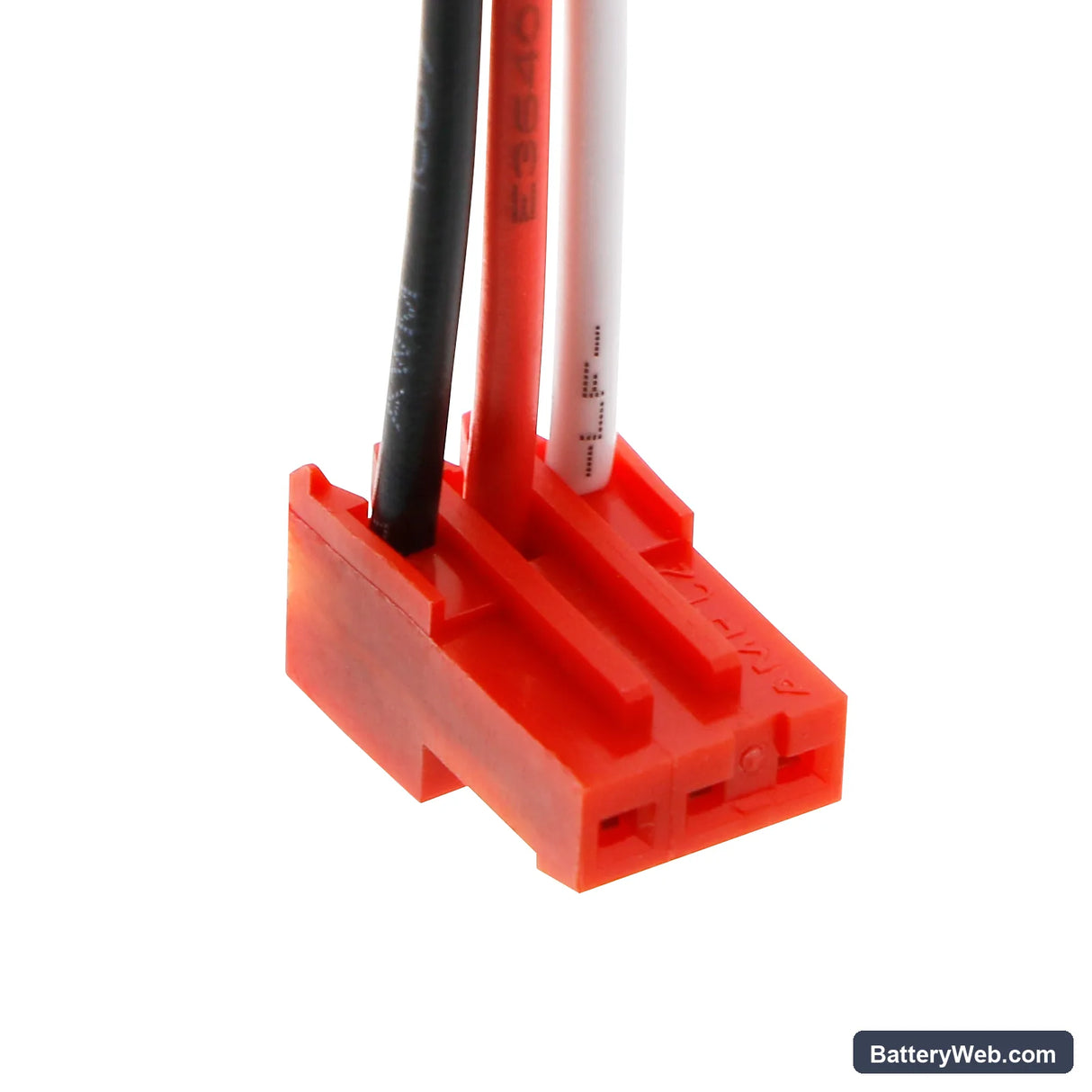

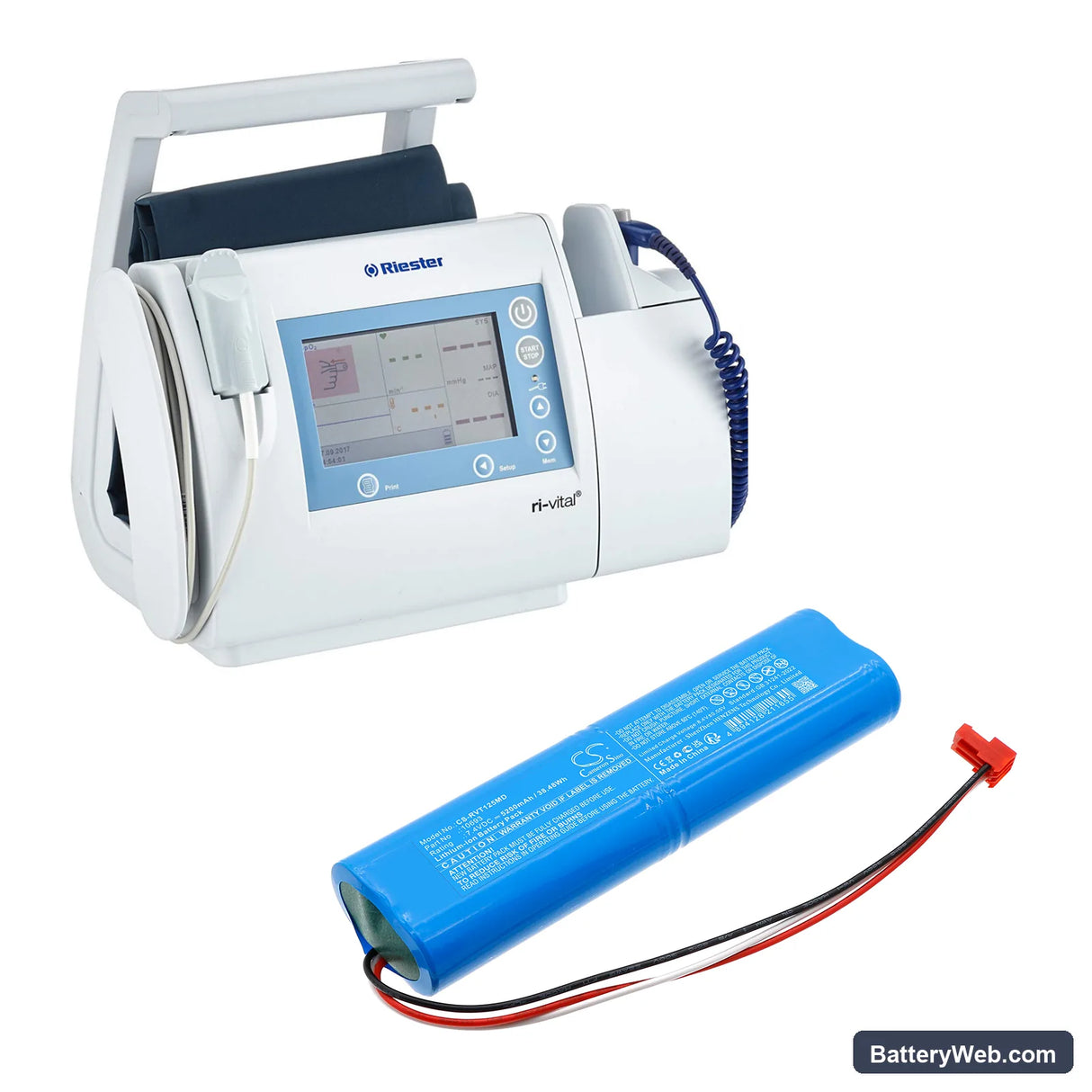

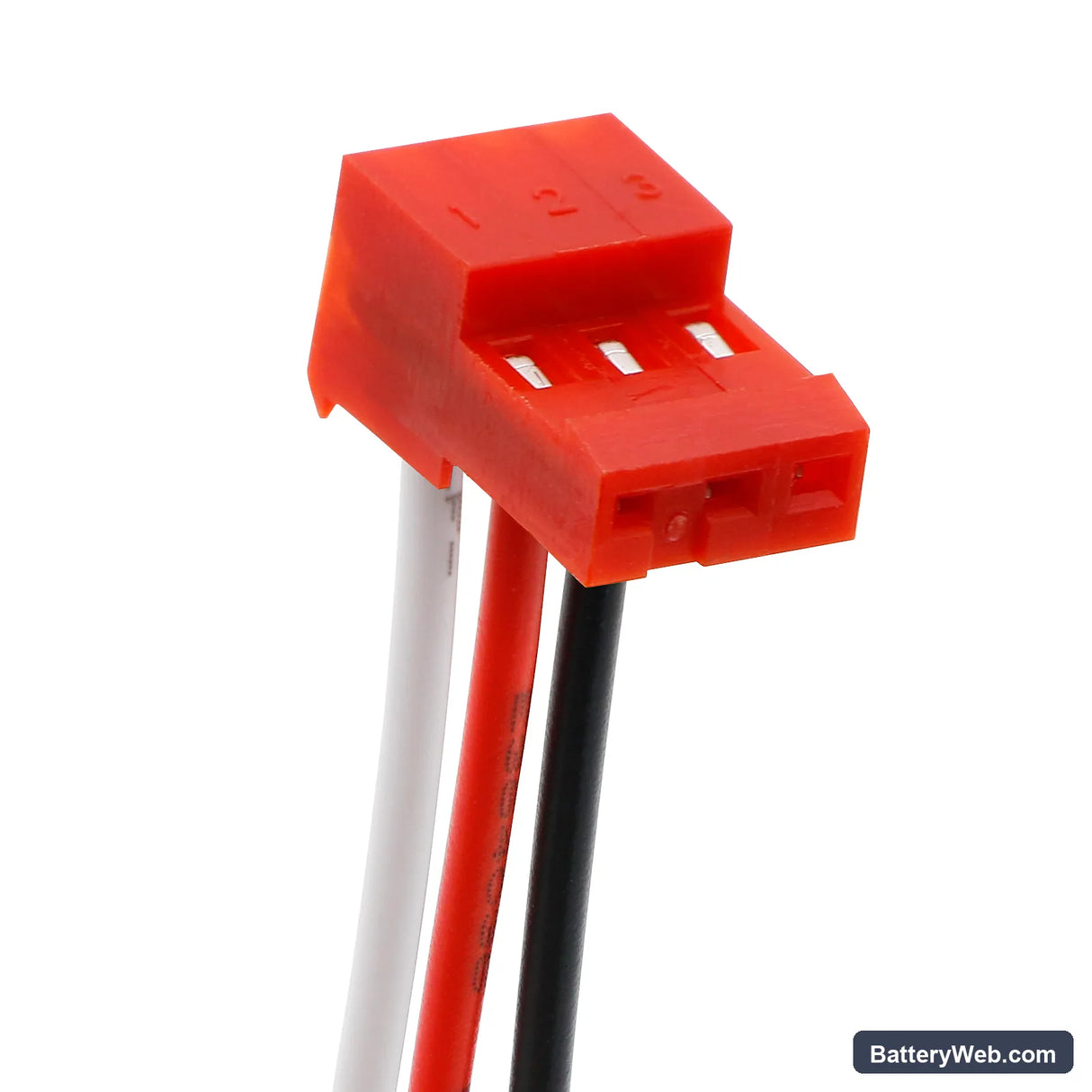

• 12674 and Ri-Vital platform fit: Both models run the same 7.4V power rail, share the same connector pinout, and use the same BMS handshake protocol — one battery services the full range of these Riester diagnostic handles.
• Bench tested on actual hardware: We ran this cell through a full charge-discharge cycle on the Ri-Vital platform. The BMS accepted the new cell without fault flags, and the charge IC brought the pack to full capacity without triggering a thermal interrupt.
• Post-swap power-on sequence: After installing this battery, let the device complete its power-on self-test without interruption. The BMS runs a verification check at startup — cutting power mid-sequence causes a false battery fault that stays latched until the next full reboot.

Why the Ri-Vital shows a low battery alarm on a freshly charged replacement

Riester's BMS compares incoming cell data against a stored OEM chemistry profile. A new cell with no cycle history reads outside that profile's expected voltage curve, which the firmware flags as a low-charge condition even when the pack is at 8.2V — full charge for a 7.4V nominal cell. This is a learn-cycle issue, not a cell defect. Run one complete charge-discharge cycle before clinical use, and the BMS recalibrates its threshold against the actual cell behaviour. After that first cycle, the alarm clears and charge indicators read accurately.

Charge indicator stuck below 100% on first charge

On the first charge of a new Li-ion cell, the charge IC in these Riester instruments applies a conservative current limit while it measures internal resistance. The indicator pauses at 90–95% for an extended period before completing the final topping phase. This is normal charge IC behaviour — the cell is not faulty. Do not disconnect before the indicator reaches 100%. Allow the full charge cycle to complete at mains power, then verify cell voltage sits at 8.2V before first use.
