Euro Pro UV617 Replacement Battery 8.4V 3000mAh XB617UN

Euro Pro UV617 Series — 8.4V Ni-MH Replacement Battery (XB617UN)

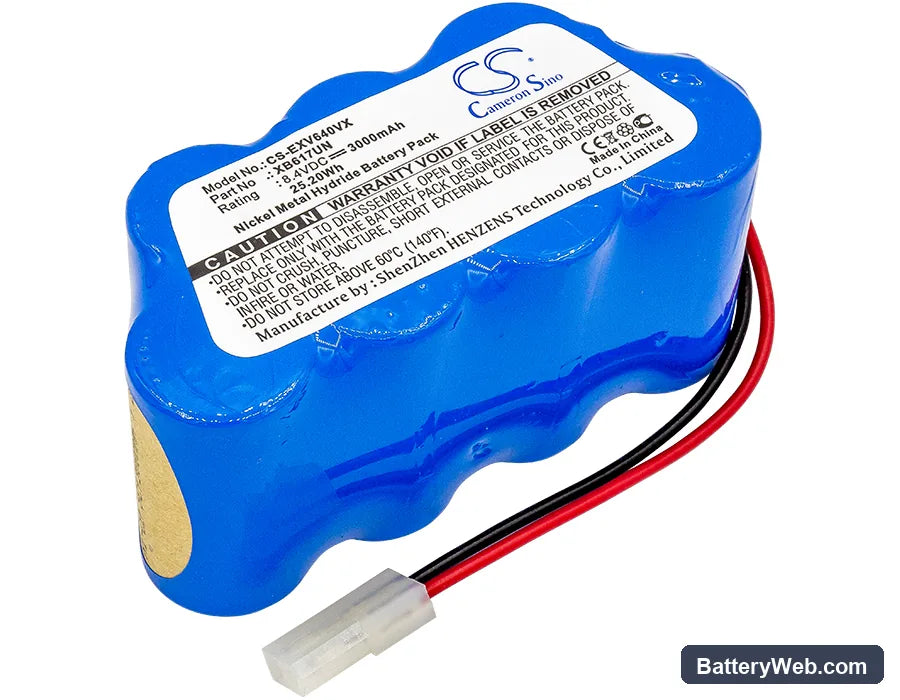

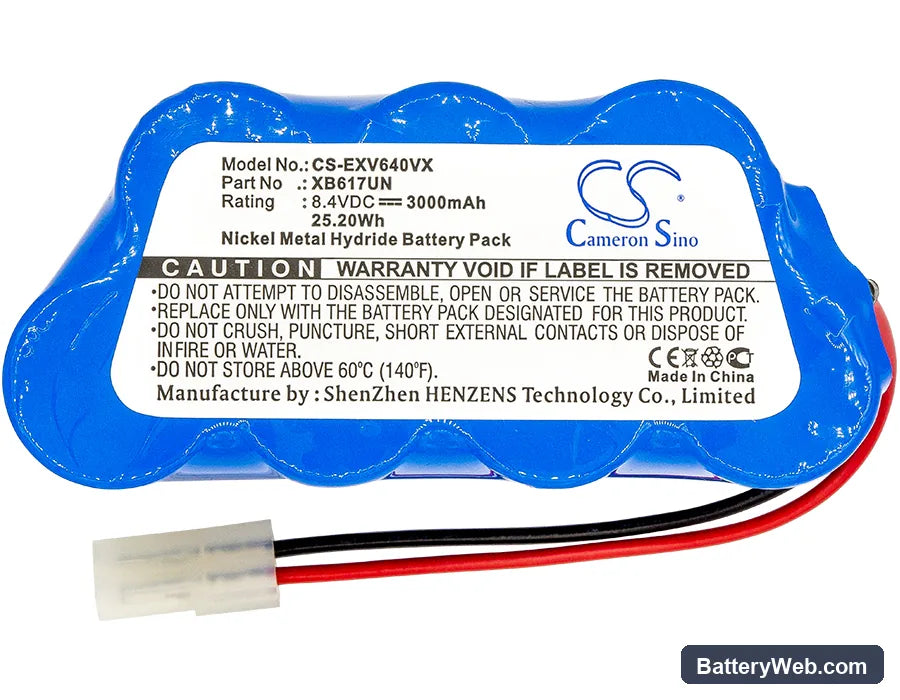

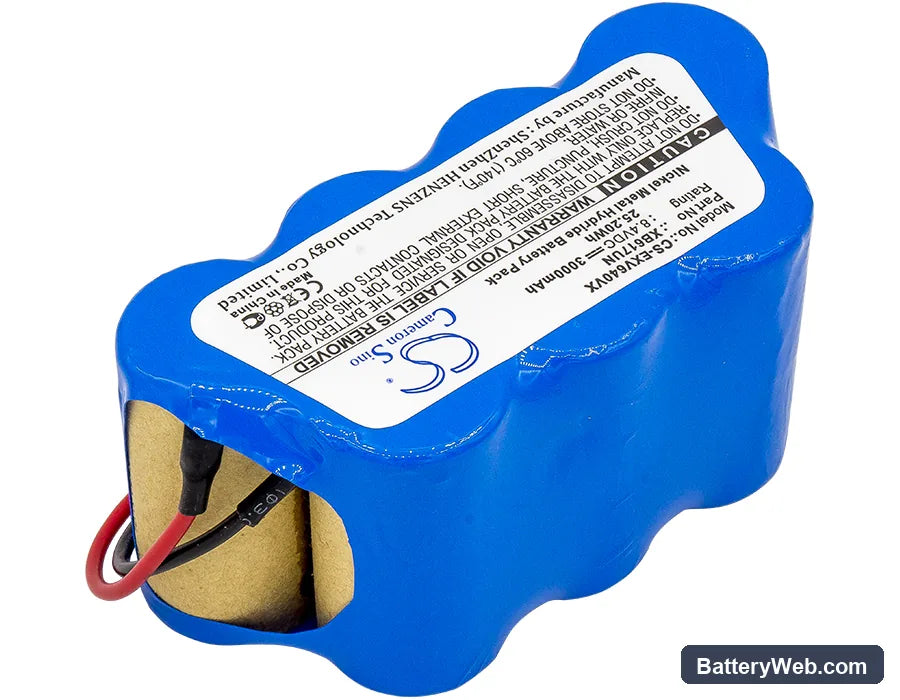

This is an 8.4V, 3000mAh Ni-MH battery pack built to replace the XB617UN in the Euro Pro UV617 cordless handheld vacuum. It fits the UV617, UV617R, UV647H, and UV647HB. Swap it in when the original cell no longer holds a charge and the vacuum loses suction well before the job is done.

• UV617 and UV647 series compatibility: These models share the same 8.4V Ni-MH battery bay, connector pinout, and charging circuit. One cell covers the full range without modification.
• Bench tested on actual hardware: We ran this pack through the UV617 charging cycle and confirmed the BMS accepted charge without fault flags. Discharge held steady voltage across multiple full cycles with no mid-cycle dropout.
• Dock charging on the UV617: Do not leave this vacuum sitting on the charging dock after the pack reaches full charge. Ni-MH cells in cordless vacuums suffer capacity fade faster from continuous trickle charge than from regular use cycles. Charge to full, then pull it off the dock.

Suction dropping before the battery indicator shows low on the UV617

Ni-MH cells in high-draw appliances like handheld vacuums show terminal voltage sag under motor load before the indicator circuit registers a low-battery condition. The UV617 motor draws peak current under restricted airflow — a partially clogged filter makes this worse. The result is reduced suction that looks like a weak battery but is actually a voltage sag event. Clean the filter first, then check resting pack voltage — a healthy 8.4V Ni-MH should read at or above 8.0V off charge.

Motor cuts out mid-use then recovers after a short pause

This is a BMS overcurrent trip, not a dead battery. When suction is blocked or the filter is restricted, the UV617 motor pulls sustained high current, and the protection circuit shuts the cell down to prevent damage. A short pause resets the trip and power returns. The fix is not a new battery — clear the blockage and clean or replace the filter. If cut-outs continue on a clean filter with a new pack, check that the motor brushes are not worn.
