BlueBird Pidion SF6510 Compatible Battery 3.85V 4850mAh

BlueBird Pidion SF6510 — 3.85V Li-ion Replacement Battery (BAT-500001)

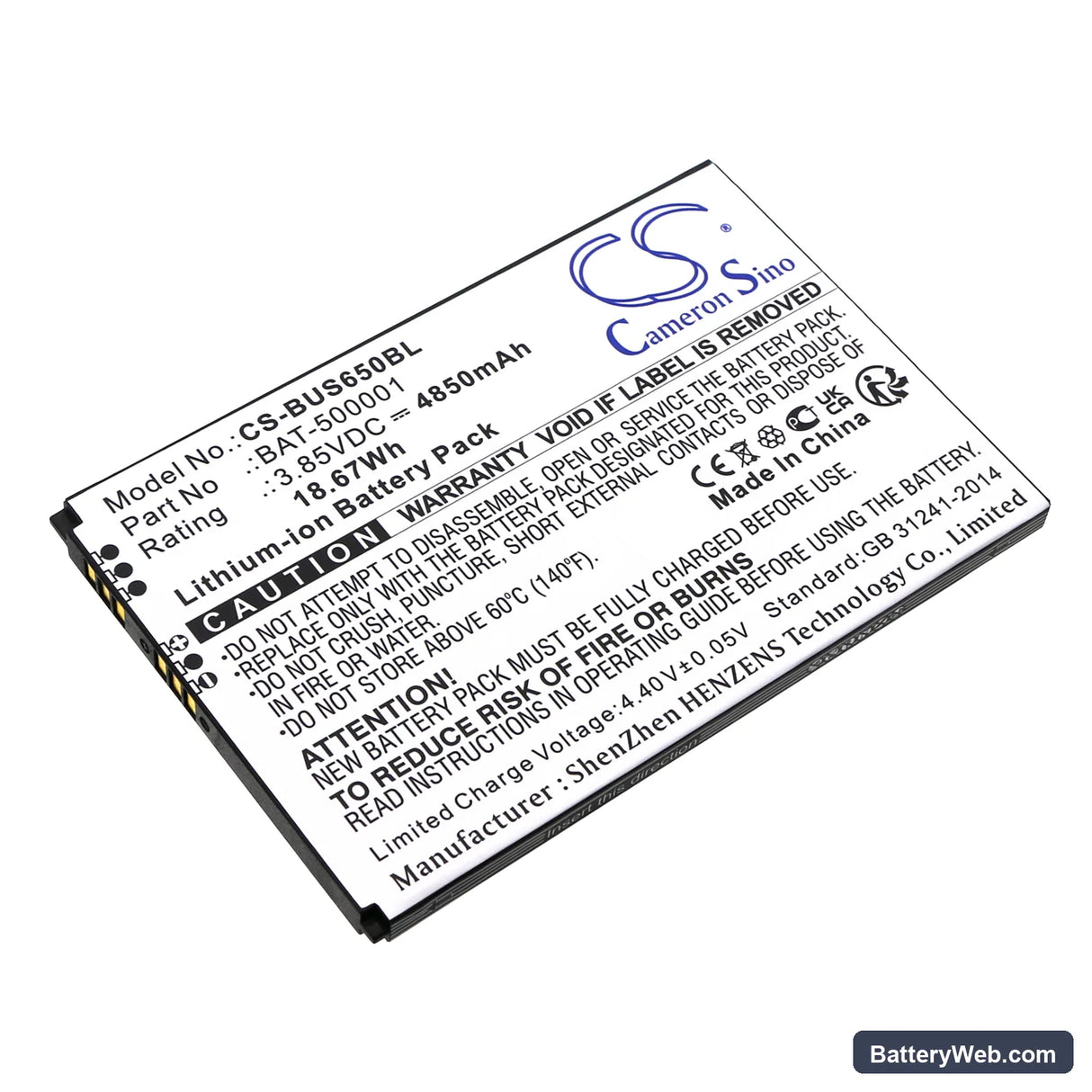

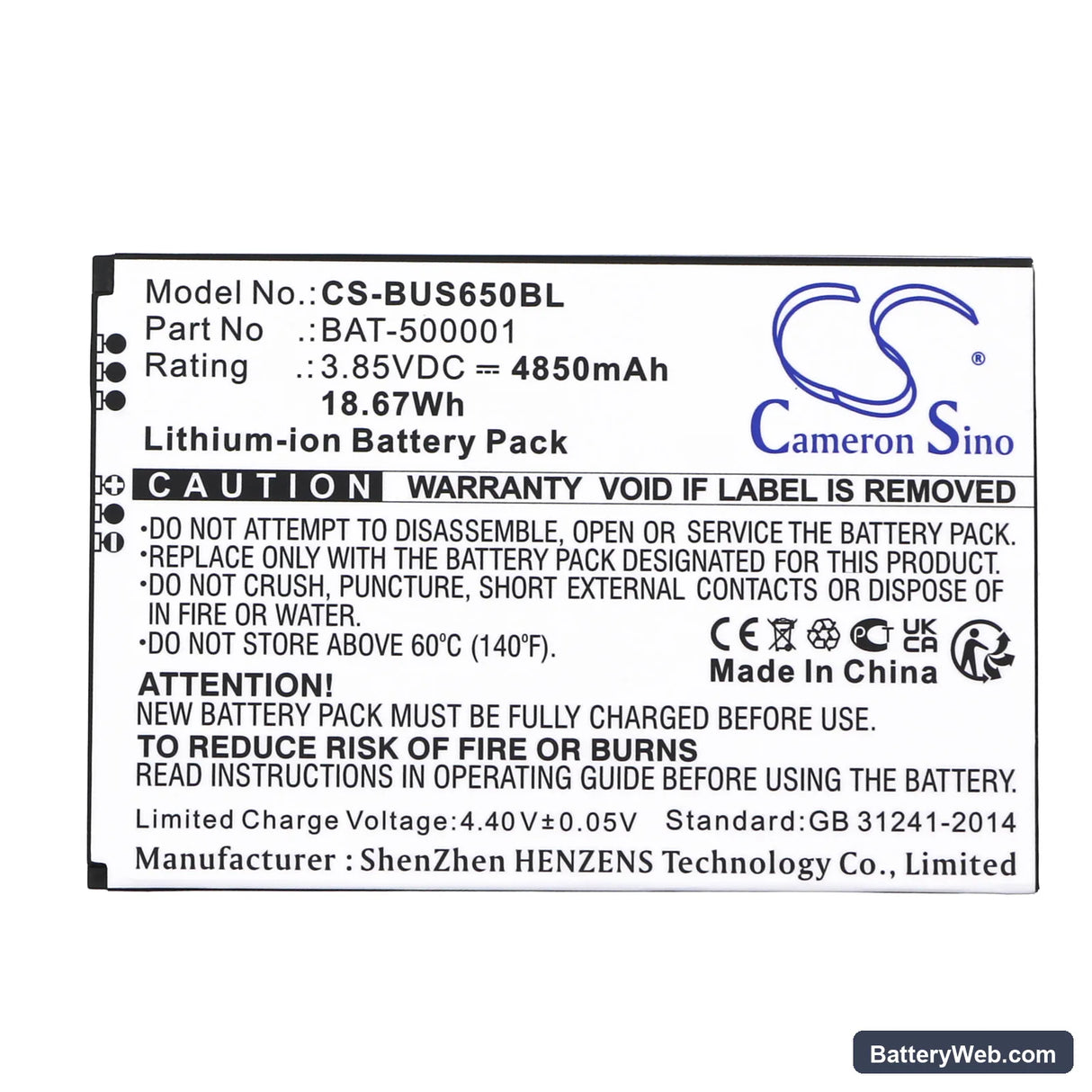

This is a 3.85V, 4850mAh Li-ion battery for the BlueBird Pidion SF6510 rugged handheld computer. It replaces OEM part BAT-500001 and fits the SF6510 directly. The SF6510 is a barcode scanner and mobile data terminal used in warehouse, retail, and logistics environments where consistent uptime matters.

• SF6510 platform fit: The Pidion SF6510 runs a 3.85V cell with a specific BMS handshake tied to the dock charging circuit. Swapping to any off-voltage cell will trigger a charge refusal at the cradle. This pack matches the voltage rail and communicates correctly with the SF6510's onboard battery management system.
• Bench tested on actual hardware: We ran this pack through repeated scan-trigger cycles combined with active wireless polling to simulate a full warehouse shift. The BMS held cutoff thresholds correctly and did not trip falsely during combined inrush events from the imager and radio firing simultaneously.
• First-shift conditioning for the SF6510: After installing, seat the scanner in its charging cradle for a complete charge cycle before beginning pick-and-pack. The scan trigger draws its highest inrush current when the cell is near minimum charge. A fully charged cell prevents the BMS from tripping false low-voltage cutoffs during the first scan burst of a shift.

Cradle showing a charging error on a new BAT-500001 pack

The SF6510 dock communicates with the battery BMS over a dedicated contact pin before it begins the charge cycle. If that handshake fails, the cradle throws a charge error rather than powering the cell. This is almost always a contact resistance issue, not a faulty pack. The dock contacts and the battery contact strip both oxidise over time, especially in environments with dust or humidity. Wipe the gold contacts on the pack and the cradle pins with a dry lint-free cloth, reseat the scanner firmly, and the charge indicator should clear within 30 seconds.

Scanner losing wireless connection during rapid scan bursts

On the SF6510, the imager and the wireless radio share the same power rail from the battery. During a rapid scan burst, both draw simultaneously — the imager fires for each label read while the radio transmits the decoded data. If the battery cell is aged or seated poorly, this combined inrush causes a momentary voltage sag that drops the radio below its minimum operating threshold, cutting the wireless link. Reseating the pack and ensuring full contact on all five pins resolves sag caused by contact resistance. If the drop persists on a new pack, check that the battery latch is fully engaged — even 0.5mm of misalignment increases resistance enough to trigger the sag.
