M3 Mobile UL20F Barcode Scanner Replacement Battery 3.7V 6800mAh

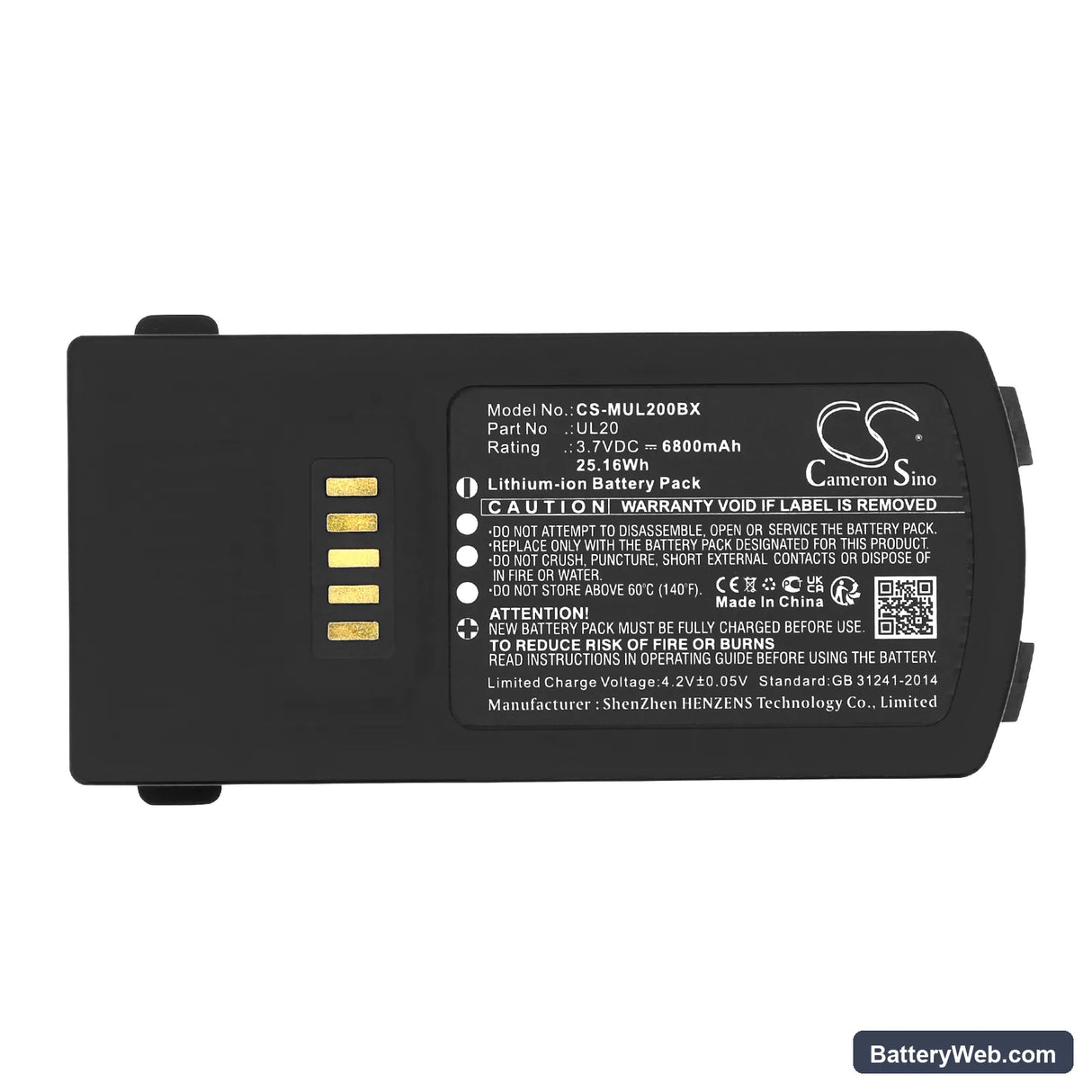

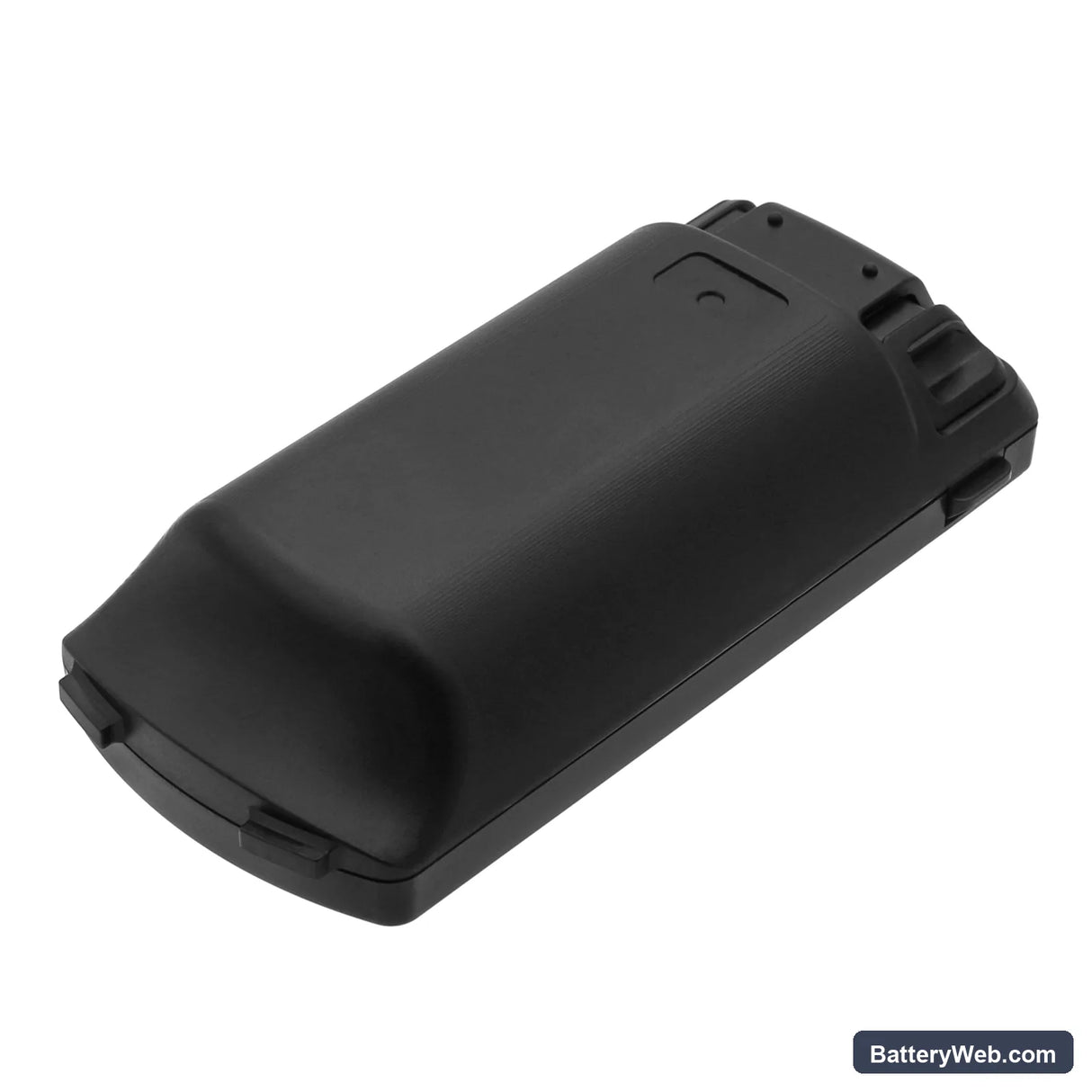

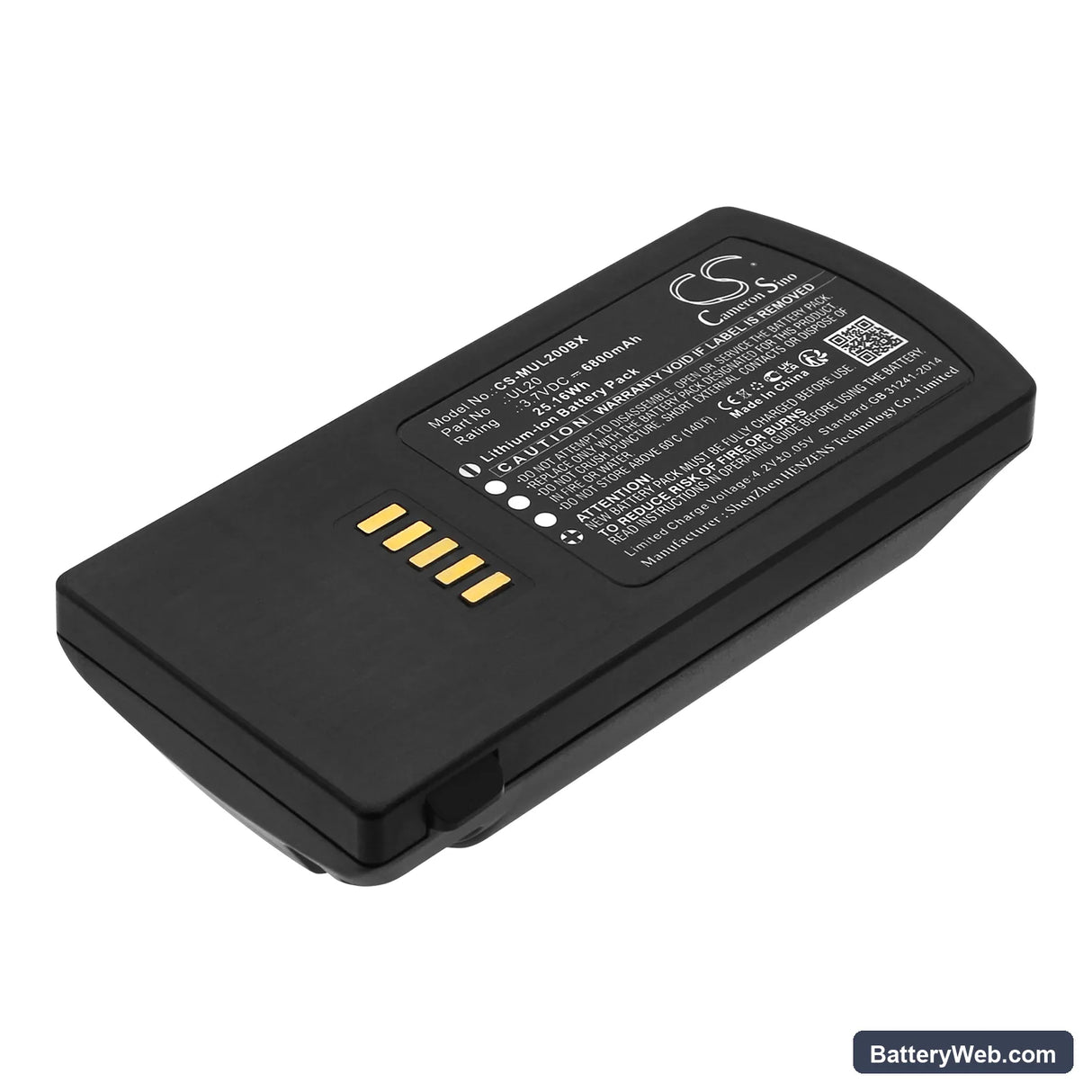

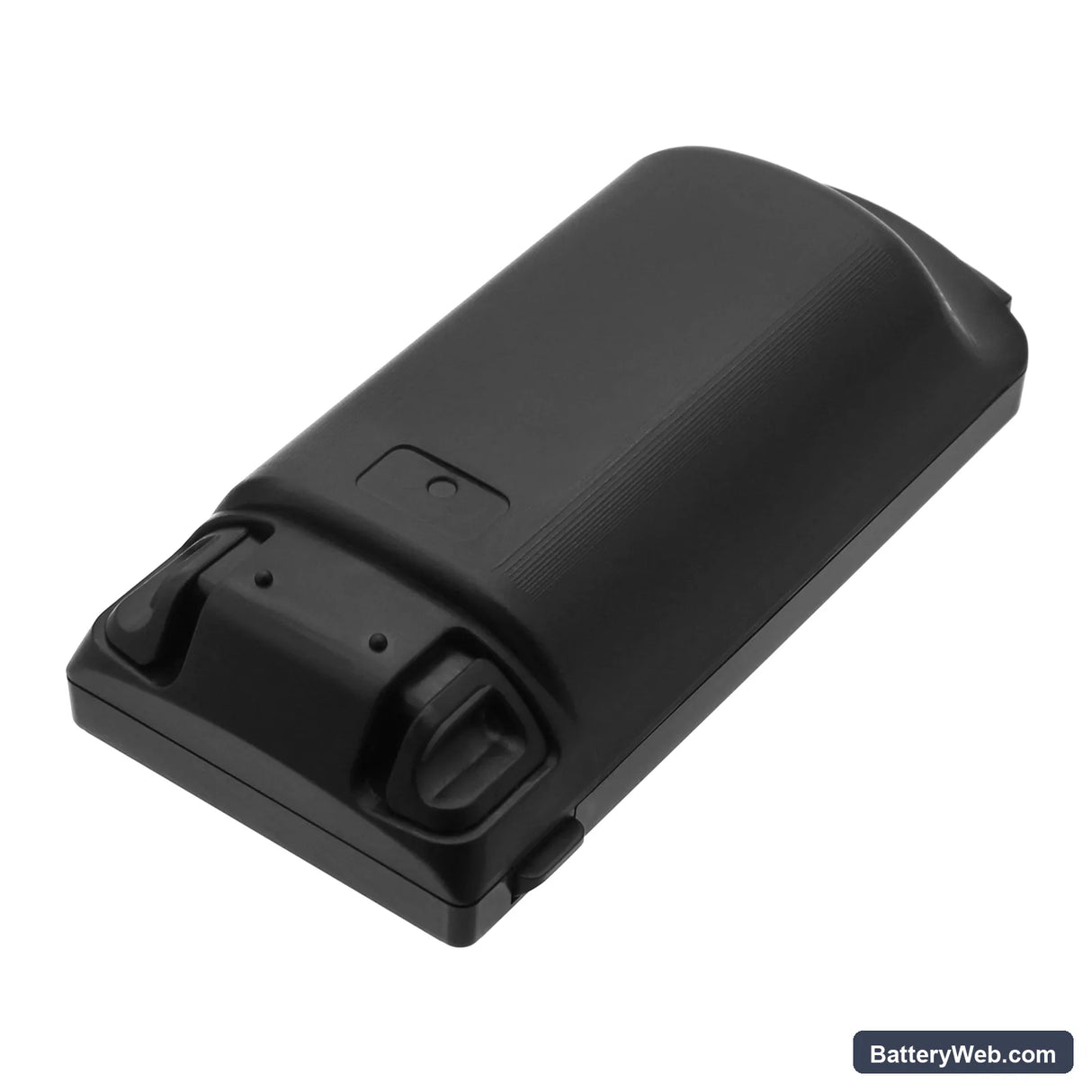

M3 Mobile UL20F / UL20 — 3.7V Li-ion Replacement Battery (UL20-BATT-F67)

This is a 3.7V, 6800mAh Li-ion battery built to replace the OEM pack in the M3 Mobile UL20F and UL20 rugged handheld computers. These devices run in retail, logistics, and warehouse environments where continuous scanning across full shifts is non-negotiable. The UL20-BATT-F67 part number is the direct reference for both the UL20F and UL20 variants.

• UL20F and UL20 compatibility: Both models share the same battery bay geometry, connector pinout, and BMS communication protocol. One pack covers both devices without modification.
• Bench tested on actual hardware: We ran this pack through full charge cycles on the UL20 platform and monitored BMS handshake, cell balance, and charge acceptance. The protection circuit responded correctly to over-discharge and over-temperature triggers throughout testing.
• First-shift preparation: After installing this pack, seat the UL20 in its cradle and run a complete charge cycle before starting pick-and-pack. The scan trigger draws a sharp inrush current, and a cell sitting below 30% charge is most vulnerable to a BMS trip on that first trigger pull. A full charge before the shift eliminates that failure point.

Cradle showing a charging error after fitting a new pack

The UL20 cradle reads battery state through pogo-pin contacts on the base of the device. If those contacts are dirty or the pack is not fully seated, the dock reports a fault even though the pack itself is fine. Carbon residue from the old battery and dust from warehouse environments both increase contact resistance past the threshold the dock's charge controller accepts. Wipe the gold contacts on both the battery and the cradle with a dry lint-free cloth, reseat firmly, and the charge indicator should clear within 30 seconds.

Scanner losing wireless connection during rapid scan bursts

During a fast scan sequence, the UL20 pulls current simultaneously from the imager, the wireless radio, and the processor. Combined inrush on a low or degraded cell can cause a momentary voltage sag that the radio interprets as a power fault, dropping the connection. This is more common when the replacement pack has not yet completed its first full charge cycle. Charge the pack to 4.2V before the first shift and the voltage rail stays stable under combined load, keeping the radio association intact.
