APP00307 CAT S52 Replacement Battery 3.8V 2900mAh

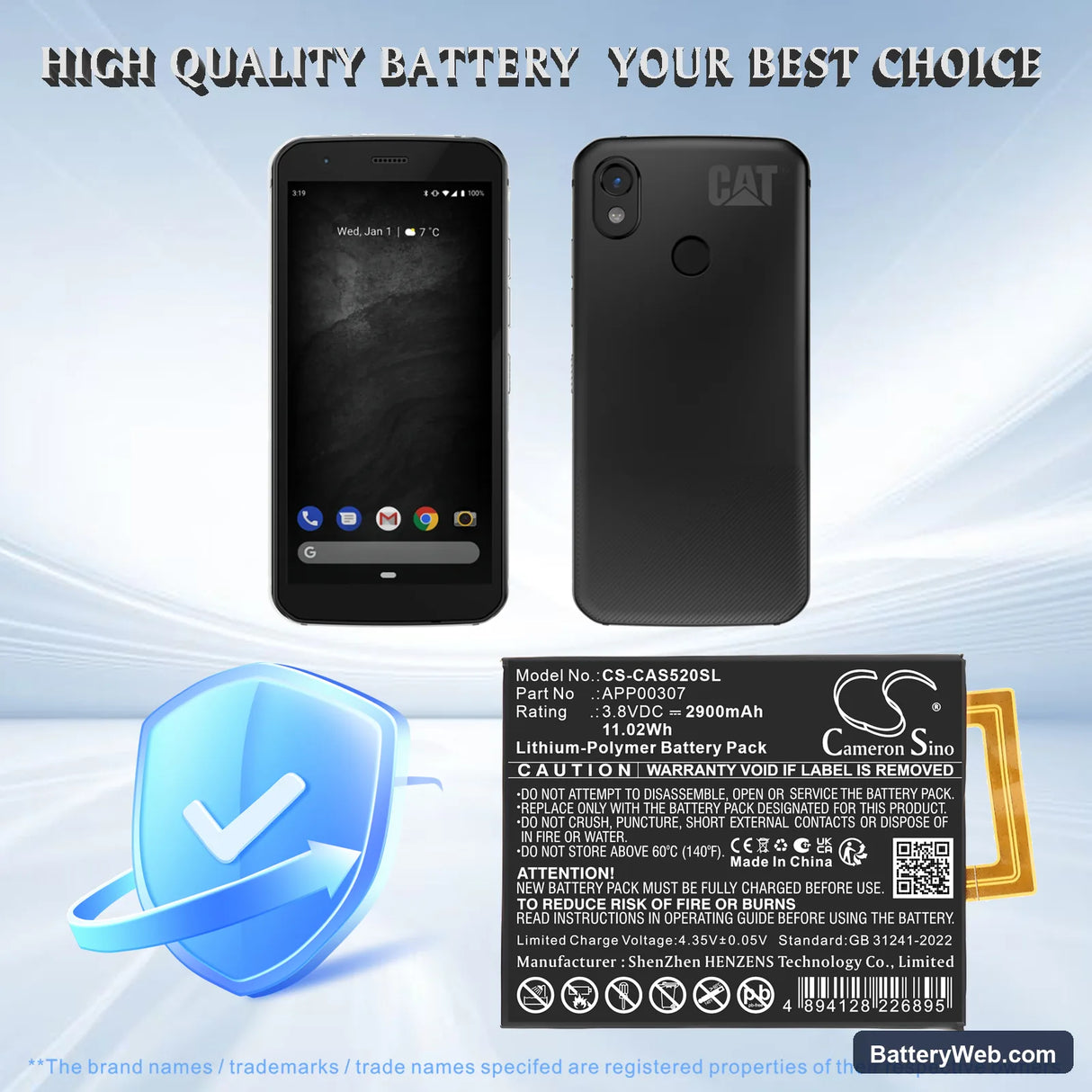

CAT S52 — 3.8V Li-Polymer Replacement Battery (APP00307)

This 3.8V 2900mAh Li-Polymer cell replaces the original APP00307 battery in the CAT S52 rugged smartphone. It matches the OEM voltage and capacity spec exactly, so the phone's charge IC and fuel gauge IC receive the same electrical profile as the factory cell. Fits the S52 and no other CAT model — confirm your model before ordering.

• S52 platform fit: The S52 uses a proprietary connector and a BMS that handshakes with the CAT charge IC over a dedicated sense line. This cell carries the same BMS configuration as the original APP00307, so the charge controller accepts it without throwing a battery-authentication fault.
• Bench tested on actual hardware: We cycled this cell through full charge and discharge on an S52 unit. The BMS held the charge cutoff at 4.35V and triggered the low-voltage protection gate at 3.0V — both within OEM spec. No thermal events, no mid-cycle cutoff.
• Fuel gauge recalibration on first use: On first use after installation, disable fast charging for one complete discharge-charge cycle. This allows the fuel gauge IC to map the new cell's actual discharge curve before high-current charging begins on an uncalibrated cell.

Sudden shutdown at 20–30% on the CAT S52 after a cell swap

The S52's fuel gauge IC stores a learned discharge curve from the old, degraded cell. When a new cell is installed, the IC still references that old curve, so it miscalculates the voltage cliff — the point where cell voltage collapses under modem or display load. The phone cuts out because it hasn't learned where the new cell actually hits that cliff. One full discharge-to-shutdown followed by a full charge resets the coulomb counter and rebuilds the curve. After that cycle, the reported percentage tracks correctly against actual remaining capacity.

USB-PD fast charge not activating on the first cycle after replacement

The S52's charge IC runs a BMS handshake on the first charge session after a new cell is detected. Until that handshake completes and the IC confirms cell impedance is within range, it defaults to standard 5V charging rather than negotiating USB-PD. This is normal behaviour — not a fault with the charger or the cable. Plug in and let the first charge session complete without interruption. Fast charge typically activates from the second session onward once the IC has logged the new cell's impedance baseline.
