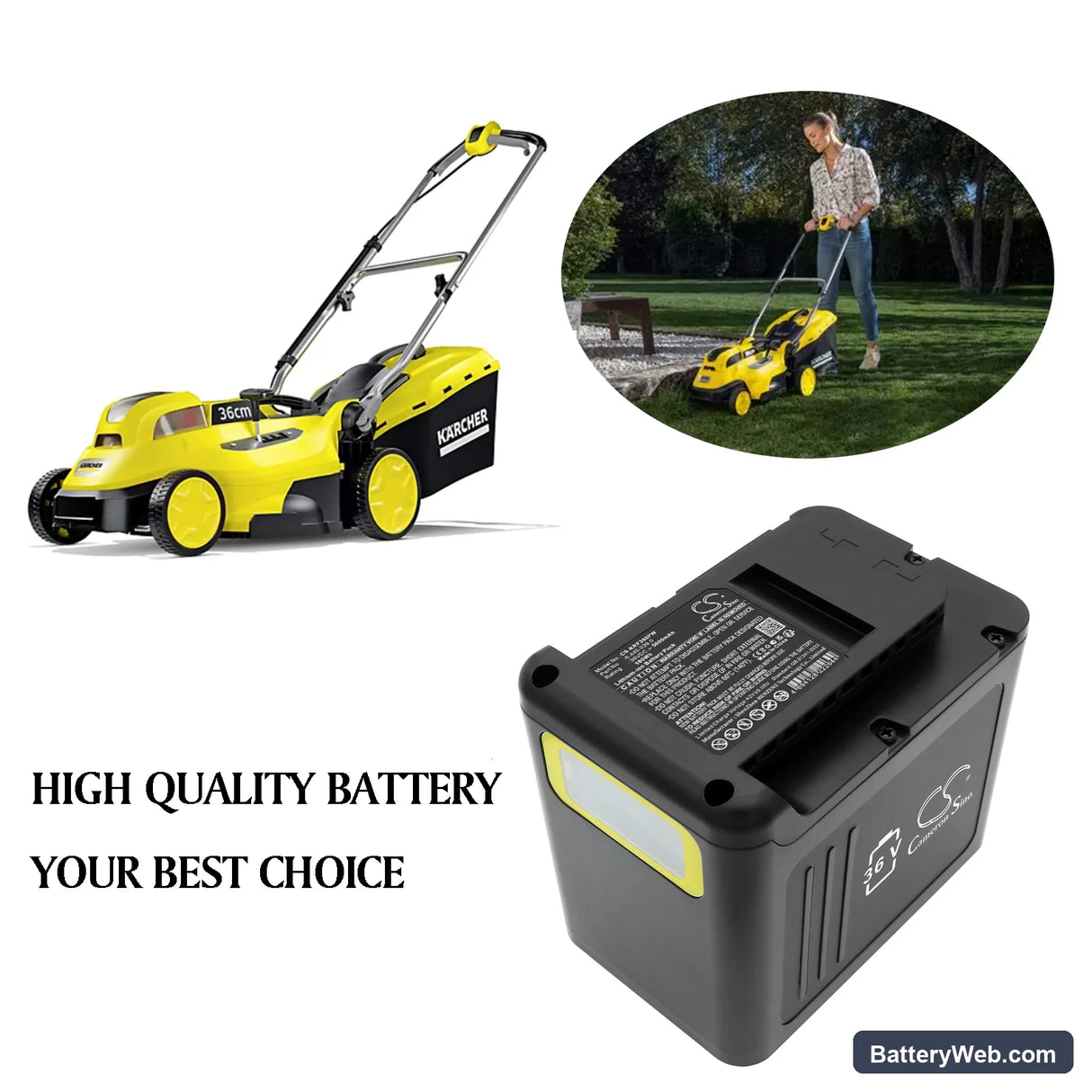

Kärcher LMO 36-40 Replacement Battery 36V 2000mAh Li-ion

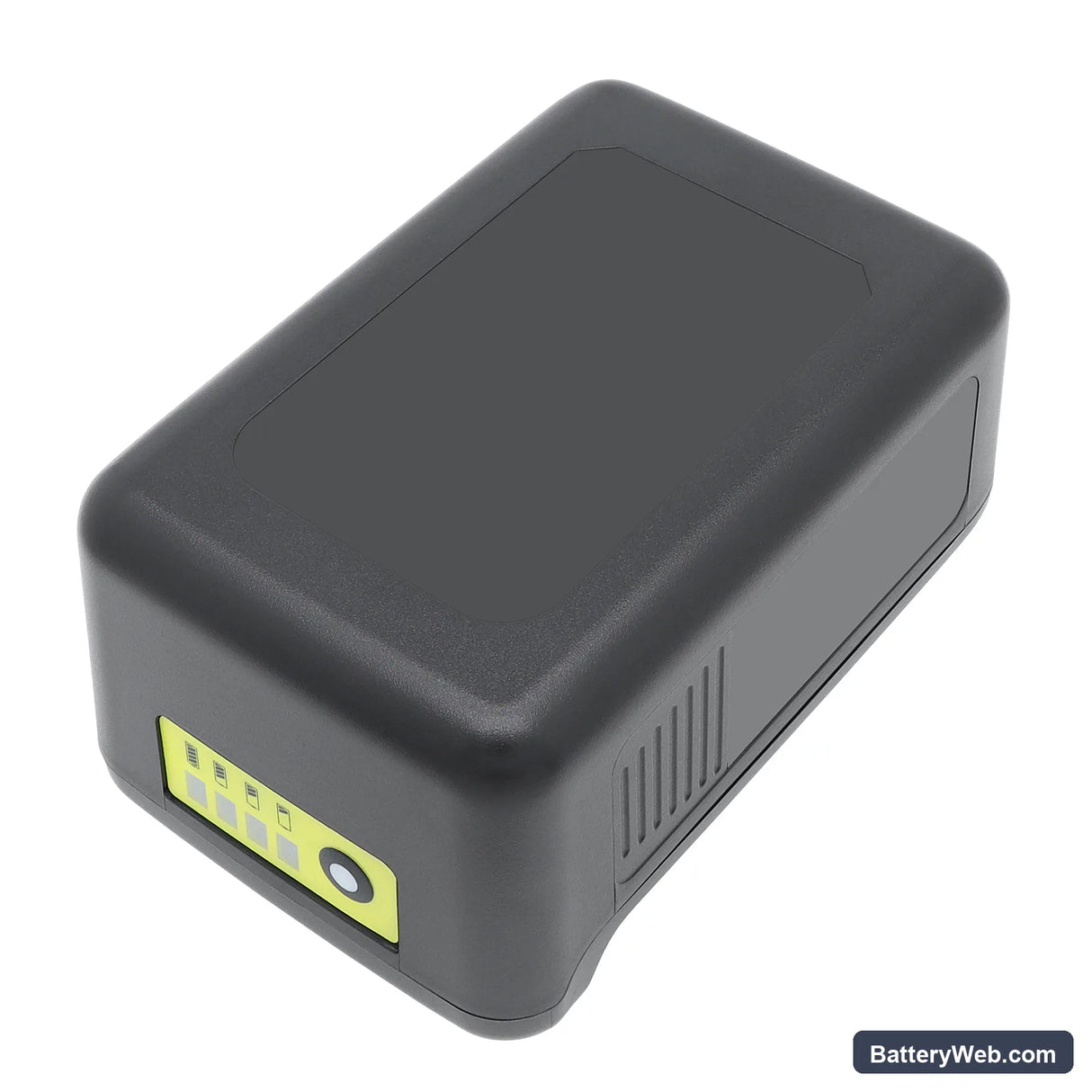

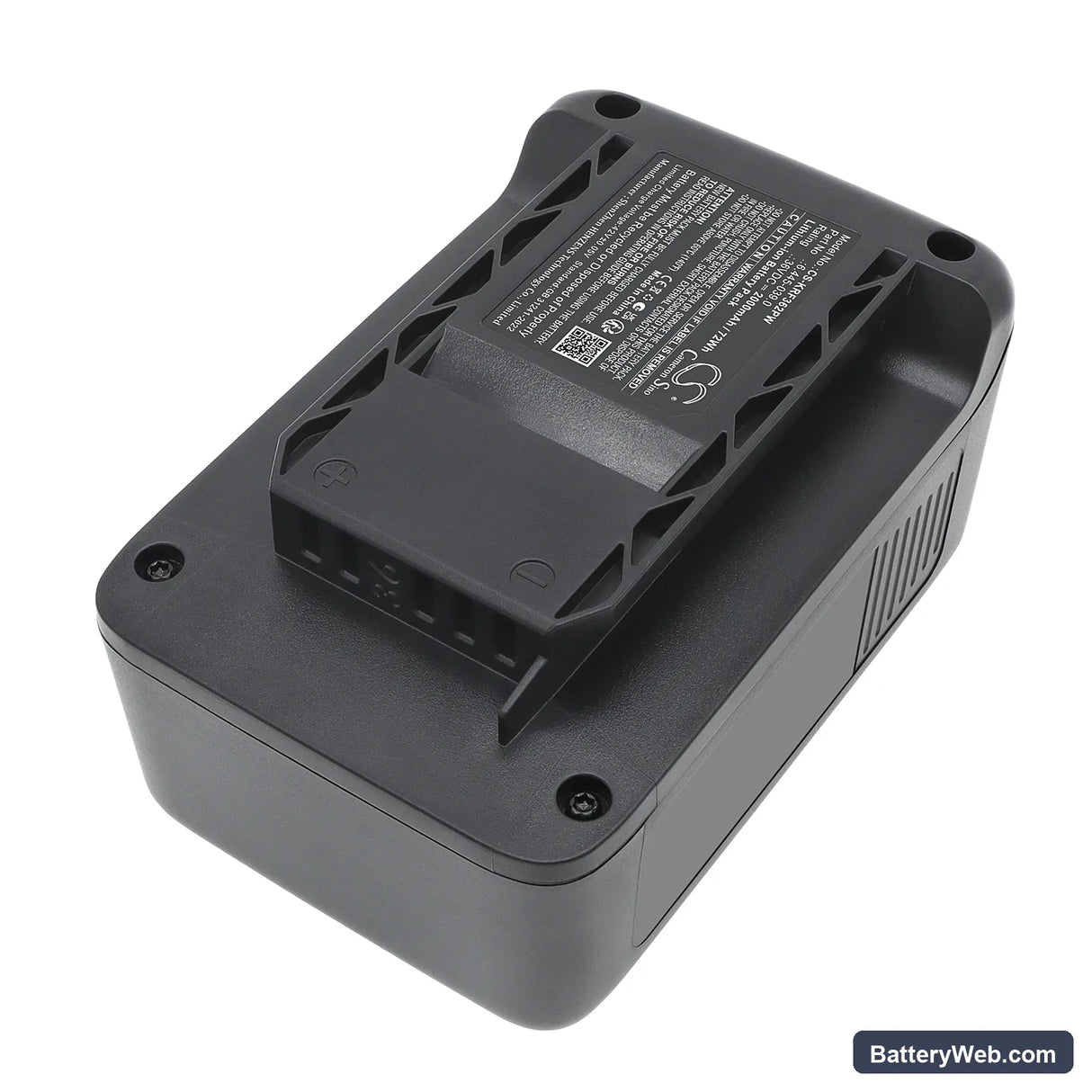

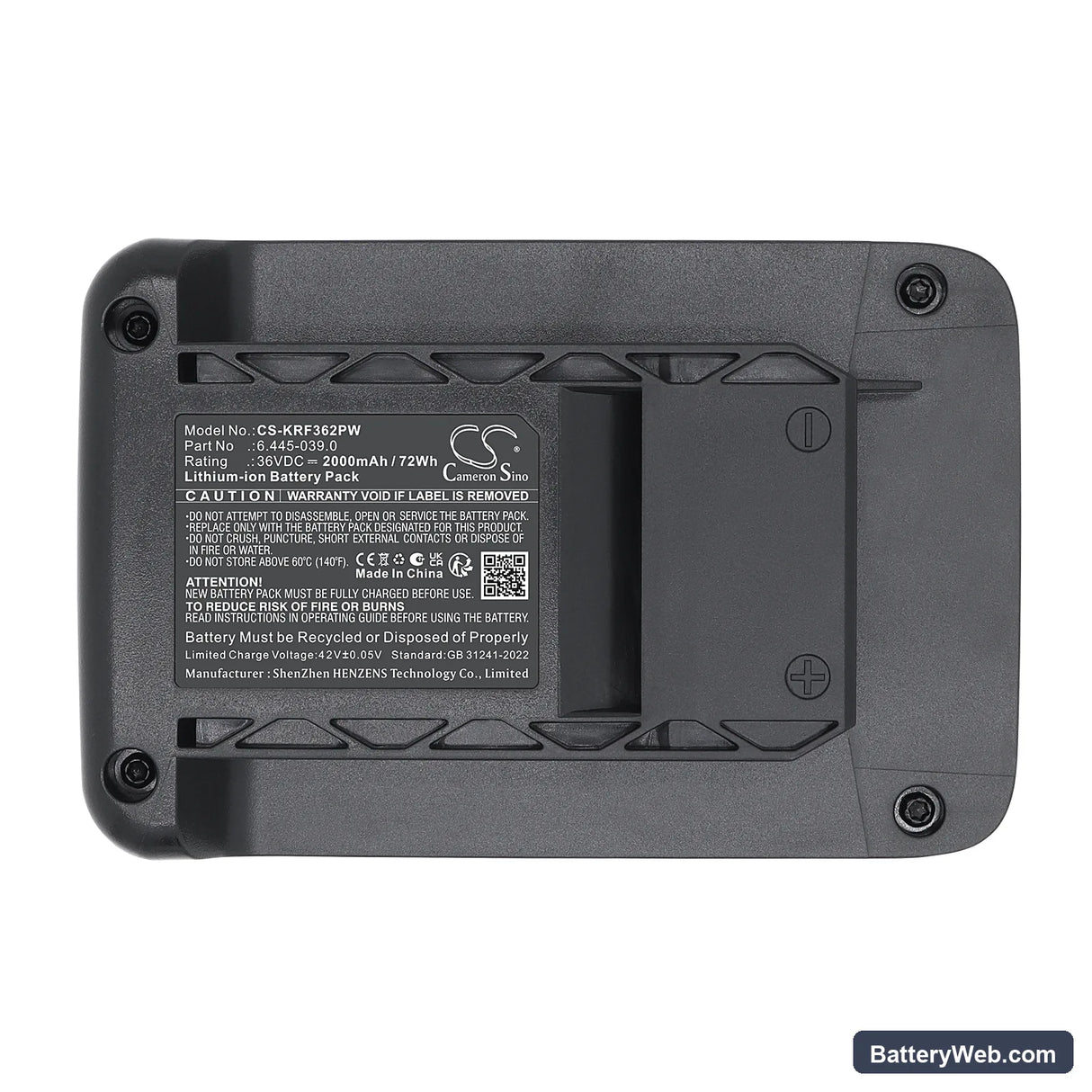

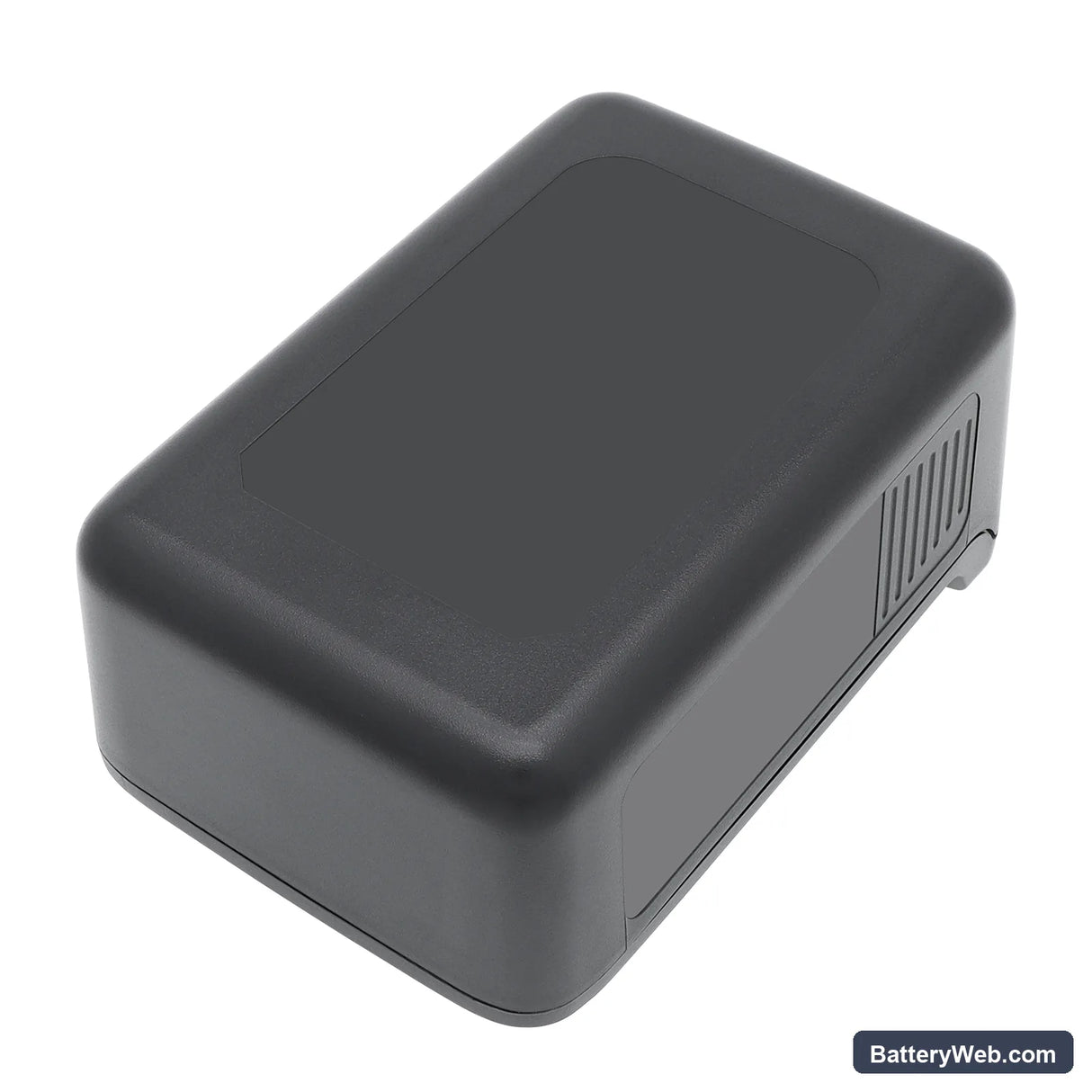

Karcher LMO 36-40 / LMO 36-46 — 36V Li-ion Replacement Battery (6.445-039.0)

This 36V 2000mAh (72Wh) Li-ion battery replaces the OEM pack on the Karcher Cordless Lawn Mower LMO 36-40 and LMO 36-46. It also fits the Karcher Leaf Blower 36V LBL 4 and K2 platform tools that share the same 36V battery dock. Voltage, connector, and BMS communication match the original specification.

• LMO 36-40, LMO 36-46, LBL 4 compatibility: These tools share the same 36V sliding-rail dock and battery handshake protocol. The BMS in each tool reads cell voltage and temperature data from the pack before releasing motor power — the same communication stack runs across this entire Karcher 36V garden platform.
• Bench tested on actual hardware: We cycled this pack through full discharge and recharge on a 36V motor rig, monitoring BMS cutoff thresholds and cell balance across the discharge curve. All cells held within 50mV variance at the end of each discharge cycle, and the BMS tripped cleanly at the low-voltage cutoff without latching.
• Seasonal first-use conditioning: After winter storage, charge this battery fully before the first cut of the season, then run the mower at half-blade-load for two cycles before tackling dense or wet grass. Cold-stored Li-ion cells deliver reduced capacity on the first discharge — conditioning lets the cells recover to rated output before facing peak motor inrush on heavy turf.

LMO 36-40 cutting out mid-run on blade contact with dense grass

When the blade hits a thick patch, motor inrush current spikes sharply — often 3–4× the steady-state draw. If the pack's internal resistance is elevated, that spike causes a rapid voltage sag. The BMS reads the sag as an undervoltage fault and cuts power to protect the cells. On a new pack that hasn't completed conditioning cycles, internal resistance is slightly higher than rated, making this cutout more likely in the first few uses. Run two lighter sessions first, and the cells will reach rated impedance.

Charger shows no activity after the battery sat unused all winter

Li-ion packs self-discharge at roughly 2–3% per month. After several months in storage, total cell voltage can fall below the charger's acceptance threshold — typically around 2.5V per cell. Most Karcher chargers will not begin a charge cycle on a pack below this floor as a safety measure. To recover the pack, place it in the charger and leave it for up to 30 minutes — many chargers run a trickle pre-charge mode at low current to bring cell voltage back above the 2.5V-per-cell floor before switching to standard CC/CV charging.
