CleanMate LDS700 Replacement Battery 14.4V 2600mAh

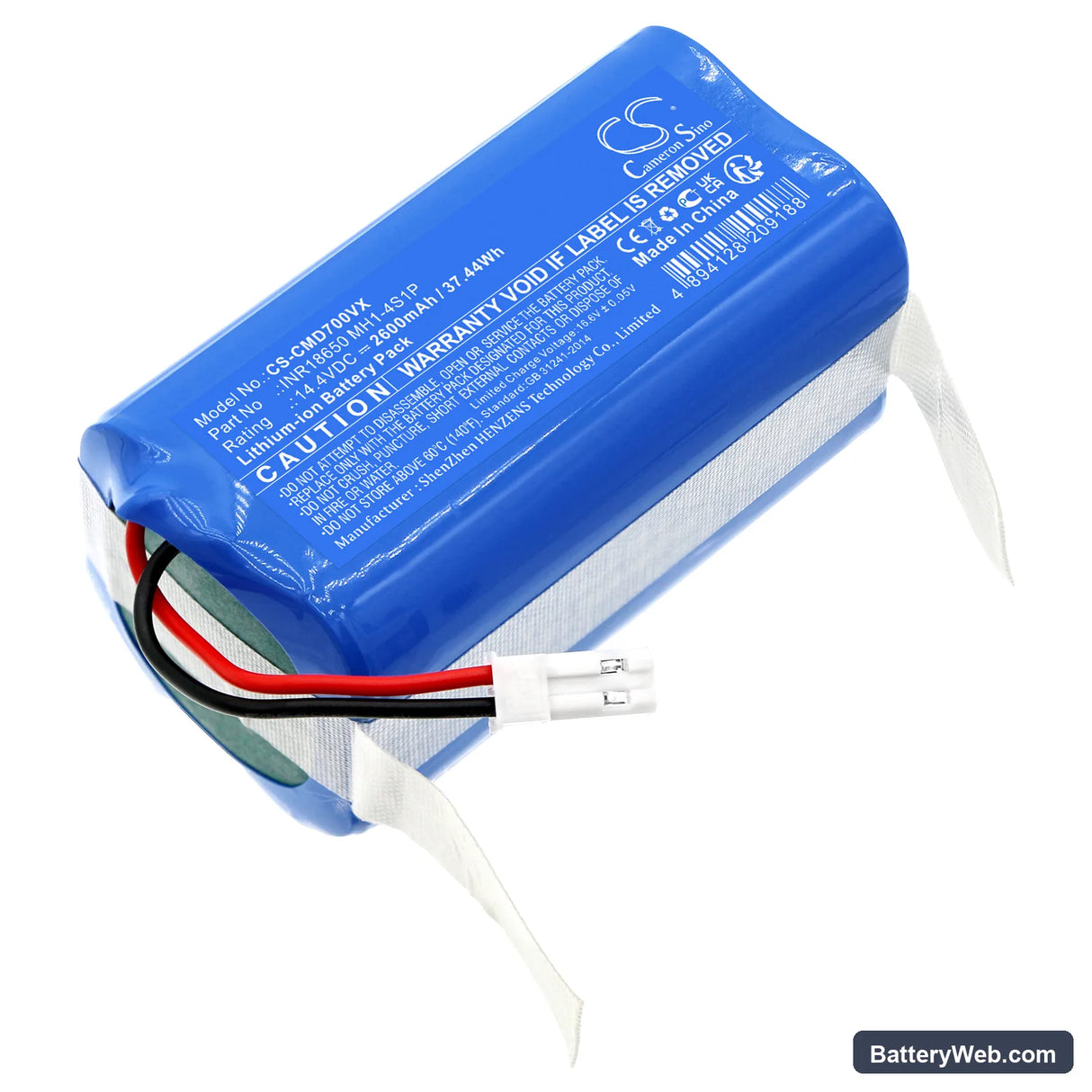

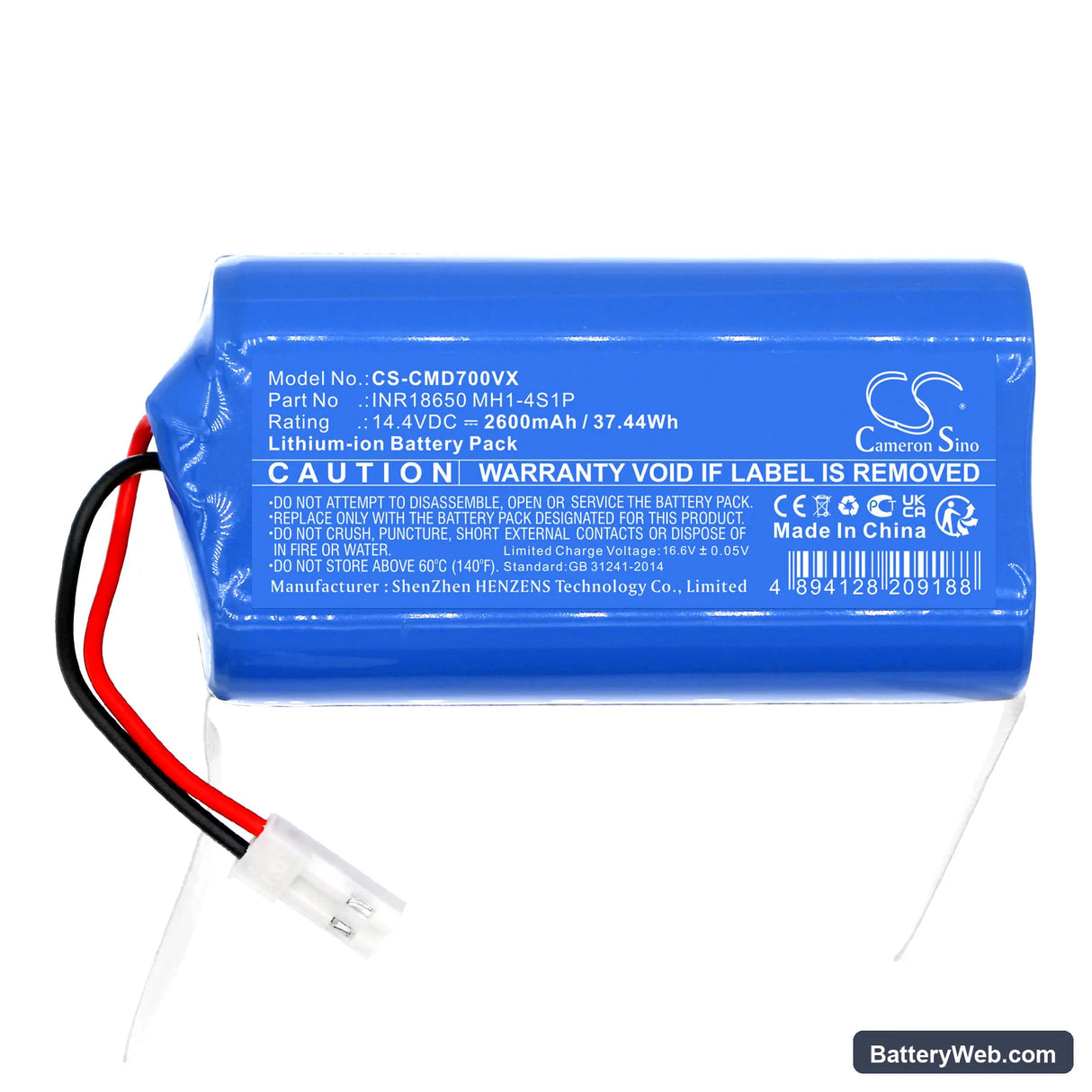

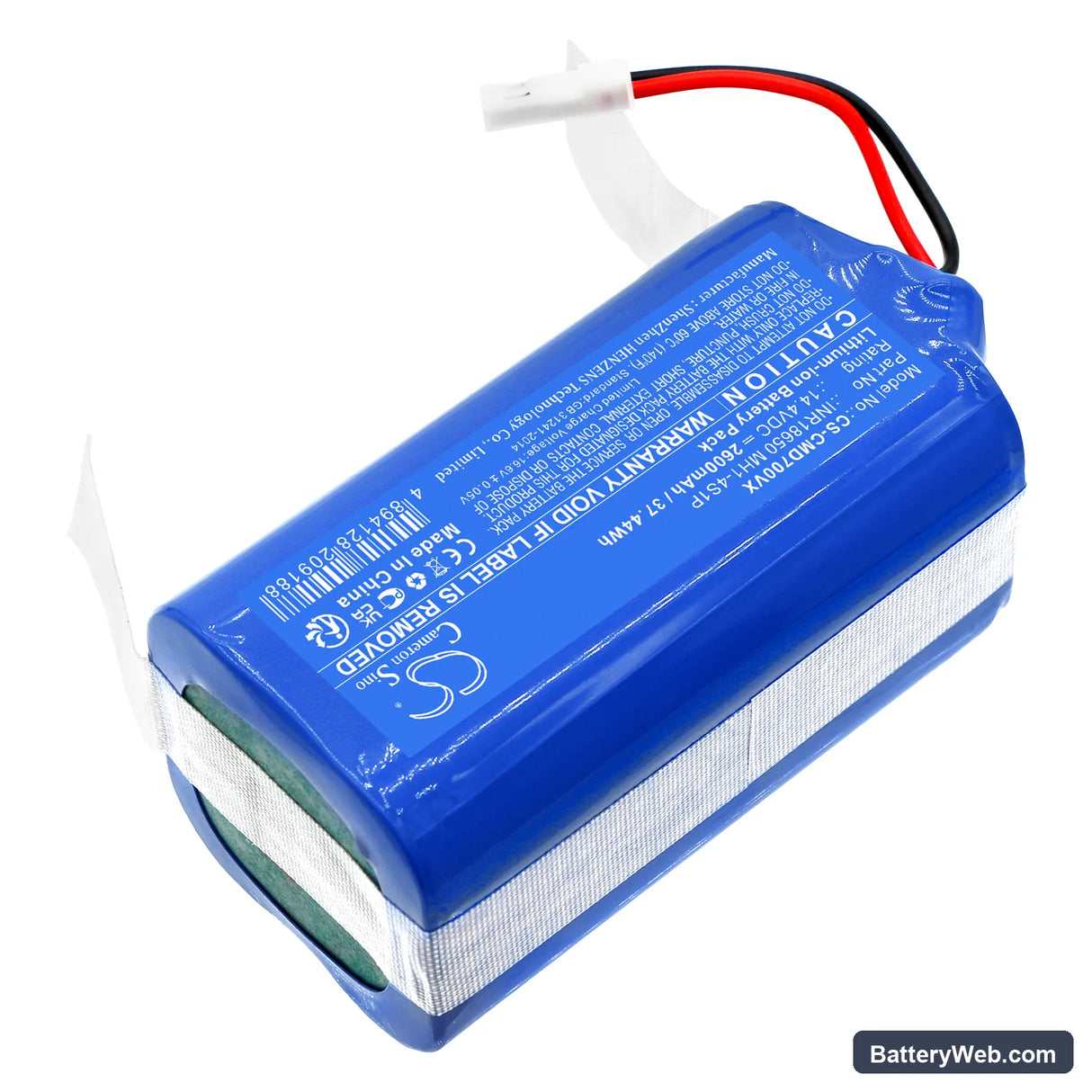

CleanMate LDS700 — 14.4V Li-ion Replacement Battery (INR18650 MH1-4S1P)

This is a 14.4V, 2600mAh Li-ion battery pack for the CleanMate LDS700 robotic vacuum. It replaces the original INR18650 MH1-4S1P cell configuration that powers the drive motors, suction system, and LDS navigation unit. When the original degrades, suction weakens and cleaning cycles shorten — this pack restores the voltage the LDS700 needs to run full cleaning passes.

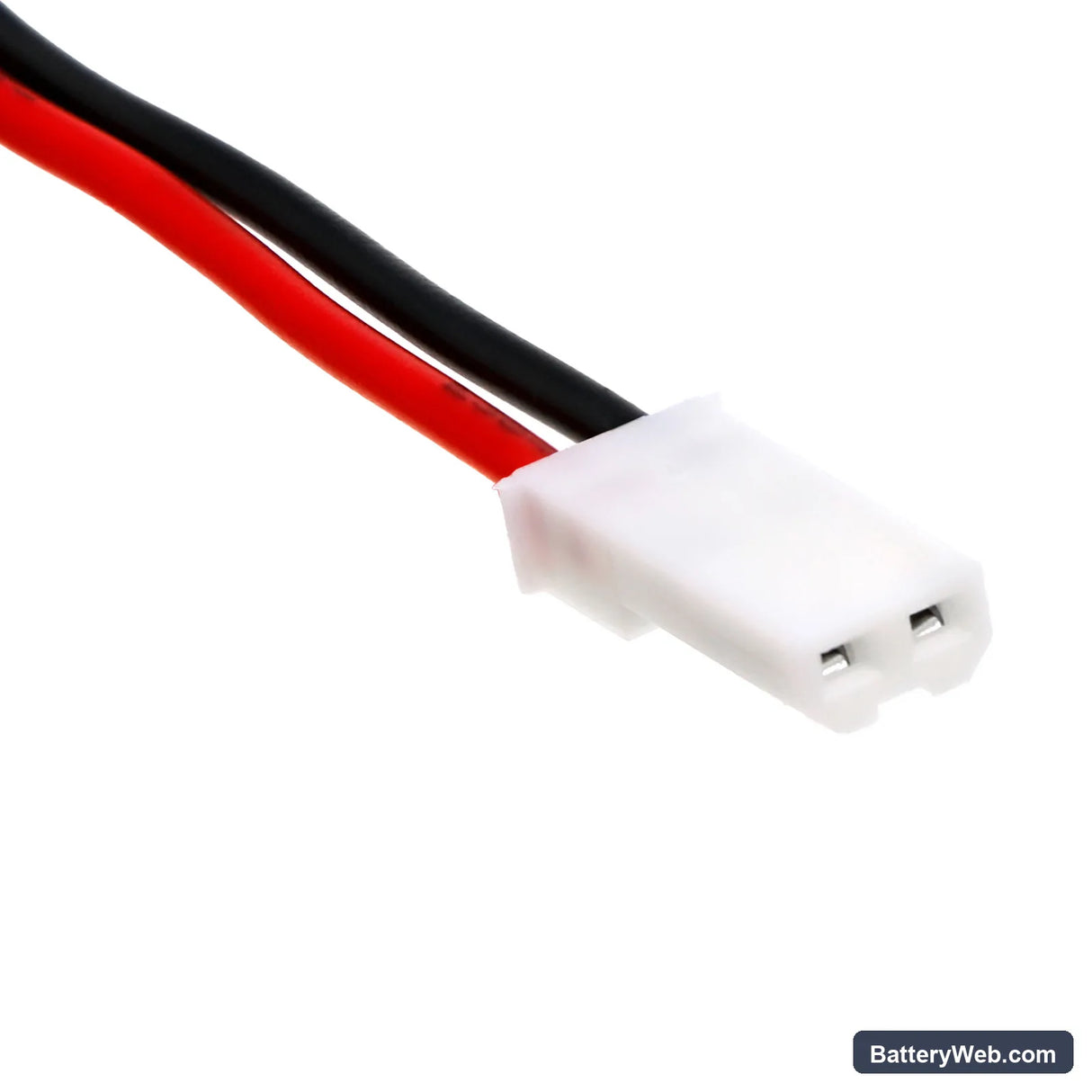

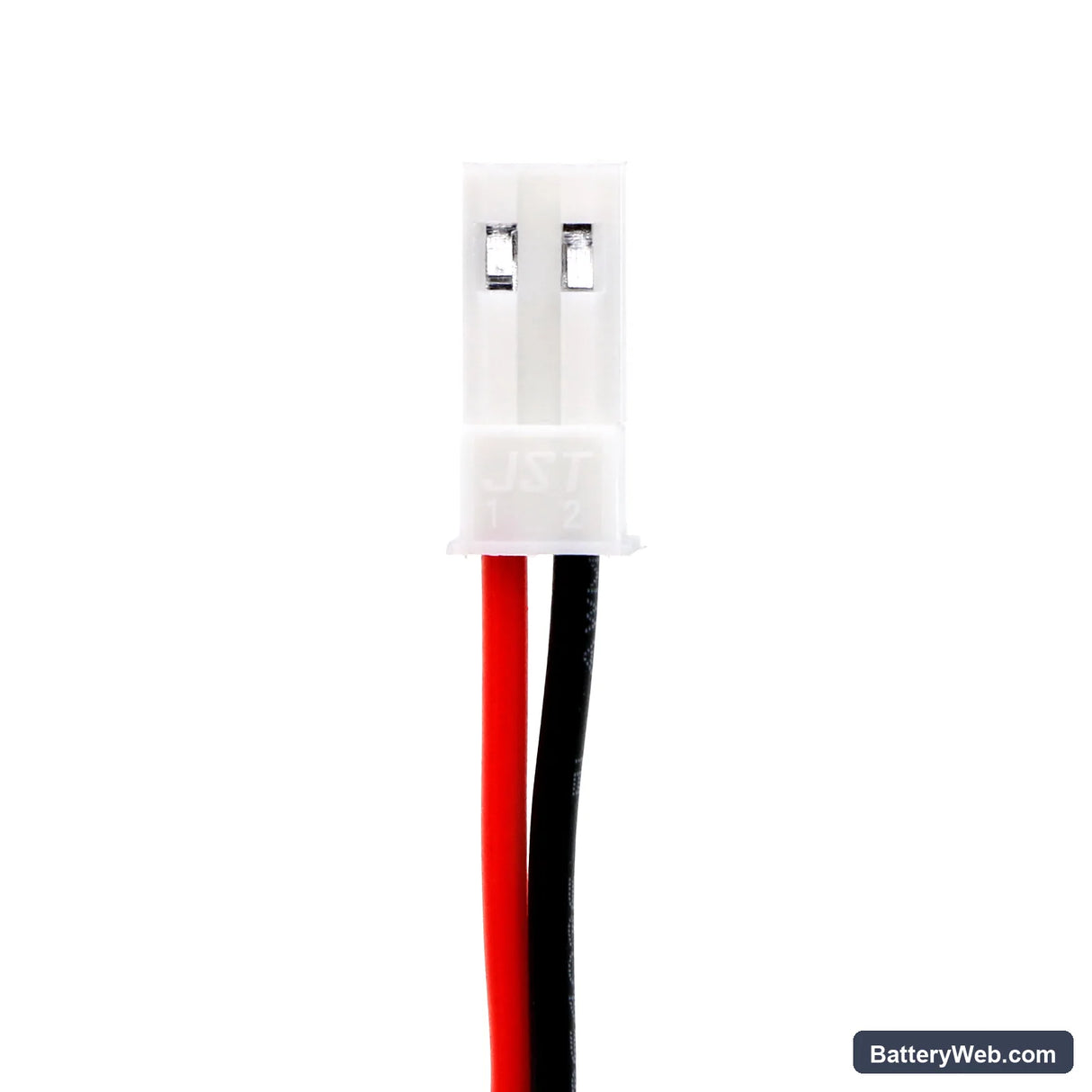

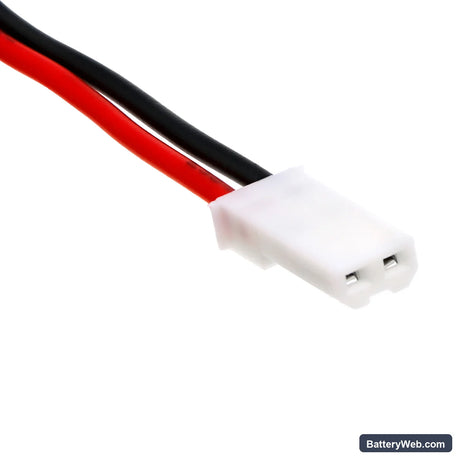

• LDS700 platform fit: The LDS700 uses a 4S1P cell arrangement running at a nominal 14.4V to supply both the suction motor and the laser distance sensor navigation board. This pack matches that cell layout and connector, maintaining the voltage rail the BMS expects to see on startup.
• Bench tested on actual hardware: We ran this pack through the LDS700's charge and discharge cycle. The BMS correctly handled charge termination, cell balancing across all four cells, and overcurrent cutoff when we induced a blocked-filter draw condition.
• Dock charging habit on the LDS700: Do not leave the LDS700 sitting on the dock between cleaning sessions indefinitely. Continuous trickle current from the dock degrades cell capacity faster than standard charge cycles. Charge the pack to full, then remove the unit from the dock until the next use.

Suction dropping before the battery indicator reaches low on the LDS700

This happens when the suction motor draws more current than rated due to a partially blocked filter or brush roll, pulling the pack voltage down prematurely. The BMS reads the voltage sag as a low-charge condition and the unit reduces power before the indicator reflects true state of charge. It is not always a battery fault — clean the filter and brush roll first, then retest. If the sag continues with a clear filter, the cell pack has lost capacity and needs replacing; a healthy pack under normal load should hold above 13.5V during operation.

LDS700 motor cutting out mid-cycle then recovering after a few seconds

This is a BMS overcurrent trip, not a charging fault. When suction is restricted — blocked filter, tangled brush roll, or a tight carpet pile choking airflow — the motor pulls a sustained current spike that crosses the BMS cutoff threshold. The BMS disconnects the load, the motor stops, and after a short recovery window it reconnects. Clear the blockage and the trips stop. If the unit trips on a clean filter and open floor, the cell pack's internal resistance has risen enough that normal motor-start draw is triggering the cutoff — replace the battery.
