Concept VR3120 14.4V Cordless Vacuum Replacement Battery 5200mAh

Concept VR3120 / VR3210 / VR3520 — 14.4V Li-ion Replacement Battery (106465)

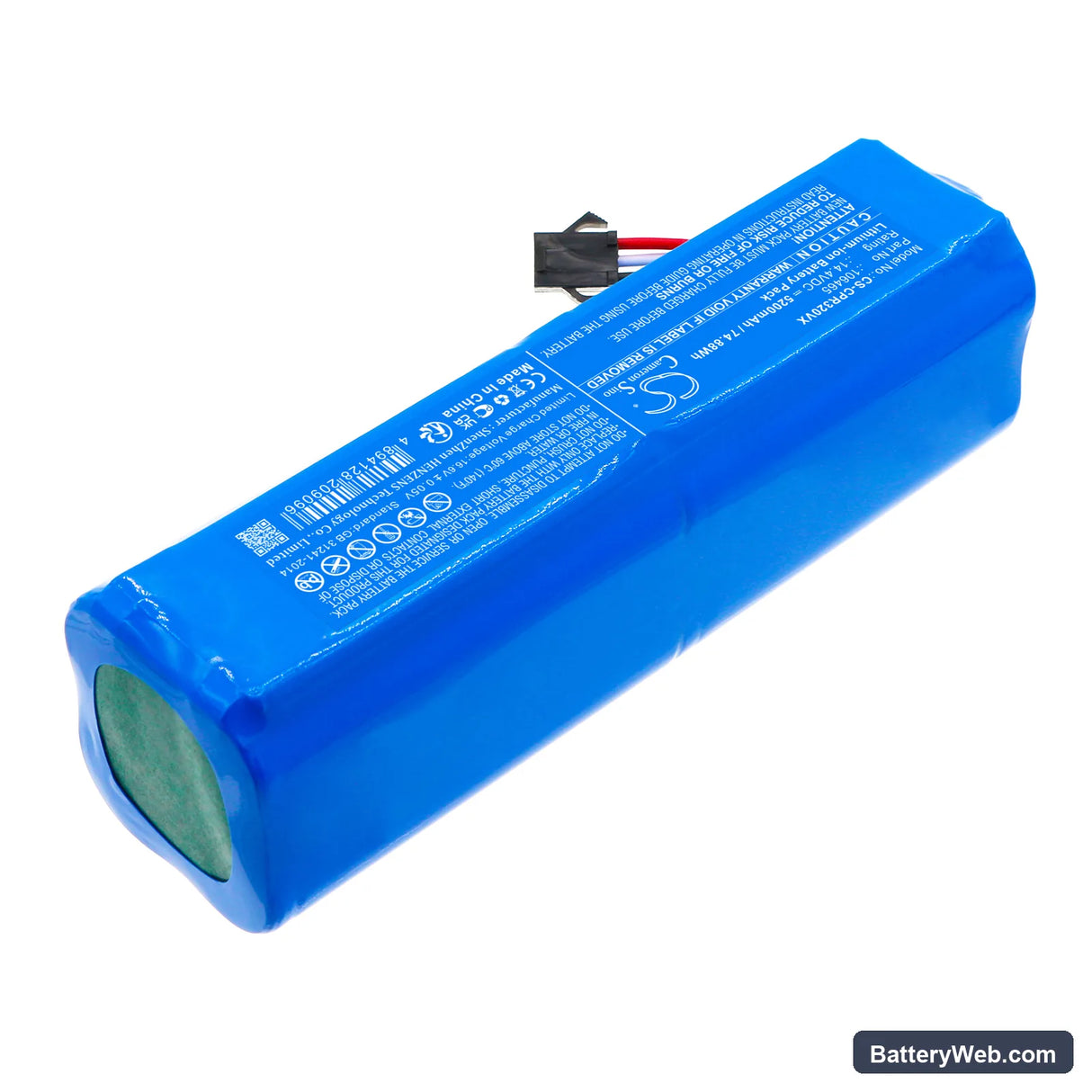

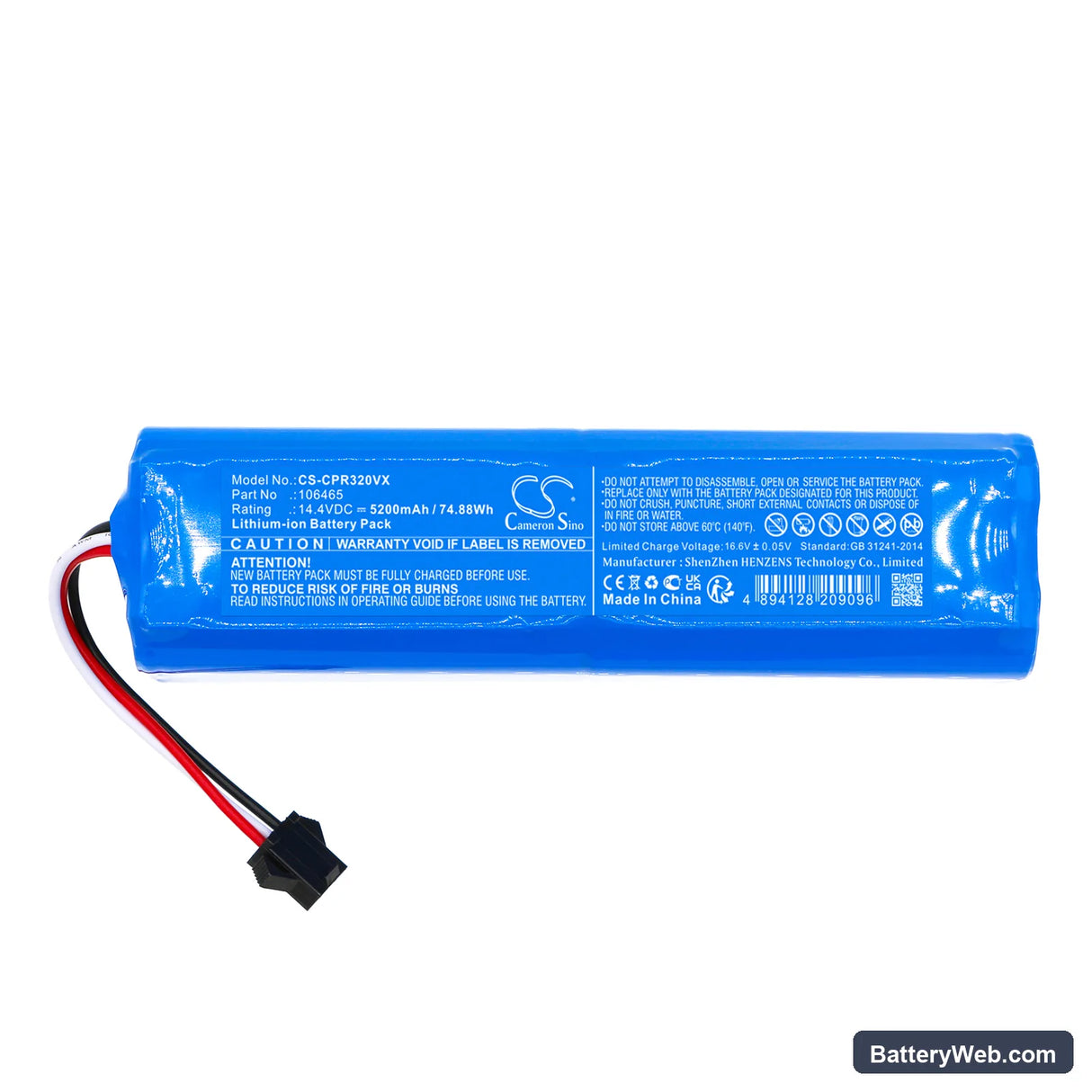

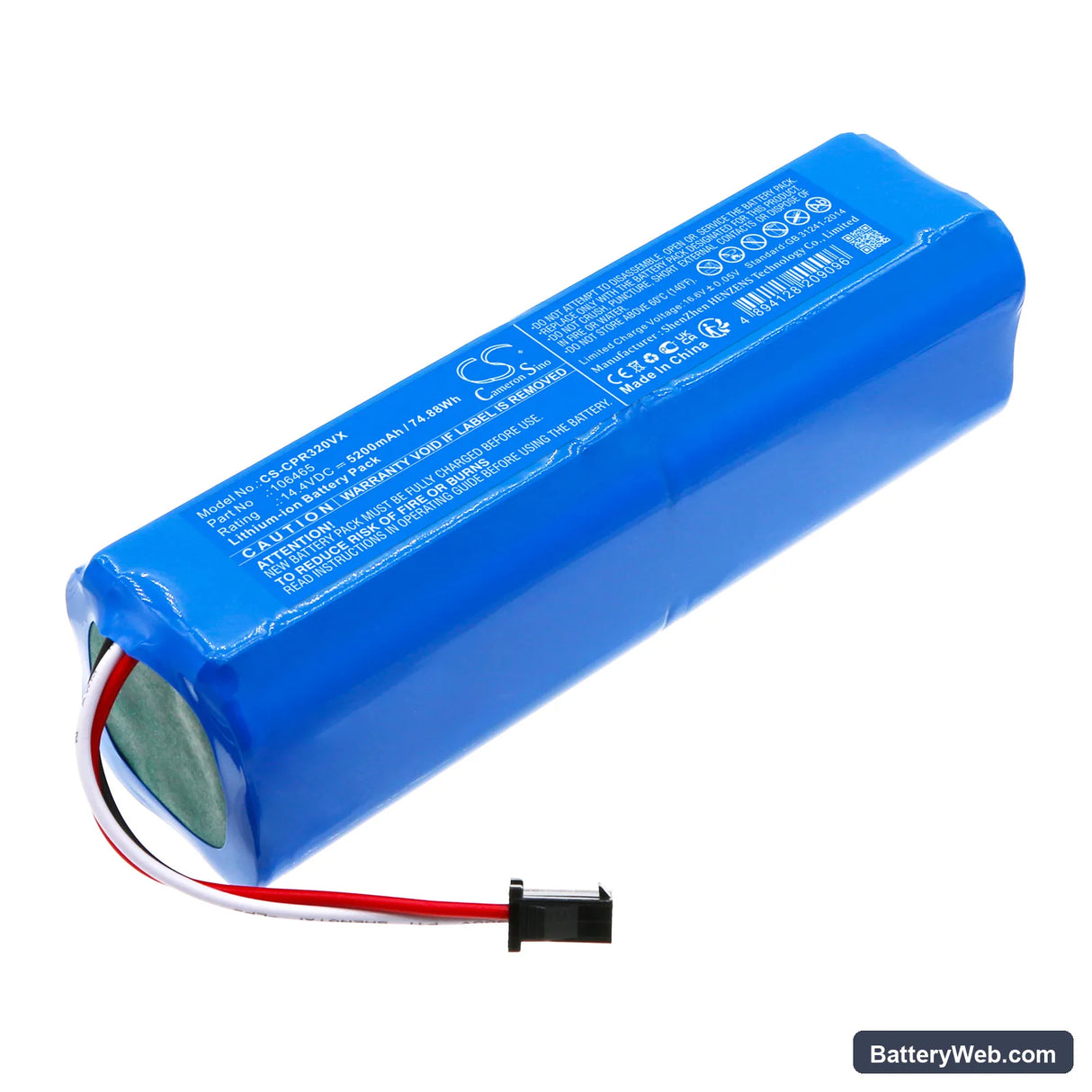

This 14.4V 5200mAh lithium-ion battery replaces the original pack in Concept cordless vacuum cleaners including the VR3120, VR3210, VR3520, and VR3125. It fits the same connector and communicates with the same BMS handshake as the factory cell. When the original pack no longer holds enough charge to complete a cleaning session, this is the direct swap.

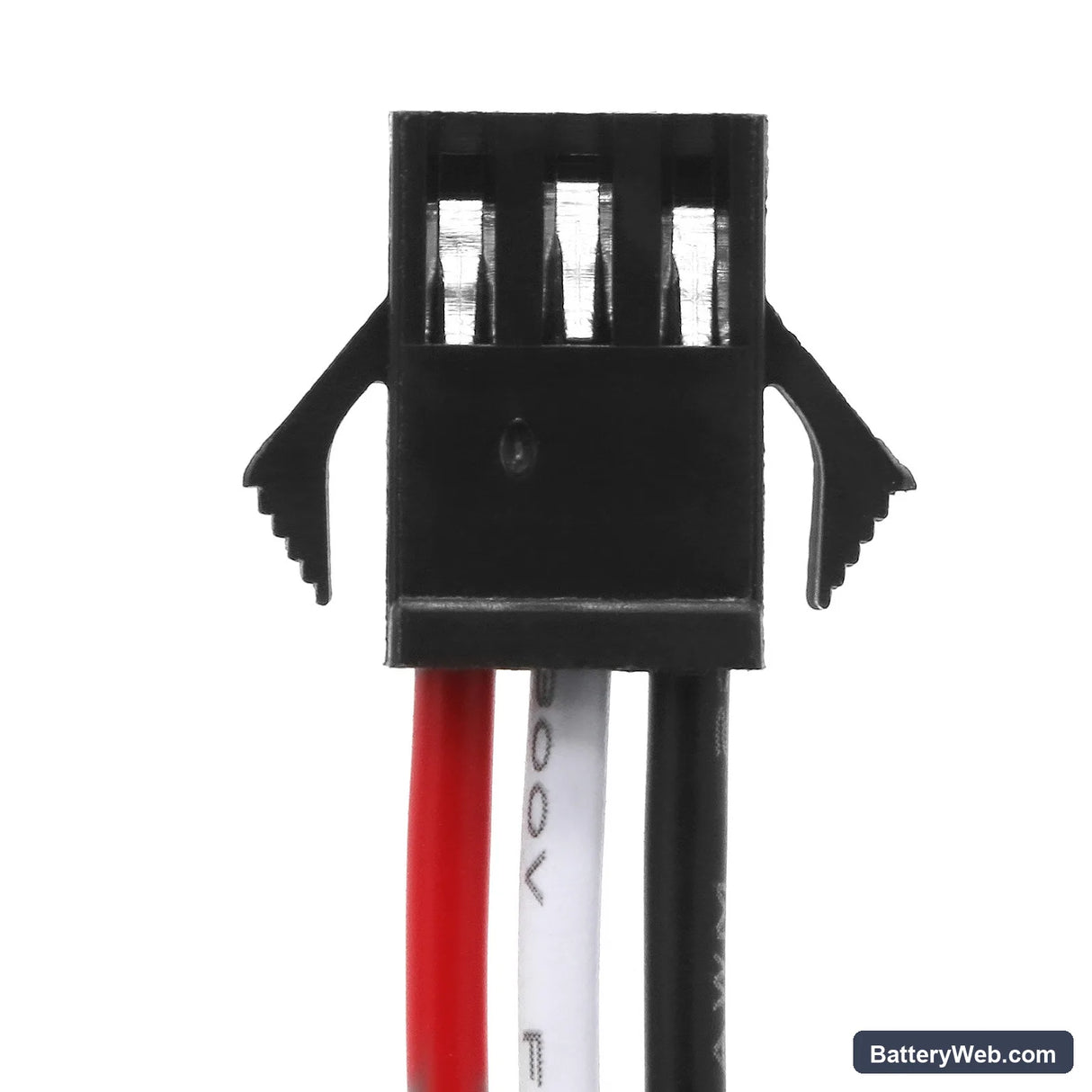

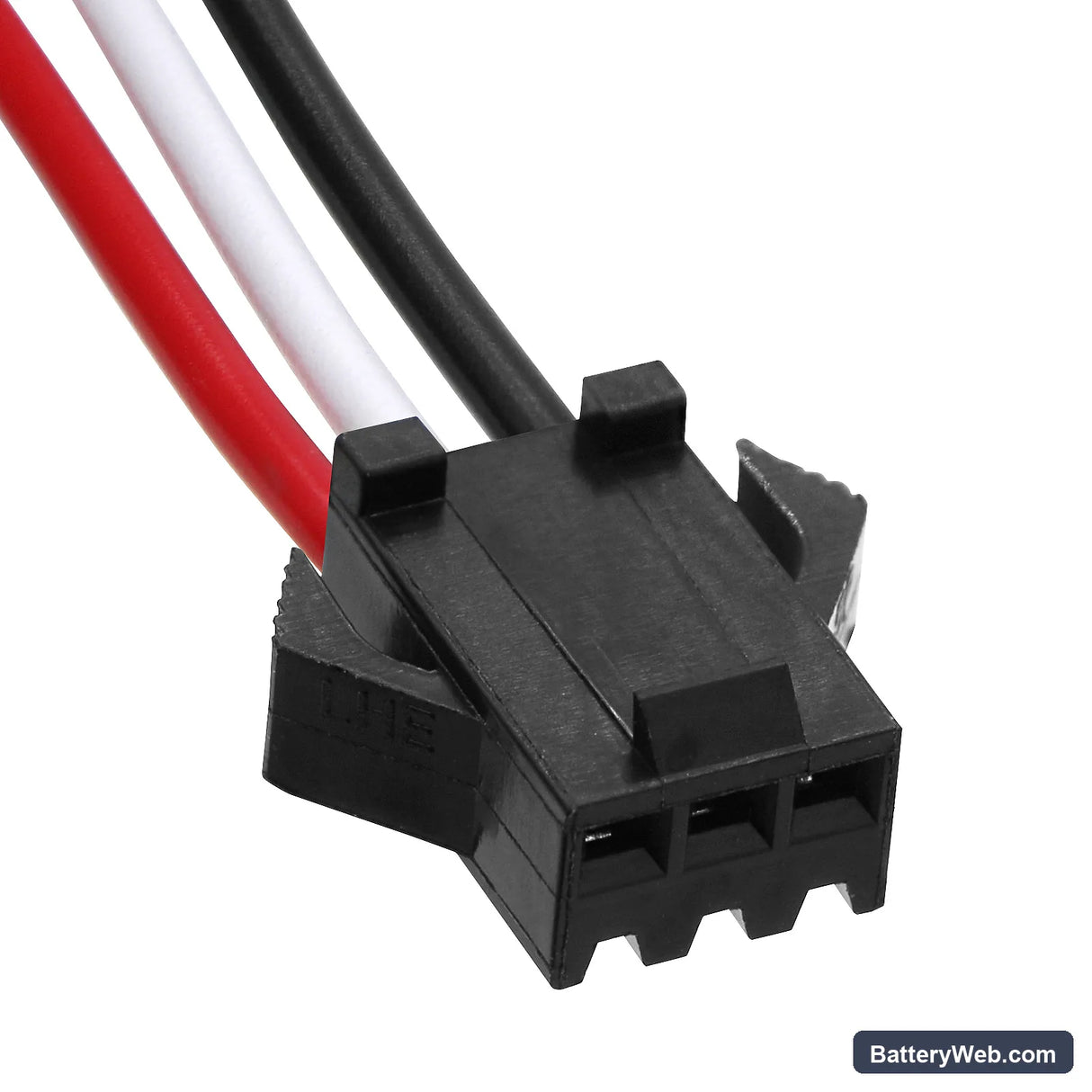

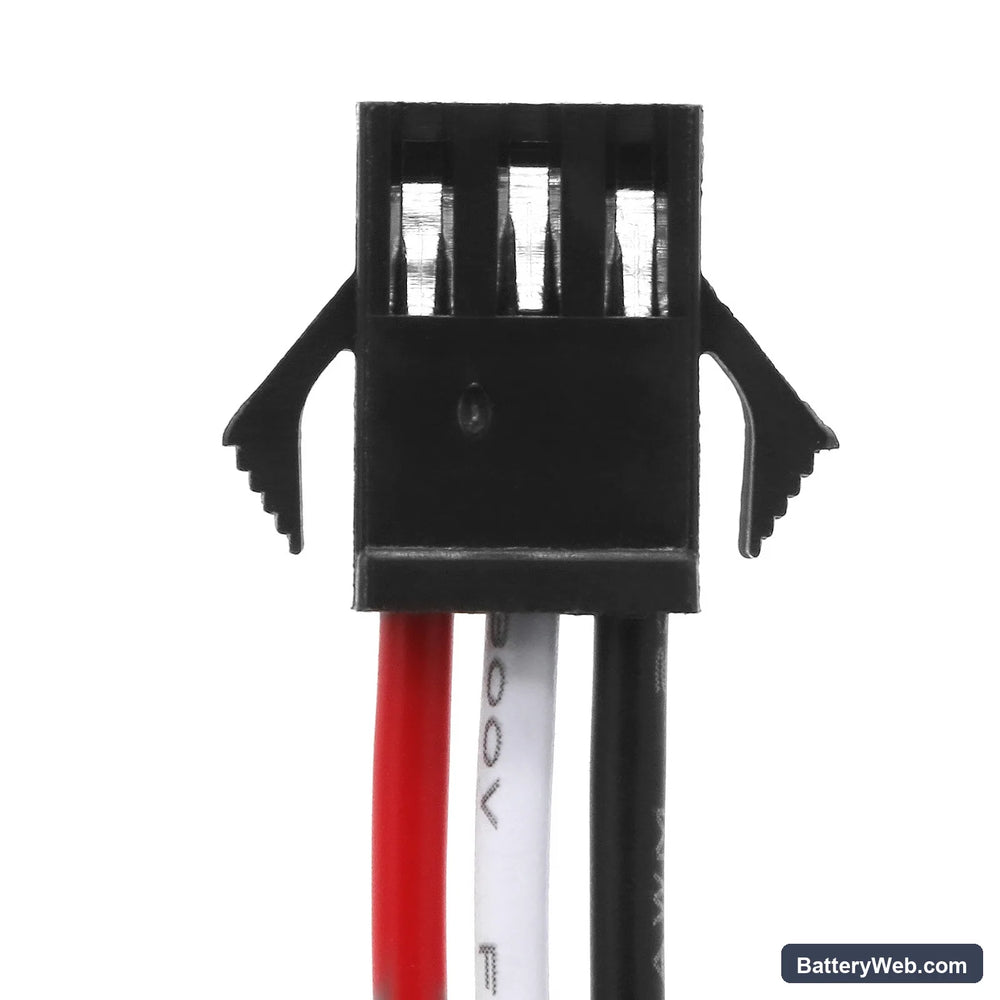

• VR3120 / VR3210 / VR3520 / VR3125 platform fit: These models share a 14.4V architecture with the same battery bay geometry, connector pinout, and BMS communication protocol — one cell services all of them without adapter or modification.
• Bench tested on actual hardware: We ran this cell on the VR3120 motor circuit and confirmed the BMS delivers stable voltage through sustained suction cycles. The overcurrent protection tripped correctly when airflow was restricted, then reset cleanly once the blockage was cleared.
• Dock charging discipline on these vacuums: Do not leave the Concept vacuum sitting on the charging dock indefinitely. The dock does not cut trickle charge once full, and continuous low-level current accelerates capacity fade in the cell stack. Charge to full, then remove from the dock.

Suction dropping before the battery indicator reaches low on the VR3120

This happens when the motor draws more current than the BMS expects — usually because a partially blocked filter forces the motor to work harder. The BMS reads the voltage sag from that extra draw as a low-battery condition and begins throttling output before the pack is actually depleted. Clean or replace the filter first. If suction restores immediately, the battery was fine — the filter was the load source. If suction still drops with a clean filter, the cell stack itself has degraded and capacity has dropped below usable threshold.

Motor cuts out mid-session and then recovers after a short pause

This is a BMS overcurrent trip, not a dead battery. When sustained suction restriction — a blocked filter, a jammed brush roll, or a pinched hose — forces the motor to pull past the BMS current ceiling, the protection circuit cuts power to prevent cell damage. The pack recovers once temperature drops and the BMS resets. Clear the restriction completely before restarting. If trips continue with no visible blockage, measure pack voltage at rest — a healthy 14.4V cell should read between 15.8V and 16.8V fully charged.
